Signal cables

Заказные данные
(21)

MOTION‑CONNECT DRIVE‑CLiQ signal cable with IP20/IP67 connector

Signal cables are required for the DRIVE‑CLiQ connection between different components. Signal cables are pre-assembled and are sold by the meter. The following signal cables are available:

DRIVE‑CLiQ signal cables
MOTION-CONNECT DRIVE-CLiQ signal cables
MOTION‑CONNECT pre-assembled signal cables

Type of delivery for pre-assembled signal cables

Pre-assembled signal cables are available in units of 10 cm.

The cables are supplied on reels up to 30 kg or 100 m. Above 30 kg or 100 m, cable drums are used instead of reels.

Область применения

DRIVE‑CLiQ signal cables

are used to connect components with DRIVE‑CLiQ connections which have a separate or external 24 V DC power supply.

MOTION‑CONNECT DRIVE‑CLiQ signal cables

are used whenever components with DRIVE‑CLiQ connections must meet high requirements such as mechanical stress and oil resistance, e.g. when connections are made outside the cabinet between

Motor Modules and Sensor Modules
Motor Modules and motors with DRIVE‑CLiQ interface
Motor Modules and direct measuring systems with DRIVE‑CLiQ interface (incl. non-Siemens measuring systems)

MOTION‑CONNECT DRIVE‑CLiQ signal cables have 24 V DC cores.

MOTION-CONNECT pre-assembled signal cables

are used whenever motor encoders on motors without DRIVE‑CLiQ interface are connected to Sensor Modules.

Note:

All 6FX.002-2C... signal cables are also available with crimped contacts and connector housing supplied as a separate accessory.

Signal cables with motor-side connector housing supplied as a separate accessory. In this case, the 6th position of the Article No. must be changed from 0 to 4:
6FX.042-2C...-....
Signal cables with module-side connector housing supplied as a separate accessory. In this case, the 6th position of the Article No. must be changed from 0 to 1:
6FX.012-2C...-....

Once the contacts have latched into the insulator, they can no longer be removed.

Интеграция

Connection overview for the CU320-2 Control Unit

Connection overview for the SINAMICS S120 CU320-2 Control Unit

Connection overview for Line Modules and Motor Modules

The DRIVE‑CLiQ type 6SL3060-4A..0-0AA0 cables for the standard configuration are part of the scope of supply of the Line Modules and Motor Modules. In this case, the modules must be mounted directly adjacent in a line.

Connection overview for chassis type Line Modules and Motor Modules

Connection overview for Power Modules

A DRIVE‑CLiQ cable of type 6SL3060-4A..0-0AA0 for connection to the chassis-mounted CU310-2 Control Unit is already included in the scope of supply.

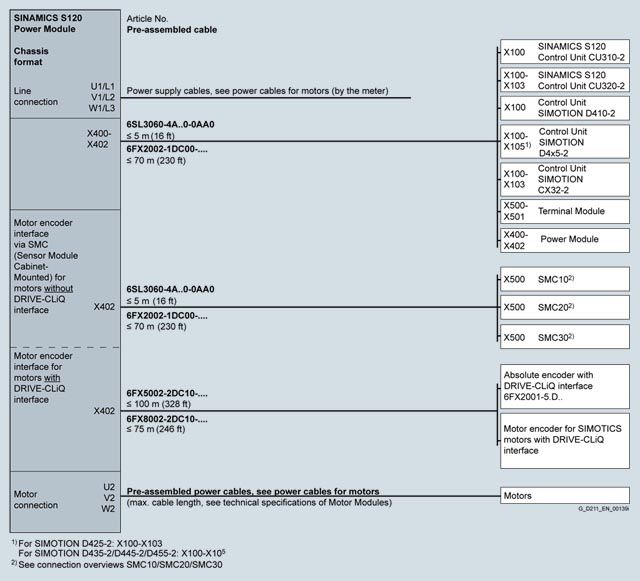

Connection overview for Power Modules of chassis format

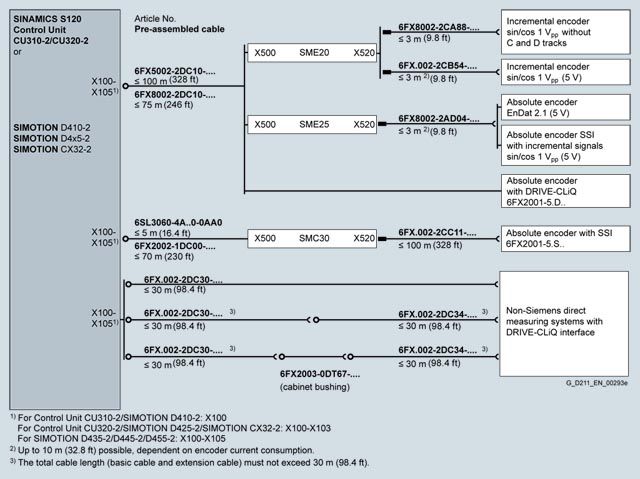

Connection of a machine encoder (direct measuring system)

Технические данные

Signal cables	MOTION‑CONNECT 500	MOTION‑CONNECT 800PLUS
	6FX500.‑.....‑....	6FX800.‑.....‑....
Approvals, according to
cURus or UR/CSA	UL758‑CSA‑C22.2‑N.210.2‑M90	UL758‑CSA‑C22.2‑N.210.2‑M90
UR‑CSA File No.¹⁾	Yes	Yes
RoHS conformity	Yes	Yes
Rated voltage according to EN 50395	30 V	30 V
Test voltage, rms	500 V	500 V
Operating temperature on the surface
Permanently installed	-20 ... +80 °C	-50 ... +80 °C
Flexible installation	0 ... 60 °C	-20 ... +60 °C
Tensile stress, max.
Permanently installed	50 N/mm²	50 N/mm²
Flexible installation	20 N/mm²	20 N/mm²
Smallest bending radius
Permanently installed	60 mm	4 × D_max
Flexible installation	100 mm	70 mm
Torsional stress	Absolute 30°/m	Absolute 30°/m
Bending operations	2 million	10 million
Traversing speed	180 m/min	Up to 300 m/min
Acceleration	5 m/s²	Up to 50 m/s²
Insulation material, incl. jacket	CFC/silicone-free	CFC/halogen/silicone-free IEC 60754‑1/DIN VDE 0472‑815
Oil resistance	EN 60811‑2‑1 (mineral oil only)	EN 60811‑2‑1
Jacket	PVC DESINA color green RAL 6018	PUR, HD22.10 S2 (VDE 0282, Part 10) DESINA color green RAL 6018
Flame-retardant	EN 60332‑1‑1 to 1‑3	EN 60332‑1‑1 to 1‑3

¹⁾ The File No. is printed on the cable jacket.

Degree of protection of the pre-assembled signal cables and their extensions when closed and inserted: IP67.

DRIVE‑CLiQ signal cables	DRIVE‑CLiQ	DRIVE‑CLiQ MOTION-CONNECT 500	DRIVE‑CLiQ MOTION-CONNECT 800PLUS
	6FX2...-1DC..-....	6FX5...-.DC..-....	6FX8...-.DC..-....
Approvals, according to
cURus or UR/CSA	UL STYLE 2502/CSA-N.210.2-M90	UL STYLE 2502/CSA-N.210.2-M90	UL STYLE 2502/CSA-N.210.2-M90
UR-CSA File No.¹⁾	Yes	Yes	Yes
RoHS conformity	Yes	Yes	Yes
Rated voltage according to EN 50395	30 V	30 V	30 V
Test voltage, rms	500 V	500 V	500 V
Operating temperature on the surface
Permanently installed	-20 ... +80 °C	-20 ... +80 °C	-50 ... +80 °C
Flexible installation	–	0 ... 60 °C	-20 ... +60 °C
Tensile stress, max.
Permanently installed	45 N/mm²	80 N/mm²	50 N/mm²
Flexible installation	–	30 N/mm²	20 N/mm²
Smallest bending radius
Permanently installed	50 mm	35 mm	35 mm
Flexible installation	–	125 mm	75 mm
Torsional stress	–	Absolute 30°/m	Absolute 30°/m
Bending operations	–	100000	10 million
Traversing speed	–	30 m/min	30 m/min
Acceleration	–	2 m/s²	Up to 50 m/s²
Insulation material, incl. jacket	CFC/silicone-free	CFC/silicone-free	CFC/halogen/silicone-free IEC 60754‑1/DIN VDE 0472‑815
Oil resistance	EN 60811‑2‑1	EN 60811‑2‑1 (mineral oil only)	EN 60811‑2‑1
Jacket	PVC	PVC	PUR, HD22.10 S2 (VDE 0282, Part 10)
Jacket	Gray RAL 7032	DESINA color green RAL 6018	DESINA color green RAL 6018
Flame-retardant	EN 60332‑1‑1 to 1‑3	EN 60332‑1‑1 to 1‑3	EN 60332‑1‑1 to 1‑3
