  TM150 Terminal Module

  The TM150 Terminal Module is a DRIVE-CLiQ component for temperature evaluation. The temperature is measured in a temperature range from -99 °C to +250 °C (-146 °F to +250 °F) for the following temperature sensors:

  • Pt100 (with monitoring for open-circuit and short-circuit)
  • Pt1000 (with monitoring for wire breakage and short-circuit, can be used from firmware V4.7 HF17)
  • KTY84 (with monitoring for open-circuit and short-circuit)
  • PTC (with short-circuit monitoring)
  • Bimetallic NC contact (without monitoring)

  For the temperature sensor inputs, for each terminal block the evaluation can be parameterized for 1×2-wire, 2×2-wire, 3-wire or 4-wire. There is no galvanic isolation in the TM150 Terminal Module.

  The temperature channels of a TM150 can be subdivided into 3 groups and evaluated together.

  Дизайн

  The following are located on the TM150 Terminal Module:

  • 6 ... 12 temperature sensor inputs
  • 2 DRIVE-CLiQ sockets
  • 1 connection for the electronics power supply via the 24 V DC supply connector
  • 1 PE/protective conductor connection

  The status of the TM150 Terminal Module is indicated via a multi-color LED.

  The TM150 Terminal Module can be snapped onto a TH 35 standard mounting rail in accordance with EN 60715 (IEC 60715).

  Интеграция

  The TM150 Terminal Module can communicate via DRIVE‑CLiQ with the following Control Units.

  • CU310‑2 Control Unit
  • CU320‑2 Control Unit
  • SINAMICS DCM Advanced CUD

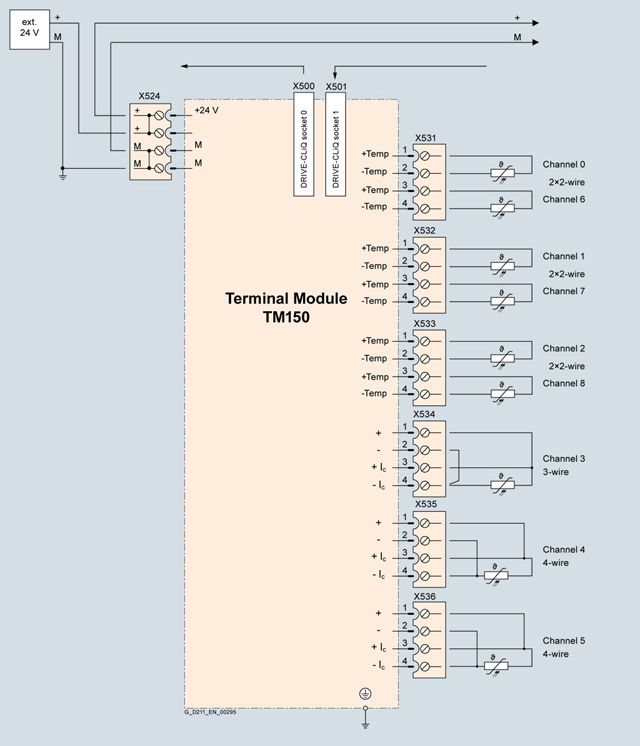

  Connection example of TM150 Terminal Module

  Технические данные

  	TM150 Terminal Module 6SL3055-0AA00-3LA0
  Current requirement, max. at 24 V DC	0.5 A
  Conductor cross section, max.	2.5 mm2
  Fuse protection, max.	20 A
  Temperature sensor inputs The inputs can be parameterized individually for the evaluation of sensors
  Conductor cross section, max.	1.5 mm2
  Measuring current per sensor, approx.	0.8 mA
  Power loss	1.6 W
  PE connection	M4 screw
  Dimensions
  Width	30 mm (1.18 in)
  Height	150 mm (5.91 in)
  Depth	111 mm (4.37 in)
  Weight, approx.	0.41 kg (0.90 lb)
