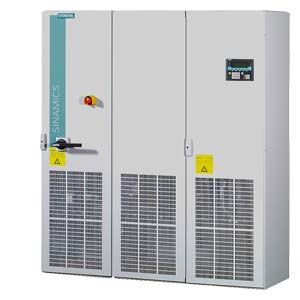

SINAMICS S150 converter cabinet units

• Информационные материалы

  Информационные материалы



  SINAMICS S150 converter cabinet units are particularly suitable for all variable-speed single-axis drives with high performance requirements, i.e. drives with:

  • High dynamic requirements
  • Frequent braking cycles and high braking energy levels
  • Four-quadrant operation

  SINAMICS S150 offers high-performance speed control with excellent accuracy and a high dynamic response.

  The following voltages and power ratings are available:

  Line voltage	Type rating
  380 ... 480 V 3 AC	110 ... 800 kW
  500 ... 690 V 3 AC	75 ... 1200 kW





  Degrees of protection are IP20 (standard) and optionally IP21, IP23, IP43 and IP54.

  Line and motor-side components as well as additional monitoring devices can be installed in the converter cabinet units.

  A wide range of electrical and mechanical components enable the drive system to be optimized individually to suit customer requirements.
