Orifice plates with annular chambers

• Заказные данные
  (1)
• Информационные материалы

  Область применения

  Suitable for non-corrosive and corrosive gases, vapors and liquids; permissible operating temperature -10 to +400°C.

  Дизайн

  • Two support rings with replaceable orifice disk form A, B or D (see types of primary differential pressure devices in "Technical description", "Function"); see Ordering data for materials
  • Graphite gasket with noncorrosive metal foil insert between orifice disk and support ring outlet

  Overall length

  65 mm to DIN 19205

  Nominal diameters

  EN: DN 50 to DN 1000

  ASME: 2 inch to 40 inch

  Nominal pressure

  EN: PN 6 to PN 100

  ASME: class 150 to 600

  Sealing face to the mating flanges

  • Plane, sealing face turned, N10/N12 to DIN ISO 1302
  • Plane, sealing face turned, N8 to DIN ISO 1302
  • Plane, RF (raised faced) for version to ASME

  Tapping sockets

  For the dimensions of the following tapping sockets, see "Function":

  • With connection thread G½ DIN ISO 228/1, connection dimensions to DIN 19207 form V
  • With threaded connection ½-14 NPT male, for version to ASME
  • With Ø 12 mm pipe connection for pipe union with ferrule
  • With welding connection Ø 21.3 mm

  See "Technical description" and "Function" for position of the tapping sockets.

  Чертеж

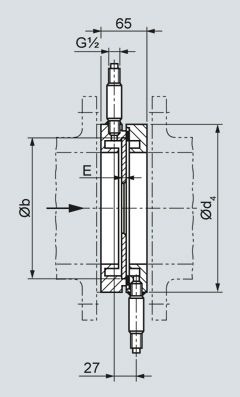

  Orifice plate with annular chamber (above); tapping socket with threaded connection (below), dimensions in mm



  Tapping socket: Socket length is fixed in accordance with the pressure and nominal diameter (DIN 19 205, Part 2).

  - Threaded connections of tapping sockets for liquids and gases up to PN 160, for steam up to PN 100, dimensions in mm

  Versions for steam lines: See "Technical description", "Function" for position of the tapping sockets.

  DN	Inside diameter	External diameter d4 / sealing face: plane, with recess or with groove.
  		PN 6	PN 10	PN 16	PN 25	PN 40	PN 63	PN 100
  50	43 ... 55	96	107	107	107	107	113	119
  65	59 ... 71	116	127	127	127	127	138	144
  80	73 ...  85	132	142	142	142	142	148	154
  100	90 ...  108	152	162	162	168	168	174	180
  125	114 ... 132	182	192	192	194	194	210	217
  150	142 ... 160	207	218	218	224	224	247	257
  200	185 ... 211	262	273	273	284	290	309	324
  250	237 ... 262	317	328	329	340	352	364	391
  300	285 ... 314	373	378	384	400	417	424	458
  350	328 ... 362	423	438	444	457	474	486	512
  400	380 ... 408	473	489	495	514	546	543	–
  500	477 ... 514	578	594	617	624	628	–	–
  600	581 ... 610	679	695	734	731	–	–	–
  700	686 ... 710	784	810	804	833	–	–	–
  800	776 ... 810	890	917	911	942	–	–	–
  900	876 ... 910	990	1017	1011	1042	–	–	–
  1000	976 ... 1010	1090	1124	1128	1154	–	–	–





  Orifice plates with annular chambers for installation between EN flanges to EN 1092-1, dimensions in mm and weights

  DN	L				E	Weight (approx. in kg)
  	PN 6	PN 10 ... PN  25	PN 40	PN 63 ... PN  100	PN 6 ... PN  100	With smallest nominal pressure	With largest nominal pressure
  50	79	79	79	79	2 ± 0.2	2,5	4.5
  65	96	96	96	96	2 ± 0.2	3.4	6.4
  80	115	115	115	115	4 ± 0.2	4.3	6.9
  100	137	137	137	137	4 ± 0.25	4.7	8.6
  125	164	164	164	164	4 ± 0.25	6.3	12.4
  150	193	193	193	193	4 ± 0.29	7.0	17.0
  200	247	247	247	247	4 ± 0.29	10.3	26.2
  250	302	302	302	302	4 ± 0.32	13.1	36.6
  300	354	354	354	354	4 ± 0.36	17.3	49.0
  350	403	403	403	403	4 ± 0.4	25.0	63.0
  400	452	452	452	452	4 ± 0.4	28.0	73.8
  500	553	563	563	–	6 ± 0.4	36.2	65.9
  600	659	659	–	–	6 ± 0.4	42.5	75.6
  700	757	762	–	–	8 ± 0.4	51.8	89.5
  800	869	875	–	–	8 ± 0.4	61.7	109
  900	969	975	–	–	8 ± 0.4	68.3	123
  1000	1071	1079	–	–	10 ± 0.4	74.0	148





  Orifice plates with annular chambers for installation between EN flanges to EN 1092-1, dimensions in mm and weights (contd.)

  ASME	External diameter d4 / sealing face: Plane, RF (raised faced)			L			E	Weight (approx. in kg)
  	Class 150	Class 300	Class 600	Class 150	Class 300	Class 600	Class 150 ... 600	With smallest nominal pressure	With largest nominal pressure
  2 inch	105	111	111	79	79	79	2±0.2	2.5	4.5
  2½ inch	124	130	130	96	96	96	2±0.2	3.4	6.4
  3 inch	137	149	149	115	115	115	4±0.2	4.3	6.9
  4 inch	175	181	194	137	137	137	4±0.2	4.7	8.6
  5 inch	197	216	241	164	164	164	4±0.25	6.3	12.4
  6 inch	222	251	267	193	193	193	4±0.29	7.0	17.0
  8 inch	279	308	321	247	247	247	4±0.29	10.3	26.2
  10 inch	340	362	400	302	302	302	4±0.32	13.1	36.6
  12 inch	410	422	457	354	354	354	4±0.36	17.3	49.0
  14 inch	451	486	492	403	403	403	4±0.4	25.0	63.0
  16 inch	514	540	565	452	452	452	4±0.4	28.0	73.8
  20 inch	549	597	613	553	563	563	6±0.4	36.2	65.9
  24 inch	717	775	790	659	659	–	6±0.4	42.5	75.6





  Orifice plates with annular chambers for installation between ASME flanges to ASME B16.5, dimensions in mm and weights
