SIPLUS HCS300I heating controllers

SIPLUS HCS300I is an industrial heating controller which drives resistive loads via solid-state relays (SSR) or contactors. SIPLUS HCS300I was developed on the basis of the SIMOCODE system.

Область применения

SIPLUS HCS300I is an industrial heating controller, e.g. for extruders and injection molding machines.

Дизайн

SIPLUS HCS300I can be adapted to your special application by using various modules:

The basic unit handles the central functions and communicates with the higher-level automation system.
Digital modules expand the SIPLUS HCS300I by additional digital outputs via which solid-state relays (SSR) or contactors are switched.
Temperature modules process analog temperature values supplied by the temperature sensors of your plant.
The current measuring module measures the load currents, the voltage/current measuring module measures the load currents and the voltages of the heating or cooling devices, and delivers the values to the basic unit.

SIPLUS HCS300I is snap-mounted on a TH 35 DIN rail compliant with IEC 60715 or screw-mounted with additional push-in lugs.

If your application requires more than 16 temperature measuring channels or 24 digital outputs, a second SIPLUS HCS300I basic unit can be connected to the higher-level automation system. A further 16 temperature measuring channels or 24 digital outputs are therefore available.

Интеграция

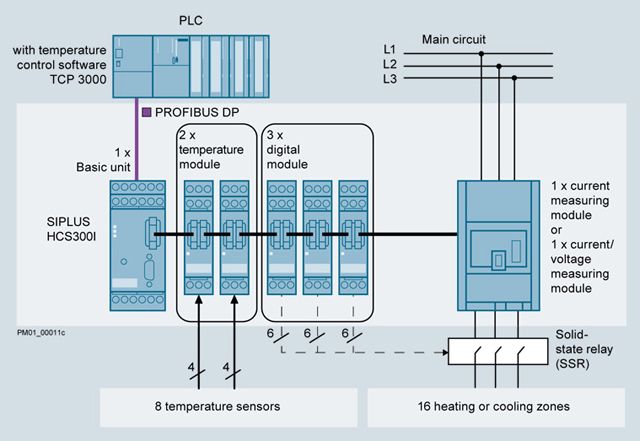

Application example SIPLUS HCS300I

Особенности

Simple control of SIRIUS solid-state relays (SSR) via precut/preassembled cables
Minimized cabling outlay thanks to distributed application
User-friendly TCP 3000 control software available

Технические данные

Order number		6BK1700-3BA20-0AA0	6BK1700-2BA80-0AA0	6BK1700-4BA60-0AA0	6BK1700-3BA30-0AA0	6BK1700-3BA40-0AA0	6BK1700-3BA50-0AA0	6BK1700-3BA60-0AA0	6BK1700-3BA70-0AA0	6BK1700-3BA80-0AA0	6BK1700-4BA40-0AA0
Product designation		-			HCS300I current detection module 2.4-25A	HCS300I current detection module 10-100A	HCS300I current detection module 20-200A	HCS300I I/U detection module I=2.4-25A	HCS300I I/U detection module I=10-100A	HCS300I I/U detection module I=20-200A	HCS300I decoupling module
Certificates/ approvals:
Certificate of suitability		CE, cULus, C-Tick (RCM)
Supply voltage:
Supply voltage at AC rated value	V	-
Relative negative tolerance of the supply voltage	%	15	-
Relative positive tolerance of the supply voltage	%	20	-
Supply voltage frequency
● 1 rated value	Hz	-
● 2 rated value	Hz	-
Relative symmetrical tolerance of the supply voltage frequency	%	-
Communication:
Design of the interface		PROFIBUS DP	system interface
Installation/ mounting/ dimensions:
Mounting position		any
Mounting type		Snap-mounting on a TH 35 mm standard rail compliant with IEC 60715 or screw-mounted using additional push-in lug
Type of ventilation		-
Shock resistance acc. to IEC 60068-2-27		15g / 11 ms
Vibration resistance
● during operation acc. to IEC 60068-2-6		5 ... 500 Hz, 3.5 mm amplitude, 1 g, 10 cycles, 1 octave/min
● during storage acc. to IEC 60068-2-6		-
Protection class IP		IP20
Width	mm	45	22.5		45	55	120	45	55	120	22.5
Height	mm	106	92	102	84	94	95	85	94	95	92
Depth	mm	115			45	72	145	71	97	145	115
Electromagnetic compatibility:
Conducted interference due to burst acc. to IEC 61000-4-4		2 kV power supply lines / 1 kV signal lines
Conducted interference due to surge acc. to IEC 61000-4-5		on supply cables: 1 kV symmetrical, 2 kV asymmetrical; on signal cables > 30 m unshielded: 1 kV symmetrical, 2 kV asymmetrical, > 30 m unshielded: 2 kV asymmetrical	on power supply lines: 1 kV symmetric, 2 kV asymmetric, on signal lines > 30 m unshielded: 1 kV symmetric, 2 kV asymmetric, > 30 m shielded: 2 kV asymmetric	on power supply lines: 1 kV symmetric, 2 kV asymmetric; on signal lines > 30 m unshielded: 1 kV symmetric, 2 kV asymmetric, > 30 m shielded: 2 kV asymmetric
Conducted interference due to high-frequency radiation acc. to IEC 61000-4-6		10 V (0.15 ... 80 MHz)
Electrostatic discharge acc. to IEC 61000-4-2		6 kV contact discharge / 8 kV air discharge
Field-bound parasitic coupling acc. to IEC 61000-4-3		10 V/m (80 ... 1000 MHz), 3 V/m (1.4 ... 2.0 GHz), 1 V/m (2.0 ... 2.7 GHz)
EMC emitted interference		IEC61131: Class A; conducted and radiated: DIN EN 55011/CISPR11 (corresponds to degree of severity A)
Overvoltage category		-			III						-
Ambient conditions:
Ambient temperature
● during operation	°C	-25 ... +60
● during storage	°C	-40 ... +80
● during transport	°C	-40 ... +80
Air pressure
● during operation	hPa	795 ... 1 080
● during storage	hPa	660 ... 1 080
Relative humidity at 25 °C maximum	%	-
Installation altitude at height above sea level maximum	m	2 000

Дальнейшая информация

For further product details, refer to the "SIPLUS HCS300I Heater Control System" System Manual, http://support.automation.siemens.com/WW/view/en/54439691.

For further information, go tohttp://www.siemens.en/siplus-hcs.
