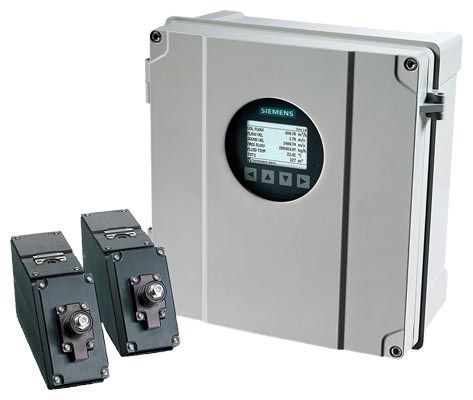

Flowmeter SITRANS FS230

• Информационные материалы

  Информационные материалы



  SITRANS F S clamp-on ultrasonic flowmeters provide highly accurate measurement while minimizing installation time and maintenance expense.

  Область применения

  SITRANS FS230 standard functions are suitable for a wide variety of liquid applications, including the following:

  • Water industry
    • Raw water
    • Potable water
    • Chemicals
  • Wastewater industry
    • Raw sewage
    • Effluent
    • Sludges
    • Mixed liquor
    • Chemicals
  • HVAC industry
    • Condensers
    • Hot & cold water systems
  • Power industry
    • Nuclear
    • Fossil
    • Hydroelectric
  • Processing industry
    • Process control
    • Batching
    • Rate indication
    • Volumetric and mass measurement

  SITRANS FS230 hydrocarbon functions are ideal for applications carrying crude oil, refined petroleum or liquefied gas.

  Standard volume (high end system)

  • Standard (net) volume flow measurement
  • Suitable for use in leak detection systems
  • Mass flow output measurement
  • Chemical and petrochemical processing
  • Precise identification of interfaces on multi-liquid pipelines
  • Product identification
  • Standard density indication
  • Applications with multiple liquids having a wide viscosity range
  • Automatic gross volume compensation due to viscosity

  System information and selection guide

  SITRANS F S Clamp-on meters	FS230 (Standard)	FS230 (Hydrocarbon)
  Industry/Applications
  Water and aqueous solutions	X
  Utility district heating, cooling	X
  Chemical	X
  Hydrocarbons/petrochemical, multiple products or varying viscosity, liquefied gases, net and gross volume		X
  Hydrocarbons (single product with limited viscosity range) gross volume	X	X
  Very low flow (< 0.1 m/s) in small pipes	X
  High temperature applications < 232 °C (450 °F)	X1)
  Refrigeration liquids	X
  Food products	X
  Design
  Field clamp-on (non-intrusive)	X	X
  Standard volume or mass flow; per API MPMS chapter 11.1		X
  Interface detection		X
  Standard density output		X
  Temperature measurement	X	X
  Analog input	X	X
  Large graphical display	X	X
  Configuration and diagnostic software PDM compatible	X	X
  Number of acoustic paths and channels
  1-path	X	X
  2-path	X	X
  Size
  13 ... 9 150 mm (0.5" ... 360.24")	X
  38 ... 9 150 mm (1.5" ... 360.24")		X
  Approvals
  FM /FMc1)	X	X
  ATEX	X	X
  UL/ULc	X	X
  C-TICK	X	X
  1) NEMA 4X associated equiptment in DIV2 connected to DIV1 sensors





  Особенности

  • Easy installation; no need to cut pipe or stop flow
  • Minimal maintenance; external sensors do not require periodic cleaning
  • No moving parts to foul or wear
  • No pressure drop or energy loss
  • Wide turn-down ratio
  • Choice of single and dual path versions to suit your operating conditions and requirements
