SINAMICS V70 spindle drive

Заказные данные
(3)

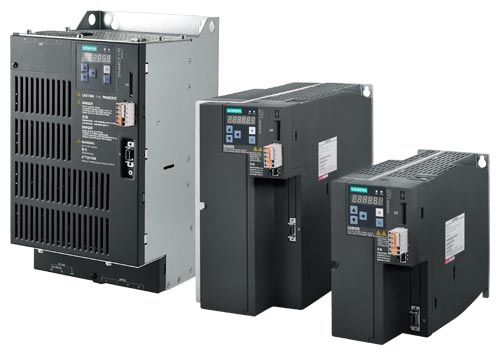

SINAMICS V70 spindle drive, frame sizes FSD/FSC/FSB

The SINAMICS V70 spindle drive controls the spindle in standard machine tool applications. The system is designed essentially for applications where cost effectiveness is the primary consideration. The key performance data of the drive are aligned to perfectly fit to the solution provided by the SINUMERIK 808D ADVANCED.

Функции

Power range from 3.7 kW to 15 kW
Supply voltage 380 V ... 480 V 3 AC
Drive bus communication to the SINUMERIK 808D ADVANCED
Safe Torque Off (STO)

Интеграция

The following components can be connected to the SINAMICS V70 spindle drive:

SINUMERIK 808D ADVANCED T PPU 161.3 horizontal
SINUMERIK 808D ADVANCED T PPU 160.3 vertical
SINUMERIK 808D ADVANCED M PPU 161.3 horizontal
SINUMERIK 808D ADVANCED M PPU 160.3 vertical
SIMOTICS M-1PH1 main motor
Encoder in SIMOTICS M-1PH1 main motor

Чертеж

SINAMICS V70 spindle drive, frame size FSB

SINAMICS V70 spindle drive, frame size FSC

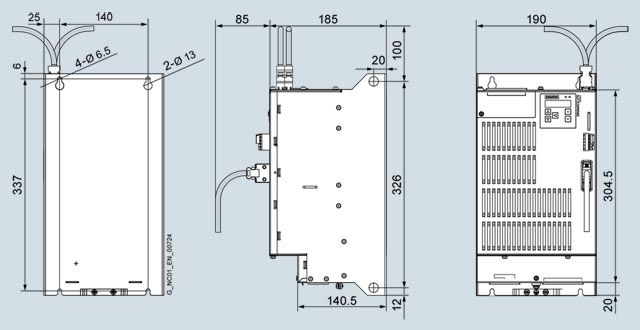

SINAMICS V70 spindle drive, frame size FSD

Особенности

Compact module with integrated infeed, inverter and closed-loop for spindle
Coated electronic modules
Commissioning on CNC directly
Faster commissioning thanks to pre-configured motor data stored in the drive
CE certified

Технические данные

Article No.	6SL3210-5DE21-1UA0	6SL3210-5DE21-3UA0	6SL3210-5DE22-0UA0	6SL3210-5DE23-0UA0	6SL3210-5DE24-0UA0
Product brand name	SINAMICS
Product type designation	V70
Product designation	Spindle drive
Frame size	FSB	FSC		FSD
Rated output current	10.5 A	12.9 A	19.6 A	29.8 A	37.6 A
Max. output current	21 A	24.6 A	39.2 A	59.6 A	75.2 A
Max. supported motor power	3.7 kW	3.7 kW	7.5 kW	11 kW	15 kW
Output frequency	0 Hz to 400 Hz
Power supply
Voltage/frequency	380 V ... 480 V 3 AC, 50/60 Hz
Permissible voltage fluctuation	-15 % ... +10 %
Permissible frequency fluctuation	-10 % ... +10 %
Rated input current	13.2 A	16.2 A	24.5 A	37.3 A	47 A
Power supply capacity	8.7 kVA	10.7 kVA	16.1 kVA	24.5 kVA	30.9 kVA
Inrush current	4 A	2.5 A	2.5 A	2.5 A	2.5 A
24 V DC power supply
Voltage	24 V (-15 % ... +20 %)
Maximum current	3 A
Overload capability	The overload capability is 150 % by default. It can be set up to 200 % via p0640, but the corresponding overload duration might be reduced under the circumstances.
Control system	Servo control
Braking resistor	External
Protective functions	Earthing fault protection Output short-cut protection Overvoltage/undervoltage protection I²t detection IGBT overtemperature protection
Cooling method	Fan-cooled
Degree of protection	IP20
Degree of pollution	Class 2
Operating environment	Indoor (without direct sunlight), free from corrosive gas, combustible gas, oil gas, or dust
Relative humidity, during
storage	90 % (non-condensing)
operation	< 90 % (non-condensing)
Ambient temperature, during
storage	-40 °C ... +70 °C
operation	0 °C ... 45 °C without power derating 45 °C ... 55 °C with power derating
Installation altitude	< 1000 m above sea level (without derating)
Vibration
transport and storage	5 Hz ... 9 Hz: 3.5 mm deflection 9 Hz ... 200 Hz: 1 g vibration Ambient Classification: 1M2
operation	Operational area II/3M2 10 Hz ... 58 Hz: 0.075 mm deflection 58 Hz ... 200 Hz: 1 g vibration
Shock
transport and storage	Covered by vibration test
operation	Operational area: II Ambient classification: 3M2 Peak acceleration: 5 g + 15 g Duration: 30 ms + 11 ms Quantity of shocks: 3 Summed shocks: 18 Cycle time: 1 s
Width	100 mm	140 mm	140 mm	190 mm	190 mm
Height	180 mm	260 mm	260 mm	350 mm	350 mm
Depth	220 mm	240 mm	240 mm	185 mm	185 mm
Net weight	2.35 kg	5.05 kg	5.05 kg	8.05 kg	8.3 kg
Certificate of suitability	CE, EAC, RCM

Дополнительно

A cshiel plate can be ordered as an option for FSD devices.

Description

Article No.

Shield plate

for V70 spindle drive

Frame size FSD

6SL3266-1ED00-0AVA0
