SINAMICS V70 servo drive

• Заказные данные
  (7)
• Аксессуары
  (6)
• Информационные материалы

  Информационные материалы

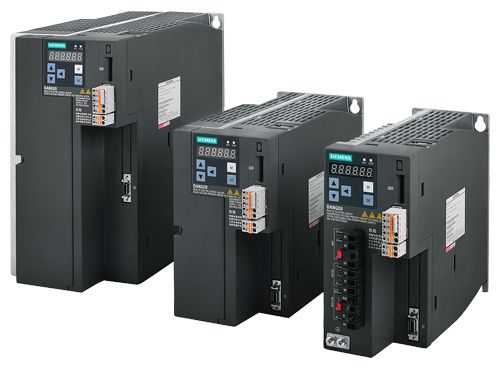

  SINAMICS V70 FSC/FSB/FSA

  The SINAMICS V70 servo drive is specially designed to control the feed axes in standard machine tool applications. The system is designed essentially for applications where cost effectiveness is the primary consideration. The key performance data of the drive are aligned to perfectly fit to the solution provided by the SINUMERIK 808D ADVANCED.

  Функции

  • 7 versions cover power range from 0.4 kW to 7 kW
  • Supply voltage 380 V to 480 V 3 AC
  • 300 % overload capability
  • Drive bus communication to the SINUMERIK 808D ADVANCED
  • Integrated motor brake switch
  • Safe Torque Off (STO)

  Интеграция

  The following components can be connected to the SINAMICS V70:

  • SINUMERIK 808D ADVANCED T PPU 161.3 horizontal
  • SINUMERIK 808D ADVANCED T PPU 160.3 vertical
  • SINUMERIK 808D ADVANCED M PPU 161.3 horizontal
  • SINUMERIK 808D ADVANCED M PPU 160.3 vertical
  • SIMOTICS S-1FL6 feed motor
  • Encoder in SIMOTICS S-1FL6 feed motor
  • Brake in SIMOTICS S-1FL6 feed motor

  Чертеж

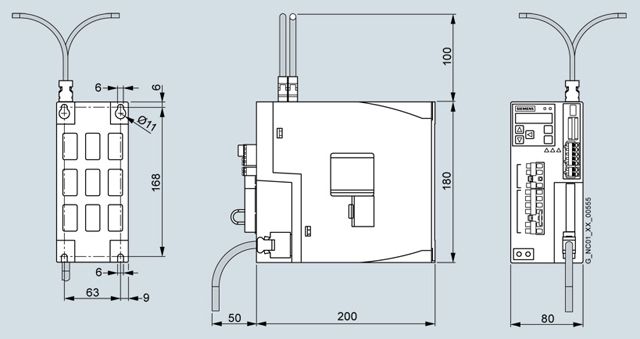

  SINAMICS V70, frame size FSA

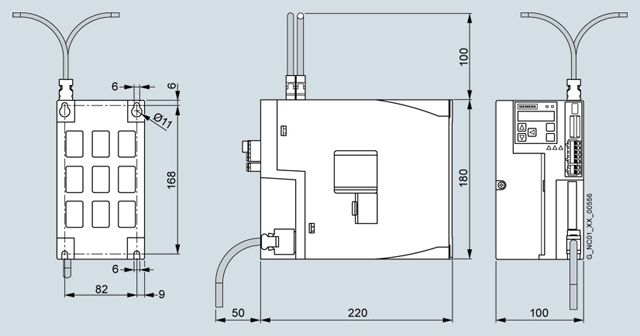

  SINAMICS V70, frame size FSB

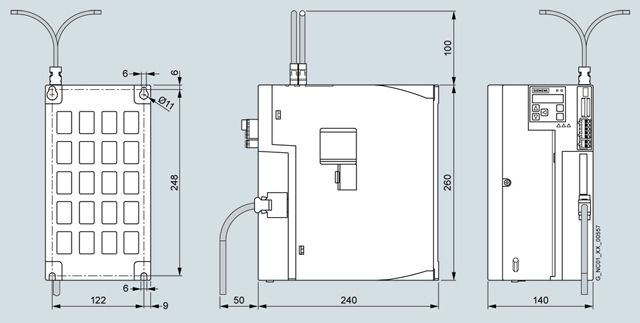

  SINAMICS V70, frame size FSC

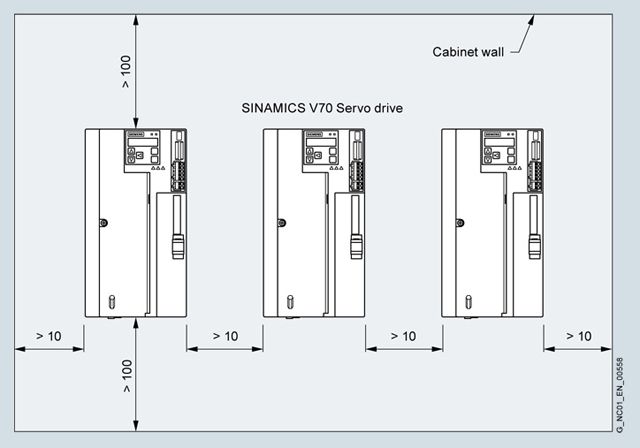

  Mounting clearance

  Особенности

  • Compact module with integrated infeed, inverter and closed-loop position control for one feed axis
  • Coated electronic modules
  • Commissioning on CNC directly
  • Faster commissioning thanks to pre-configured motor data stored in the drive
  • CE certified

  Опции

  With the following line filters, the SINAMICS V70 drives have been tested according to the emission requirements of the category of C2 environment. The conducted emissions and radiated emissions are in compliance with the standard of EN 55011 and reached Class A.

  SINAMICS V70 servo drive		Line filter
  SINAMICS V70			Rated current
  Type 6SL3210-...	Frame size	Article No.
  			A
  5DE12-4UA0	FSA	6SL3203-0BE15-0VA0	5
  5DE13-5UA0	FSA
  5DE16-0UA0	FSB	6SL3203-0BE21-2VA0	12
  5DE17-8UA0	FSB
  5DE21-0UA0	FSB
  5DE21-4UA0	FSC	6SL3203-0BE22-0VA0	20
  5DE21-8UA0	FSC





  Технические данные

  Article No.	6SL3210- 5DE12-4UA0	6SL3210- 5DE13-5UA0	56SL3210- DE16-0UA0	6SL3210- 5DE17-8UA0	6SL3210- 5DE21-0UA0	6SL3210- 5DE21-4UA0	6SL3210- 5DE21-8UA0
  Product name	SINAMICS V70 servo drive
  Frame size	FSA		FSB			FSC
  Input voltage	380 ... 480 V 3 AC -15 %/+10 %
  Input frequency	50 ... 60 Hz ± 10 %
  Infeed	Non-stabilized
  Electronics power supply	24 V DC ± 10 %
  24 V DC supply	2.0 A (4.0 A) combined with motors without brake (with brake)
  Cooling	Natural cooling		Forced ventilation
  Ambient temperature
  Storage/transport	-40  ... +70 °C
  Operation	0  ... 45 °C without derating, > 45 ... 55  °C with derating (derating by 0 % at 45 °C up to 20 % at 55 °C)
  Air humidity
  Storage/transport	90 % (non-condensing)
  Operation	< 90 % (non-condensing)
  Ambient conditions	Indoor (without sunshine), without corrosive gas, combustible gas, oil gas, nor dust
  Installation altitude	Up to 1000 m without derating
  Connectable motors	SIMOTICS S-1FL6
  Degree of protection	IP20
  Encoder evaluation	Absolute encoder 20 bit/Incremental encoder with 2500 S/R (13 bit resolution through electronic multiplication)
  Output current
  Rated current Irated	1.2 A	3.0 A	4.6 A	5.3 A	7.8 A	11.0 A	13.2 A
  Peak current Imax	3.6 A	9.0 A	13.8 A	15.9 A	23.4 A	33.0 A	39.6 A
  Rated output power Prated	0.4 kW	1 kW	1.5 kW	1.75 kW	2.5 kW	3.5 kW	7 kW
  Power loss	36 W	47 W	54 W	70 W	47 W	54 W	70 W
  Cooling air required	0.005 m3/s	0.005 m3/s	0.005 m3/s	0.005 m3/s	0.005 m3/s	0.005 m3/s	0.005 m3/s
  Conductor cross-section, max.	1.5 mm2		2.5 mm2
  Dimensions1)
  Width	80 mm		100 mm			140 mm
  Height	180 mm		180 mm			260 mm
  Depth	200 mm		200 mm			240 mm
  Weight, approx.	1.85 kg		2.45 kg			5.65 kg
  Certification of suitability	CE, EAC





  S/R = Signals/Revolution

  ¹⁾ Minimum distance between drive modules: 10 mm.
