SINUMERIK 808D ADVANCED M

Заказные данные
(13)

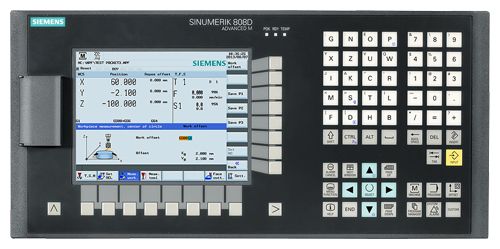

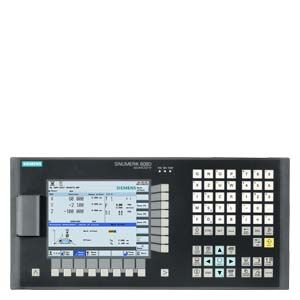

SINUMERIK 808D ADVANCED M PPU 161.3 horizontal

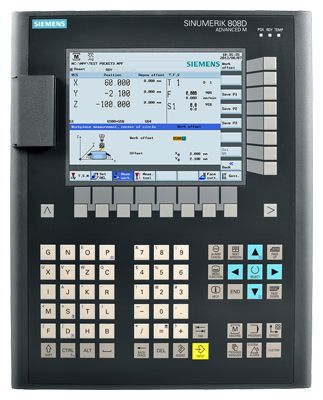

SINUMERIK 808D ADVANCED M PPU 160.3 vertical

The SINUMERIK 808D ADVANCED M is an operator-panel-based CNC, preconfigured for use in modern basic standard milling machines.

Функции

2 operator panel variants for horizontal and vertical operator panel housings
IP65 protection for CNC front panel and machine control panel
Integrated CNC keyboard with mechanical keys
Simplified Chinese or English panel layout
8.4” color LCD display
USB user interface on the operator panel front
Drive bus interface for feed drives and spindle
Analog ±10 V interface for spindle drive
Data buffering without battery
Pre-configured system software for milling technologies
Up to 5 axes/spindles
1 machining channel/mode group
Automatic servo tuning AST
Ethernet interface for commissioning and data transfer
Advanced Surface function
Graphically guided SINUMERIK CNC programming and standard ISO-code programming with canned cycles
Graphical CNC simulation
Integrated contour computer
Integrated PLC based on the SIMATIC S7-200 command set with ladder logic programming
Integrated/distributed PLC I/O concept with 72 digital PLC inputs and 48 digital PLC outputs
CNC options subject to license
Configurable user screens
Machine maintenance tasks are accomplished by integrated service planner.

Интеграция

The following components can be connected to the SINUMERIK 808D ADVANCED M:

Up to 2 electronic handwheels
1 digital tool probe
Up to 72 digital PLC inputs and 48 digital PLC outputs
1 TTL direct spindle encoder
SINUMERIK 808D MCP via USB interface
SINAMICS V70 drive system for feed axes
Spindle drives via ±10 V analog output
PC via Ethernet interface

Чертеж

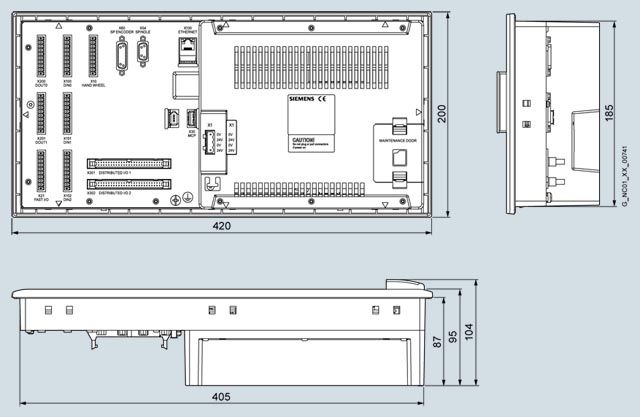

SINUMERIK 808D ADVANCED T/M PPU 161.3 horizontal

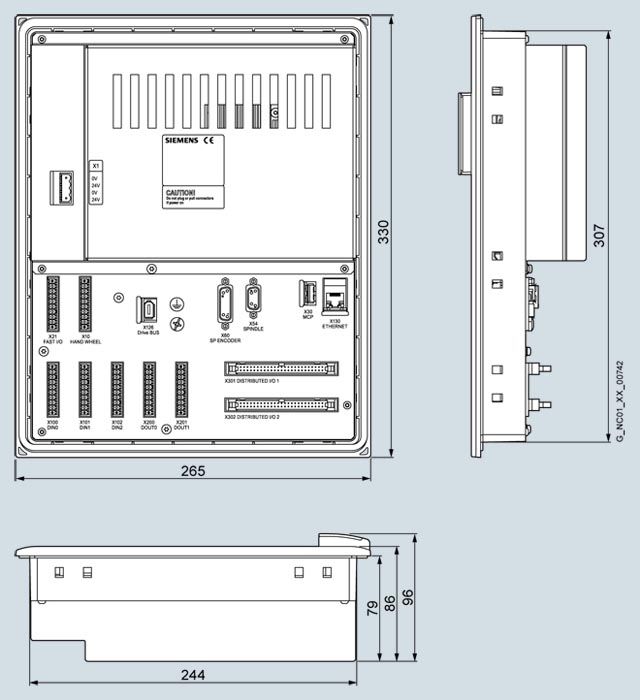

SINUMERIK 808D ADVANCED T/M PPU 160.3 vertikal

Особенности

Compact, rugged, and maintenance-friendly operator-panel CNC with dedicated system software for Milling technologies
Actual position feedback to CNC
Intelligent clamp mounting without drilling holes into the cabinet
Minimum commissioning efforts due to plug and play machine control panel connected via USB interface
Direct commissioning on HMI for feed drives and automatic servo tuning AST
Maximum performance and accuracy due to the Advanced Surface function
SINUMERIK 808D startGUIDE: assists all process steps of the machine - from engineering to production, from sales to operation and programming at the push of a button
SINUMERIK Operate BASIC: maximum operator convenience similar to SINUMERIK 828D and SINUMERIK 840D sl
SINUMERIK programGUIDE BASIC: wide range of technology cycles for milling and drilling with graphical input screens
Advanced Surface: perfectly prepared for mold and die applications
Fast data transmission via USB stick and high speed Ethernet interface
More software options can cover more applications and enhance the machine performance

Опции

Description	Article No.
Additional CNC axis	6FC5800-0AK70-0YB0
Manual Machine plus (MM+)	6FC5800-0AP07-0YB0
TRANSMIT/TRACYL Transformation without Y axis	6FC5800-0AS50-0YB0
Pair of synchronized axes (gantry axes), basic	6FC5800-0AS51-0YB0
Bidirectional leadscrew error compensation	6FC5800-0AM54-0YB0
Contour handwheel	6FC5800-0AM08-0YB0

Технические данные

Order number		6FC5370-2AM02-0AA0	6FC5370-2AM02-0CA0	6FC5370-2BM02-0AA0	6FC5370-2BM02-0CA0
Product brand name		SINUMERIK	SINUMERIK	SINUMERIK	SINUMERIK
Product type designation		808D	808D	808D	808D
Performance class for CNC controllers		ADVANCED M	ADVANCED M	ADVANCED M	ADVANCED M
Product designation		PPU 161.2	PPU 161.2	PPU 160.2	PPU 160.2
Product feature		Horizontal version, English layout	Horizontal version, simplified Chinese layout	Vertical version, English layout	Vertical version, simplified Chinese layout
Design of operator panel		Horizontal	Horizontal	Vertical	Vertical
Mounting position of operating panel		Vertical	Vertical	Vertical	Vertical
Supply voltage at DC	V	24	24	24	24
● Relative negative tolerance at 24 V	%	15	15	15	15
● Relative positive tolerance at 24 V	%	20	20	20	20
Consumed active power maximum	W	50	50	50	50
Buffering time in the event of power failure	ms	3	3	3	3
● Note		20 ms mit SITOP smart power supply	20 ms mit SITOP smart power supply	20 ms mit SITOP smart power supply	20 ms mit SITOP smart power supply
Environmental category acc. to IEC 60721-3-3		Class 3K5 Condensation and icing excluded. Low air temperature 0 °C (32 °F).	Class 3K5 Condensation and icing excluded. Low air temperature 0 °C (32 °F).	Class 3K5 Condensation and icing excluded. Low air temperature 0 °C (32 °F).	Class 3K5 Condensation and icing excluded. Low air temperature 0 °C (32 °F).
Degree of protection
● front		IP65	IP65	IP65	IP65
— Note		With the front flap closed	With the front flap closed	With the front flap closed	With the front flap closed
● rear		IP20	IP20	IP20	IP20
Relative humidity at 25 °C (77 °F), during
● storage	%	5 ... 95	5 ... 95	5 ... 95	5 ... 95
● transport	%	5 ... 95	5 ... 95	5 ... 95	5 ... 95
● operation	%	5 ... 90	5 ... 90	5 ... 90	5 ... 90
Ambient temperature, during
● storage	°C (°F)	-20 ... +60 (-4 ... +140)	-20 ... +60 (-4 ... +140)	-20 ... +60 (-4 ... +140)	-20 ... +60 (-4 ... +140)
● transport	°C (°F)	-20 ... +60 (-4 ... +140)	-20 ... +60 (-4 ... +140)	-20 ... +60 (-4 ... +140)	-20 ... +60 (-4 ... +140)
● operation
— front	°C (°F)	0 ... 45 (32 ... 113)	0 ... 45 (32 ... 113)	0 ... 45 (32 ... 113)	0 ... 45 (32 ... 113)
— rear	°C (°F)	0 ... 50 (32 ... 122)	0 ... 50 (32 ... 122)	0 ... 50 (32 ... 122)	0 ... 50 (32 ... 122)
Width	mm (in)	420 (16.53543)	420 (16.53543)	265 (10.43307)	265 (10.43307)
Height	mm (in)	200 (7.87402)	200 (7.87402)	330 (12.99213)	330 (12.99213)
Depth	mm (in)	104 (4.09449)	104 (4.09449)	104 (4.09449)	104 (4.09449)
Net weight	kg (lb)	3 (6.61387)	3 (6.61387)	2.9 (6.39341)	2.9 (6.39341)
Certificate of suitability		CE	CE	CE	CE
