SINUMERIK MPP 310 IEH

• Заказные данные
  (1)
• Аксессуары
  (8)
• Информационные материалы

  Информационные материалы

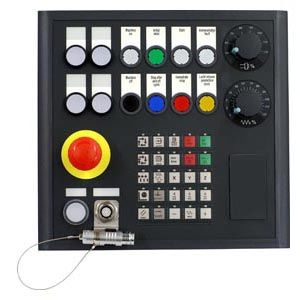

  The SINUMERIK MPP 310 IEH Machine Push Button Panel for Industrial Ethernet with a port for a handheld terminal has 8 large, long-stroke keys for easy machine operation and a membrane keyboard for powerful setup functions. The SINUMERIK MPP 310 IEH is ideally suited as a supplement to the SINUMERIK OP 08T operator panel front.

  The SINUMERIK MPP 310 IEH is suitable for the use with various machines, wherever maximum ergonomics and operation flexibility are required.

  An A4 sheet for laser printers for inscribing the slide-in labels plus a set of colored key caps are included in the scope of supply.

  The Machine Push Button Panel is mounted from the rear using special clamps supplied with the panel.

  Дизайн

  • Feedrate override
  • Spindle override
  • 8 customer keys (long-stroke keys, Schlegel) with LED, slide-in labels
  • Blank cover for retrofit of Electronic Key System EKS (Euchner)
  • 25 function keys with LEDs (membrane keys), slide-in labels
  • With port for SINUMERIK HT 2/HT 8 handheld terminals
  • Emergency stop override key
  • Emergency stop button
  • 4 extension keys (SIRIUS ACT 3SU1) with LEDs, slide-in labels

  Интеграция

  The SINUMERIK MPP 310 IEH Machine Push Button Panel can be used for:

  • SINUMERIK 840D sl

  Технические данные

  Order number		6FC5303-1AF20-8AA1
  Product brand name		SINUMERIK
  Product type designation		MPP 310 IEH
  Product designation		Machine Push Button Panel
  Product feature		With port for SINUMERIK HT 2/HT 8 handheld terminals
  Supply voltage at DC		24 V
  Active power consumption maximum		25 W
  Degree of protection
  ● front		IP54
  ● rear		IP00
  Environmental category acc. to IEC 60721-3-3		Condensation and icing excluded. Low air temperature 0 °C (32 °F).
  Relative humidity at 25 °C (77 °F), during
  ● storage		5 ... 95 %
  ● transport		5 ... 95 %
  ● operation		5 ... 95 %
  Ambient temperature, during
  ● storage		-25 ... +55 °C (-13 ... +131 °F)
  ● transport		-40 ... +70 °C (-40 ... +158 °F)
  ● operation
  — front		0 ... 45 °C (32 ... 113 °F)
  — rear		0 ... 55 °C (32 ... 131 °F)
  Width		310 mm (12.20472 in)
  Height		295 mm (11.61417 in)
  Depth		200 mm (7.87402 in)
  ● Note		With connector for handwheel connection
  Installation depth		140 mm (5.51181 in)
  ● Note		Without connector for handwheel Connection 105 mm (4.13 in)
  Mounting surface
  ● section width		278.5 mm (10.96457 in)
  ● section height		276.5 mm (10.88583 in)
  Net weight		3 kg (6.61387 lb)
  Certificate of suitability		CE, UL
