SINUMERIK MCP 310 PN

• Заказные данные
  (1)
• Аксессуары
  (16)
• Информационные материалы

  Информационные материалы

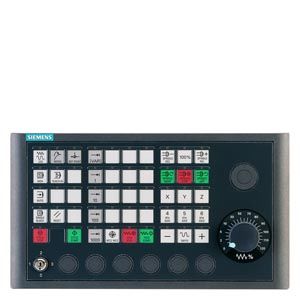

  The SINUMERIK MCP 310 PN machine control panel with membrane keys is designed to permit user-friendly, well-structured operation of the machine functions. It is suitable for machine-level operation of milling, turning, grinding and special machines.

  Apart from PROFINET functionality, SINUMERIK MCP 310 PN also has complete Industrial Ethernet functionality. The network technology can be changed over using DIP switches.

  49 keys have user-inscribed slide-in strips for machine-specific adaptations. An A4 sheet (for laser printers) for inscribing the slide-in labels is included in the scope of supply.

  A connecting cable is included in the scope of supply for connecting the direct keys of the SINUMERIK operator panel fronts OP 012/OP 015A/OP 019.

  The machine control panel is mounted from the rear using special clamps supplied with the panel.

  Дизайн

  Operator controls:

  • Mode selectors and function keys:
    • 49 keys with LEDs
    • Direction keys for milling machines with rapid traverse override
    • Default key assignment includes 16 freely assignable customer keys
  • Feedrate control with feedrate/rapid traverse override (rotary switch with 23 positions)
  • Key-operated switch (four positions and three different keys)

  Key type:

  • Membrane keys

  Interfaces:

  • PROFINET
  • Industrial Ethernet
  • 9 inputs/6 outputs for 9 control devices
    (additional cable set required for control devices)
  • 16 direct keys of the OP 012/OP 015A/OP 019
    (connecting cable (850 mm/33.5 in) included in scope of supply)
  • 2 handwheels in conjunction with SINUMERIK 840D sl

  Expansion options:

  • 6 slots for control devices (d = 16 mm/0.63 in)
  • 1 slot for emergency stop button or spindle/rapid traverse rotary override switch (d = 22 mm/0.87 in)

  Интеграция

  The SINUMERIK MCP 310 PN machine control panel can be used for:

  • SINUMERIK 840D sl

  Технические данные

  Order number		6FC5303-0AF23-1AA1
  Product brand name		SINUMERIK
  Product type designation		MCP 310 PN
  Product designation		Machine control panel
  Supply voltage at DC		24 V
  Active power consumption maximum		21.2 W
  Transmission link to the NCU/PCU maximum		100 m (109.36133 yd)
  Degree of protection
  ● front		IP65
  ● rear		IP00
  ● note		Key-operated switch IP54
  Environmental category acc. to IEC 60721-3-3		Condensation and icing excluded. Low air temperature 0 °C (32 °F).
  Relative humidity at 25 °C (77 °F), during
  ● storage		5 ... 95 %
  ● transport		5 ... 95 %
  ● operation		5 ... 95 %
  Ambient temperature, during
  ● storage		-25 ... +55 °C (-13 ... +131 °F)
  ● transport		-40 ... +70 °C (-40 ... +158 °F)
  ● operation
  — front		0 ... 45 °C (32 ... 113 °F)
  — rear		0 ... 55 °C (32 ... 131 °F)
  Width		310 mm (12.20472 in)
  Height		175 mm (6.88976 in)
  Depth		85.2 mm (3.35433 in)
  ● Note		With connector for handwheel connection
  Installation depth		53.9 mm (2.12205 in)
  ● Note		With connector for handwheel connection
  Mounting surface
  ● section width		285 mm (11.22047 in)
  ● section height		155 mm (6.10236 in)
  Net weight		1.2 kg (2.64555 lb)
  Certificate of suitability		CE, cULus
