SINUMERIK MCP 310C PN

• Заказные данные
  (1)
• Аксессуары
  (18)
• Информационные материалы

  Информационные материалы

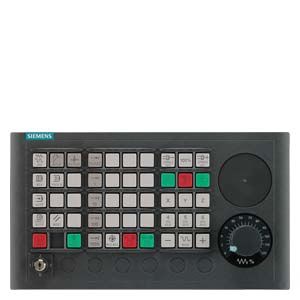

  The SINUMERIK MCP 310C PN machine control panel with mechanical keys is designed to permit user-friendly, well-structured operation of the machine functions. It is suitable for machine-level operation of milling, turning, grinding and special machines.

  In addition to PROFINET functionality, SINUMERIK MCP 310C PN has also retained its complete Industrial Ethernet functionality. The network technology can be switched using DIP switches.

  All keys are designed with replaceable covers for machine-specific adaptations. The key caps can be freely inscribed using laser. Clear key covers can be used as an alternative.

  The machine control panel is mounted from the rear using special clamps supplied with the panel.

  Included in the scope of delivery are the key caps (30 × ergo gray, 30 × clear, 9 × labeled) and a backing plate for the emergency stop.

  Дизайн

  Operator controls:

  • Mode selectors and function keys:
    • 49 keys with LEDs
    • Direction keys for milling machines with rapid traverse override (key covers for direction keys for turning machines are supplied in the accessories pack)
    • Default key assignment includes 16 freely assignable customer keys
  • Feedrate control with feedrate/rapid traverse override (rotary switch with 23 positions)
  • Key-operated switch (four positions and three different keys)

  Key type:

  • Mechanical keys

  Interfaces:

  • PROFINET
  • Industrial Ethernet
  • 9 inputs/6 outputs for 9 control devices
    (additional cable set required for control devices)
  • 2 handwheels

  Expansion options:

  • 6 slots for control devices (d = 16 mm (0.63 in))
  • 1 slot for emergency stop button or spindle/rapid traverse rotary override switch (d = 22 mm/0.87 in)

  Интеграция

  The SINUMERIK MCP 310C PN machine control panel can be used for:

  • SINUMERIK 840D sl

  Технические данные

  Order number		6FC5303-0AF23-0AA1
  Product brand name		SINUMERIK
  Product type designation		MCP 310C PN
  Product designation		Machine control panel
  Supply voltage at DC		24 V
  Active power consumption maximum		21.2 W
  Transmission link to the NCU/PCU maximum		100 m (109.36133 yd)
  Degree of protection
  ● front		IP54
  ● rear		IP00
  Environmental category acc. to IEC 60721-3-3		Condensation and icing excluded. Low air temperature 0 °C (32 °F).
  Relative humidity at 25 °C (77 °F), during
  ● storage		5 ... 95 %
  ● transport		5 ... 95 %
  ● operation		5 ... 95 %
  Ambient temperature, during
  ● storage		-25 ... +55 °C (-13 ... +131 °F)
  ● transport		-40 ... +70 °C (-40 ... +158 °F)
  ● operation
  — front		0 ... 45 °C (32 ... 113 °F)
  — rear		0 ... 55 °C (32 ... 131 °F)
  Width		310 mm (12.20472 in)
  Height		175 mm (6.88976 in)
  Depth		85.2 mm (3.35433 in)
  ● Note		With connector for handwheel connection
  Installation depth		29.1 mm (1.14567 in)
  ● Note		Without connector for handwheel connection
  Mounting surface
  ● section width		285 mm (11.22047 in)
  ● section height		155 mm (6.10236 in)
  Net weight		1.2 kg (2.64555 lb)
  Certificate of suitability		CE, cULus
