Base unit

Заказные данные
(1)

The entire SIPROCESS GA700 device is configured in a modular fashion and consists of a base unit and at least one – maximum two – modules. It can optionally be fitted with up to two interface modules.

Область применения

Application areas

Depending on the modules installed, the device is predominantly used in the following sectors:

Chemical industry
Petrochemicals
Steel
Cement
Power generation
Environmental protection

Дизайн

19" rack unit

19" rack unit with 3 height units (HU) for installation
- in hinged frames
- in cabinets with or without telescopic rails
Gas connections for sample gas inlet and outlet: for pipe diameter 6 mm
Purging gas connections (optional), purging gas connection for 6 mm or 1/4" hose (optional)

Wall-mounted device

Gas connections for sample gas inlet and outlet: Pipe union for pipe diameter 6 mm (directly on the modules)
Purging gas connections: Pipe diameter 12 mm

Field device

Field control unit: Flameproof encapsulated enclosure with mounted Ex e connection enclosure (IP55)
Ex-d field module with installed module (IP65)
ATEX- / IECEx approval for Zone 1

Display and control panel

LCD panel for simultaneous display of:
- Measured value
- Status bar
- Measuring ranges
Menu-driven operation for parameterization, test functions, adjustment
Operator support in plain text
Operating software in six languages (English, German, French, Italian, Spanish, Portuguese)

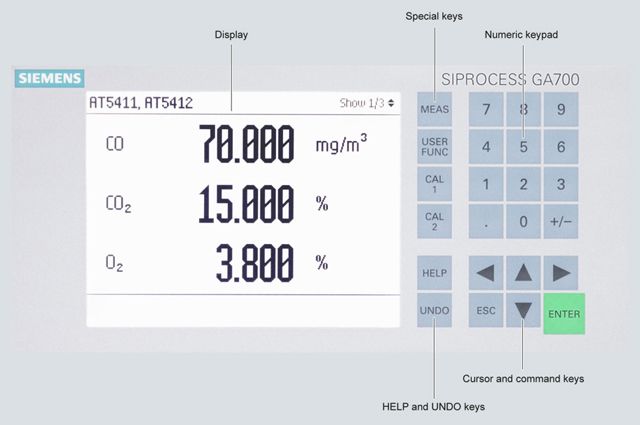

Display and operator panel of the SIPROCESS GA700 devices

Inputs and outputs

19" rack unit and wall-mounted unit
- 8 digital inputs, designed for 24 V, floating, freely configurable (e.g. for measurement range switchover, processing of external signals from sample preparation)
- 8 relay outputs, with changeover contacts, freely configurable (e.g. for faults, maintenance requests, limit alarms, external solenoid valves)
- Ethernet connection contained in the base unit (connection on the rear side, Ethernet RJ 45, 100 MBit)
- Service interface (front side); Ethernet RJ 45, 100 MBit.
Field control unit
- 1 analog output for each component 0/4 to 20 mA
- 5 relay outputs, with changeover contacts, freely configurable, e.g. for faults or measuring range identification
- 5 digital inputs, designed for 24 V, floating, freely configurable, e.g. for measurement range switchover

Interface modules

19" rack unit and wall-mounted unit
- Interface module 1.1:
  12 relay outputs and 8 digital inputs
- Interface module 2.1:
  1 analog output for each measuring component (0/4 to 20 mA or configurable according to NAMUR), plus 3 relay outputs for each module
- Interface module 2.2:
  One analog output for each measured component (0/4 to 20 mA or configurable according to NAMUR), 4 analog inputs and 4 digital inputs
Field control unit
- Interface module 2.2:
  4 analog inputs 0/4 to 20 mA

Функции

Essential characteristics

Measuring range identification
Storage of measured values possible during adjustments
Four freely parameterizable measuring ranges, also with suppressed zero point
Autoranging possible; remote switching is also possible
Wide range of selectable time constants (static/dynamic noise suppression); i.e. the response time of the analyzer can be matched to the respective measuring task
Measuring point switchover for up to 12 measuring points (programmable)
Parameterizable measuring point identification
Automatic, parameterizable measuring range calibration
Operation based on the NAMUR recommendation
Three control levels with their own authorization codes for the prevention of accidental and unauthorized operator interventions
Simple handling using a numerical membrane keyboard and operator prompting
Customer-specific analyzer options such as:
- Customer acceptance
- TAG labels

Чертеж

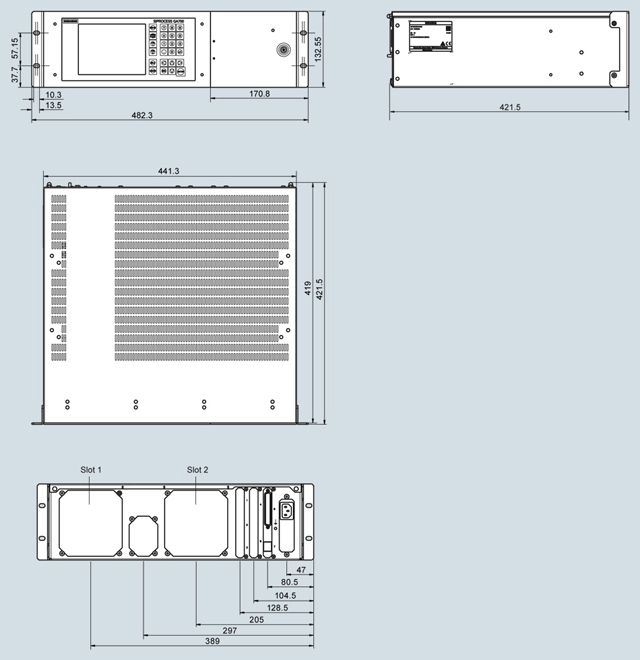

SIPROCESS GA700, rack unit, dimensions in mm

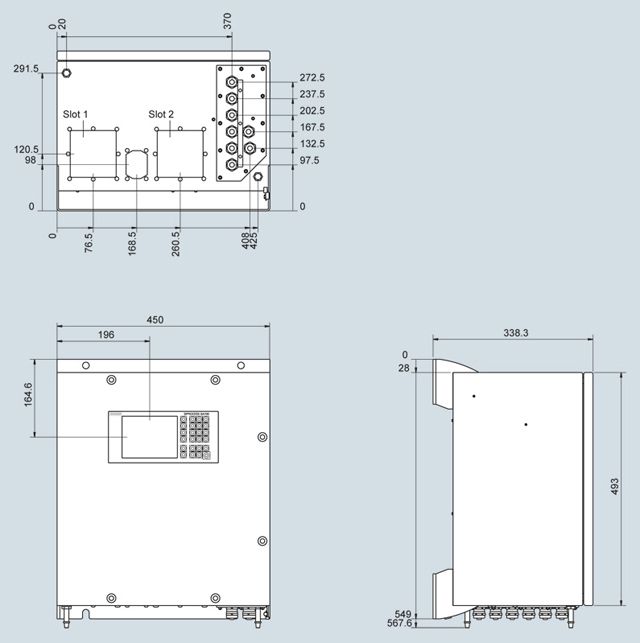

SIPROCESS GA700, wall enclosure, dimensions in mm

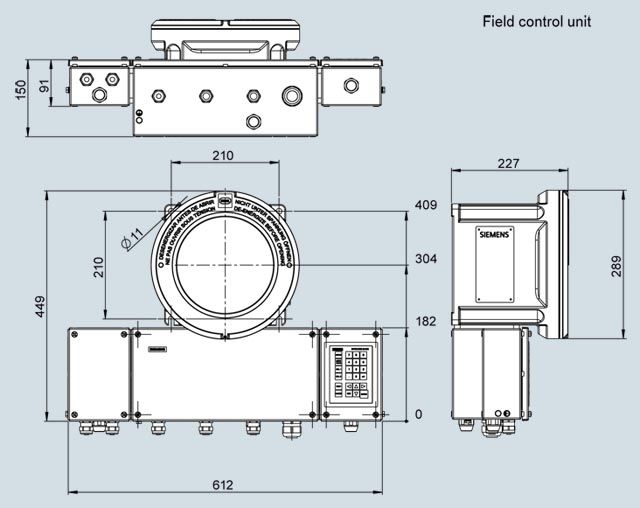

SIPROCESS GA700, field control unit, dimensions in mm

Особенности

The base unit provides:

Transmission and evaluation of measurement results
Display and transmission of device parameters
Operation (parameterization, configuration)

In addition to the modules, the base unit contains the interfaces for the peripherals.

Схема подключения

Connection of the signal cables

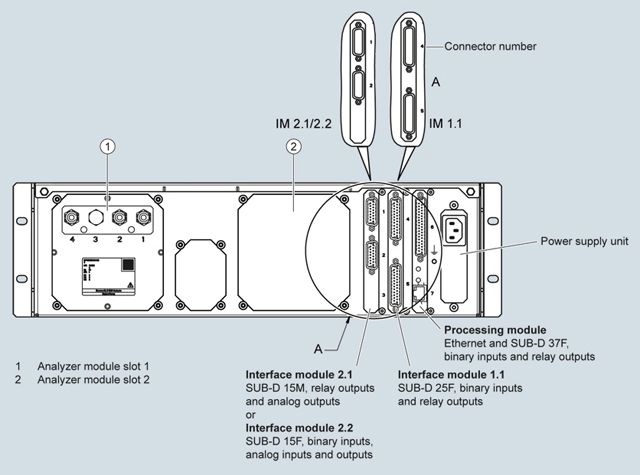

Expansion options for processing and interface modules with the example of the rear wall of the rack unit

Possible combinations

You can install a maximum of two modules in the wall and rack-mounted enclosures of SIPROCESS GA700 series. These fixed allocation rules apply: Not every module can be operated in every slot. The following compatibility matrix gives you an overview of the possible combinations:

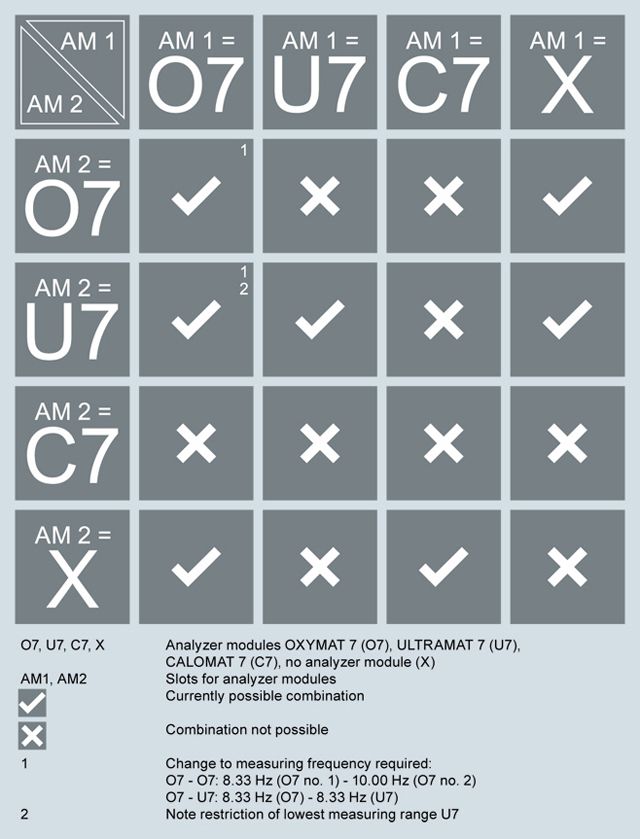

Compatibility matrix modules ↔ slots

Examples of possible combinations:

Combination: OXYMAT 7 module in slot 1 and
ULTRAMAT 7 module in slot 2
1st ULTRAMAT 7 module in slot 1,
2nd ULTRAMAT 7 module in slot 2

Технические данные

	19" rack unit	Wall enclosure	Field control unit
General information
Operating position	Horizontal	Vertical	Horizontal
Conformity	CE mark in accordance with EN 50081-1 and EN 50082-2
Design, enclosure
Weight without module	8.6 kg	23 kg	27 kg
Degree of protection	IP20 according to EN 60529	IP65 in accordance with EN 60529, restricted breathing enclosure to EN 50021	IP55 according to EN 60529
Electrical characteristics
Auxiliary power	100 ... 240 V AC (nominal range of use 85 ... 264 V), 50 ... 60 Hz (nominal range of use 47 ... 63 Hz)
Power consumption	Max. 280 VA
EMC interference immunity (electromagnetic compatibility)	In accordance with the standard requirements of NAMUR NE21 (05/2006) and EN 61326-1 (2013)
Electrical safety	In accordance with EN 61010-1, overvoltage category II
Gas inlet conditions, purging gas pressure
Continuous (recommended)	-	30 hPa above atmospheric pressure	-
Continuous (maximum)	-	< 100 hPa above atmospheric pressure	-
Transient (maximum)	-	165 hPa above atmospheric pressure	-
Electrical inputs and outputs
Analog outputs	-	-	1 for each component 0/4 ... 20 mA, floating; load ≤ 100 Ω, R_L ≤ 750 Ω
Relay outputs	8, with changeover contacts, can be freely parameterized, e.g. for measuring range identification; max. load: 24 V AC/DC/1.7 A (total load for all 8 relay outputs in continuous operation max. 160 W), floating, non-sparking		5, with changeover contacts, can be freely configured, e.g. for measuring range identification; load rating: 24 V AC/DC/1.7 A, isolated, non-sparking
Digital inputs	8, designed for 24 V, floating, freely configurable, e.g. for measuring range switchover		5, designed for 24 V, floating, can be freely configured, e.g. for measuring range switchover
Ethernet interface Ethernet RJ 45, 100-megabit	Rear	Underside	Underside
Service interface Ethernet RJ 45, 100-megabit	Front	Inside on the processing unit	Inside on the processing unit
Interface module 1.1	12 relay outputs, with changeover contacts, load rating: 24 V AC/DC/1.7 A (total load for all 12 relay outputs in continuous operation max. 244 W), floating, non-sparking 8 digital inputs, designed for 24 V, floating, freely configurable		-
Interface module 2.1	1 analog output for each component 0/4 ... 20 mA, floating; load 100 Ω ≤ R_L ≤ 750 Ω; 3 relay outputs per module, load rating: 24 V AC/DC/1.7 A (total load for all 6 relay outputs in continuous operation max. 122 W), floating, non-sparking		-
Interface module 2.2	1 analog output for each component 0/4 ... 20 mA, floating; load 100 Ω ≤ R_L ≤ 750 Ω; 4 analog inputs 0/4 … 20 mA, non-isolated, internal resistance ≤ 100 Ω 4 digital inputs, designed for 24 V, floating		4 analog inputs 0/4 … 20 mA, non-floating, internal resistance ≤ 100 W
Climatic conditions
Permissible operating altitude	3 000 m above sea level		2 000 m above sea level
Permissible ambient temperature (with one module; application-dependent with two modules)	Depends on application, See technical specifications of the modules Ventilation slits must not be covered (recommended minimum clearance upward from the next device when installing 2 modules and at maximum ambient temperature: min. 1 HU)	Depends on application, See technical specifications of the modules	-30 ... + 70 °C during storage and transportation 5 ... 55 °C for regular operation with OXYMAT 7 5 ... 60 °C for operation with OXYMAT 7 and with limited measuring accuracy
Permissible humidity	< 90% RH (RH: relative humidity), during storage, transportation and operation (must not fall below dew point)
