Accessories

Заказные данные
(5)

SIMOCODE connecting cables

SIMOCODE connecting cable 3UF7930‑0AA00‑0

The connecting cable is used for connecting the SIPLUS CMS2000 Basic Unit VIB to the SIPLUS CMS2000 VIB‑MUX expansion modules and the temperature modules via the SIMOCODE system bus interface.

The connecting cable with a length of 0.025 m must be used for side-by-side mounting of the basic unit and SIPLUS CMS2000 VIB‑MUX expansion modules or temperature modules on a TH 35‑15 standard mounting rail in accordance with IEC 60715.

Shield support

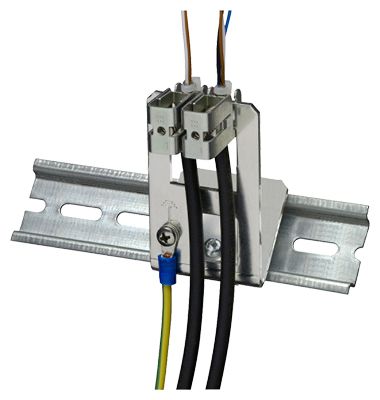

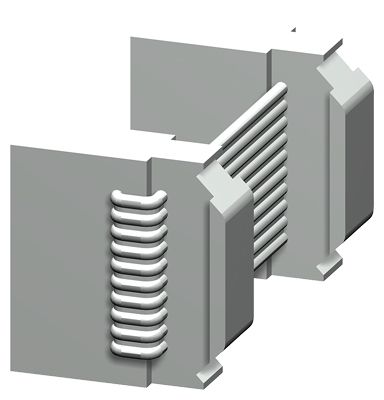

6AT8002-4AA00 shield support

A separate shield support must be ordered for the EMC-compliant connection of signal and encoder cables to the SIPLUS CMS2000 Basic Unit VIB and the SIPLUS CMS2000 VIB‑MUX expansion module.

The shield support comprises two shield clamps and five terminal clamps. One shield clamp each is attached to the DIN rail above and below the basic unit. The sensor cable shields are connected to the shield clamps by means of the terminal clamps.

VIB-SENSOR S01 vibration sensor

VIB‑SENSOR S01 vibration sensor 6AT8002‑4AB00

The VIB‑SENSOR S01 vibration sensor with IEPE (integrated electronics piezo-electric) interface can be directly connected to the SIPLUS CMS2000 Basic Unit VIB and the SIPLUS CMS2000 VIB‑MUX expansion module.

The sensor detects vibration accelerations in the frequency range from 0.5 Hz to 15 kHz with a resolution of 100 mV/g.

A threaded screw with an M8 male thread for mounting to the measuring point is included in the scope of delivery. The connecting cable is connected to the vibration sensor via the MIL connector.

CABLE-MIL connecting cables

CABLE-MIL connecting cables 6AT8002‑4AC03, 6AT8002‑4AC10

The VIB‑SENSOR S01 vibration sensor is connected to the SIPLUS CMS2000 Basic Unit VIB or the SIPLUS CMS2000 VIB‑MUX expansion module by means of the CABLE-MIL connecting cable.

This high-quality industrial cable is made of black polyurethane and is assembled on one end with a MIL connector (MIL-C5015). The open cable end of the shielded two-wire cable is connected directly to the screw terminals of the basic unit.

The connecting cable is available in lengths of 3 and 10 m.

Технические данные

Order number		6AT8002-4AA00
		CMS2000 SCHIRMAUFLAGE ZUBEHOER
General information
Product brand name		SIPLUS
Product designation		SIPLUS CMS2000 shield support
Product description		For the EMC-compliant connection of signal and encoder cables to the SIPLUS CMS2000 Basic Unit VIB or the SIPLUS CMS2000 VIB-MUX expansion module
Installation type/mounting
Mounting type		standard rail
Connection method
Number of signal cables connectable to the shield support		3

Order number		6AT8002-4AB00
		SIPLUS CMS2000 VIB-SENSOR S01
General information
Product brand name		SIPLUS CMS
Product designation		VIB SENSOR S01
Product description		Piezoelectric sensor for connection to the SIPLUS CMS2000 Basic Unit VIB or the SIPLUS CMS2000 VIB-MUX expansion module
Physical measuring principle		Piezo-quartz recorder with integrated evaluation electronics
Operating range of sensor at +/- 3 dB, min.		0.5 Hz
Operating range of sensor at +/- 3 dB, max.		15 000 Hz
Measurement range vibration acceleration, max.		50 gn
Sensitivity, typ.		100 mV/gn
Resolution of measured value of vibration acceleration, min.		0.002 gn
Resonance frequency		23 kHz
Installation type/mounting
other mounting		incl. mounting bolts UNF1/4-28 on M8
Input current
Type of power supply		IEPE 2 to 10 mA
Sensor input
Encoder signals, IEPE
● Signal voltage (DC), min.		10 V
● Signal voltage (DC), max.		14 V
Degree and class of protection
IP degree of protection		IP65
Cables
Cable length, max.		80 m
Connection method
Type of connection		MIL-C5015
Mechanics/material
Material of housing		Stainless steel

Order number	6AT8002-4AC03	6AT8002-4AC10
	SIPLUS CMS2000 CABLE 3m	SIPLUS CMS2000 CABLE 10m
General information
Product brand name	SIPLUS CMS
Product category	Industrial cable
Product designation	Connecting cable CABLE-MIL-300	Connecting cable MIL-CABLE-1000
Product description	For connection of the VIB-SENSOR S01 vibration sensor to the SIPLUS CMS2000 Basic Unit VIB or the SIPLUS CMS2000 VIB-MUX expansion module
Cables
Type of insulation	black polyurethane
Design of shield	Braided shielding with stranded drain wire
Cable length	3 m	10 m
Connection method
Type of connection	MIL-C5015 / open cable end

Дальнейшая информация

For further product details, see "SIPLUS CMS2000 Condition Monitoring Systems Operating Instructions", http://support.automation.siemens.com/WW/view/en/56901901.
