  SIPLUS CMS2000 VIB‑MUX expansion modules and temperature modules can be connected to the SIPLUS CMS2000 Basic Unit VIB via the SIMOCODE system interface.

  SIPLUS CMS2000 VIB‑MUX expansion modules

  Up to two SIPLUS CMS2000 VIB‑MUX expansion modules can be connected to the SIPLUS CMS2000 Basic Unit VIB to expand the vibration channels. In this way, the number of vibration channels can be expanded modularly from 2 to a maximum of 16 channels.

  The following configuration options are possible:

  • Basic unit without expansion:
    2 time-synchronous, continuously sampled vibration channels
  • Basic unit with one SIPLUS CMS2000 VIB‑MUX:
    8 + 1: 8 channels via the SIPLUS CMS2000 VIB‑MUX in multiplex mode, 1 channel continuous and independent of the channels connected on the SIPLUS CMS2000 VIB‑MUX
  • Basic unit with two SIPLUS CMS2000 VIB‑MUX:
    16 vibration channels in multiplex mode

  SIMOCODE connecting cable for connecting the SIPLUS CMS2000 Basic Unit VIB to the SIPLUS CMS2000 VIB‑MUX see "Accessories".

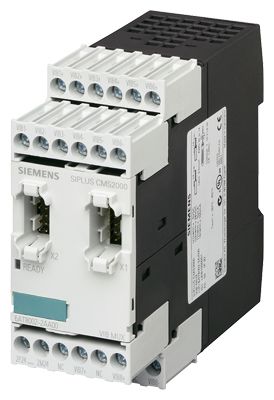

  SIPLUS CMS2000 VIB‑MUX expansion module 6AT8002‑2AA00

  Temperature modules

  Up to two temperature modules can be connected to the SIPLUS CMS2000 Basic Unit VIB.

  Each temperature module has three inputs for the connection of up to three analog temperature sensors (sensor types: Pt100/Pt1000, KTY83/KTY84 or NTC) available.

  SIMOCODE connecting cable for connecting the SIPLUS CMS2000 Basic Unit VIB to the temperature modules, see "Accessories".

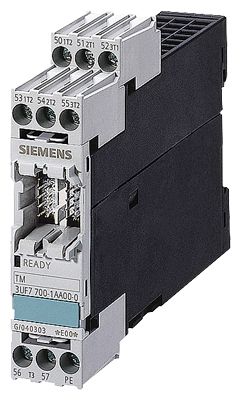

  Temperature module 3UF7700‑1AA00‑0

  Дальнейшая информация

  For further product details, see "SIPLUS CMS2000 Condition Monitoring Systems Operating Instructions", http://support.automation.siemens.com/WW/view/com/56901901.

  For additional information about the temperature module 3UF7700‑1AA00‑0 refer to "Monitoring and control devices" → "Motor management and control devices SIMOCODE 3UF" → "Motor management and control devices SIMOCODE pro 3UF7".
