Basic units

Заказные данные
(1)

The SIPLUS CMS2000 Basic Unit VIB is used for:

Monitoring of motors, generators, pumps, fans, or other mechanical components
Recording and analysis of vibrations, speed, and temperature

It is modularly expandable via the system interface, e.g. using SIPLUS CMS2000 VIB‑MUX expansion modules and temperature modules.

Дизайн

The SIPLUS CMS2000 Basic Unit VIB contains:

Integrated diagnostics software
Two IEPE interfaces for vibration sensors
Two analog inputs, one of which can be parameterized as a speed input
One speed input
Two digital inputs, three digital outputs

The following accessories can also be ordered, see "Accessories":

Shield support for grounding the cable ends
VIB-SENSOR vibration sensor for recording vibrations
SIMOCODE connecting cable and CABLE-MIL connecting cable in different lengths

Функции

The following functional scope is available by default in the SIPLUS CMS2000 Basic Unit VIB:

Characteristic values (bearing, vibration monitoring)
Frequency-selective analysis using FFT, H-FFT
Trend analysis
Limit monitoring of frequency bands, process variables, temperature
Recording with time stamp of trend values, raw data, frequency spectra, alarm log
Simple localization of damage using fingerprint comparison
Output of system and status messages
Extraction of raw data for further diagnoses
Web server and e-mail notification
Time synchronization via LAN
Diagnostics suppression via inhibit input

SIPLUS CMS X-Tools – powerful analysis software

To provide a more detailed diagnosis, the raw data recorded by the SIPLUS CMS2000 Basic Unit VIB can be forwarded to the SIPLUS CMS X‑Tools analysis software (not included in the scope of supply, see "Condition Monitoring System SIPLUS CMS4000" → "Analysis Software" → "SIPLUS CMS X‑Tools").

With SIPLUS CMS X‑Tools, the most varied parameters and signals can be logically combined as the basis for expert diagnostics. The interfaces to management systems can be structured flexibly.

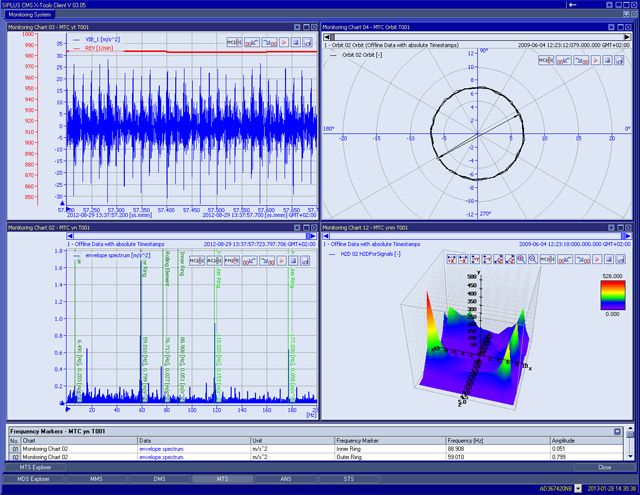

Representation via SIPLUS CMS X‑Tools with raw signal, envelope curves spectrum, orbit representation, and 2D histogram

Технические данные

Order number		6AT8002-1AA00
		SIPLUS CMS2000 Basic Unit VIB
General information
Product brand name		SIPLUS
Product designation		SIPLUS CMS2000 Basic Unit VIB
Product description		Basic unit for the monitoring of vibrations on mechanical components based on parameters and frequency-selective analysis functions for measuring category 0 acc. to EN 61010
Physical measuring principle		Vibration acceleration
Measurement range vibration frequency, min.		2 Hz
Measurement range vibration frequency, max.		10 000 Hz
Installation type/mounting
Mounting type		standard rail
Mounting position		vertical
Recommended mounting position		vertical
Supply voltage
Type of supply voltage		DC
Rated value (DC)		24 V
permissible range, lower limit (DC)		19.2 V
permissible range, upper limit (DC)		28.8 V
Power loss
Power loss, typ.		2.6 W
Memory
Total memory capacity		1 Gbyte
Hardware configuration
Design of hardware configuration		modular construction, basic unit can be expanded by means of expansion modules
Digital inputs
Number of disable inputs		1
Number of trigger inputs		1
Input voltage
● At the 24 V DC disable input		Yes
● At the disable input (DC), max.		28.8 V
● At the trigger input 24 V DC		Yes
● At the trigger input (DC), max.		28.8 V
Digital outputs
Number of signaling outputs		3
Design of signaling outputs		Electronic
Output current
● For signaling output, max.		0.1 A
Analog inputs
Number of analog inputs		2
Input ranges (rated values), voltages
● At DC, min.		-10 V
Input ranges (rated values), currents
● 0 to 20 mA		No
● +/- 4 mA to +/- 20 mA		Yes
Speed input
Number of speed inputs		1
Protocols
● 24 V DC digital		Yes
● At DC, max.		28.8 V
● -10 V to +10 V		No
Protocols
● 0 to 20 mA		No
● 4 mA to 20 mA		No
● permissible range, upper limit		0.1 A
● Short-circuit current		0.7 A
Sensor input
Number of IEPE sensor inputs		2
Number of MEMS sensor inputs		0
Sampling frequency, max.		46 875 Hz
Interfaces
Type of data transmission		Exporting of raw data as WAV file for further analyses (e.g. using CMS X-Tools) can be downloaded via browser
Ethernet interface		Yes
SIMOCODE interface		Yes
Protocols
Bus communication		Yes
Open IE communication
● TCP/IP		Yes
Web server
● HTTP		Yes
Interrupts/diagnostics/status information
Diagnostics via e-mail		Yes
Integrated Functions
Monitoring functions
● Monitoring of the sensor inputs		Yes
● Vibration characteristic monitoring via RMS value of the vibration speed		Yes
● Vibration characteristic monitoring via diagnostic characteristic value		Yes
● Frequency-selective monitoring via vibration speed spectrum		Yes
● Frequency-selective monitoring via vibration acceleration spectrum		Yes
● Frequency-selective monitoring via envelope curve analysis		Yes
Isolation
Overvoltage category		II
Degree and class of protection
IP degree of protection		IP20
Standards, approvals, certificates
Certificate of suitability		CE, UL 508, CSA C22.2 Nr.142, C-TICK (RCM)
Degree of pollution		2
Equipment marking according to EN 61346-2		P
Equipment marking according to DIN 40719, expanded according to IEC 204-2, according to IEC 750		P
Ambient conditions
Ambient temperature during operation
● min.		-20 °C
● max.		65 °C
Ambient temperature during storage/transportation
● Storage, min.		-25 °C
● Storage, max.		85 °C
● Transportation, min.		-25 °C
● Transportation, max.		85 °C
Air pressure acc. to IEC 60068-2-13
● Installation altitude above sea level, max.		1 500 m
Relative humidity
● Operation without condensation, min.		5 %
● Operation without condensation, max.		95 %
Software
Browser software required		Webbrowser Mozilla Firefox, Google Chrome or Microsoft Internet Explorer
Connection method
Design of electrical connection for the inputs and outputs		Screw connection
Design of electrical connection for auxiliary and control circuit		Screw connection
● Connectable conductor cross-section, solid or stranded, min.		0.5 mm²
● Connectable conductor cross-section, solid or stranded, max.		4 mm²
● Connectable conductor cross-section, finely stranded with end sleeve, min.		0.5 mm²
● Connectable conductor cross-section, finely stranded with end sleeve, max.		2.5 mm²
● Connectable cable cross-section finely stranded without end sleeve, min.		0.5 mm²
● Connectable cable cross-section finely stranded without end sleeve, max.		2.5 mm²
Terminals
● Removable terminal for main circuit		Yes
● Removable terminal for auxiliary and control circuit		Yes
Mechanics/material
Material of housing		plastic
Dimensions
Width		45 mm
Height		106 mm
Depth		124 mm
Weights
Weight		300 g

Дальнейшая информация

For further product details, refer to the "SIPLUS CMS2000 Basic Unit VIB" Operating Instructions, http://support.automation.siemens.com/WW/view/en/56902401.
