SITRANS FUT1010 (Liquid and gas)
- Заказные данные (2)
- Информационные материалы
Информационные материалы

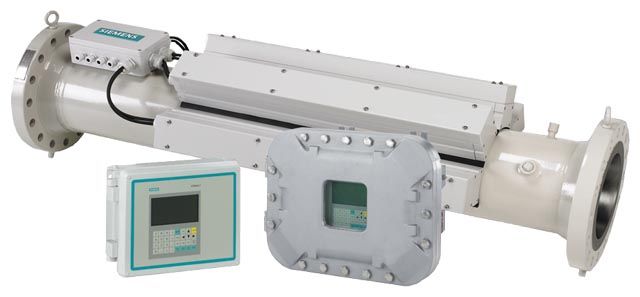

SITRANS FUT1010 is the latest ultrasonic flow meter from Siemens. Ideal for applications within the liquid and gas hydrocarbon industry capable of providing custody transfer accuracy. With the newly developed permanent TransLoc mounting system, the sensors are permanently mounted on the outside of the pipe, eliminating any contact with the medium.
SITRANS FUT1010 is available in two different configurations; a version for liquid hydrocarbon applications and a version for precise gas measurement. Both versions are offered in pipe sizes ranging from 4 inch to 24 inch (DN 100 to DN 600) with flange ratings of ANSI Class 150/300/600 for liquid and 300/600 for gas.
Область применения
Liquid applications
Gas applications
Pipelines
Custody transfer, allocation, line balance, interface/densitometer
Upstream
Production wells, gathering, separation and dehydration
Terminals
Check metering, transmix metering, product identification
Midstream
Underground storage, transmission, compressor stations
Refineries
Process control, blending, tank measurement, ship loading and unloading
Downstream
Electric power generation, industrial use, gas processing plants
Transportation
Crude oil pipelines, LPG pipelines, multiple product pipelines, airport facilities, liquid terminals
Downstream
Petrochemical and processing plants
Дизайн
SITRANS FUT1010 is available in two different configurations, both featuring the TransLoc mounting system:
- A version for liquid hydrocarbon applications
- A version for precise gas measurement
Transmitter
SITRANS FUT1010 is available with two, three or four paths and IP65 (NEMA 4X) wall mount or IP66 (NEMA 7) wall mount explosionproof enclosures.
Sensor
Available sizes include 4 to 24 inches (DN 100 to DN 600) with flange ratings of ANSI Class 150, 300 and 600 for the liquid meter and ANSI Class 300 and 600 for gas.
If the installation warrants, SITRANS FUT1010 can be delivered with a ten diameter upstream and five diameter downstream tubes and a flow conditioner.
Функции
- IP65 (NEMA 4X) and IP66 (NEMA 7) transmitters have integral 33 button keypads and large (128 x 240 pixel) graphic displays readable up to 12 m (40 ft) away
- Current, voltage, status alarm, frequency and RS 232 outputs (see specification section for details)
- Analog inputs (see specification section for details)
- 1 MByte data logger with both site and data logger storage
- Standard or actual volume flow outputs
- Standard or actual totalize outputs
- Complete application and operation diagnostics, to ensure operational integrity
- Temperature provided by non-intrusive sensor (¾" tap available for insert temperature sensor)
- Detection of aeration or contamination

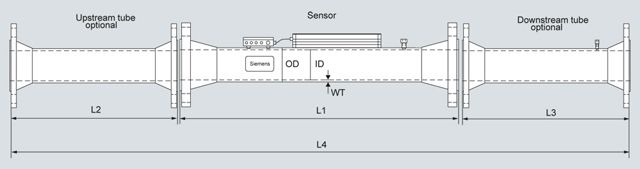

Чертеж
Length
Liquid Flange Class 150
Nominal O.D.
Nominal I.D.
Max operating pressure (psi)
Mat. Grade
Length L1
Length L2
Length L3
Length L4
mm
inch
mm
inch
mm
inch
bar
psi
mm
inch
mm
inch
mm
inch
mm
inch
101.6
4.0
114.3
4.5
102.3
4.026
19.7
285.0
B
1828.8
72.0
1023.6
40.3
510.5
20.1
3369.3
132.65
152.4
6.0
168.3
6.625
154.1
6.065
19.7
285.0
B
1828.8
72.0
1541.8
60.7
769.6
30.3
4146.6
163.25
203.2
8.0
219.1
8.625
202.7
7.981
19.7
285.0
B
1828.8
72.0
2026.9
79.8
1013.5
39.9
4875.5
191.95
254.0
10.0
273.1
10.75
254.5
10.02
19.7
285.0
B
2184.4
86.0
2545.1
100.2
1272.5
50.1
6008.4
236.55
304.8
12.0
323.9
12.75
304.8
12.0
19.7
285.0
B
2184.4
86.0
3048.0
120.0
1524.0
60.0
6762.8
266.25
406.4
16.0
406.4
16.0
387.4
15.25
19.7
285.0
B
2184.4
86.0
3873.5
152.5
1938.0
76.3
8002.3
315.05
457.2
18.0
457.2
18.0
438.2
17.25
19.7
285.0
B
2501.9
98.5
4381.5
172.5
2192.0
86.3
9081.8
357.55
508.0
20.0
508.0
20.0
489.0
19.25
19.7
285.0
B
2501.9
98.5
4889.5
192.5
2446.0
96.3
9843.8
387.55
609.6
24.0
609.6
24.0
590.6
23.25
19.7
285.0
B
2501.9
98.5
5905.5
232.5
2954.0
116.3
11367.8
447.55
Length
Liquid Flange Class 300
Nominal O.D.
Nominal I.D.
Max operating pressure (psi)
Mat. Grade
Length L1
Length L2
Length L3
Length L4
mm
inch
mm
inch
mm
inch
bar
psi
mm
inch
mm
inch
mm
inch
mm
inch
101.6
4.0
114.3
4.5
102.3
4.026
51.0
740.0
B
1828.8
72.0
1023.6
40.3
510.5
20.1
3369.3
132.65
152.4
6.0
168.3
6.625
154.1
6.065
51.0
740.0
B
1828.8
72.0
1541.8
60.7
769.6
30.3
4146.6
163.25
203.2
8.0
219.1
8.625
202.7
7.981
51.0
740.0
B
1828.8
72.0
2026.9
79.8
1013.55
39.9
4875.5
191.95
254.0
10.0
273.1
10.75
254.5
10.020
51.0
740.0
B
2184.4
86.0
2544.1
100.2
1272.5
50.1
6008.4
236.55
304.8
12.0
323.9
12.75
304.8
12.0
51.0
740.0
B
2184.4
86.0
3048.0
120.0
1524.0
60.0
6762.8
266.25
406.4
16.0
406.4
16.0
381.0
15.0
51.0
740.0
B
2184.4
86.0
3810.0
150.0
1905.0
75.0
7905.8
311.25
457.2
18.0
457.2
18.0
428.7
16.876
51.0
740.0
B
2501.9
98.5
4287.5
168.8
2143.8
84.4
8939.5
351.95
508.0
20.0
508.0
20.0
477.9
18.814
51.0
740.0
X42
2501.9
98.5
4777.7
188.1
2390.1
94.1
9676.1
380.95
609.6
24.0
609.6
24.0
574.7
22.626
51.0
740.0
X42
2501.9
98.5
5748.0
226.3
2872.7
113.1
11129.0
438.15
Length
Liquid Flange Class 600
Nominal O.D.
Nominal I.D.
Max operating pressure (psi)
Mat. Grade
Length L1
Length L2
Length L3
Length L4
mm
inch
mm
inch
mm
inch
bar
psi
mm
inch
mm
inch
mm
inch
mm
inch
101.6
4.0
114.3
4.5
102.3
4.026
96.6
1400.0
B
1828.8
72.0
1023.6
40.3
510.5
20.1
3369.3
132.65
152.4
6.0
168.3
6.625
154.1
6.065
81.0
1175.0
B
1828.8
72.0
1541.8
60.7
769.6
30.3
4146.6
163.25
203.2
8.0
219.1
8.625
193.7
7.625
102.1
1480.0
B
1828.8
72.0
1938.0
76.3
967.7
38.1
4740.9
186.65
254.0
10.0
273.1
10.75
247.7
9.75
82.8
1200.0
B
2184.4
86.0
2476.5
97.5
1239.5
48.8
5906.8
232.55
304.8
12.0
323.9
12.75
298.5
11.75
79.3
1150.0
B
2184.4
86.0
2984.5
117.5
1493.5
58.8
6668.8
262.55
406.4
16.0
406.4
16.0
373.1
14.688
82.8
1200.0
B
2184.4
86.0
3731.3
146.9
1864.4
73.4
7786.4
306.55
457.2
18.0
457.2
18.0
419.1
16.5
86.2
1250.0
B
2501.9
98.5
4191.0
165.0
2095.5
82.5
8794.8
346.25
508.0
20.0
508.0
20.0
466.8
18.376
82.8
1200.0
X42
2501.9
98.5
4668.5
183.8
2334.3
91.9
9511.0
374.45
609.6
24.0
609.6
24.0
560.4
22.064
77.6
1125.0
X42
2501.9
98.5
5603.2
220.6
2801.6
110.3
10913.1
429.65
Length
Gas Flange Class 300
Nominal O.D.
Nominal I.D.
Max operating pressure (psi)
Mat. Grade
Length L1
Length L2
Length L3
Length L4
mm
inch
mm
inch
mm
inch
bar
psi
mm
inch
mm
inch
mm
inch
mm
inch
101.6
4.0
114.3
4.5
102.3
4.026
51.0
740.0
B
1828.8
72.0
1023.6
40.3
510,5
20.1
3369.3
132.65
152.4
6.0
168.3
6.625
154.1
6.065
51.0
740.0
B
1828.8
72.0
1541.8
60.7
769.6
30.3
4146.6
163.25
203.2
8.0
219.1
8.625
202.7
7.981
51.0
740.0
X42
1828.8
72.0
2026.9
79.8
1013.5
39.9
4875.5
191.95
254.0
10.0
273.1
10.75
254.5
10.020
51.0
740.0
X42
1828.8
72.0
2545.1
100.2
1272.5
50.1
5652.8
222.55
304.8
12.0
323.9
12.75
303.2
11.938
51.0
740.0
X42
1828.8
72.0
3032.8
119.4
1516.4
59.7
6384.3
251.35
406.4
16.0
406.4
16.0
381.0
15.0
51.0
740.0
X42
1981.2
78.0
3810.0
150.0
1905.0
75.0
7702.6
303.25
457.2
18.0
457.2
18.0
428.7
16.876
51.0
740.0
X42
1981.2
78.0
4287.5
168.8
2143.8
84.4
8418.8
331.45
508.0
20.0
508.0
20.0
477.9
18.814
51.0
740.0
B
1981.2
78.0
4777.7
188.1
2390.1
94.1
9155.4
360.45
609.6
24.0
609.6
24.0
574.7
22.626
51.0
740.0
B
1981.2
78.0
5748.0
226.3
2872.7
113.1
10608.3
417.65
Length
Gas Flange Class 600
Nominal O.D.
Nominal I.D.
Max operating pressure (psi)
Mat. Grade
Length L1
Length L2
Length L3
Length L4
mm
inch
mm
inch
mm
inch
bar
psi
mm
inch
mm
inch
mm
inch
mm
inch
101.6
4.0
114.3
4.5
102.3
4.026
102.1
1480.0
X42
1828.8
72.0
1023.6
40.3
510.5
20.1
3369.3
132.65
152.4
6.0
168.3
6.625
154.1
6.065
96.6
1400.0
X42
1828.8
72.0
1541.8
60.7
769.9
30.3
4146.6
163.25
203.2
8.0
219.1
8.625
202.7
7.981
87.9
1275.0
X42
1828.8
72.0
2026.9
79.8
1013.5
39.9
4875.5
191.95
254.0
10.0
273.1
10.75
247.7
9.75
102.1
1480.0
X42
1981.2
78.0
2476.5
97.5
1239.5
48.8
5703.6
224.55
304.8
12.0
323.9
12.75
298.5
11.75
94.8
1375.0
X42
1981.2
78.0
2984.5
117.5
1493.5
58.8
6465.6
254.55
406.4
16.0
406.4
16.0
381.0
15.0
75.9
1100.0
X42
1981.2
78.0
3810.0
150.0
1905.0
75.0
7702.6
303.25
457.2
18.0
457.2
18.0
428.7
16.876
75.9
1100.0
X42
1981.2
78.0
4287.5
168.8
2143.8
84.4
8418.8
331.45
508.0
20.0
508.0
20.0
477.9
18.814
75.9
1100.0
X42
1981.2
78.0
4777.7
188.1
2390.1
94.1
9155.4
360.45
609.6
24.0
609.6
24.0
574.7
22.626
72.4
1050.0
X42
1981.2
78.0
5748.0
226.3
2872.7
113.1
10608.3
417.65
FUT1010 Liquid sizing chart
Nominal diameter
Qmin
Qmax
Qmin
Qmax
mm
inch
[m3/h]
[m3/h]
[42 GAL BBL/h]
[42 GAL BBL/h]
100
4
14
360
85
2267
150
6
29
818
180
5146
200
8
46
1417
290
8910
250
10
67
2233
421
14045
300
12
80
3203
504
20143
400
16
103
5172
651
32532
450
18
116
6618
728
41625
500
20
124
8241
778
51836
600
24
150
12022
945
75617
FUT1010 Gas sizing chart
FUT1010 maximum flow rate (MMSCFD)
[Millions of standard cubic feet per day]
Meter size and maximum velocity
4"
6"
8"
10"
12"
16"
20"
24"
Pressure (psig)
135 ft/s
126 ft/s
117 ft/s
144 ft/s
126 ft/s
99 ft/s
81 ft/s
90 ft/s
100
8.2
17.3
27.9
54.1
67.1
83.3
107.1
174.9
200
15.5
32.9
52.9
102.7
127.6
158.2
203.4
332.3
300
23.1
49.0
78.7
152.8
189.8
235.4
302.6
494.5
400
30.9
65.5
105.3
204.4
253.9
315.0
404.8
661.5
500
39.0
82.6
132.8
257.6
320.0
396.9
510.1
833.6
600
47.3
100.1
161.0
312.4
388.0
481.2
618.5
1010.8
700
55.8
118.2
190.0
368.7
457.9
568.1
730.1
1193.1
800
64.6
136.8
219.8
426.6
529.9
657.3
844.8
1380.5
900
73.6
155.8
250.5
486.1
603.8
749.0
962.6
1573.1
1000
82.8
175.4
282.0
547.2
679.6
843.0
1083.5
1770.6
1100
92.3
195.4
314.1
609.6
757.1
939.2
1207.1
1972.7
1200
101.9
215.9
347.0
673.3
836.3
1037.4
1333.3
2178.9
FUT1010 maximum flow rate (MMSCFD) [Millions of standard cubic feet per day]
Meter size and maximum velocity
[Minimum flow rate above which 0.2% accuracy can be maintained]
4"
6"
8"
10"
12"
16"
20"
24"
Pressure (psig)
1.55 ft/s
1.4 ft/s
1.3 ft/s
1.65 ft/s
1.35 ft/s
1.1 ft/s
0.85 ft/s
1 ft/s
100
0.1
0.2
0.3
0.6
0.7
0.9
1.1
1.9
200
0.2
0.4
0.6
1.2
1.4
1.8
2.1
3.7
300
0.3
0.5
0.9
1.8
2.0
2.6
3.2
5.5
400
0.4
0.7
1.2
2.3
2.7
3.5
4.2
7.4
500
0.4
0.9
1.5
3.0
3.4
4.4
5.4
9.3
600
0.5
1.1
1.8
3.6
4.2
5.3
6.5
11.2
700
0.6
1.3
2.1
4.2
4.9
6.3
7.7
13.3
800
0.7
1.5
2.4
4.9
5.7
7.3
8.9
15.3
900
0.8
1.7
2.8
5.6
6.5
8.3
10.1
17.5
1000
1.0
1.9
3.1
6.3
7.3
9.4
11.4
19.7
1100
1.1
2.2
3.5
7.0
8.1
10.4
12.7
21.9
1200
1.2
2.4
3.9
7.7
9.0
11.5
14.0
24.2
FUT1010 Maximum Flow Rate (Nm3/h x 1000)
[Thousands of normal cubic meters per hour]
DIN meter size and maximum velocity
100 mm
150 mm
200 mm
250 mm
300 mm
400 mm
500 mm
600 mm
Pressure (barg)
41.1 m/s
38.4 m/s
35.6 m/s
43.9 m/s
38.4 m/s
30.1 m/s
24.6 m/s
27.4 m/s
10
13.5
28.7
46.1
89.5
111.2
137.9
177.2
289.6
20
26.4
55.9
89.9
174.5
216.7
268.8
345.5
564.6
30
39.8
84.4
135.6
263.2
326.9
405.5
521.2
851.8
40
53.9
114.1
183.4
355.8
441.9
548.2
704.6
1151.4
50
68.5
145.0
233.1
452.4
561.9
697.0
895.9
1464.0
60
83.7
177.2
284.9
552.9
686.7
851.9
1094.8
1789.2
70
99.5
210.7
338.7
657.2
816.3
1012.6
1301.5
2126.9
80
115.8
245.3
394.3
765.1
950.2
1178.7
1514.9
2475.8
90
132.6
280.8
451.4
875.9
1087.8
1349.4
1734.3
2834.3
100
149.7
317.1
509.7
989.1
1228.5
1523.9
1958.6
3200.8
110
167.1
353.8
568.8
1103.8
1370.9
1700.6
2185.7
3571.9
120
184.5
390.8
628.2
1218.9
1514.0
1878.0
2413.7
3944.5
FUT1010 Transition Flow Rate (Nm3/h x 1000)
[Thousands of normal cubic meters per hour]
DIN meter size and maximum velocity
Minimum flow rate above which 0.2 % accuracy can be maintained
100 mm
150 mm
200 mm
250 mm
300 mm
400 mm
500 mm
600 mm
Pressure (barg)
0.47 m/s
0.42 m/s
0.39 m/s
0.50 m/s
0.41 m/s
0.33 m/s
0.25 m/s
0.30 m/s
10
0.2
0.3
0.5
1.0
1.2
1.5
1.9
3.2
20
0.3
0.6
1.0
2.0
2.3
3.0
3.6
6.3
30
0.5
0.9
1.5
3.0
3.5
4.5
5.5
9.5
40
0.6
1.3
2.0
4.1
4.7
6.1
7.4
12.8
50
0.8
1.6
2.6
5.2
6.0
7.7
9.4
16.3
60
1.0
2.0
3.2
6.3
7.4
9.5
11.5
19.9
70
1.1
2.3
3.8
7.5
8.7
11.3
13.7
23.6
80
1.3
2.7
4.4
8.8
10.2
13.1
15.9
27.5
90
1.5
3.1
5.0
10.0
11.7
15.0
18.2
31.5
100
1.7
3.5
5.7
11.3
13.2
16.9
20.6
35.6
110
1.9
3.9
6.3
12.6
14.7
18.9
22.9
39.7
120
2.1
4.3
7.0
14.0
16.2
20.9
25.3
43.8
Особенности
- Calibrated performance that meets custody transfer accuracy
- WideBeam technology allows for precision flow measurement by reducing the meter's sensitivity to changes in the medium's physical properties
- TransLoc permanent mounting system ensures sealing and virtually no maintenance
- Available in a wide range of sizes
- High viscosity range (up to 2800 Cst)
- ZeroMatic Path capability automatically corrects for zero drift with no interruption of flow
- Completely cavity free design which eliminates any signal degrading buildup or ports to clog
- Large bi-directional flow range
- Modbus RTU RS 232/485 output available
- Dynamic Reynolds Number compensation
Технические данные
SITRANS FUT1010
Input
Flow range (Gas)
± 36.5 m/s (± 120 f/s) for
DN 100 ... DN 200 (4" ... 8") pipes bi-directional± 30.5 m/s (± 100 ft/s) for
DN 250 ... DN 600 (10" ... 24") pipes bi-directionalFlow range (Liquid)
± 12 m/s (± 40 f/s) including zero flow, bi-directional
Flow sensitivity
0.0003 m/s (0.001 f/s) flow rate independent
Flow temperature range
-28 ... +93 °C (-20 ... +200°F)
Analog inputs
4 x 4 ... 20 mA, (Programmable to Density, Pressure, viscosity or Temperature)
Output
Standard outputs
- 4x isolated 4 ... 20 mA, programmable
- 2x 0 ... 10 V DC, programmable
- 4x Digital Pulse outputs (2x open collector and 2x 0-5V TTL) One each for positive flow, one each for negative flow
- Standard VT100 RS 232, Optional HART, BACnet MSTP/BACnet IP, Modbus RTU & TCP/IP, Ethernet IP, Johnson N2
Status/Alarm I/O
- Programmable, 4x Form C Relays
- Clear Switch Input Totalizer Hold Switch Input
Calibrated accuracy
Gas
- 2-path
0.5 ... 1.0 % (4” ... 6” < 0.15 %)
- 3-path
< 0.5 %
- 4-path
< 0.2 %
Liquid
- 2-path
0.5 ... 1.0 % (4” ... 6” < 0.25 %)
- 3-path
< 0.5 %
- 4-path
< 0.15 %
Repeatability
± 0.05 ... 0.1 %
Data refresh rate
5 Hz
Design
Design Flow transmitter
Dimensions
see SITRANS F US Clamp-on “System info and selection guide“
Weight
see diagrams
Power supply
Power supply
90 ... 240 V AC, 50 … 60 Hz, 30 VA or 9 ... 36 V DC, 12 W
Indication and operation
Data logger memory
1 MByte, programmable for all available data variables
Display
128 x 240 pixel LCD with backlight
Keypad
33 keypad buttons with tactile feedback
Language options
English, Spanish, German, Italian, French
Design Flow sensor
Nominal pipe sizes
4" ... 24" (DN 100 ... DN 600)
Pipe material specification
API 5L ERW
Temperature tap
¾"
Pressure tap
¼"
Flange class
- Liquid
150, 300, 600
- Gas
300, 600
Flange specification
- ASME B16.5
- Liquid 150, 300, 600
- Gas 300, 600
Flange facing
Raised face weld neck
Flange material
A105
Flow sensor paths
Two, three, or four
Sensor length
See diagram
Design temperature
-28 ... +93 °C (-20 ... +200 °F)
Exterior finish
Marine/offshore grade per ASTM B117
Optional pipe sections
- 10 D upstream (with optional flow conditioner)
- 5 D downstream
Certificates and approvals
Flow transmitter IP65 (NEMA 4X)
FM and CSA
- Transmitter
N-I Class I, Div 2
S Class II, Div 2- Sensor
I.S. Class I, II, Div 1
ATEX
Ex II (1) G [Ex ia] IIC
Ex II 3 (1) G Ex nC [ia] IIC T5CE markings
EMC Directive 2014/30/EU
ATEX Directive 2014/34/EUFlow Transmitter - IP66 (NEMA 7)
FM and CSA
- Transmitter
Ex Class I, Div 1
D-I Class II, Div 1
N-I Class I, Div 2
S Class II, Div 2- Sensor
I.S. Class I, II, Div 1
ATEX
Ex II (1) G [Ex ia] IIC
Ex II 3 (1) G Ex nC [ia] IIC T5
Ex II 2 (1) G Ex d [ia IIC] IIB + H2 T5CE markings
EMC Directive 2014/30/EU
ATEX Directive 2014/34/EUSensor
FM and CSA
I.S. Class I, Div 1
N-I Class I, Div 2
S Class II, Div 2ATEX
Ex II 1 G Ex ia IIC T5
CE markings
EMC 2014/30/EU
PED 2014/68/EU
ATEX 2014/34/EU
