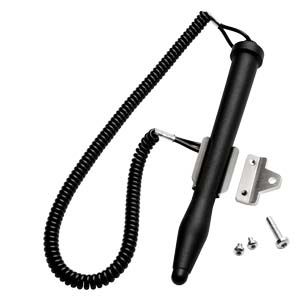

  Touch pen, thick, incl. wall bracket for screw mounting

  Touch pens are effective input tools for operating the touch screen, which are especially helpful when working with gloves or under extreme environmental conditions.

  You can use the touch pen to operate small buttons and input boxes with pint-point accuracy and also avoid scratches and soiling.

  The thick touch pen for resistive touch screens offered here is suitable for all SIMATIC PCS 7 OS clients and SIMATIC PCS 7 compact systems with TFT touch panels:

  • PCS 7 OS Client 477D
  • PCS 7 OS Client 627D
  • SIMATIC PCS 7 BOX in Design Version with Panel Front

  Технические данные

  Order number		6AV7672-1JB00-0AA0	6AV2181-8AV20-0AX0	6AV2181-8AV60-0AX0	6AV6645-7AB14-0AS0
  		TOUCH PEN, THICK, RESISTIVE TECHNOLOGY	Touch pen system, capacitive	Touch pen, caps	TOUCH PEN, THIN, RESISTIVE TECHNOLOGY
  General information
  Product type designation		Touch pen, thick, resistive technology	Touch pen, capacitive technology	Touch system, accessories	Touch pen, thin, resistive technology
  Frame size/design
  ● Standard		Yes; For industrial applications	Yes; For industrial applications	Yes; Special cap for capacitive touch pens	Yes; For industrial applications
  ● Ergonomic		Yes; With holder	Yes; With holder
  Installation type/mounting
  Mounting type			Wall-mounting bracket can be mounted with mounting disk, 2x M3 screw or adhesive pads
  Mounting position			Horizontal
  Degree and class of protection
  IP (at the front)			IP65 (depending on mounting)
  Standards, approvals, certificates
  RoHS conformity		Yes			Yes
  Ambient conditions
  Ambient temperature during operation
  ● min.		-40 °C; At temperatures below 10 °C and above 30 °C, the use of suitable gloves is recommended.	-40 °C; At temperatures below 10 °C and above 30 °C, the use of suitable gloves is recommended.	-40 °C	-40 °C
  ● max.		80 °C	80 °C	80 °C	80 °C
  Ambient temperature during storage/transportation
  ● min.		-40 °C	-40 °C	-40 °C	-40 °C
  ● max.		80 °C	80 °C	80 °C	80 °C
  Relative humidity
  ● Operation, max.		90 %	90 %	90 %	90 %
  Mechanics/material
  Material
  ● Plastic		Yes; Touch pen SIMATIC HMI	Yes; Attachment cord	Yes	Yes
  ● Aluminum			Yes; Touch pen, wall-mounting bracket
  ● Sheet steel		Yes; Mounting
  Screw type
  ● Torx		Yes			No
  Dimensions
  Width				8 mm
  Height		155 mm; Length	150 mm; Length	8 mm	125 mm; Length
  Thickness		20 mm; Diameter	14 mm; Diameter	8 mm	8 mm; Diameter
  Enclosure diameter			37 mm; Diameter wall-mounting bracket
  Mounting cutout, height			39 mm; Height wall-mounting bracket
  Weights
  Weight without packaging			0.13 kg	0.8 g
  Weight incl. packaging			0.14 kg	1.7 g
  Scope of supply
  Delivery quantity in pieces		1; Optional for extension units of the PRO devices	1; 1x touch pen with string, wall-mounting bracket, M6 screw, mounting disk, O-ring, adhesive pads, spare caps for touch pen	10; Caps for touch pen	5; Incl. retaining cord for Mobile Panel 277 10"
  Other
  Merchandise			Yes	Yes	Yes
  Target devices		for resistive touch screens, optimized for operating while wearing gloves	For common capacitive and resistive touch systems	Pen for touch system, capacitive, aluminum	for resistive touch screens
  Note:			Length of the interconnecting lead 53 cm to 100 cm
