  SIMATIC RF240R is a reader with an integrated antenna. Its extra compact design makes it ideal for use in small assembly lines.

  This reader has either

  • an RS422 interface with 3964R transmission procedure for connection to RFID communication modules (see Communication modules),
  • or an RS232 interface with ASCII protocol for connection to S7-1200, PC-based systems or third-party controllers,
  • or a standardized IO-Link interface for connection to IO-Link Master modules from Siemens or third parties.

  Thanks to its high degree of protection and rugged design, the SIMATIC RF240R reader enables problem-free use even under the toughest industrial conditions. Connection is made either with an 8-pin M12 plug-in connector (RS422/RS232 version) or a 4-pin M12 plug-in connector (IO-Link version).

  The reader is operated with ISO 15693-compatible transponders.

  Дизайн

  Field data

  Minimum distance from reader to reader
  SIMATIC RF240R	≥ 120 mm

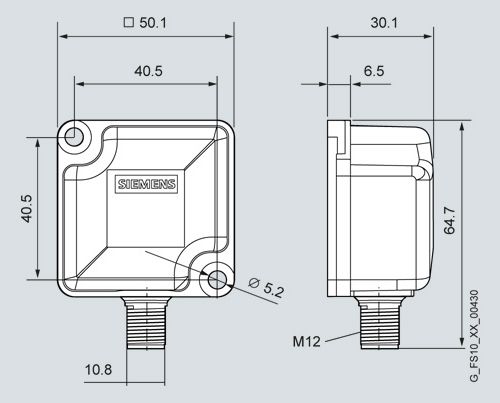

  Чертеж



  SIMATIC RF240R reader

  Технические данные

  Order number		6GT2821-4AC10	6GT2821-4AC40	6GT2821-4AC32
  Product type designation		RF240R reader	RF240R reader ASCII	RF240R reader IO-Link
  Suitability for operation		ISO 15693 Transponder (MDS Dxxx), for connecting to communication modules	ISO 15693 Transponder (MDS Dxxx), for connecting to PC- and control systems	ISO 15693 Transponder (MDS Dxxx), for connecting to an IO-Link Master
  Wireless frequencies
  Operating frequency Rated value		13.56 MHz	13.56 MHz	13.56 MHz
  Electrical data
  Range maximum		65 mm; Range is dependent on transponder type: observe http://support.automation.siemens.com/WW/view/en/67384964	65 mm; Range is dependent on transponder type: observe http://support.automation.siemens.com/WW/view/en/67384964	65 mm; Range is dependent on transponder type: observe http://support.automation.siemens.com/WW/view/en/67384964
  Protocol with radio transmission		ISO 15693, ISO 18000-3	ISO 15693, ISO 18000-3	ISO 15693, ISO 18000-3
  Transfer rate with radio transmission maximum		26.5 kbit/s	26.5 kbit/s	26.5 kbit/s
  Product feature multitag-capable		No	No	No
  Transfer rate at the point-to-point connection serial maximum		115.2 kbit/s	115.2 kbit/s	38.4 kbit/s
  Transmission time for user data
  ● for write access per byte typical		0.6 ms	1.2 ms	40 ms
  ● for read access per byte typical		0.6 ms	1.2 ms	40 ms
  Interfaces
  Standard for interfaces for communication		RS422	RS232	IO-Link
  Type of electrical connection		M12, 8-pin	M12, 8-pin	M12, 4-pin
  Mechanical data
  Material		PA6.6	PA6.6	PA6.6
  Color		anthracite	anthracite	anthracite
  Tightening torque of the screw for securing the equipment maximum		1.5 N·m	1.5 N·m	1.5 N·m
  Mounting distance relating to metal surfaces recommended minimum		0 mm	0 mm	0 mm
  Supply voltage, current consumption, power loss
  Supply voltage
  ● at DC Rated value		24 V	24 V	24 V
  ● at DC		20.4 ... 28.8 V	20.4 ... 28.8 V	20.4 ... 28.8 V
  Consumed current at DC at 24 V
  ● typical		0.05 A	0.05 A	0.05 A
  Permitted ambient conditions
  Ambient temperature
  ● during operation		-20 ... +70 °C	-20 ... +70 °C	-20 ... +70 °C
  ● during storage		-25 ... +80 °C	-25 ... +80 °C	-25 ... +80 °C
  ● during transport		-25 ... +80 °C	-25 ... +80 °C	-25 ... +80 °C
  Protection class IP		IP67	IP67	IP67
  Shock resistance		EN 60721-3-7, Class 7 M2	EN 60721-3-7, Class 7 M2	EN 60721-3-7, Class 7 M2
  Shock acceleration		500 m/s²	500 m/s²	500 m/s²
  Vibrational acceleration		200 m/s²	200 m/s²	200 m/s²
  Design, dimensions and weight
  Width		50 mm	50 mm	50 mm
  Height		30 mm	30 mm	30 mm
  Depth		50 mm	50 mm	50 mm
  Net weight		0.06 kg	0.06 kg	0.06 kg
  Mounting type		2 x M5 screws	2 x M5 screws	2 x M5 screws
  Cable length
  ● with RS 232 interface maximum			30 m
  ● for RS 422 interface maximum		1 000 m
  ● between master and IO-Link device maximum				20 m
  Product properties, functions, components general
  Display version		3-color LED	3-color LED	3-color LED
  Product feature silicon-free		Yes	Yes	Yes
  Standards, specifications, approvals
  Certificate of suitability		Wireless according to R&TTE guidelines EN300 330 and EN 301489, FCC, UL/CSA	Wireless according to R&TTE guidelines EN300 330 and EN 301489, FCC, UL/CSA	Wireless according to R&TTE guidelines EN300 330 and EN 301489, FCC, UL/CSA
  MTBF		430 y	430 y	430 y




  Дальнейшая информация

  All current wireless approvals can be found on the Internet at:

  http://www.siemens.de/rfid-funkzulassungen
