Factory mounting of valve manifolds on SITRANS P410 transmitters

Factory-mounting of valve manifolds on SITRANS P410 gauge and differential pressure transmitters.

Factory-mounting of valve manifolds is possible for SITRANS P410. Depending on the available P410 versions, you can find the configuration options under SITRANS P DS III.

Дизайн

The 7MF9011-4EA valve manifolds are sealed with gaskets made of PTFE between transmitter and the valve manifold as standard. Soft iron, stainless steel and copper gaskets are also available for sealing purposes if preferred.

The 7MF9011-4FA valve manifolds are sealed with PTFE sealing tape between the transmitter and the valve manifold.

The 7MF9411-5BA and 7MF9411-5CA valve manifolds are sealed with PTFE sealing rings between the transmitter and the valve manifold.

Once installed, the complete unit is checked under pressure for leaks (compressed air 6 bar (87 psi))and is certified leak-proof with a factory certificate to EN 10204 - 2.2.

All valve manifolds should preferably be secured with the respective mounting brackets. The transmitters are mounted on the valve manifold and not on the unit itself.

If you order a mounting bracket when choosing the option "Factory mounting of valve manifolds", you will receive a mounting bracket for the valve manifold instead of a bracket for mounting the transmitter.

If you order an acceptance test certificate 3.1 to EN10204 when choosing the option "Factory mounting of valve manifolds", a separate certificate is provided for the transmitters and the valve manifolds respectively.

Конфигурация

7MF9011-5AA valve manifold for relative and absolute pressure transmitters
	Add -Z to the Article No. of the transmitter and add order codes	Order Code
	SITRANS P DS III 7MF403.-...2.-..., 7MF423.-...2.-... , 7MF403.-...3.-..., 7MF423.-...3.-... , 7MF403.-...4.-..., 7MF423.-...4.-... With process connection oval flange with PTFE gasket and steel mounting screws. Delivery including high-pressure test certified by factory certificate according to EN 10204-2.2	T05
	Additional versions:
	Delivery with mounting bracket and stainless steel mounting clips (instead of the mounting bracket supplied with the transmitter)	A02
	Acceptance test certificate according to EN 10204-3.1 for transmitters and mounted valve manifold	C12
	With manufacturer declaration according to NACE, MR-0175	D07
7MF9011-5AA valve manifold for relative and absolute pressure transmitters
	Add -Z to the Article No. of the transmitter and add order codes	Order Code
	SITRANS P DS III 7MF403.-...2.-..., 7MF423.-...2.-... , 7MF403.-...3.-..., 7MF423.-...3.-... , 7MF403.-...4.-..., 7MF423.-...4.-... With process connection oval flange with PTFE gasket and stainless steel mounting screws. Delivery including high-pressure test certified by factory certificate according to EN 10204-2.2	T06
	Additional versions:
	Delivery with mounting bracket and stainless steel mounting clips (instead of the mounting bracket supplied with the transmitter)	A02
	Acceptance test certificate according to EN 10204-3.1 for transmitters and mounted valve manifold	C12
	With manufacturer declaration according to NACE, MR-0175	D07
7MF9011-4FA valve manifold for relative and absolute pressure transmitters
	Add -Z to the Article No. of the transmitter and add order codes	Order Code
	SITRANS P DS III 7MF403.-...1.-..., 7MF423.-...1.-... With process connection female thread ½-14 NPT in-sealed with PTFE sealing tape Delivery including high-pressure test certified by factory certificate according to EN 10204-2.2	T03
	Additional versions:
	Delivery with mounting bracket and stainless steel mounting clips (instead of the mounting bracket supplied with the transmitter)	A02
	Acceptance test certificate according to EN 10204-3.1 supplied for transmitters and mounted valve manifold	C12
	With manufacturer declaration according to NACE, MR-0175	D07
7MF9011-4EA valve manifold for relative and absolute pressure transmitters
	Add -Z to the Article No. of the transmitter and add order codes	Order Code
	SITRANS P DS III 7MF403.-...0.-..., 7MF423.-...0.-...	T02
	With process connection collar G1/2 A to EN837-1 with gasket made of PTFE between valve manifold and transmitter
	Alternative sealing material:
	Soft iron	A70
	Stainless steel, Mat. No. 14571	A71
	Copper	A72
	Delivery including high-pressure test certified by factory certificate according to EN 10204-2.2
	Additional versions:
	Delivery with mounting bracket and stainless steel mounting clips (instead of the mounting bracket supplied with the transmitter)	A02
	Acceptance test certificate according to EN 10204-3.1 supplied for transmitters and mounted valve manifold	C12
	With manufacturer declaration according to NACE, MR-0175	D07
7MF9411-5BA valve manifold for absolute and differential pressure transmitters
	Add -Z to the Article No. of the transmitter and add order codes	Order code
	SITRANS P DSIII 7MF433.-…, 7MF443.-… and 7MF453.-… ¹⁾
	Mounted with PTFE gaskets and screws made of
	Chromed steel	U01
	Stainless steel	U02
	Delivery including high-pressure test certified by factory certificate according to EN 10204-2.2
	Additional versions:
	Delivery with mounting bracket and mounting clips made of
	Steel	A01
	Stainless steel	A02
	(instead of the mounting bracket supplied with the transmitter)
	Acceptance test certificate according to EN 10204-3.1 supplied for transmitters and mounted valve manifold	C12
	With manufacturer declaration according to NACE, MR-0175	D07
7MF9411-5CA valve manifold for differential pressure transmitters
	Add -Z to the Article No. of the transmitter and add order codes	Order code
	SITRANS P DSIII 7MF443.-... and 7MF453.-…1 ¹⁾
	Mounted with PTFE gaskets and screws made of
	Chromed steel	U03
	Stainless steel	U04
	Delivery including high-pressure test certified by factory certificate according to EN 10204-2.2
	Additional versions:
	Delivery with mounting bracket and mounting clips made of
	Steel	A01
	Stainless steel	A02
	(instead of the mounting bracket supplied with the transmitter)
	Acceptance test certificate according to EN 10204-3.1 supplied for transmitters and mounted valve manifold	C12
	With manufacturer declaration according to NACE, MR-0175	D07

¹⁾ For 7MF453.-... transmitters, you require a 7/10-20 UNF connection thread in the process flange

Чертеж

Valve manifolds mounted on SITRANS P DS III

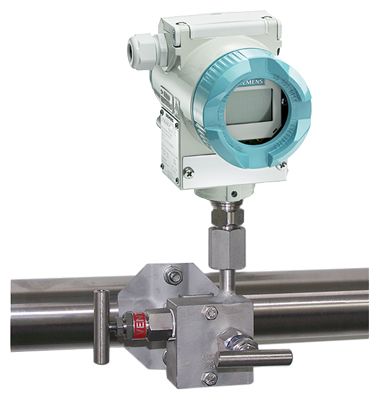

7MF9011-4EA valve manifold with mounted gauge pressure and absolute pressure transmitters

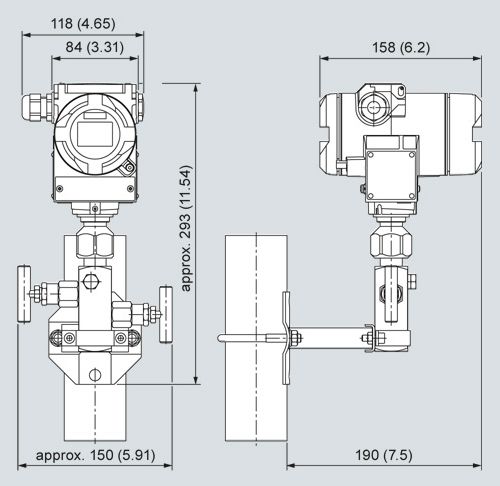

7MF9011-4EA valve manifold with mounted gauge pressure and absolute pressure transmitters, measurements in mm (Inch)

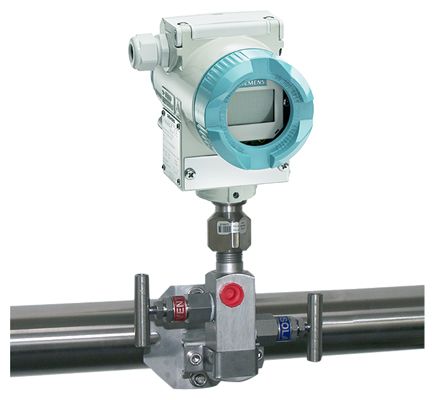

7MF9011-4FA valve manifold with mounted gauge pressure and absolute pressure transmitters

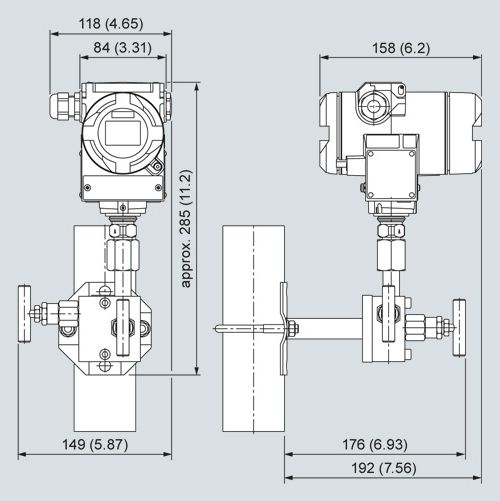

7MF9011-4FA valve manifold with mounted gauge pressure and absolute pressure transmitters, measurements in mm (Inch)

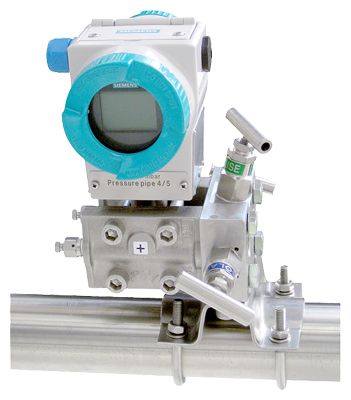

7MF9411-5BA valve manifold with mounted differential pressure transmitter

7MF9411-5BA valve manifold with mounted differential pressure transmitter, measurements in mm (Inch)

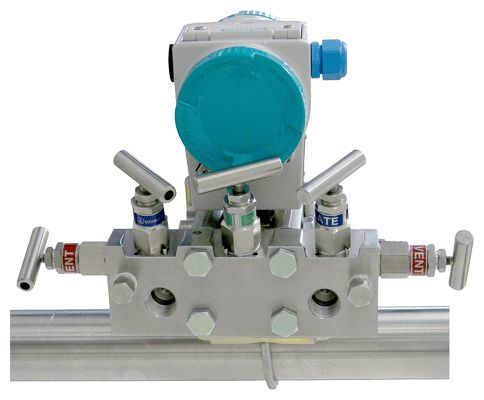

7MF9411-5CA valve manifold with mounted differential pressure transmitter

7MF9411-5CA valve manifold with mounted differential pressure transmitter, measurements in mm (Inch)
