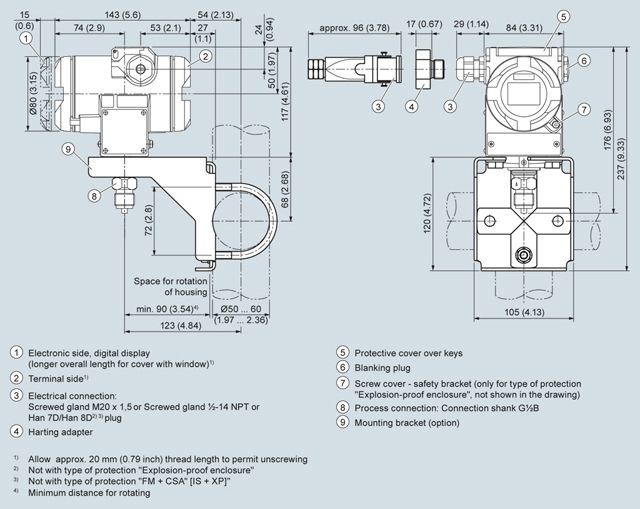

SITRANS P410 pressure transmitter for pressure, dimensions in mm (inches)

Технические данные

SITRANS P410 for gauge pressure
Input
Measured variable	Gauge pressure
Span (fully adjustable) or nominal measuring range, max. operating pressure (in accordance with 97/23/EC Pressure Equipment Directive) and max. test pressure (pursuant to DIN 16086)	HART	PROFIBUS PA/ FOUNDATION Fieldbus
	Span	Nominal measuring range	Max. perm. operating pressure MAWP (PS)	Max. permissible test pressure
	0.01 ... 1 bar 1 ... 100 kPa 0.15 ... 14.5 psi	1 bar 100 kPa 14.5 psi	4 bar 400 kPa 58 psi	6 bar 600 kPa 87 psi
	0.04 ... 4 bar 4 ... 400 kPa 0.58 ... 58 psi	4 bar 400 kPa 58 psi	7 bar 0.7 Mpa 102 psi	10 bar 1 MPa 145 psi
	0.16 ... 16 bar 16 ... 1600 kPa 2.3 ... 232 psi	16 bar 1600 kPa 232 psi	21 bar 2.1 MPa 305 psi	32 bar 3.2 MPa 464 psi
	0.63 ... 63 bar 63 ... 6300 kPa 9.1 ... 914 psi	63 bar 6300 kPa 914 psi	67 bar 6.7 MPa 972 psi	100 bar 10 MPa 1450 psi
	1.6 ... 160 bar 0.16 ... 16 MPa 23 ... 2321 psi	160 bar 16 MPa 2321 psi	167 bar 16.7 MPa 2422 psi	250 bar 25 MPa 3626 psi
Low measuring limit
Measuring cell with silicone oil filling	30 mbar a/3 kPa a/0.44 psia
Upper measuring limit	100 % of max. span
Start of scale	Between the measuring limits (continuously adjustable)
Output	HART		PROFIBUS PA/FOUNDATION Fieldbus
Output signal	4 ... 20 mA		Digital PROFIBUS PA and FOUNDATION Fieldbus signal
Lower limit (fully adjustable)	3.55 mA, factory preset to 3.84 mA		-
Upper limit (fully adjustable)	23 mA, factory preset to 20.5 mA or optionally set to 22.0 mA		-
Load
Without HART	R_B ≤ (U_H - 10.5 V)/0.023 A in Ω, U_H: Power supply in V		-
With HART	R_B = 230 ... 500 Ω (SIMATIC PDM) or R_B = 230 ... 1100 Ω (HART Communicator)		-
Physical bus	-		IEC 61158-2
Protection against polarity reversal	Protected against short-circuit and polarity reversal. Each connection against the other with max. supply voltage.
Electrical damping (step width 0.1 s)	Set to 2 s (0 ... 100 s)
Measuring accuracy	According to IEC 60770-1
Reference conditions	Rising characteristic curve Start of scale 0 bar Seal diaphragm stainless steel Silicone oil filling Room temperature 25 °C (77 °F)
Measuring span ratio r (spread, Turn-Down)	r = maximum measuring span/set measuring span or nominal measuring range
Error in measurement at limit setting including hysteresis and reproducibility
Linear characteristic
1 bar/100 kPa/3.6 psi 4 bar/400 kPa/58 psi 16 bar/1.6 MPa/232 psi 63 bar/6.3 MPa/914 psi 160 bar/16 MPa/2321 psi	r ≤ 5 : 5 < r ≤ 100 :	≤ 0.04 % ≤ (0.004 · r + 0.045) %
Influence of ambient temperature (in percent per 28 °C (50 °F))
1 bar/100 kPa/3.6 psi	≤ (0.05 · r + 0.1) %
4 bar/400 kPa/58 psi 16 bar/1.6 MPa/232 psi 63 bar/6.3 MPa/914 psi 160 bar/16 MPa/2321 psi	≤ (0.025 · r + 0.125) %
Long-term stability (temperature change ±30 °C (±54 °F))
1 bar/100 kPa/3.6 psi 4 bar/400 kPa/58 psi	≤ (0.25 · r) % in 5 years
16 bar/1.6 MPa/232 psi 63 bar/6.3 MPa/914 psi 160 bar/16 MPa/2321 psi	≤ (0.125 · r) % in 5 years
Influence of mounting position	≤ 0.05 mbar/0.005 kPa/0.02 inH₂O per 10° incline (zero point correction is possible with position error compensation)
Effect of auxiliary power (in percent per voltage change)	0.005 % per 1 V
Measured-value resolution for PROFIBUS PA and FOUNDATION Fieldbus	3 · 10^-5 of nominal measuring range
Rated conditions
Degree of protection according to IEC 60529	IP66 (optional IP66/IP68), NEMA 4X
Temperature of medium
Measuring cell with silicone oil filling	-40 ... +100 °C (-40 ... +212 °F)
Measuring cell with inert fill fluid	-20 ... +100 °C (-4 ... +212 °F)
In conjunction with dust explosion protection	-20 ... +60 °C (-4 ... +140 °F)
Ambient conditions
Ambient temperature
Transmitter (with 4-wire connection, observe temperature values of supplementary 4-wire electronics)	-40 ... +85 °C (-40 ... +185 °F)
Display readable	-30 ... +85 °C (-22 ... +185 °F)
Storage temperature	-50 ... +85 °C (-58 ... +185 °F)
Climatic class
Condensation	Relative humidity 0 ... 100 % Condensation permissible, suitable for use in the tropics
Electromagnetic compatibility
Emitted interference and interference immunity	According to IEC 61326 and NAMUR NE 21
Design
Weight (without options)	Die-cast aluminum: ≈ 2.0 kg (≈ 4.4 lb) Stainless steel precision casting: ≈ 4.6 kg (≈ 10.1 lb)
Enclosure material	Low-copper die-cast aluminum, GD-AlSi 12 or stainless steel precision casting, mat. no. 1.4408
Wetted parts materials
Connection shank	Stainless steel, mat. no. 1.4404/316L or Hastelloy C4, mat. no. 2.4602
Oval flange	Stainless steel, mat. no. 1.4404/316L
Seal diaphragm	Stainless steel, mat. no. 1.4404/316L or Hastelloy C276, mat. no. 2.4819
Measuring cell filling	Silicone oil or inert fill fluid (for oxygen measurement, maximum pressure 100 bar (1450 psi) at 60 °C (140 °F))
Process connection	G½B connection shank according to EN 837-1, female thread ½-14 NPT or oval flange (PN 160 (MAWP 2320 psi)) according to DIN 19213 with mounting thread M10 or ⁷/₁₆-20 UNF according to IEC 61518
Material of mounting bracket
Steel	Sheet-steel, mat. no. 1.0330, chrome-plated
Stainless steel	Sheet stainless steel, mat. no. 1.4301 (SS 304)
Power supply U_H	HART		PROFIBUS PA/FOUNDATION Fieldbus
Terminal voltage on transmitter	10.5 ... 45 V DC 10.5 ... 30 V DC in intrinsically-safe mode		-
Auxiliary power	-		Bus-powered
Separate supply voltage	-		Not necessary
Bus voltage
Not Ex	-		9 ... 32 V
With intrinsically-safe operation	-		9 ... 24 V
Current consumption
Basic current (max.)	-		12.5 mA
Start-up current ≤ basic current	-		Yes
Max. current in event of fault	-		15.5 mA
Fault disconnection electronics (FDE) available	-		Yes
Certificates and approvals	HART		PROFIBUS PA/FOUNDATION Fieldbus
Classification according to pressure equipment directive (PED 2014/68/EU)	For gases of fluid group 1 and liquids of fluid group 1; complies with requirements of article 4, paragraph 3 (sound engineering practice)
Explosion protection
Intrinsic safety "i"	PTB 13 ATEX 2007 X
Marking	Ex II 1/2 G Ex ia/ib IIC T4/T5/T6 Ga/Gb
Permissible ambient temperature	-40 ... +85 °C (-40 ... +185 °F) temperature class T4; -40 ... +70 °C (-40 ... +158 °F) temperature class T5; -40 ... +60 °C (-40 ... +140 °F) temperature class T6
Wiring	To certified intrinsically-safe circuits with peak values: U_i = 30 V, I_i = 100 mA, P_i = 750 mW; R_i = 300 Ω		FISCO supply unit: U_o = 17.5 V, I_o = 380 mA, P_o = 5.32 W Linear barrier: U_o = 24 V, I_o = 174 mA, P_o = 1 W
Effective internal inductance/capacitance	L_i = 0.4 mH, C_i = 6 nF		L_i = 7 μH, C_i = 1.1 nF
Flameproof enclosure "d"	PTB 99 ATEX 1160
Marking	Ex II 1/2 G Ex d IIC T4/T6 Gb
Permissible ambient temperature	-40 ... +85 °C (-40 ... +185 °F) temperature class T4; -40 ... +60 °C (-40 ... +140 °F) temperature class T6
Wiring	To circuits with operating values: U_H = 10.5 ... 45 V DC		To circuits with operating values: U_H = 9 ... 32 V DC
Dust explosion protection for zone 20	PTB 01 ATEX 2055
Marking	Ex II 1 D Ex ta IIIC T120°C Da Ex II 1/2 D Ex ta/tb IIIC T120°C Da/Db
Perm. Ambient temperature	-40 ... +85 °C (-40 ... +185 °F)
Max. surface temperature	120 °C (248 °F)
Wiring	To certified intrinsically-safe circuits with peak values: U_i = 30 V, I_i = 100 mA, P_i = 750 mW, R_i = 300 Ω		FISCO supply unit: U_o = 17.5 V, I_o = 380 mA, P_o = 5.32 W Linear barrier: U_o = 24 V, I_o = 250 mA, P_o = 1.2 W
Effective internal inductance/capacitance	L_i = 0.4 mH, C_i = 6 nF		L_i = 7 μH, C_i = 1.1 nF
Dust explosion protection for zone 21/22	PTB 01 ATEX 2055
Marking	Ex II 2 D Ex tb IIIC T120°C Db
Wiring	To circuits with operating values: U_H = 10.5 ... 45 V DC; P_max = 1.2 W		To circuits with operating values: U_H = 9 ... 32 V DC; P_max = 1 W
Type of protection "n" (zone 2)	PTB 13 ATEX 2007 X
Marking	Ex II 2/3 G Ex nA IIC T4/T5/T6 Gc Ex II 2/3 G Ex ic IIC T4/T5/T6 Gc-
Connection (Ex nA)	U_m = 45 V		U_m = 32 V
Connection (Ex ic)	To circuits with operating values: U_i = 45 V		FISCO supply unit: U_o = 17.5 V, I_o = 570 mA Linear barrier: U_o = 32 V, I_o = 132 mA, P_o = 1 W
Effective internal inductance/capacitance	L_i = 0.4 mH, C_i = 6 nF		L_i = 7 μH, C_i = 1.1 nF
Explosion protection acc. to FM	Certificate of Compliance 3008490
Marking (XP/DIP) or (IS); (NI)	CL I, DIV 1, GP ABCD T4...T6; CL II, DIV 1, GP EFG; CL III; CL I, ZN 0/1 AEx ia IIC T4...T6; CL I, DIV 2, GP ABCD T4...T6; CL II, DIV 2, GP FG; CL III
Explosion protection to CSA	Certificate of Compliance 1153651
Marking (XP/DIP) or (IS)	CL I, DIV 1, GP ABCD T4...T6; CL II, DIV 1, GP EFG; CL III; Ex ia IIC T4...T6; CL I, DIV 2, GP ABCD T4...T6; CL II, DIV 2, GP FG; CL III

HART communication
HART	230 ... 1100 Ω
Protocol	HART Version 5.x
Software for computer	SIMATIC PDM

PROFIBUS PA communication
Simultaneous communication with master class 2 (max.)	4
The address can be set using	Configuration tool or local operation (standard setting address 126)
Cyclic data usage
Output byte	5 (one measured value) or 10 (two measured values)
Input byte	0, 1, or 2 (register operating mode and reset function for metering)
Internal preprocessing
Device profile	PROFIBUS PA Profile for Process Control Devices Version 3.0, Class B
Function blocks	2
Analog input
Adaptation to user-specific process variable	Yes, linearly rising or falling characteristic
Electrical damping adjustable	0 … 100 s
Simulation function	Input /Output
Failure mode	parameterizable (last good value, substitute value, incorrect value)
Limit monitoring	Yes, one upper and lower warning limit and one alarm limit respectively
Register (totalizer)	Can be reset, preset, optional direction of counting, simulation function of register output
Failure mode	parameterizable (summation with last good value, continuous summation, summation with incorrect value)
Limit monitoring	One upper and lower warning limit and one alarm limit respectively
Physical block	1
Transducer blocks	2
Pressure transducer block
Can be calibrated by applying two pressures	Yes
Monitoring of sensor limits	Yes
Specification of a container characteristic with	Max. 30 nodes
Square-rooted characteristic for flow measurement	Yes
Gradual volume suppression and implementation point of square-root extraction	Parameterizable
Simulation function for measured pressure value and sensor temperature	Constant value or by means of parameterizable ramp function

FOUNDATION Fieldbus communication
Function blocks	3 function blocks analog input, 1 function block PID
Analog input
Adaptation to user-specific process variable	Yes, linearly rising or falling characteristic
Electrical damping adjustable	0 … 100 s
Simulation function	Output/input (can be locked within the device with a bridge)
Failure mode	parameterizable (last good value, substitute value, incorrect value)
Limit monitoring	Yes, one upper and lower warning limit and one alarm limit respectively
Square-rooted characteristic for flow measurement	Yes
PID	Standard FOUNDATION Fieldbus function block
Physical block	1 resource block
Transducer blocks	1 transducer block Pressure with calibration, 1 transducer block LCD
Pressure transducer block
Can be calibrated by applying two pressures	Yes
Monitoring of sensor limits	Yes
Simulation function: Measured pressure value, sensor temperature and electronics temperature	Constant value or by means of parameterizable ramp function
