dv/dt filters compact plus VPL (Voltage Peak Limiter) limit the voltage rate-of-rise dv/dt to values of < 1600 V/μs and the typical voltage peaks to the following values in accordance with the limit value curve A according to IEC 60034‑25: 2007:

< 1150 V at U_line < 575 V

< 1400 V at 660 V < U_line < 690 V

Standard motors with standard insulation and without insulated bearings with a supply voltage of up to 690 V can be used for converter operation if a dv/dt filter compact plus VPL is used.

dv/dt filters compact plus VPL are designed for the following maximum motor cable lengths:

Shielded cables: 100 m (328 ft) (e.g. Protodur NYCWY)
Unshielded cables: 150 m (492 ft) (e.g. Protodur NYY)

For longer cable lengths (> 100 m (328 ft) shielded, > 150 m (492 ft) unshielded) refer to dv/dt filter plus VPL.

Notice:

The max. permissible cable length between the dv/dt filter and Motor Module is 5 m (16.4 ft)
Operation with output frequencies < 10 Hz is permissible for max. 5 min.

Дизайн

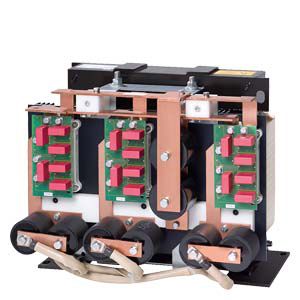

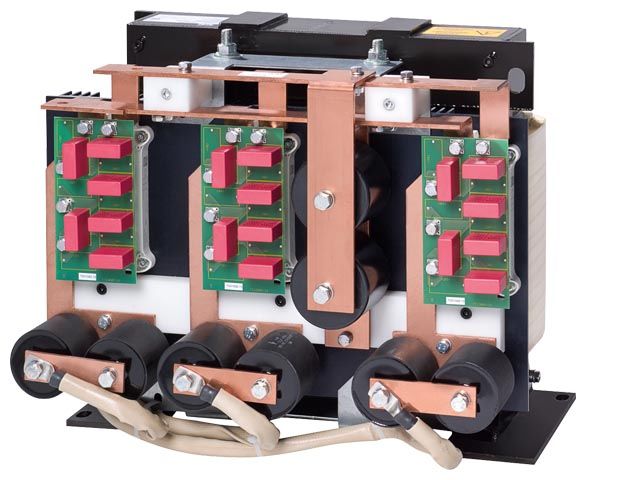

The dv/dt filter compact plus VPL consists of two components, which are supplied together as a compact mechanical unit:

dv/dt reactor
Voltage limiting network, which cuts off the voltage peaks and feeds the energy back to the DC link.

Технические данные

Line voltage 380 ... 480 V 3 AC		dv/dt filter compact plus VPL
		6SL3000-2DE32-6EA0	6SL3000-2DE35-0EA0	6SL3000-2DE38-4EA0	6SL3000-2DE41-4EA0
Rated current	A	260	490	840	1405
I_th max	A	260	490	840	1405
Power loss, max.
At 50 Hz 400 V	kW	0.21	0.29	0.518	Reactor: 1.027 VPL: 0.127 Total: 1.154
At 60 Hz 460 V	kW	0.215	0.296	0.529	Reactor: 1.077 VPL: 0.12 Total: 1.197
At 150 Hz 400 V	kW	0.255	0.344	0.609	Reactor: 1.354 VPL: 0.09 Total: 1.444
Power connection input and output side		Hole for M10	Hole for M10	Hole for M12	2 × elongated hole, 14 × 18 mm
Conductor cross section, max. (IEC)		Provided for busbar connection	Provided for busbar connection	Provided for busbar connection	Provided for busbar connection
DC link connection DCPS, DCNS		Threaded socket M8	Threaded socket M8	Hole for M8	Hole for M8
Conductor cross section, max. (IEC)	mm²	16	25	50	95
PE/GND connection		Threaded socket M6	Threaded socket M6	Threaded socket M6	Threaded socket M6 (reactor and VPL)
Motor cable length, max.
Shielded	m (ft)	100 (328)	100 (328)	100 (328)	100 (328)
Unshielded	m (ft)	150 (492)	150 (492)	150 (492)	150 (492)
Degree of protection		IP00	IP00	IP00	IP00
Dimensions
Width	mm (in)	310 (12.2)	350 (13.8)	440 (17.3)	Reactor: 430 VPL: 277
Height	mm (in)	283 (11.1)	317 (12.5)	369 (14.5)	Reactor: 385 VPL: 360
Depth	mm (in)	238 (9.37)	260 (10.2)	311 (12.2)	Reactor: 323 VPL: 291
Weight, approx.	kg (lb)	41 (90)	61 (135)	103 (227)	Reactor: 168.8 VPL: 19.2 Total: 188
Conformity		CE	CE	CE	CE
Certificate of suitability		cURus	cURus	cURus	cURus
Suitable for Power Module (Type rating)		6SL3310-1TE32-1AA3 (110 kW) 6SL3315-1TE32-1AA3 (110 kW) 6SL3310-1TE32-6AA3 (132 kW) 6SL3315-1TE32-6AA3 (132 kW)	6SL3310-1TE33-1AA3 (160 kW) 6SL3315-1TE33-1AA3 (160 kW) 6SL3310-1TE33-8AA3 (200 kW) 6SL3310-1TE35-0AA3 (200 kW) 6SL3315-1TE35-0AA3 (250 kW)
Suitable for Motor Module (Type rating)		6SL3320-1TE32-1AA3 (110 kW) 6SL3325-1TE32-1AA3 (110 kW) 6SL3320-1TE32-6AA3 (132 kW) 6SL3325-1TE32-6AA3 (132 kW)	6SL3320-1TE33-1AA3 (160 kW) 6SL3325-1TE33-1AA3 (160 kW) 6SL3320-1TE33-8AA3 (200 kW) 6SL3320-1TE35-0AA3 (250 kW) 6SL3325-1TE35-0AA3 (250 kW)	6SL3320-1TE36-1AA3 (315 kW) 6SL3325-1TE36-1AA3 (315 kW) 6SL3320-1TE37-5AA3 (400 kW) 6SL3325-1TE37-5AA3 (400 kW) 6SL3320-1TE38-4AA3 (450 kW) 6SL3325-1TE38-4AA3 (450 kW)	6SL3320-1TE41-0AA3 (560 kW) 6SL3325-1TE41-0AA3 (560 kW) 6SL3320-1TE41-2AA3 (710 kW) 6SL3325-1TE41-2AA3 (710 kW) 6SL3320-1TE41-4AA3 (800 kW) 6SL3325-1TE41-4AA3 (800 kW) 6SL3325-1TE41-4AS3 (800 kW) ¹⁾

¹⁾ This Motor Module has been specifically designed for loads demanding a high dynamic performance.

Line voltage 500 ... 690 V 3 AC		dv/dt filter compact plus VPL
		6SL3000-2DG31-0EA0	6SL3000-2DG31-5EA0	6SL3000-2DG32-2EA0	6SL3000-2DG33-3EA0
Rated current	A	100	150	215	330
I_th max	A	100	150	215	330
Power loss, max.
At 50 Hz 500/690 V	kW	0.227	0.27	0.305	0.385
At 60 Hz 575 V	kW	0.236	0.279	0.316	0.399
At 150 Hz 500/690 V	kW	0.287	0.335	0.372	0.48
Power connection input and output side		Hole for M10	Hole for M10	Hole for M10	Hole for M10
Conductor cross section, max. (IEC)		Provided for busbar connection	Provided for busbar connection	Provided for busbar connection	Provided for busbar connection
DC link connection DCPS, DCNS		Threaded socket M8	Threaded socket M8	Hole for M8	Hole for M8
Conductor cross section, max. (IEC)	mm²	16	16	25	25
PE/GND connection		Threaded socket M6	Threaded socket M6	Threaded socket M6	Threaded socket M6
Motor cable length, max.
Shielded	m (ft)	100 (328)	100 (328)	100 (328)	100 (328)
Unshielded	m (ft)	150 (492)	150 (492)	150 (492)	150 (492)
Degree of protection		IP00	IP00	IP00	IP00
Dimensions
Width	mm (in)	310 (12.2)	310 (12.2)	350 (13.8)	350 (13.8)
Height	mm (in)	283 (11.1)	283 (11.1)	317 (12.5)	317 (12.5)
Depth	mm (in)	238 (9.37)	238 (9.37)	260 (10.2)	260 (10.2)
Weight, approx.	kg (lb)	34 (75)	36 (79)	51 (112)	60 (132)
Conformity		CE	CE	CE	CE
Certificate of suitability ¹⁾		cURus	cURus	cURus	cURus
Suitable for Motor Module (Type rating)		6SL3320-1TG28-5AA3 (75 kW) 6SL3320-1TG31-0AA3 (90 kW) 6SL3325-1TG31-0AA3 (90 kW)	6SL3320-1TG31-2AA3 (110 kW) 6SL3320-1TG31-5AA3 (132 kW) 6SL3325-1TG31-5AA3 (132 kW)	6SL3320-1TG31-8AA3 (160 kW) 6SL3320-1TG32-2AA3 (200 kW) 6SL3325-1TG32-2AA3 (200 kW)	6SL3320-1TG32-6AA3 (250 kW) 6SL3320-1TG33-3AA3 (315 kW) 6SL3325-1TG33-3AA3 (315 kW)

¹⁾ Only for line voltages 500 ... 600 V 3 AC.

Line voltage 500 ... 690 V 3 AC		dv/dt filter compact plus VPL
		6SL3000-2DG34-1EA0	6SL3000-2DG35-8EA0	6SL3000-2DG38-1EA0	6SL3000-2DG41-3EA0
Rated current	A	410	575	810	1270
I_th max	A	410	575	810	1270
Power loss, max.
At 50 Hz 500/690 V	kW	0.55	0.571	Reactor: 0.88 VPL: 0.084 Total: 0.964	Reactor: 0.926 VPL: 0.124 Total: 1.05
At 60 Hz 575 V	kW	0.568	0.586	Reactor: 0.918 VPL: 0.08 Total: 0.998	Reactor: 0.993 VPL: 0.111 Total: 1.104
At 150 Hz 500/690 V	kW	0.678	0.689	Reactor: 1.137 VPL: 0.059 Total: 1.196	Reactor: 1.23 VPL: 0.089 Total: 1.319
Power connection input and output side		Hole for M12	Hole for M12	2 × elongated hole, 14 × 18 mm	2 × elongated hole, 14 × 18 mm
Conductor cross section, max. (IEC)		Provided for busbar connection	Provided for busbar connection	Provided for busbar connection	Provided for busbar connection
DC link connection DCPS, DCNS		Hole for M8	Hole for M8	Hole for M8	Hole for M8
Conductor cross section, max. (IEC)	mm²	50	50	95	95
PE/GND connection		Threaded socket M6	Threaded socket M6	Threaded socket M6 (reactor and VPL)	Threaded socket M6 (reactor and VPL)
Motor cable length, max.
Shielded	m (ft)	100 (328)	100 (328)	100 (328)	100 (328)
Unshielded	m (ft)	150 (492)	150 (492)	150 (492)	150 (492)
Degree of protection		IP00	IP00	IP00	IP00
Dimensions
Width	mm (in)	440 (17.3)	440 (17.3)	Reactor: 430 VPL: 277	Reactor: 430 VPL: 277
Height	mm (in)	369 (14.5)	369 (14.5)	Reactor: 385 VPL: 360	Reactor: 385 VPL: 360
Depth	mm (in)	311 (12.2)	311 (12.2)	Reactor: 323 VPL: 291	Reactor: 323 VPL: 291
Weight, approx.	kg (lb)	87 (192)	100 (220)	Reactor: 171.2 VPL: 18.8 Total: 190	Reactor: 175.8 VPL: 19.2 Total: 195
Conformity		CE	CE	CE	CE
Certificate of suitability ¹⁾		cURus	cURus	cURus	cURus
Suitable for Motor Module (Type rating)		6SL3320-1TG34-1AA3 (400 kW)	6SL3320-1TG34-7AA3 (450 kW) 6SL3325-1TG34-7AA3 (450 kW) 6SL3320-1TG35-8AA3 (560 kW) 6SL3325-1TG35-8AA3 (560 kW)	6SL3320-1TG37-4AA3 (710 kW) 6SL3325-1TG37-4AA3 (710 kW) 6SL3320-1TG38-1AA3 (800 kW) 6SL3325-1TG38-0AA3 (800 kW) 6SL3325-1TG38-1AA3 (800 kW)	6SL3320-1TG38-8AA3 (900 kW) 6SL3320-1TG41-0AA3 (1000 kW) 6SL3325-1TG41-0AA3 (1000 kW) 6SL3320-1TG41-3AA3 (1200 kW) 6SL3325-1TG41-3AA3 (1200 kW)

¹⁾ Only for line voltages 500 ... 600 V 3 AC.
