Motor Modules

Заказные данные
(21)
Аксессуары
(1)

A Motor Module comprises a self-commutated inverter with IGBTs. It generates a variable voltage with variable frequency from the DC link voltage that feeds the connected motor.

Multiple Motor Modules can be operated on a single DC link. This permits energy to be transferred between the Motor Modules. This means that if one Motor Module operating in generator mode produces energy, the energy can be used by another Motor Module operating in motor mode.

Motor Modules are controlled by a Control Unit.

Liquid-cooled Motor Modules are especially suitable for applications where installation space is restricted and environmental conditions are harsh. Liquid cooling ensures efficient heat dissipation.

Дизайн

The liquid-cooled Motor Modules have the following interfaces as standard:

1 motor connection
1 connection for the 24 V DC electronics power supply
1 DC link connection (DCP, DCN) for connecting to the supply DC link
3 DRIVE‑CLiQ sockets
1 temperature sensor input for KTY84‑130, Pt1000, PTC or Pt100 (Pt1000 can be used from firmware V4.7 HF17)
1 connection for Safe Brake Adapter
1 connection for Safety Integrated
2 PE connections
2 coolant connections

The status of the Motor Modules is indicated via three LEDs.

The scope of supply of the Motor Modules includes:

1 DRIVE‑CLiQ cable for connection to the Control Unit
2 seals for coolant connections
1 set of warning labels in 30 languages
(BG, CN, CZ, DE, DK, EE, ES, FI, FR, GB, GR, HU, IE, IS, IT, JP, KR, LT, LV, MT, NL, NO, PL, PT, RO, RU, SE, SI, SK, TR)

Интеграция

The liquid-cooled Motor Modules communicate with the higher-level control module via DRIVE‑CLiQ. The control module in this case can be a CU320-2 or a SIMOTION D Control Unit.

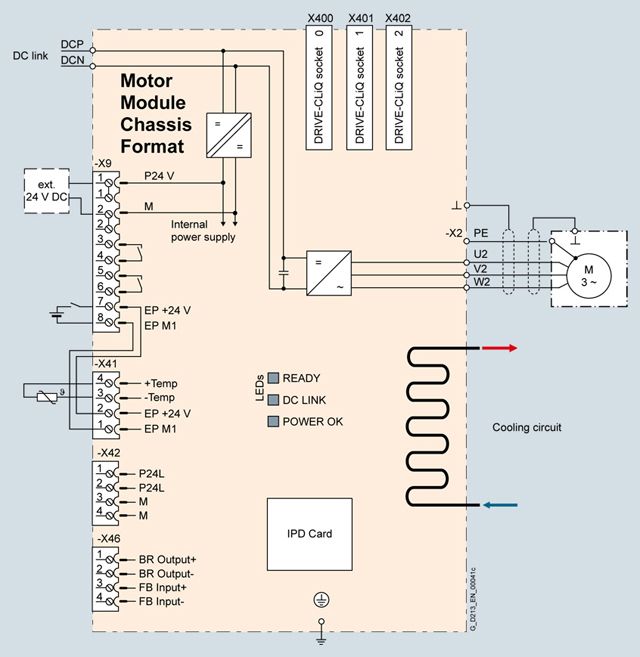

Connection example of a liquid-cooled Motor Module

Технические данные

General technical specifications

Electrical specifications
Efficiency	98.5 %
DC link voltage (up to 2000 m (6562 ft) above sea level)	510 ... 720 V DC (line supply voltage 380 ... 480 V 3 AC) or 675 ... 1035 V DC (line supply voltage 500 ... 690 V 3 AC)
Output frequency ¹⁾
Control mode Servo	0 ... 550 Hz
Control mode Vector	0 ... 550 Hz
Control mode V/f	0 ... 550 Hz
Safety Integrated	Safety Integrity Level 2 (SIL2) acc. to IEC 61508, Performance Level d (PLd) acc. to EN ISO 13849‑1 and Control Category 3 acc. to EN ISO 13849‑1.

¹⁾ Please note:

• The correlation between the maximum output frequency, pulse frequency and current derating. Higher output frequencies on request For further information, see https://support.industry.siemens.com/cs/document/104020669

• The correlation between the minimum output frequency and permissible output current (current derating). Information is provided in the SINAMICS Low Voltage Engineering Manual.

Line voltage 380 ... 480 V 3 AC DC link voltage 510 ... 720 V DC		Motor Modules
		6SL3325-1TE32-1AA3	6SL3325-1TE32-6AA3	6SL3325-1TE33-1AA3	6SL3325-1TE35-0AA3	6SL3325-1TE36-1AA3
Type rating
At I_L (50 Hz 400 V) ¹⁾	kW	110	132	160	250	315
At I_H (50 Hz 400 V) ¹⁾	kW	90	110	132	200	250
At I_L (60 Hz 460 V) ²⁾	hp	150	200	250	400	500
At I_H (60 Hz 460 V) ²⁾	hp	150	200	200	350	350
Output current
Rated current I_{rated O}	A	210	260	310	490	605
Base-load current I_L³⁾	A	205	250	302	477	590
Base-load current I_H⁴⁾	A	178	233	277	438	460
Maximum current I_max O	A	307	375	453	715	885
DC link current
Rated current I_rated DC when supplied via
Basic Line Module	A	256	317	380	600	738
Active Line Module	A	230	287	340	538	664
Base-load current I_L DC ³⁾ when supplied via
Basic Line Module	A	250	305	368	581	719
Active Line Module	A	225	274	331	522	646
Base-load current I_{H DC}⁴⁾ when supplied via
Basic Line Module	A	227	284	338	534	561
Active Line Module	A	195	255	303	480	504
Current demand
24 V DC auxiliary power supply	A	1.4	1.4	1.5	1.5	1.6
DC link capacitance	μF	4800	5800	8400	9600	12600
Pulse frequency ⁵⁾
Rated frequency	kHz	2	2	2	2	1.25
Pulse frequency, max.
Without current derating	kHz	2	2	2	2	1.25
With current derating	kHz	8	8	8	8	7.5
Power loss, max. ⁶⁾
At 50 Hz 400 V	kW	1.61	1.95	2.29	3.56	4.81
At 60 Hz 460 V	kW	1.68	2.06	2.38	3.74	5.25
Dissipated to ambient air	kW	0.06	0.07	0.09	0.14	0.16
Coolant volume flow ⁷⁾	l/min	9	9	12	12	16
Liquid volume of the integrated heat exchanger	dm³	0.31	0.31	0.91	0.91	0.74
Pressure drop, typ. ⁸⁾ for volume flow	Pa	70000	70000	70000	70000	70000
Heat exchanger material		Stainless steel	Stainless steel	Stainless steel	Stainless steel	Aluminum
Sound pressure level L_pA (1 m) at 50/60 Hz	dB	52	52	52	52	54
DC link connection DCP, DCN		2 × hole for M12 Busbar	2 × hole for M12 Busbar	2 × hole for M12 Busbar	2 × hole for M12 Busbar	2 × hole for M12 Busbar
Motor connection U2, V2, W2		Hole for M12	Hole for M12	Hole for M12	Hole for M12	2 × hole for M12
Conductor cross section, max. (IEC)	mm²	2 × 95	2 × 95	2 × 240	2 × 240	4 × 185
PE/GND connection		2 × hole for M12	2 × hole for M12	2 × hole for M12	2 × hole for M12	2 × hole for M12
Conductor cross section, max. (IEC)	mm²	2 × 95	2 × 95	2 × 240	2 × 240	4 × 185
Cable length, max. ⁹⁾
Shielded	m (ft)	300 (984)	300 (984)	300 (984)	300 (984)	300 (984)
Unshielded	m (ft)	450 (1476)	450 (1476)	450 (1476)	450 (1476)	450 (1476)
Dimensions
Width	mm (in)	150 (5.91)	150 (5.91)	150 (5.91)	150 (5.91)	265 (10.4)
Height	mm (in)	746 (29.4)	746 (29.4)	1172 (46.1)	1172 (46.1)	1002 (39.5)
Depth	mm (in)	545 (21.5)	545 (21.5)	545 (21.5)	545 (21.5)	545 (21.5)
Weight, approx.	kg (lb)	41 (90)	41 (90)	80 (176)	80 (176)	110 (243)
Frame size		FXL	FXL	GXL	GXL	HXL

¹⁾ Rated output of a typical 6‑pole standard induction motor based on I_L or I_H for 400 V 3 AC 50 Hz.

²⁾ Rated output of a typical 6‑pole standard induction motor based on I_L or I_H for 460 V 3 AC 60 Hz.

³⁾ The base-load current I_L is based on a duty cycle of 110 % for 60 s or 150 % for 10 s with a duty cycle duration of 300 s.

⁴⁾ The base-load current I_H is based on a duty cycle of 150 % for 60 s or 160 % for 10 s with a duty cycle duration of 300 s.

⁵⁾Additional notes regarding the correlation between the pulse frequency and maximum output current/output frequency is provided in the SINAMICS Low Voltage Engineering Manual.

⁶⁾ The specified power loss represents the maximum value at 100 % utilization. The value is lower under normal operating conditions. To ensure safe dissipation of the minor power loss released to the ambient air, it is important to follow the instructions pertaining to control cabinet installation in the SINAMICS Low Voltage Engineering Manual.

⁷⁾ The value applies to coolants comprising water and a mixture of water and anti-freeze agent.

⁸⁾The value is valid for water as coolant. Additional information and notes on other coolants is provided in the SINAMICS Low Voltage Engineering Manual.

⁹⁾ Total of all motor cables. Longer cable lengths for specific configurations are available on request. For additional information, please refer to the SINAMICS Low Voltage Engineering Manual.

Line voltage 380 ... 480 V 3 AC DC link voltage 510 ... 720 V DC		Motor Modules
		6SL3325-1TE37-5AA3	6SL3325-1TE38-4AA3	6SL3325-1TE41-0AA3	6SL3325-1TE41-2AA3	6SL3325-1TE41-4AA3	6SL3325-1TE41-4AS3 ¹⁾
Type rating
At I_L (50 Hz 400 V) ²⁾	kW	400	450	560	710	800	800
At I_H (50 Hz 400 V) ²⁾	kW	315	400	450	630	710	630
At I_L (60 Hz 460 V) ³⁾	hp	600	700	800	1000	1150	1000
At I_H (60 Hz 460 V) ³⁾	hp	450	600	700	900	1000	900
Output current
Rated current I_{rated O}	A	745	840	985	1260	1405	1330
Base-load current I_L⁴⁾	A	725	820	960	1230	1370	1310
Base-load current I_H⁵⁾	A	570	700	860	1127	1257	1150
Maximum current I_max O	A	1087	1230	1440	1845	2055	2055
DC link current
Rated current I_rated DC when supplied via
Basic Line Module	A	894	1025	1202	1512	1714	1550
Active Line Module	A	805	922	1080	1361	1544	1403
Base-load current I_L DC ⁴⁾ when supplied from
Basic Line Module	A	871	1000	1170	1474	1670	1525
Active Line Module	A	784	898	1051	1326	1500	1405
Base-load current I_{H DC}⁵⁾ when supplied from
Basic Line Module	A	795	853	1048	1345	1532	1676
Active Line Module	A	716	767	942	1211	1377	1403
Current demand
24 V DC auxiliary power supply	A	1.6	1.6	1.46	1.46	1.46	1.46
DC link capacitance	μF	17400	17400	21000	29000	29000	21000
Pulse frequency ⁶⁾
Rated frequency	kHz	1.25	1.25	1.25	1.25	1.25	2
Pulse frequency, max.
Without current derating	kHz	1.25	1.25	1.25	1.25	1.25	2
With current derating	kHz	7.5	7.5	7.5	7.5	7.5	4
Power loss, max. ⁷⁾
At 50 Hz 400 V	kW	5.1	5.75	7.9	9.15	10.2	10.9
At 60 Hz 460 V	kW	5.61	6.33	8.55	10.05	11.2	12.3
Dissipated to ambient air	kW	0.2	0.23	0.44	0.56	0.62	0.65
Coolant volume flow ⁸⁾	l/min	16	16	27	27	27	27
Liquid volume of the integrated heat exchanger	dm³	0.74	0.74	1.56	1.56	1.56	1.56
Pressure drop, typ. ⁹⁾ for volume flow	Pa	70000	70000	70000	70000	70000	70000
Heat exchanger material		Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Sound pressure level L_pA (1 m) at 50/60 Hz	dB	54	54	56	56	56	56
DC link connection DCP, DCN		2 × hole for M12 Busbar	2 × hole for M12 Busbar	2 × hole for M12 Busbar	2 × hole for M12 Busbar	2 × hole for M12 Busbar	2 × hole for M12 Busbar
Motor connection U2, V2, W2		2 × hole for M12	2 × hole for M12	2 × hole for M12	2 × hole for M12	2 × hole for M12	2 × hole for M12
Conductor cross section, max. (IEC)	mm²	4 × 185	4 × 185	4 × 240	4 × 240	4 × 240	4 × 240
PE/GND connection		2 × hole for M12	2 × hole for M12	2 × hole for M12	2 × hole for M12	2 × hole for M12	2 × hole for M12
Conductor cross section, max. (IEC)	mm²	4 × 185	4 × 185	Busbar	Busbar	Busbar	Busbar
Cable length, max. ¹⁰⁾
Shielded	m (ft)	300 (984)	300 (984)	300 (984)	300 (984)	300 (984)	300 (984)
Unshielded	m (ft)	450 (1476)	450 (1476)	450 (1476)	450 (1476)	450 (1476)	450 (1476)
Dimensions
Width	mm (in)	265 (10.4)	265 (10.4)	295 (11.6)	295 (11.6)	295 (11.6)	295 (11.6)
Height	mm (in)	1002 (39.5)	1002 (39.5)	1516 (59.7)	1516 (59.7)	1516 (59.7)	1516 (59.7)
Depth	mm (in)	545 (21.5)	545 (21.5)	545 (21.5)	545 (21.5)	545 (21.5)	545 (21.5)
Weight, approx.	kg (lb)	110 (243)	110 (243)	220 (485)	220 (485)	220 (485)	230 (507)
Frame size		HXL	HXL	JXL	JXL	JXL	JXL

¹⁾ This Motor Module has been specifically designed for loads demanding a high dynamic performance. The derating factor k_IGBT and the derating characteristics can be ignored (see section “Duty cycles” in the SINAMICS Low Voltage Engineering Manual).

²⁾ Rated output of a typical 6‑pole standard induction motor based on I_L or I_H for 400 V 3 AC 50 Hz.

³⁾ Rated output of a typical 6‑pole standard induction motor based on I_L or I_H for 460 V 3 AC 60 Hz.

⁴⁾ The base-load current I_L is based on a duty cycle of 110 % for 60 s or 150 % for 10 s with a duty cycle duration of 300 s.

⁵⁾ The base-load current I_H is based on a duty cycle of 150 % for 60 s or 160 % for 10 s with a duty cycle duration of 300 s.

⁶⁾ Additional notes regarding the correlation between the pulse frequency and maximum output current/output frequency is provided in the SINAMICS Low Voltage Engineering Manual.

⁷⁾ The specified power loss represents the maximum value at 100 % utilization. The value is lower under normal operating conditions. To ensure safe dissipation of the minor power loss released to the ambient air, it is important to follow the instructions pertaining to control cabinet installation in the SINAMICS Low Voltage Engineering Manual.

⁸⁾ The value applies to coolants comprising water and a mixture of water and anti-freeze agent.

⁹⁾The value is valid for water as coolant. Additional information and notes on other coolants is provided in the SINAMICS Low Voltage Engineering Manual.

¹⁰⁾ Sum of all motor cables. Longer cable lengths for specific configurations are available on request. For additional information, please refer to the SINAMICS Low Voltage Engineering Manual.

Line voltage 500 ... 690 V 3 AC DC link voltage 675 ... 1035 V DC		Motor Modules
		6SL3325-1TG31-0AA3	6SL3325-1TG31-5AA3	6SL3325-1TG32-2AA3	6SL3325-1TG33-3AA3	6SL3325-1TG34-7AA3	6SL3325-1TG35-8AA3
Type rating
At I_L (50 Hz 690 V) ¹⁾	kW	90	132	200	315	450	560
At I_H (50 Hz 690 V) ¹⁾	kW	75	110	160	250	400	450
At I_L (50 Hz 500 V) ¹⁾	kW	55	90	132	200	315	400
At I_H (50 Hz 500 V) ¹⁾	kW	55	90	132	200	250	315
At I_L (60 Hz 575 V) ²⁾	hp	75	150	200	300	450	600
At I_H (60 Hz 575 V) ²⁾	hp	75	125	200	250	450	500
Output current
Rated current I_{rated O}	A	100	150	215	330	465	575
Base-load current I_L³⁾	A	95	142	208	320	452	560
Base-load current I_H⁴⁾	A	89	134	192	280	416	514
Maximum current I_max O	A	142	213	312	480	678	840
DC link current
Rated current I_rated DC when supplied via
Basic Line Module	A	122	183	263	403	558	702
Active Line Module	A	110	165	237	363	502	632
Base-load current I_L DC ³⁾ when supplied via
Basic Line Module	A	116	173	253	390	544	683
Active Line Module	A	105	156	229	352	489	616
Base-load current I_{H DC}⁴⁾ when supplied from
Basic Line Module	A	108	163	234	341	496	627
Active Line Module	A	98	147	211	308	446	565
Current demand
24 V DC auxiliary power supply	A	1.0	1.0	1.5	1.5	1.6	1.6
DC link capacitance	μF	2800	2800	4200	5800	9670	9670
Pulse frequency ⁵⁾
Rated frequency	kHz	1.25	1.25	1.25	1.25	1.25	1.25
Pulse frequency, max.
Without current derating	kHz	1.25	1.25	1.25	1.25	1.25	1.25
With current derating	kHz	7.5	7.5	7.5	7.5	7.5	7.5
Power loss, max. ⁶⁾
At 50 Hz 690 V	kW	1.15	1.64	2.34	3.38	5.44	5.61
At 60 Hz 575 V	kW	1.02	1.45	2.05	2.96	5.1	5.45
Dissipated to ambient air	kW	0.06	0.07	0.09	0.12	0.14	0.16
Coolant volume flow ⁷⁾	l/min	9	9	12	12	16	16
Liquid volume of the integrated heat exchanger	dm³	0.31	0.31	0.91	0.91	0.74	0.74
Pressure drop, typ. ⁸⁾ for volume flow	Pa	70000	70000	70000	70000	70000	70000
Heat exchanger material		Stainless steel	Stainless steel	Stainless steel	Stainless steel	Aluminum	Aluminum
Sound pressure level L_pA (1 m) at 50/60 Hz	dB	52	52	52	52	54	54
DC link connection DCP, DCN		2 × hole for M12 Busbar	2 × hole for M12 Busbar	2 × hole for M12 Busbar	2 × hole for M12 Busbar	2 × hole for M12 Busbar	2 × hole for M12 Busbar
Motor connection U2, V2, W2		Hole for M12	Hole for M12	Hole for M12	Hole for M12	2 × hole for M12	2 × hole for M12
Conductor cross section, max. (IEC)	mm²	2 × 95	2 × 95	4 × 240	4 × 240	4 × 185	4 × 185
PE/GND connection		2 × hole for M12	2 × hole for M12	2 × hole for M12	2 × hole for M12	2 × hole for M12	2 × hole for M12
Conductor cross section, max. (IEC)	mm²	2 × 95	2 × 95	2 × 240	2 × 240	4 × 185	4 × 185
Cable length, max. ⁹⁾
Shielded	m (ft)	300 (984)	300 (984)	300 (984)	300 (984)	300 (984)	300 (984)
Unshielded	m (ft)	450 (1476)	450 (1476)	450 (1476)	450 (1476)	450 (1476)	450 (1476)
Dimensions
Width	mm (in)	150 (5.91)	150 (5.91)	150 (5.91)	150 (5.91)	265 (10.4)	265 (10.4)
Height	mm (in)	728 (28.7)	728 (28.7)	1172 (46.1)	1172 (46.1)	1002 (39.5)	1002 (39.5)
Depth	mm (in)	545 (21.5)	545 (21.5)	545 (21.5)	545 (21.5)	545 (21.5)	545 (21.5)
Weight, approx.	kg (lb)	41 (90)	41 (90)	80 (176)	80 (176)	110 (243)	110 (243)
Frame size		FXL	FXL	GXL	GXL	HXL	HXL

¹⁾ Rated output of a typical 6‑pole standard induction motor based on I_L or I_H for 500 V or 690 V 3 AC 50 Hz.

²⁾ Rated output of a typical 6‑pole standard induction motor based on I_L or I_H for 575 V 3 AC 60 Hz.

³⁾ The base-load current I_L is based on a duty cycle of 110 % for 60 s or 150 % for 10 s with a duty cycle duration of 300 s.

⁴⁾ The base-load current I_H is based on a duty cycle of 150 % for 60 s or 160 % for 10 s with a duty cycle duration of 300 s.

⁵⁾Additional notes regarding the correlation between the pulse frequency and maximum output current/output frequency is provided in the SINAMICS Low Voltage Engineering Manual.

⁷⁾ The value applies to coolants comprising water and a mixture of water and anti-freeze agent.

⁸⁾ The value is valid for water as coolant. Additional information and notes on other coolants is provided in the SINAMICS Low Voltage Engineering Manual.

Line voltage 500 ... 690 V 3 AC DC link voltage 675 ... 1035 V DC		Motor Modules
		6SL3325-1TG37-4AA3	6SL3325-1TG38-0AA3¹⁾	6SL3325-1TG38-1AA3	6SL3325-1TG41-0AA3	6SL3325-1TG41-3AA3	6SL3325-1TG41-6AA3
Type rating
At I_L (50 Hz 690 V) ²⁾	kW	710	800	800	1000	1200	1500
At I_H (50 Hz 690 V) ²⁾	kW	630	710	710	900	1000	1260
At I_L (50 Hz 500 V) ²⁾	kW	500	560	560	710	900	1000
At I_H (50 Hz 500 V) ²⁾	kW	450	500	560	630	800	900
At I_L (60 Hz 575 V) ³⁾	hp	700	800	800	1000	1250	1500
At I_H (60 Hz 575 V) ³⁾	hp	700	700	700	900	1000	1250
Output current
Rated current I_{rated O}	A	735	810	810	1025	1270	1560
Base-load current I_L⁵⁾	A	710	790	790	1000	1230	1500
Base-load current I_H⁵⁾	A	657	724	724	917	1136	1284
Maximum current I_max O	A	1065	1185	1185	1500	1845	2055
DC link current
Rated current I_rated DC when supplied via
Basic Line Module	A	903	990	990	1250	1550	1903
Active Line Module	A	759	891	891	1125	1395	1605
Base-load current I_L DC ⁴⁾ when supplied from
Basic Line Module	A	870	948	963	1219	1500	1800
Active Line Module	A	781	870	869	1100	1353	1650
Base-load current I_{H DC}⁵⁾ when supplied from
Basic Line Module	A	795	885	883	1118	1384	1680
Active Line Module	A	732	808	796	1009	1250	1550
Current demand
24 V DC auxiliary power supply	A	1.6	1.6	1.46	1.46	1.46	1.46
DC link capacitance	μF	10500	10500	14000	16000	19330	21000
Pulse frequency ⁶⁾
Rated frequency	kHz	1.25	1.25	1.25	1.25	1.25	1.25
Pulse frequency, max.
Without current derating	kHz	1.25	1.25	1.25	1.25	1.25	1.25
With current derating	kHz	7.5	7.5	7.5	7.5	7.5	7.5
Power loss, max. ⁶⁾
At 50 Hz 690 V	kW	7.65	8.47	9.56	10.87	13.49	17.9
At 60 Hz 575 V	kW	6.67	7.39	8.34	9.55	11.84	15.7
Dissipated to ambient air	kW	0.2	0.22	0.43	0.53	0.57	0.78
Coolant volume flow ⁸⁾	l/min	16	16	27	27	27	27
Liquid volume of the integrated heat exchanger	dm³	0.74	0.74	1.56	1.56	1.56	1.56
Pressure drop, typ. ⁹⁾ for volume flow	Pa	70000	70000	70000	70000	70000	70000
Heat exchanger material		Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Sound pressure level L_pA (1 m) at 50/60 Hz	dB	54	54	56	56	56	56
DC link connection DCP, DCN		2 × hole for M12 Busbar	2 × hole for M12 Busbar	2 × hole for M12 Busbar	2 × hole for M12 Busbar	2 × hole for M12 Busbar	2 × hole for M12 Busbar
Motor connection U2, V2, W2		2 × hole for M12	2 × hole for M12	2 × hole for M12	2 × hole for M12	2 × hole for M12	2 × hole for M12
Conductor cross section, max. (IEC)	mm²	4 × 185	4 x 185	Busbar	Busbar	Busbar	Busbar
PE/GND connection		2 × hole for M12	2 × hole for M12	2 × hole for M12	2 × hole for M12	2 × hole for M12	2 × hole for M12
Conductor cross section, max. (IEC)	mm²	4 × 185	4 × 185	Busbar	Busbar	Busbar	Busbar
Cable length, max. ¹⁰⁾
Shielded	m (ft)	300 (984)	300 (984)	300 (984)	300 (984)	300 (984)	300 (984)
Unshielded	m (ft)	450 (1476)	450 (1476)	450 (1476)	450 (1476)	450 (1476)	450 (1476)
Dimensions
Width	mm (in)	265 (10.4)	265 (10.4)	295 (11.6)	295 (11.6)	295 (11.6)	295 (11.6)
Height	mm (in)	1002 (39.5)	1002 (39.5)	1516 (59.7)	1516 (59.7)	1516 (59.7)	1516 (59.7)
Depth	mm (in)	545 (21.5)	545 (21.5)	545 (21.5)	545 (21.5)	545 (21.5)	545 (21.5)
Weight, approx.	kg (lb)	110 (243)	110 (243)	220 (485)	220 (485)	220 (485)	230 (507)
Frame size		HXL	HXL	JXL	JXL	JXL	JXL

¹⁾The device is optimized for a base pulse frequency of 1.25 kHz, for an increased pulse frequency – or for certain overloads the derating factor is higher than that for the device with article number 6SL3325‑1TG38‑1AAx.

²⁾ Rated output of a typical 6‑pole standard induction motor based on I_L or I_H for 500 V or 690 V 3 AC 50 Hz.

³⁾ Rated output of a typical 6‑pole standard induction motor based on I_L or I_H for 575 V 3 AC 60 Hz.

⁴⁾ The base-load current I_L is based on a duty cycle of 110 % for 60 s or 150 % for 10 s with a duty cycle duration of 300 s.

⁵⁾ The base-load current I_H is based on a duty cycle of 150 % for 60 s or 160 % for 10 s with a duty cycle duration of 300 s.

⁶⁾Additional notes regarding the correlation between the pulse frequency and maximum output current/output frequency is provided in the SINAMICS Low Voltage Engineering Manual.

⁸⁾ The value applies to coolants comprising water and a mixture of water and anti-freeze agent.

⁹⁾ The value is valid for water as coolant. Additional information and notes on other coolants is provided in the SINAMICS Low Voltage Engineering Manual.

Motor Modules

Информационные материалы

Дизайн

Интеграция

Технические данные

General technical specifications
