SINAMICS G180 cabinet units - air-cooled

Дизайн

Control cabinet manufactured by Rittal TS8
IP21 degree of protection, higher degree of protection available as option
Cable clamping bar and shielding bus integrated
Convenient terminal compartment for EMC-compliant cable connections to NAMUR NE 37
Complete touch protection in accordance with Employers' Liability Association regulations (BGV A3)
Cable entry from below

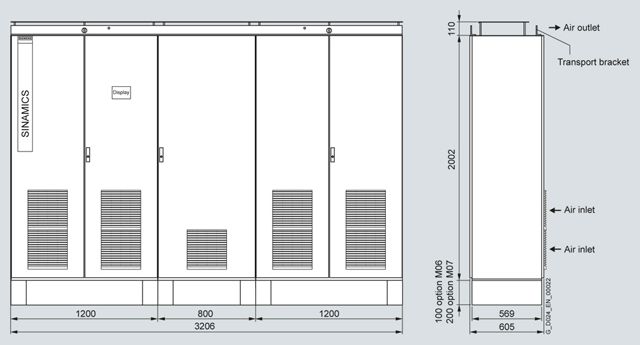

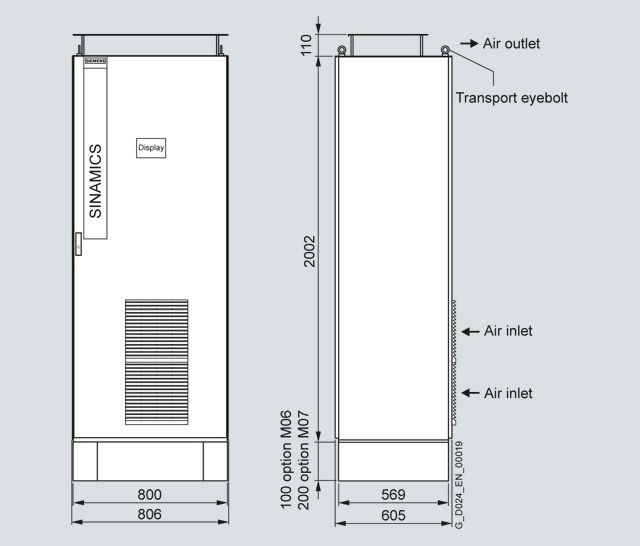

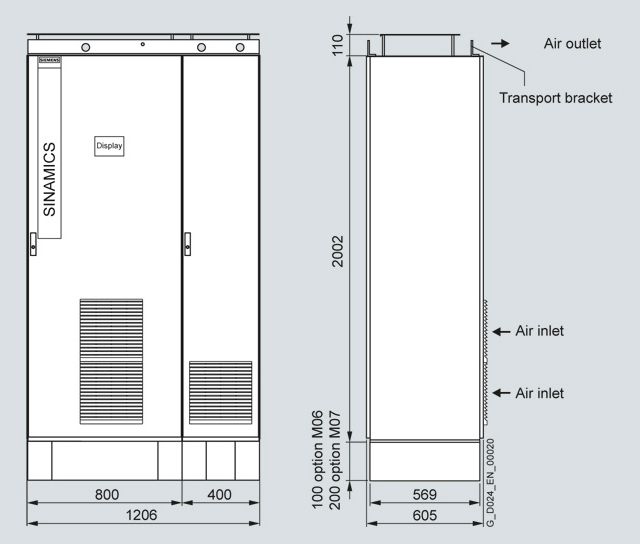

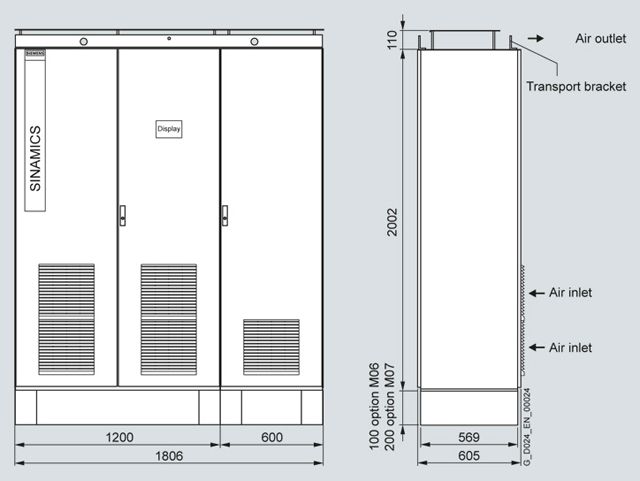

Dimensional drawing applies to standard converters without options. The cabinet dimensions might change if options are selected.

SINAMICS G180 cabinet units, air-cooled	Converter type
6SE0180‑1BA33‑7❑A7	2T3A‑87401‑200
6SE0180‑1BA34‑6❑A7	2T3A‑87401‑250
6SE0180‑1BA36‑3❑A7	2T3A‑87401‑315
6SE0180‑1BD33‑7❑A7	2T3A‑87501‑250
6SE0180‑1BD34‑6❑A7	2T3A‑87501‑315
6SE0180‑1BD36‑0❑A7	2T3A‑87501‑400
6SE0180‑1B❑33‑2❑A7	2T3A‑87601‑250
6SE0180‑1B❑33‑6❑A7	2T3A‑87601‑315
6SE0180‑1B❑34‑2❑A7	2T3A‑87601‑400

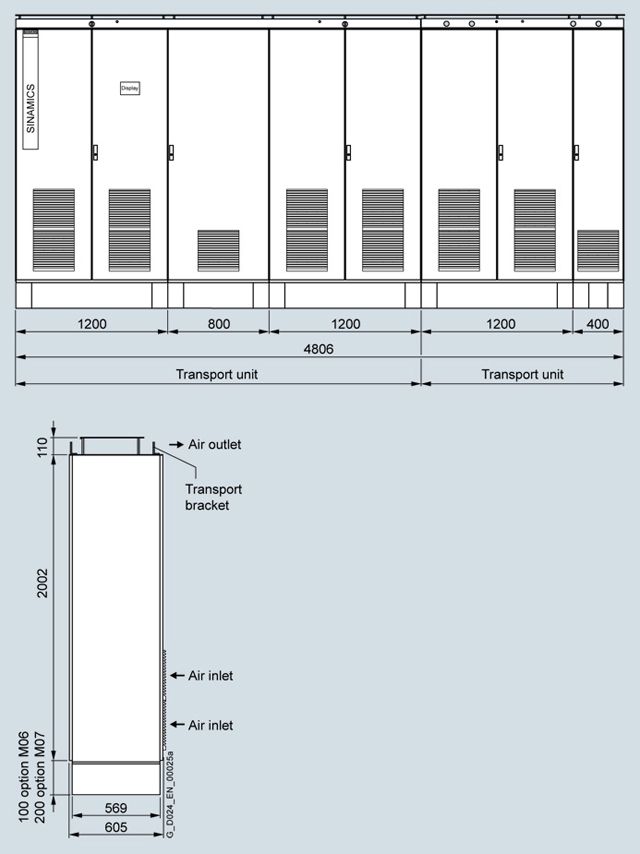

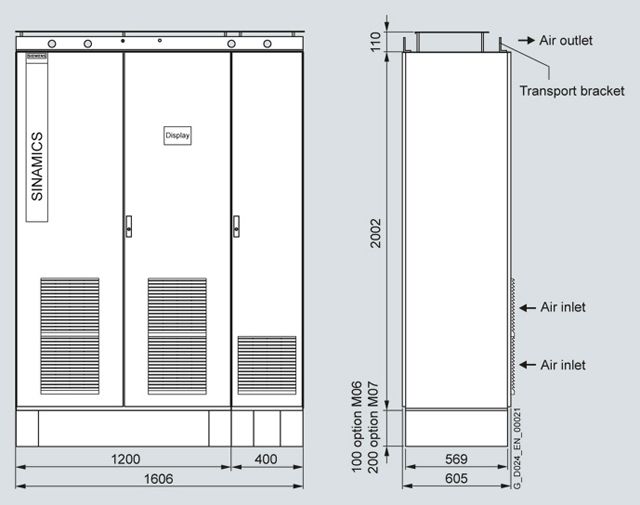

Dimensional drawing applies to standard converters without options. The cabinet dimensions might change if options are selected.

SINAMICS G180 cabinet units, air-cooled	Converter type
6SE0180‑1BA37‑3❑A7	2T3A‑87401‑400
6SE0180‑1BD37‑3❑A7	2T3A‑87501‑500
6SE0180‑1B❑35‑2❑A7	2T3A‑87601‑500

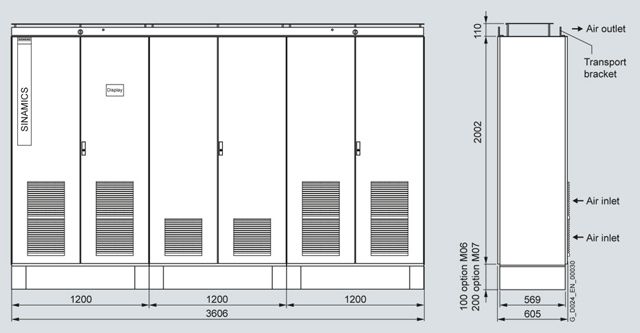

Dimensional drawing applies to standard converters without options. The cabinet dimensions might change if options are selected.

SINAMICS G180 cabinet units, air-cooled	Converter type
6SE0180‑1BA38‑8❑A7	2T3A‑87401‑500
6SE0180‑1BA41‑0❑A7	2T3A‑87401‑560
6SE0180‑1BA41‑1❑A7	2T3A‑87401‑630
6SE0180‑1BD38‑2❑A7	2T3A‑87501‑560
6SE0180‑1BD38‑8❑A7	2T3A‑87501‑630
6SE0180‑1BD41‑0❑A7	2T3A‑87501‑710
6SE0180‑1BD41‑1❑A7	2T3A‑87501‑800
6SE0180‑1B❑35‑7❑A7	2T3A‑87601‑560
6SE0180‑1B❑36‑4❑A7	2T3A‑87601‑630
6SE0180‑1B❑37‑1❑A7	2T3A‑87601‑710
6SE0180‑1B❑37‑7❑A7	2T3A‑87601‑800
6SE0180‑1B❑41‑0❑A7	2T3A‑87601‑909
6SE0180‑1B❑41‑1❑A7	2T3A‑87601‑910

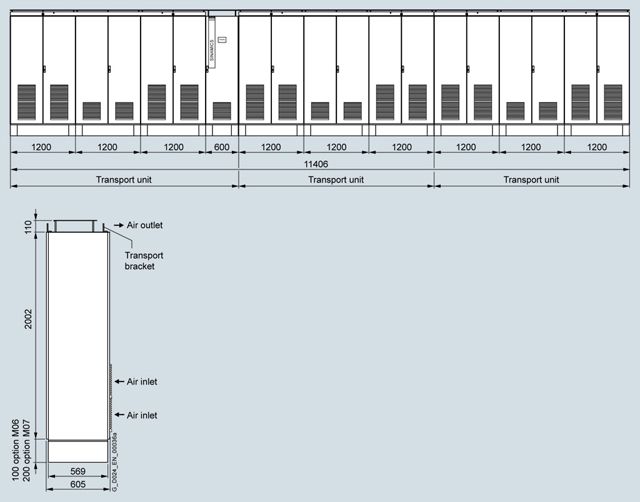

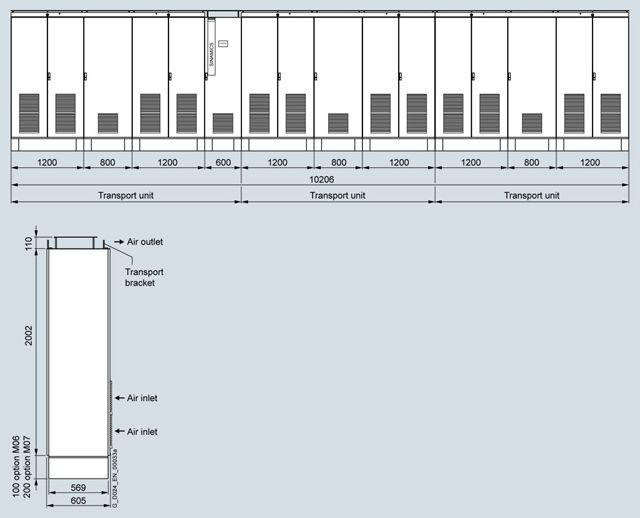

Dimensional drawing applies to standard converters without options. The cabinet dimensions might change if options are selected.

SINAMICS G180 cabinet units, air-cooled	Converter type
6SE0180‑1C❑41‑2❑A7	2T3A‑87602‑912
6SE0180‑1C❑41‑3❑A7	2T3A‑87602‑913
6SE0180‑1C❑41‑5❑A7	2T3A‑87602‑915
6SE0180‑1C❑41‑7❑A7	2T3A‑87602‑917
6SE0180‑1C❑42‑0❑A7	2T3A‑87602‑919
6SE0180‑2CH41‑2❑A7	2T3F‑87602‑912
6SE0180‑2CH41‑3❑A7	2T3F‑87602‑913
6SE0180‑2CH41‑5❑A7	2T3F‑87602‑915
6SE0180‑2CH41‑7❑A7	2T3F‑87602‑917
6SE0180‑2CH42‑0❑A7	2T3F‑87602‑919

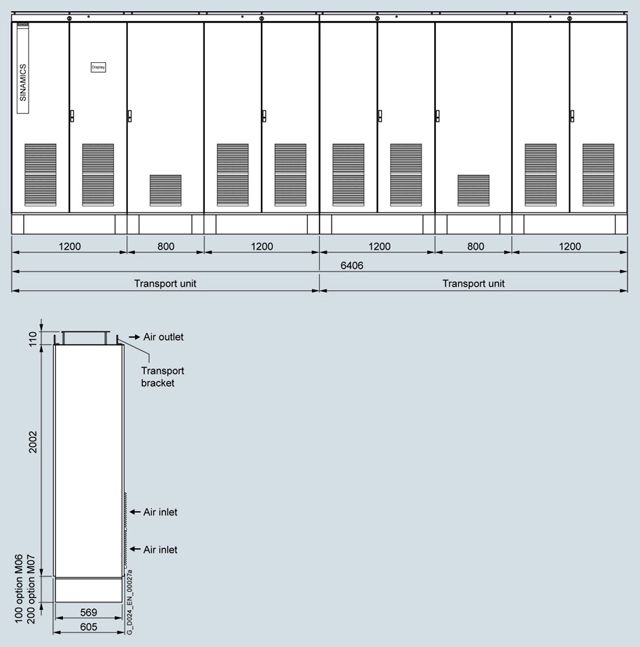

Dimensional drawing applies to standard converters without options. The cabinet dimensions might change if options are selected.

SINAMICS G180 cabinet units, air-cooled	Converter type
6SE0180‑2BA33‑7❑A7	2T3F‑87401‑200
6SE0180‑2BA34‑6❑A7	2T3F‑87401‑250
6SE0180‑2BA36‑3❑A7	2T3F‑87401‑315
6SE0180‑2BA37‑3❑A7	2T3F‑87401‑400
6SE0180‑2BD33‑7❑A7	2T3F‑87501‑250
6SE0180‑2BD34‑6❑A7	2T3F‑87501‑315
6SE0180‑2BD36‑3❑A7	2T3F‑87501‑400
6SE0180‑2BD37‑3❑A7	2T3F‑87501‑500
6SE0180‑2BH33‑2❑A7	2T3F‑87601‑250
6SE0180‑2BH33‑6❑A7	2T3F‑87601‑315
6SE0180‑2BH34‑2❑A7	2T3F‑87601‑400
6SE0180‑2BH35‑2❑A7	2T3F‑87601‑500

Dimensional drawing applies to standard converters without options. The cabinet dimensions might change if options are selected.

SINAMICS G180 cabinet units, air-cooled	Converter type
6SE0180‑2BA38‑8❑A7	2T3F‑87401‑500
6SE0180‑2BA41‑0❑A7	2T3F‑87401‑560
6SE0180‑2BA41‑1❑A7	2T3F‑87401‑630
6SE0180‑2BD38‑2❑A7	2T3F‑87501‑560
6SE0180‑2BD38‑8❑A7	2T3F‑87501‑630
6SE0180‑2BD41‑0❑A7	2T3F‑87501‑710
6SE0180‑2BD41‑1❑A7	2T3F‑87501‑800
6SE0180‑2BH35‑7❑A7	2T3F‑87601‑560
6SE0180‑2BH36‑4❑A7	2T3F‑87601‑630
6SE0180‑2BH37‑1❑A7	2T3F‑87601‑710
6SE0180‑2BH37‑7❑A7	2T3F‑87601‑800
6SE0180‑2BH41‑0❑A7	2T3F‑87601‑909
6SE0180‑2BH41‑1❑A7	2T3F‑87601‑910

Dimensional drawing applies to standard converters without options. The cabinet dimensions might change if options are selected.

SINAMICS G180 cabinet units, air-cooled	Converter type
6SE0180‑2DH42‑2❑A7	2T3F‑87603‑920
6SE0180‑2DH42‑4❑A7	2T3F‑87603‑923
6SE0180‑2DH42‑7❑A7	2T3F‑87603‑926
6SE0180‑2DH43‑0❑A7	2T3F‑87603‑929
6SE0180‑3DH42‑2❑A7	2T3K‑87603‑920
6SE0180‑3DH42‑4❑A7	2T3K‑87603‑923
6SE0180‑3DH42‑7❑A7	2T3K‑87603‑926
6SE0180‑3DH43‑0❑A7	2T3K‑87603‑929

Dimensional drawing applies to standard converters without options. The cabinet dimensions might change if options are selected.

SINAMICS G180 cabinet units, air-cooled	Converter type
6SE0180‑2EH43‑2❑A7	2T3F‑87604‑931
6SE0180‑2EH43‑6❑A7	2T3F‑87604‑935
6SE0180‑2EH44‑0❑A7	2T3F‑87604‑939

Dimensional drawing applies to standard converters without options. The cabinet dimensions might change if options are selected.

SINAMICS G180 cabinet units, air-cooled	Converter type
6SE0180‑4CH41‑2❑A7	2T3L‑87602‑912
6SE0180‑4CH41‑3❑A7	2T3L‑87602‑913
6SE0180‑4CH41‑5❑A7	2T3L‑87602‑915
6SE0180‑4CH41‑7❑A7	2T3L‑87602‑917
6SE0180‑4CH42‑0❑A7	2T3L‑87602‑919

Dimensional drawing applies to standard converters without options. The cabinet dimensions might change if options are selected.

SINAMICS G180 cabinet units, air-cooled	Converter type
6SE0180‑4EH43‑2❑A7	2T3L‑87604‑931
6SE0180‑4EH43‑6❑A7	2T3L‑87604‑935
6SE0180‑4EH44‑0❑A7	2T3L‑87604‑939

Dimensional drawing applies to standard converters without options. The cabinet dimensions might change if options are selected.

SINAMICS G180 cabinet units, air-cooled	Converter type
6SE0180‑3HH44‑3❑A7	2T3K‑87606‑941
6SE0180‑3HH44‑8❑A7	2T3K‑87606‑947
6SE0180‑3HH45‑4❑A7	2T3K‑87606‑953
6SE0180‑3HH46‑0❑A7	2T3K‑87606‑958

Dimensional drawing applies to standard converters without options. The cabinet dimensions might change if options are selected.

SINAMICS G180 cabinet units, air-cooled	Converter type
6SE0180‑4HH44‑3❑A7	2T3L‑87606‑941
6SE0180‑4HH44‑8❑A7	2T3L‑87606‑947
6SE0180‑4HH45‑4❑A7	2T3L‑87606‑953
6SE0180‑4HH46‑0❑A7	2T3L‑87606‑958
