SINAMICS G180 cabinet units - air-cooled and liquid-cooled

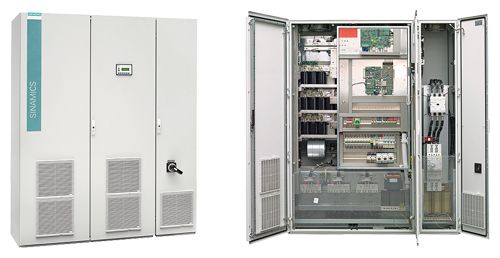

Example of SINAMICS G180 air-cooled converter cabinet unit

With its SINAMICS G180 cabinet units, Siemens is offering a drive system on which all line-side and motor-side components are integrated extremely compactly into a specially designed cabinet enclosure. This approach minimizes the effort and expense required to configure and install them.
SINAMICS G180 cabinet units are available in air-cooled and liquid-cooled versions.

SINAMICS G180 converter cabinet units are available for the following voltages and power ratings:

Rated line voltage	Power
400 V 3 AC	200 ... 630 kW¹⁾
500 V 3 AC	250 ... 800 kW¹⁾
690 V 3 AC	250 ... 6600 kW

¹⁾ Higher outputs available on request.

Global use

SINAMICS G180 converter cabinet units are manufactured in compliance with relevant international standards and regulations, and are therefore suitable for global use (see technical data).

Air-cooled converter cabinet units

Air-cooled converter cabinet units are equipped with an ingeniously designed, highly efficient air guidance system which is quiet in operation.

Liquid-cooled converter cabinet units

These specially designed liquid-cooled versions of the SINAMICS G180 converter cabinet unit are extremely quiet in operation. Closed control cabinets in degree of protection IP54 or higher make these liquid-cooled converters suitable for applications in harsh environmental conditions.

The advantages of the liquid-cooled version as compared to the air-cooled version are as follows:

Very low thermal loading of switch rooms
Can be used almost anywhere, even in atmospheres harmful to machines, thanks to the IP55 degree of protection (IP54 with display in cabinet door)
Reliable even at higher ambient temperatures up to 55° C thanks to optimal cooling effect
Reduced noise emission through elimination of the cooling ventilation
Improved efficiency
The water-conveying parts of the cooling system are made of stainless steel (V2A), making it resistant to almost any water quality

Опции

The following tables provide an overview of the options and their availability for SINAMICS G180 cabinet units with a supply voltage of 400 V, 500 V or 690 V. (For details, see catalog chapter 4 "Option descriptions".)

		Air-cooled and liquid-cooled versions of SINAMICS G180 cabinet units
		400 V					500 V			690 V
Pulse number		6				12	6		12	6						12 18 24
		Version – see selection and ordering data
Option text	Additional ordering data -Z with order code and, if necessary, with plain text specification	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O
Line voltages
Line voltage 380 V, 50 Hz	V70	✓	✓	✓	✓	✓	✓	✓	✓	–	–	–	–	–	–	–
Line voltage 400 V, 50 Hz	V71	❑	❑	❑	❑	❑	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Line voltage 415 V, 50 Hz	V72	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Line voltage 500 V, 50 Hz	V73	–	–	–	–	–	❑	❑	❑	✓	✓	✓	✓	✓	✓	✓
Line voltage 660 V, 50 Hz	V74	–	–	–	–	–	–	–	–	✓	✓	✓	✓	✓	✓	✓
Line voltage 690 V, 50 Hz	V75	–	–	–	–	–	–	–	–	❑	❑	❑	❑	❑	❑	❑
Line voltage 440 V, 60 Hz	V76	–	–	–	–	–	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Line voltage 460 V, 60 Hz	V77	–	–	–	–	–	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Line voltage 480 V, 60 Hz	V78	–	–	–	–	–	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Line voltage 600 V, 60 Hz	V79	–	–	–	–	–	–	–	–	✓	✓	✓	✓	✓	✓	✓
Line voltage 660 V, 60 Hz	V80	–	–	–	–	–	–	–	–	✓	✓	✓	✓	✓	✓	✓
Special line voltage; please specify voltage	Y70 • and identification code	✓¹⁾	✓¹⁾	✓¹⁾	✓¹⁾	✓¹⁾	✓²⁾	✓²⁾	✓²⁾	✓³⁾	✓³⁾	✓³⁾	✓³⁾	✓³⁾	✓³⁾	✓³⁾
Additional cabinet
400 mm	H90	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
600 mm	H91	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
800 mm	H92	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
1000 mm	H93	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
1200 mm	H94	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
External auxiliary power supply
Connection for 230 V 1 AC 50 Hz auxiliary voltage provided by customer	C36	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Connection for 400 V 3 AC 50 Hz auxiliary voltage provided by customer	C38	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Connection for 500 V 3 AC 50 Hz auxiliary voltage provided by customer	C43	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Connection for 690 V 3 AC 50 Hz auxiliary voltage provided by customer	C48	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Connection for other 3 AC voltage provided by customer; please specify voltage	Y36 • and identification code	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
External control voltage supply
Connection for 230 V 1 AC 50 Hz control voltage provided by customer, without UPS backup	C56	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Connection for 230 V 1 AC 50 Hz control voltage provided by customer, with UPS backup	C57	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Connection for different 1 AC control voltage (47 to 63 Hz) provided by customer; please specify voltage	Y55 • and identification code	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Other option
Board for mains supply backup	E85	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
RFI suppression filter
RFI suppression filter, category C2 or C3 (class A)	L00	❑	❑	❑	❑	–	✓	✓	–	❑	❑	❑	✓	✓	✓	–
Line Harmonics Filter
Line Harmonics Filter for 50 Hz line frequency	L03	H92⁶⁾	H92⁶⁾	H93⁶⁾	✓⁵⁾	–	H93⁶⁾	✓⁵⁾	–	H92⁶⁾	H93⁶⁾	✓⁵⁾	H92⁶⁾	H93⁶⁾	✓⁵⁾	–
Line Harmonics Filter for 60 Hz line frequency	L04	H92⁶⁾	H92⁶⁾	H93⁶⁾	✓⁵⁾	–	H93⁶⁾	✓⁵⁾	–	H92⁶⁾	H93⁶⁾	✓⁵⁾	H92⁶⁾	H93⁶⁾	✓⁵⁾	–
Output filter
Strengthened dv/dt output filter for max. 250/300 m (type-dependent). Design for longer motor cables available on request	L10	❑	❑	❑	❑	❑	❑	❑	❑	✓⁴⁾	✓⁴⁾	✓⁴⁾	✓⁴⁾	✓⁴⁾	✓⁴⁾	✓⁴⁾
Sine-wave filter integrated in control cabinet or additional cabinet, suitable for motor frequencies of ≤ 75 Hz, voltage drop of approximately 10 % of line voltage	L14	H91⁶⁾	H92⁶⁾	H92⁶⁾	H92⁶⁾	✓⁵⁾	H91⁶⁾	H92⁶⁾	✓⁵⁾	–	–	–	–	–	–	–
Sine-wave filter integrated in control cabinet or additional cabinet, suitable for motor frequencies of ≤ 60 Hz, voltage drop of approximately 10 % of line voltage	L15	–	–	–	–	–	–	–	–	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾
Standard accessories packages
Peripheral board 4 (G05) instead of peripheral board 2 (G03) (only in conjunction with package S01, S02, S03, S04, S08, S09, S11, S12)	G08	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Accessories package S01 with main switch, line contactor, EMERGENCY OFF pushbutton and safety relay, board G03, local/remote switch	S01	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Accessories package S02 with circuit breaker, line contactor, EMERGENCY OFF pushbutton and safety relay, board G03, local/remote switch	S02	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Accessories package with main switch, line contactor, board G03, local/remote switch	S03	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Accessories package with circuit breaker, line contactor, board G03, local/remote switch	S04	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Accessories package with main switch, line contactor, Calomat, RCU box connection	S06	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Bypass for smooth line synchronization (soft start function) incl. line-side main switch and contactors at the converter output and in bypass	S08	H92⁶⁾	H92⁶⁾	H92⁶⁾	H92⁶⁾	✓⁵⁾	H92⁶⁾	H92⁶⁾	✓⁵⁾	H92⁶⁾	H92⁶⁾	H92⁶⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾
Bypass for smooth line synchronization (soft start function) incl. line-side circuit breaker and contactors at the converter output and in bypass	S09	H92⁶⁾	H92⁶⁾	H92⁶⁾	H92⁶⁾	✓⁵⁾	H92⁶⁾	H92⁶⁾	✓⁵⁾	H92⁶⁾	H92⁶⁾	H92⁶⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾
Accessories package S11 with line-side main switch, board G03, local/remote switch	S11	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Accessories package S12 with line-side circuit breaker, board G03, local/remote switch	S12	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Bypass with line-side main switch, contactors at converter output and in bypass, switchover between manual and automatic, local/remote switch	S21	H91⁶⁾	H91⁶⁾	H91⁶⁾	H91⁶⁾	✓⁵⁾	H91⁶⁾	H91⁶⁾	✓⁵⁾	H91⁶⁾	H91⁶⁾	H91⁶⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾
Bypass with line-side circuit breaker, contactors at converter output and in bypass, switchover between manual and automatic, local/remote switch	S22	H91⁶⁾	H91⁶⁾	H91⁶⁾	H91⁶⁾	✓⁵⁾	H91⁶⁾	H91⁶⁾	✓⁵⁾	H91⁶⁾	H91⁶⁾	H91⁶⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾
Bypass with line-side main switch, contactors at converter output and in bypass, EMERGENCY OFF safety relay, switchover between manual and automatic, local/remote switch	S23	H91⁶⁾	H91⁶⁾	H91⁶⁾	H91⁶⁾	✓⁵⁾	H91⁶⁾	H91⁶⁾	✓⁵⁾	H91⁶⁾	H91⁶⁾	H91⁶⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾
Bypass with line-side circuit breaker, contactors at converter output and in bypass, EMERGENCY OFF safety relay, switchover between manual and automatic, local/remote switch	S24	H91⁶⁾	H91⁶⁾	H91⁶⁾	H91⁶⁾	✓⁵⁾	H91⁶⁾	H91⁶⁾	✓⁵⁾	H91⁶⁾	H91⁶⁾	H91⁶⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾
NAMUR accessories package with Test/Normal operation switch, option G05, terminal strip compliant with NAMUR NE37 (without main switch)	S31	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
NAMUR accessories package with Test/Normal operation switch, main switch, line contactor, option G05, terminal strip compliant with NAMUR NE37	S32	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Braking chopper
Braking chopper integrated into converter (braking resistor is not included and must be ordered separately)	L72	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Insulation monitoring
Integrated insulation monitoring system for operation on secondary side of unit transformer in an IT system	L87	–	–	–	–	❑	–	–	❑	–	–	–	–	–	–	❑
CALOMAT CK145
CALOMAT CK145 without storage for motor temperature prewarning	L80	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
CALOMAT CK145 with storage for motor temperature trip	L81	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
CALOMAT CK145 without storage for transformer temperature prewarning	L82	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
CALOMAT CK145 with storage for transformer temperature trip	L83	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
CALOMAT CK145 for other PTC thermistor monitoring functions	Y80 • and identification code	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Pt100 evaluation unit
Pt100 evaluation unit for motor winding temperature, integrated in control cabinet for monitoring of 3 × Pt100 or 3 × KTY83/84 sensors	L90	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Pt100 evaluation unit for motor bearing temperature, integrated in control cabinet for monitoring of 2 × Pt100 or 2 × KTY83/84 sensors	L91	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Pt100 evaluation unit for motor winding temperature, integrated in cabinet for monitoring 3 × Pt100 sensors; plus an analog output 0 to 10 V or 0(4) to 20 mA connected to terminals for the hottest winding temperature	L92	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Pt100 evaluation unit for motor bearing temperature, integrated in cabinet for monitoring 2 × Pt100 sensors or 2 × KTY83/84 sensors; plus two analog outputs 0 to 10 V or 0(4) to 20 mA connected to terminals for bearing temperature	L93	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Pt100 evaluation unit for motor winding and bearing temperatures, integrated in cabinet for monitoring 6 × Pt100 sensors; plus two analog outputs 0 to 10 V or 0(4) to 20 mA connected to terminals for the hottest winding and bearing temperatures	L94	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Pt100 evaluation unit for other temperature monitoring functions, integrated in cabinet for monitoring of 3 × Pt100 or 3 × KTY83/84 sensors	Y90 • and identification code	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Pt100 evaluation unit for other temperature monitoring functions, integrated in cabinet for monitoring 6 × Pt100 sensors; plus two analog outputs 0 to 10 V or 0(4) to 20 mA connected to terminals	Y94 • and identification code	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Degrees of protection
Increased degree of protection IP41 for air-cooled cabinet units and systems	M41	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Increased degree of protection IP43 for air-cooled cabinet units and systems	M43	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Increased degree of protection IP54 for air-cooled cabinet units and systems; not suitable for outdoor applications	M54	✓	✓	–	–	–	✓	–	–	✓	✓	–	–	–	–	–
Increased degree of protection IP55 for liquid-cooled cabinet units (no display in cabinet door)	M55	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Air flange for connection to customer's exhaust air systems (air outlet IP00)	M63	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Cabinet options
Control cabinet base, welded and suitable for use with transport rollers, in RAL 7035, h = 200 mm	M05	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Control cabinet base, standard version in RAL 7022/9005, h = 100 mm	M06	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Control cabinet base, standard version in RAL 7022/9005, h = 200 mm	M07	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Cable entry from the top: Power cable	M13	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾
Door opening angle 180°	M17	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Window in door for viewing internal display	M19	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Partitions between compact units for cabinet systems	M24	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Door hinge on left	M28	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Cable entry from the top: Control cables	M34	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾
Comfort-grip handle with double-bit key lock	M38	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Comfort-grip handle with integrated pushbutton	M39	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Comfort-grip handle with cylinder lock	M40	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Air supply via cable floor. No filter mats required in door	M59	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Cable entry from the top: Motor cables	M78	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾	✓⁵⁾
Special control cabinet paint color: Please specify RAL	Y09 • and identification code	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Window in door for viewing internal components	Y19 • and identification code	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Control elements and display instruments in control cabinet door
SENTRON PAC3200 power monitoring device (without current transformer)	G10	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
SENTRON PAC3200 power monitoring device (with current transformer)	G11	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
External 4-line operator panel, supplied separately packed	K14	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
External 4-line operator panel integrated in control cabinet door	K15	❑	❑	❑	❑	❑	❑	❑	❑	❑	❑	❑	❑	❑	❑	❑
Selector switch in form of key-operated switch	K37	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Accessories
Grounding socket outlet 230 V, 50 Hz, 10 A, in control cabinet with 30 mA ground-fault circuit interrupter, external incoming supply	L48	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Socket outlet 230 V, 50 Hz, 1 A, in control cabinet with 30 mA ground-fault circuit interrupter, supplied internally	L49	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Magnetically attached cabinet light and door contact switch	L50	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Cabinet heater to protect against condensation and/or for operation with supply air temperature of -5 °C or below	L55	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Controlled outgoing feeder for motor heater, 230 V 1 AC, max. 4 kW	N35	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Controlled outgoing feeder for external motor fan, external fan voltage for 3 AC. Converter line voltage, max. 4 kW	N36	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Undervoltage release for main switch or circuit breaker; specify coil voltage	Y11 • and identification code	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Controlled outgoing feeder for auxiliary drive up to max. 4 kW; please specify type of drive, voltage, number of phases	Y98 • and identification code	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Marking of cable cores and items of equipment
Dual marking of items of equipment	M96	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Cable marking, C-type	M93	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Cable marking (shrink-on sleeve)	M94	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Wiring options
Cross-section of cables installed inside cabinet 1.5 mm²	M20	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Use of halogen-free cables inside cabinet	N50	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Peripheral boards
Peripheral board 1	G02	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Peripheral board 2	G03	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Peripheral board 3	G04	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Peripheral board 4	G05	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Additional boards for bus connection
Board for PROFIBUS DP-V1	G01	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
PROFIBUS expansion module for option G10 or G11 (SENTRON PAC3200 power monitoring device)	G12	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Board for CANopen	G20	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Board for Modbus RTU	G22	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Board for Modbus TCP	G27	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Accessories for IMS
USB PROFIBUS interface (supplied separately packed)	G13	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Ethernet-PROFIBUS gateway	G14	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Ethernet-to-RS232/485/422 converter (supplied separately packed)	G15	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
USB cable A/B (supplied separately packed)	G16	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
USB connector on front of control cabinet door	G18	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Extension of the liability for defects
Extension of the liability for defects by 12 months as of commissioning date or by 24 months as of delivery date	Q80	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Extension of the liability for defects by 18 months as of commissioning date or by 30 months as of delivery date	Q81	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Extension of the liability for defects by 24 months as of commissioning date or by 36 months as of delivery date	Q82	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Extension of the liability for defects by 30 months as of commissioning date or by 42 months as of delivery date	Q83	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Extension of the liability for defects by 36 months as of commissioning date or by 48 months as of delivery date	Q84	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Extension of the liability for defects by 48 months as of commissioning date or by 60 months as of delivery date	Q85	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Label for plant identification
Cabinet designation TAG/ITEM number according to ordering data	T01	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Customized labels	Y33 • and identification code	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Ambient temperature for air-cooled converters
45 °C ambient temperature (with corresponding derating)	V61	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
50 °C ambient temperature (with corresponding derating)	V62	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Water inlet temperature for liquid-cooled converters
30 °C water inlet temperature (with corresponding derating)	V66	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
35 °C water inlet temperature (with corresponding derating)	V67	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
40 °C water inlet temperature (with corresponding derating)	V68	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Installation altitude
Installation altitude max. 1500 m above sea level (with corresponding derating)	V86	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Installation altitude max. 2000 m above sea level (with corresponding derating)	V87	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Installation altitude max. 2500 m above sea level (with corresponding derating)	V88	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Installation altitude max. 3000 m above sea level (with corresponding derating)	V89	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Acceptance tests for converters
Routine test under no-load conditions with customer present	F71	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Routine test with 1PS or 1MD motor (ordered with converter in package), under no-load conditions (without customer present)	F72	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Routine test with 1PS or 1MD motor (ordered with converter in package), under no-load conditions with customer present	F73	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Visual inspection and function test under rated load using test bay motor (without customer present)	F80	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Visual inspection and function test under rated load using test bay motor with customer present	F81	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Visual inspection and function test under rated load with 1PS or 1MD motor (ordered with converter in package) (without customer present)	F82	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Visual inspection and function test under rated load with 1PS or 1MD motor (ordered with converter in package) with customer present	F83	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Advanced visual inspection and function test under rated load with 1PS or 1MD motor (ordered with converter in package) (without customer present)	F84	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Advanced visual inspection and function test under rated load with 1PS or 1MD motor (ordered with converter in package) with customer present	F85	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Supplementary documentation
Test sequence schedule	B48	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Spare parts price list	B38	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Production flowchart: Generated once	B43	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Production flowchart: Generated once per month	B45	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Converter display language
Display language Norwegian/English	T23	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Display language Swedish/English	T24	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Display language Czech/English	T25	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Display language Hungarian/English	T26	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Display language French/English	T58	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Display language Spanish/English	T60	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Display language German/English	T74	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Display language English/German	T76	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Display language Portuguese/English	T82	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Display language Russian/English	T85	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Display language Polish/English	T86	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Converter documentation
Manual and set of diagrams in PDF format per e-mail, German/English	D01	❑	❑	❑	❑	❑	❑	❑	❑	❑	❑	❑	❑	❑	❑	❑
Manual in PDF format, set of diagrams in DXF format per e-mail, German/English	D02	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Manual and set of diagrams, single hardcopy, German/English	D04	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Manual and set of diagrams in PDF format on CD, German/English	D05	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Manual in PDF format, set of diagrams in DWG format on CD, German/English	D06	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Language of assembly and operating instructions
Different language for assembly and operating instructions	Y13 • and identification code	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Certifications
Gost R certificate	U04	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Engineering (for description refer to section Option descriptions under Engineer To Order – ETO)
Mechanical system		✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Parameterization		✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Electrical (power output, control)		✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Extended overvoltage range		–⁷⁾	–⁷⁾	–⁷⁾	–⁷⁾	–⁷⁾	–⁸⁾	–⁸⁾	–⁸⁾	✓	✓	✓	✓	✓	✓	✓
Test bay converter		✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Special tests		✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Special documentation		✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Special version		✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓

✓ Available

❑ Standard version

– Not possible

X Not required

• This order code only determines the price of the version – additional plain text is required.

¹⁾ Voltage between 230 and 415 V.

²⁾ Voltage between 230 and 500 V.

³⁾ Voltage between 400 and 690 V.

⁴⁾ Please refer to technical data for cabinet dimensions.

⁵⁾ Please ask your Siemens contact person for the exact cabinet dimensions.

⁶⁾ Additional option included in the original option.

⁷⁾ 500 V cabinet units + the next-higher rating must be selected for the "Extended overvoltage range" function.

⁸⁾ 690 V cabinet units + the next-higher rating must be selected for the "Extended overvoltage range" function.

Технические данные

The most important directives and standards are listed below. These are used as basis for the SINAMICS G180 cabinet units and they must be carefully observed to achieve an EMC-compliant configuration that is safe both functionally and in operation.

Standards for cabinet units

European directives
2006/95/EC	Low-voltage directive: Legal guidelines of the EU member states concerning electrical equipment for use within specified voltage limits
2004/108/EC	EMC Directive: Legal guidelines of the EU member states for electromagnetic compatibility
International and European standards
EN 954‑1	Safety of machinery – Safety-related parts of control systems; Part 1: General design principles
EN ISO 13849‑1	Safety of machinery – Safety-related parts of control systems; Part 1: General design principles (ISO 13849‑1:2006) (replaced EN 954‑1)
EN 60146‑1‑1	Semiconductor converters – General requirements and line-commutated converters Part 1-1: Specification of basic requirements
EN 60204‑1	Electrical equipment of machines Part 1: General definitions
EN 60529	Degrees of protection provided by enclosures (IP code)
EN 61140	Protection against electric shock - Common aspects for installation and equipment
EN 61508‑1	Functional safety of electrical/electronic/programmable electronic safety-related systems Part 1: General requirements
EN 61800‑2	Adjustable speed electrical power drive systems, Part 2: General requirements – Rating specifications for low-voltage adjustable frequency AC power drive systems
EN 61800‑3	Adjustable speed electrical power drive systems, Part 3: EMC requirements and specific test methods
EN 61800-5-1	Adjustable speed electrical power drive systems, Part 5-1: Safety requirements - Electrical, thermal and energy requirements
EN 61800‑5‑2	Adjustable speed electrical power drive systems, Part 5-2: Safety requirements – Functional safety (IEC 61800‑5‑2:2007)
North American standards
UL508C¹⁾	Power conversion equipment
Approvals
TÜV NRTL US¹⁾	Nationally Recognized Testing Laboratory

¹⁾ On request

General technical data

Electrical data
	Line voltages	Type of supply system	Output ranges
	230 … 400 … 415 V 3 AC, -15/+10 %	TN/TT system	200 ... 630 kW (at 400 V)
	230 … 500 V 3 AC, -15/+10 %	TN/TT/IT system	250 ... 800 kW (at 500 V)
	400 … 690 V 3 AC, -15/+10 %	TN/TT/IT system	250 ... 6000 kW (at 690 V)
Line frequency	47 … 63 Hz
Output frequency	0 … 250 Hz
Voltage rise in motor	Typ. 500 ... 1000 V/µs, but < 1500 V/µs
Pulse number	6/12/18/24
Typical line harmonics (I) in % of fundamental mode for the 5/7/11/13/17/19/23/25 harmonics, max. (6-pulse converter)	38/18/8/7/5/4/3/2
Typical line harmonics (I) in % of fundamental mode for the 5/7/11/13/17/19/23/25 harmonics, max. (12-pulse converter)	1.5/1/6/4/0.5/0.2/2/2
Typical line harmonics (I) in % of fundamental mode for the 5/7/11/13/17/19/23/25 harmonics, max. (18-pulse converter)	1/0.5/0.5/0.5/4/3.5/0.5/0.5
Typical line harmonics (I) in % of fundamental mode for the 5/7/11/13/17/19/23/25 harmonics, max. (24-pulse converter)	1/0.5/0.5/0.5/0.5/0.2/2/2
Typical line harmonics (I) in % of fundamental mode for the 5/7/11/13/17/19/23/25 harmonics max. with LHF filter	4.5/4.7/2.8/1.6/1.2/0.9/0.6/0.5
Overvoltage category	III to EN 61800‑5‑1
Short Circuit Current Rating (SCCR) according to UL508C (up to 600 V), in conjunction with the specified fuses or circuit breakers	20 times rated current, but at least 50 kA
Control method	For motors: Field-oriented control (FOC) with sensor and approval for explosion-proof motors as well as vector control (SVC) with/without sensor (speed, process speed (n), torque, hoist¹⁾, line synchronization¹⁾) Motor-independent control of current or voltage (current, process current (I), voltage, process voltage (U))
Fixed speeds	3 fixed speeds + 1 minimum speed, parameterizable
Skipped speed ranges	2, parameterizable
Setpoint resolution	13 bits digital with n/f setpoint, 12 bits digital with U/I torque setpoint, 9 bits + sign analog
Braking operation	The oversaturation control system makes it possible to generate a braking torque of up to 50 % at low to mid-range speeds, and of up to 10 % at high speeds. If a higher braking torque is required, an optionally available braking module with appropriate braking resistor must be installed.
Mechanical data
Degree of protection	IP21 (higher degrees of protection optionally available) / with liquid cooling IP54
Protection class	I acc. to EN 61800‑5‑1
Touch protection	EN 50274 / BGV A3
Type of cooling	Forced air cooling AF to EN 60146 / Coolant is water and a mixture of water and Antifrogen N with 45 % Antifrogen N
Paint finish	RAL 7035; Rittal TS8 cabinet frame: With nano-ceramic and anodized coating, layer thickness approx. 10 to 20 µm; parts mounted on TS8 cabinet: With nano-ceramic and anodized coating, layer thickness approx. 10 to 20 µm, plus layer of hybrid polyester epoxy powder, thickness approx. 50 to 80 µm
Cable entry	From below by means of profile clamp (from the top as option)
Door hinge and opening angle	Right/130°
For liquid-cooled units only
Coolant quality	See below under "Permissible substance values for the coolant"
Permissible coolant temperature	+10 °C … 28/30/35 °C (dependent on output, see technical data)
Ambient conditions²⁾	Storage ³⁾	Transport ³⁾	Operation
Ambient temperature	-25 … +70 °C Class 1K4 acc. to EN 60721‑3‑1	-25 ... +70 °C Down to -40 °C for 24h Class 2K3 acc. to EN 60721‑3‑2	Air: 0 … 40 °C/ Water: 1 °C … 40 °C (up to +40 °C see derating data) –
Relative humidity (condensation not permissible)	5 ... 95 % Class 1K3 acc. to EN 60721‑3‑1	5 … 95 % Class 2K3 acc. to EN 60721‑3‑2	5 … 95 % Class 3K3 acc. to EN 60721‑3‑3
Environmental class/harmful chemical substances	Class 1C2 acc. to EN 60721‑3‑1	Class 2C2 acc. to EN 60721‑3‑2	Class 3C2 acc. to EN 60721‑3‑3
Organic/biological influences	Class 1B1 acc. to EN 60721‑3‑1	Class 2B1 acc. to EN 60721‑3‑2	Class 3B1 acc. to EN 60721‑3‑3
Pollution degree	2 acc. to EN 61800‑5‑1
Installation altitude	Up to 1000 m above sea level without derating, > 1000 m see derating data
Mechanical stability²⁾	Storage ³⁾	Transport ³⁾	Operation
Vibratory load Deflection Acceleration	1.5 mm at 5 … 9 Hz 5 m/s² at > 9 … 200 Hz Class 1M2 to EN 60721‑3‑1	3.5 mm at 5 … 9 Hz 10 m/s² at > 9 …200 Hz Class 2M2 to EN 60721‑3‑2	0.075 mm at 10 … 57 Hz 10 m/s² at > 57 … 150 Hz
Shock load Acceleration	40 m/s² at 22 ms Class 1M2 to EN 60721‑3‑1	100 m/s² at 11 ms Class 2M2 to EN 60721‑3‑2	100 m/s² at 11 ms Class 3M4 to EN 60721‑3‑3
Compliance with standards
CE Label	Acc. to EMC Directive No. 2004/108/EC and Low-Voltage Directive No. 2006/95/EC
Radio interference suppression	Complies with EMC guidelines defined in EN 61800‑3 thanks to line filter which is integrated as standard with grounded supply system: Category C3 for cabinet units in TN/TT system of the second environment (industrial area) Category C4 for cabinet units in IT system of the second environment (industrial area)
Approvals	TÜV NRTL US²⁾

¹⁾ On request

²⁾ Higher standards on request

³⁾ In transport packaging

Deviations from the specified classes are underlined.

Permissible substance values for the coolant

The following table lists the permissible substance values for the cooling water (service water and demineralized water) for cooling the converter with an open standard cooling system without cooling unit.

	Permissible values for SINAMICS G180 cabinet units
Coolant temperature	+10 … 28/30/35 °C
pH value	7 … 8
Total hardness	6 … 20 °dH
Carbonate hardness	3 … 10 dH
Total dissolved solids 105 °C	< 500 mg/l
Free carbon dioxide	< 1 mmol/l
Chlorides	< 150 mg/l
Sulfates	500 mg/l
Nitrates	< 10 mg/l
Nitrites	0 mg/l
Phosphates	< 0.5 mg/l
Ammonium NH4	< 0.5 mg/l
Ammoniac	0 mg/l
Silicon (SiO₂ crystalline)	< 10 mg/l
Free CO₂ (p value)	< 15 mg/l
Iron	< 0.2 mg/l
Hydrogen sulfide	< 1 mg/l
Suspended solids < 50 μm	< 10 mg/l
Conductivity	< 3000 μS/cm
Oxygen	8 … 12 mg/l

Cooling water additives for the closed converter cooling system with cooling unit

We recommend the agent "Antifrogen N" supplied by Clariant as a cooling water additive.
The appropriate level of anti-freeze protection can be provided by choosing the correct mixing ratio. A minimum concentration of 20 % by volume provides anti-freeze protection down to ‑10 °C. An Antifrogen/water mixing ratio of 1:2 provides anti-freeze protection down to ‑20 °C.

Unpolluted water mixed with a minimum concentration of 20 % by volume of Antifrogen N prevents the growth of microorganisms and the formation of algae.

400 V, 6‑pulse

Line voltage, supply system type		400, 415 V 3 AC TT/TN
SINAMICS G180 cabinet units – air-cooled		6SE0180‑1BA33‑7❑A7	6SE0180‑1BA34‑6❑A7	6SE0180‑1BA36‑3❑A7	6SE0180‑1BA37‑3❑A7	6SE0180‑1BA38‑8❑A7
Converter type (air-cooled)		2T3A‑87401‑200	2T3A‑87401‑250	2T3A‑87401‑315	2T3A‑87401‑400	2T3A‑87401‑500
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑1BA33‑7❑A7	6SE0170‑1BA34‑6❑A7	6SE0170‑1BA36‑3❑A7	6SE0170‑1BA37‑3❑A7	6SE0170‑1BA38‑8❑A7
Converter type (liquid-cooled)		2T6A‑77401‑200	2T6A‑77401‑250	2T6A‑77401‑315	2T6A‑77401‑400	2T6A‑77401‑500
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 400 V	kW	200	250	315	400	500
at 50 Hz 400 V	hp	268	335	422	536	671
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	380	460	630	740	910
Short-time current (60 s every 10 minutes) max.	A	470	560	700	900	1110
Overload capability (60 s every 10 minutes) max.	%	24	22	11	22	22
Output power	kVA	263	319	436	513	630
Output frequency, max.	Hz	250	250	250	120	120
Rated clock cycle	kHz	3	3	3	2.4	2.4
adjustable from	kHz	2 ... 5	2 ... 5	2 ... 5	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	5.6	6.42	8.4	11.9	14.9
Rated efficiency	%	97.4	97.6	97.5	97.2	97.2
Electrical data at line end
Connected load	kVA	249	300	403	476	603
Rated input voltage	V	400	400	400	400	400
Input current
Continuous line current	A	360	433	582	687	871
Short-time line current (60 s) max.	A	445	527	647	836	1062
Line fuse (provided by customer)	gL (A)	400	500	630	800	900
λ_line		0.931	0.928	0.943	0.942	0.946
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3		C3 (class A filter)	C3 (class A filter)	C3 (class A filter)	C3 (class A filter)	C3 (class A filter)
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL2	SL2	SL2	SL21	SL3
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	70	70	73	75	75
Standard converter dimensions
Width	mm	806	806	806	1206	1606
Height⁴⁾	mm	2112	2112	2112	2112	2112
Depth	mm	605	605	605	605	605
Coolant requirements	m³/h	1900	1900	1900	2250	3800
Weight, approx.	kg	490	510	530	780	890
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		SW2	SW2	SW2	SW21	SW3
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	68	68	71	73	73
Standard converter dimensions⁶⁾
Width	mm	806	806	806	1206	1806
Height	mm	2202	2202	2202	2202	2202
Depth	mm	605	605	605	605	605
Coolant requirements	l/h	1200	1200	1200	1200	2000
Min. coolant pressure	bar	2.5	2.5	2.5	2.5	2.5
Max. coolant pressure	bar	6	6	6	6	6
Coolant test pressure	bar	10	10	10	10	10
Coolant pressure loss	bar	1.9	1.9	1.9	1.9	1.9
Min. coolant temperature	°C	10	10	10	10	10
Max. coolant temperature	°C	35	35	35	30	35
Weight, approx.	kg	490	510	530	860	920
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	300⁵⁾	300⁵⁾	300⁵⁾	300⁵⁾	300⁵⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁶⁾	NRTL⁶⁾	NRTL⁶⁾	NRTL⁶⁾	NRTL⁶⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾ With IP21 protective top cover (110 mm).

⁵⁾ Option L10 included (strengthened dv/dt filter; strengthened filter is integrated in unit).

⁶⁾ On request.

Line voltage, supply system type		400, 415 V 3 AC TT/TN
SINAMICS G180 cabinet units – air-cooled		6SE0180‑1BA41‑0❑A7	6SE0180‑1BA41‑1❑A7
Converter type (air-cooled)		2T3A‑87401‑560	2T3A‑87401‑630
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑1BA41‑0❑A7	6SE0170‑1BA41‑1❑A7
Converter type (liquid-cooled)		2T6A‑77401‑560	2T6A‑77401‑630
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 400 V	kW	560	630
at 50 Hz 400 V	hp	751	845
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	1020	1140
Short-time current (60 s every 10 minutes) max.	A	1230	1370
Overload capability (60 s every 10 minutes) max.	%	21	20
Output power	kVA	707	790
Output frequency, max.	Hz	120	120
Rated clock cycle	kHz	2.4	2.4
adjustable from	kHz	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	16.7	18.1
Rated efficiency	%	97.2	97.3
Electrical data at line end
Connected load	kVA	676	761
Rated input voltage	V	400	400
Input current
Continuous line current	A	975	1098
Short-time line current (60 s) max.	A	1176	1320
Line fuse (provided by customer)	gL (A)	1000	1250
λ_line		0.947	0.95
Cos φ_line		1	1
Radio interference suppression acc. to EN 61800‑3		C3 (class A filter)	C3 (class A filter)
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL3	SL3
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	75	75
Standard converter dimensions
Width	mm	1606	1606
Height⁴⁾	mm	2112	2112
Depth	mm	605	605
Coolant requirements	m³/h	3200	3800
Weight, approx.	kg	900	930
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		SW3	SW3
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	73	73
Standard converter dimensions⁶⁾
Width	mm	1806	1806
Height	mm	2202	2202
Depth	mm	605	605
Coolant requirements	l/h	2000	2000
Min. coolant pressure	bar	2.5	2.5
Max. coolant pressure	bar	6	6
Coolant test pressure	bar	10	10
Coolant pressure loss	bar	1.9	1.9
Min. coolant temperature	°C	10	10
Max. coolant temperature	°C	35	35
Weight, approx.	kg	930	960
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	300⁵⁾	300⁵⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁶⁾	NRTL⁶⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾ With IP21 protective top cover (110 mm).

⁵⁾ Option L10 included (strengthened dv/dt filter; strengthened filter is integrated in unit).

⁶⁾ On request.

400 V, 12‑pulse

Line voltage, supply system type		400, 415 V 3 AC IT
SINAMICS G180 cabinet units – air-cooled		6SE0180‑2BA33‑7❑A7	6SE0180‑2BA34‑6❑A7	6SE0180‑2BA36‑3❑A7	6SE0180‑2BA37‑3❑A7	6SE0180‑2BA38‑8❑A7
Converter type (air-cooled)		2T3F‑87401‑200	2T3F‑87401‑250	2T3F‑87401‑315	2T3F‑87401‑400	2T3F‑87401‑500
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑2BA33‑7❑A7	6SE0170‑2BA34‑6❑A7	6SE0170‑2BA36‑3❑A7	6SE0170‑2BA37‑3❑A7	6SE0170‑2BA38‑8❑A7
Converter type (liquid-cooled)		2T6F‑77401‑200	2T6F‑77401‑250	2T6F‑77401‑315	2T6F‑77401‑400	2T6F‑77401‑500
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 400 V	kW	200	250	315	400	500
at 50 Hz 400 V	hp	268	335	422	536	671
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	380	460	630	740	910
Short-time current (60 s every 10 minutes) max.	A	470	560	700	900	1110
Overload capability (60 s every 10 minutes) max.	%	24	22	11	22	22
Output power	kVA	263	319	436	513	630
Output frequency, max.	Hz	250	250	250	120	120
Rated clock cycle	kHz	3	3	3	2.4	2.4
adjustable from	kHz	2 ... 5	2 ... 5	2 ... 5	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	5.6	6.42	8.4	11.9	14.9
Rated efficiency	%	97.4	97.6	97.5	97.2	97.2
Electrical data at line end
Connected load	kVA	249	301	405	477	604
Rated input voltage	V	400	400	400	400	400
Input current
Continuous line current	A	180	217	292	344	436
Short-time line current (60 s) max.	A	223	264	324	418	532
Line fuse (provided by customer)	gL (A)	200	250	400	400	500
λ_line		0.994	0.994	0.994	0.996	0.996
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3		C3 (class A filter)	C3 (class A filter)	C3 (class A filter)	C3 (class A filter)	C3 (class A filter)
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL5	SL5	SL5	SL5	SL6
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	70	70	73	75	75
Standard converter dimensions
Width	mm	1406	1406	1406	1406	1806
Height⁴⁾	mm	2112	2112	2112	2112	2112
Depth	mm	605	605	605	605	605
Coolant requirements	m³/h	1900	1900	1900	2250	3800
Weight, approx.	kg	690	710	730	810	920
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		SW5	SW5	SW5	SW5	SW6
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	68	68	71	73	73
Standard converter dimensions
Width	mm	1406	1406	1406	1406	2006
Height	mm	2202	2202	2202	2202	2202
Depth	mm	605	605	605	605	605
Coolant requirements	l/h	1200	1200	1200	1200	2000
Min. coolant pressure	bar	2.5	2.5	2.5	2.5	2.5
Max. coolant pressure	bar	6	6	6	6	6
Coolant test pressure	bar	10	10	10	10	10
Coolant pressure loss	bar	1.9	1.9	1.9	1.9	1.9
Min. coolant temperature	°C	10	10	10	10	10
Max. coolant temperature	°C	35	35	35	30	35
Weight, approx.	kg	690	710	730	810	950
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	300⁵⁾	300⁵⁾	300⁵⁾	300⁵⁾	300⁵⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁶⁾	NRTL⁶⁾	NRTL⁶⁾	NRTL⁶⁾	NRTL⁶⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾ With IP21 protective top cover (110 mm).

⁵⁾ Option L10 included (strengthened dv/dt filter; strengthened filter is integrated in unit).

⁶⁾ On request.

Line voltage, supply system type		400, 415 V 3 AC IT
SINAMICS G180 cabinet units – air-cooled		6SE0180‑2BA41‑0❑A7	6SE0180‑2BA41‑1❑A7
Converter type (air-cooled)		2T3F‑87401‑560	2T3F‑87401‑630
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑2BA41‑0❑A7	6SE0170‑2BA41‑1❑A7
Converter type (liquid-cooled)		2T6F‑77401‑560	2T6F‑77401‑630
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 400 V	kW	560	630
at 50 Hz 400 V	hp	751	845
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	1020	1140
Short-time current (60 s every 10 minutes) max.	A	1230	1370
Overload capability (60 s every 10 minutes) max.	%	21	20
Output power	kVA	707	790
Output frequency, max.	Hz	120	120
Rated clock cycle	kHz	2.4	2.4
adjustable from	kHz	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	16.7	18.1
Rated efficiency	%	97.2	97.3
Electrical data at line end
Connected load	kVA	676	762
Rated input voltage	V	400	400
Input current
Continuous line current	A	488	550
Short-time line current (60 s) max.	A	588	661
Line fuse (provided by customer)	gL (A)	630	630
λ_line		0.996	0.997
Cos φ_line		1	1
Radio interference suppression acc. to EN 61800‑3		C4	C4
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL6	SL6
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	75	75
Standard converter dimensions
Width	mm	1806	1806
Height⁴⁾	mm	2112	2112
Depth	mm	605	605
Coolant requirements	m³/h	3200	3800
Weight, approx.	kg	930	960
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		SW6	SW6
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	73	73
Standard converter dimensions
Width	mm	2006	2006
Height	mm	2202	2202
Depth	mm	605	605
Coolant requirements	l/h	2000	2000
Min. coolant pressure	bar	2.5	2.5
Max. coolant pressure	bar	6	6
Coolant test pressure	bar	10	10
Coolant pressure loss	bar	1.9	1.9
Min. coolant temperature	°C	10	10
Max. coolant temperature	°C	35	35
Weight, approx.	kg	960	990
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	300⁵⁾	300⁵⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁶⁾	NRTL⁶⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾ With IP21 protective top cover (110 mm).

⁵⁾ Option L10 included (strengthened dv/dt filter; strengthened filter is integrated in unit).

⁶⁾ On request.

500 V, 6‑pulse

Line voltage, supply system type		400, 415, 460, 500 V 3 AC IT/TT/TN
SINAMICS G180 cabinet units – air-cooled		6SE0180‑1BD33‑7❑A7	6SE0180‑1BD34‑6❑A7	6SE0180‑1BD36‑3❑A7	6SE0180‑1BD37‑3❑A7	6SE0180‑1BD38‑2❑A7
Converter type (air-cooled)		2T3A‑87501‑250	2T3A‑87501‑315	2T3A‑87501‑400	2T3A‑87501‑500	2T3A‑87501‑560
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑1BD33‑7❑A7	6SE0170‑1BD34‑6❑A7	6SE0170‑1BD36‑3❑A7	6SE0170‑1BD37‑3❑A7	6SE0170‑1BD38‑2❑A7
Converter type (liquid-cooled)		2T6A‑77501‑250	2T6A‑77501‑315	2T6A‑77501‑400	2T6A‑77501‑500	2T6A‑77501‑560
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 500 V	kW	250	315	400	500	560
at 60 Hz 460 V	hp	309	389	494	617	691
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	370	460	640	730	820
Short-time current (60 s every 10 minutes) max.	A	450	560	700	900	980
Overload capability (60 s every 10 minutes) max.	%	22	22	9	23	20
Output power	kVA	320	398	554	632	710
Output frequency, max.	Hz	250	250	250	120	120
Rated clock cycle	kHz	3	3	2.4	2.4	2.4
adjustable from	kHz	2 ... 5	2 ... 5	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	6.15	7.39	9.37	12.8	13.7
Rated efficiency	%	97.7	97.8	97.8	97.6	97.7
Electrical data at line end
Connected load	kVA	303	378	515	606	678
Rated input voltage	V	500	500	500	500	500
Input current
Continuous line current	A	350	437	595	700	783
Short-time line current (60 s) max.	A	426	532	651	863	936
Line fuse (provided by customer)	gL (A)	400	500	630	800	800
λ_line		0.918	0.916	0.936	0.942	0.944
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3⁴⁾		C3 (class A filter)	C3 (class A filter)	C3 (class A filter)	C3 (class A filter)	C3 (class A filter)
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL2	SL2	SL2	SL21	SL3
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	70	73	73	75	75
Standard converter dimensions
Width	mm	806	806	806	1206	1606
Height⁵⁾	mm	2112	2112	2112	2112	2112
Depth	mm	605	605	605	605	605
Coolant requirements	m³/h	1900	1900	1900	2250	3200
Weight, approx.	kg	490	510	530	780	890
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		SW2	SW2	SW2	SW21	SW3
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	68	71	71	73	73
Standard converter dimensions
Width	mm	806	806	806	1206	1806
Height	mm	2202	2202	2202	2202	2202
Depth	mm	605	605	605	605	605
Coolant requirements	l/h	1200	1200	1200	1200	2000
Min. coolant pressure	bar	2.5	2.5	2.5	2.5	2.5
Max. coolant pressure	bar	6	6	6	6	6
Coolant test pressure	bar	10	10	10	10	10
Coolant pressure loss	bar	1.9	1.9	1.9	1.9	1.9
Min. coolant temperature	°C	10	10	10	10	10
Max. coolant temperature	°C	35	35	35	30	35
Weight, approx.	kg	490	510	530	850	920
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	250⁶⁾	250⁶⁾	250⁶⁾	250⁶⁾	250⁶⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁷⁾	NRTL⁷⁾	NRTL⁷⁾	NRTL⁷⁾	NRTL⁷⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾ EMC filter not required for IT system, in which case RI suppression category C4.

⁵⁾ With IP21 protective top cover (110 mm).

⁶⁾ Option L10 included (strengthened dv/dt filter; strengthened filter is integrated in unit).

⁷⁾ On request.

Line voltage, supply system type		400, 415, 460, 500 V 3 AC IT/TT/TN
SINAMICS G180 cabinet units – air-cooled		6SE0180‑1BD38‑8❑A7	6SE0180‑1BD41‑0❑A7	6SE0180‑1BD41‑1❑A7
Converter type (air-cooled)		2T3A‑87501‑630	2T3A‑87501‑710	2T3A‑87501‑800
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑1BD38‑8❑A7	6SE0170‑1BD41‑0❑A7	6SE0170‑1BD41‑1❑A7
Converter type (liquid-cooled)		2T6A‑77501‑630	2T6A‑77501‑710	2T6A‑77501‑800
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 500 V	kW	630	710	800
at 60 Hz 460 V	hp	777	876	987
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	920	1030	1150
Short-time current (60 s every 10 minutes) max.	A	1100	1230	1380
Overload capability (60 s every 10 minutes) max.	%	20	19	20
Output power	kVA	797	892	996
Output frequency, max.	Hz	120	120	120
Rated clock cycle	kHz	2.4	2.4	2.4
adjustable from	kHz	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	15.4	18.1	20.3
Rated efficiency	%	97.7	97.6	97.6
Electrical data at line end
Connected load	kVA	767	848	944
Rated input voltage	V	500	500	500
Input current
Continuous line current	A	886	979	1090
Short-time line current (60 s) max.	A	1059	1169	1308
Line fuse (provided by customer)	gL (A)	900	1000	1250
λ_line		0.946	0.948	0.95
Cos φ_line		1	1	1
Radio interference suppression acc. to EN 61800‑3⁴⁾		C3 (class A filter)	C3 (class A filter)	C3 (class A filter)
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL3	SL3	SL3
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	75	75	75
Standard converter dimensions
Width	mm	1606	1606	1606
Height⁵⁾	mm	2112	2112	2112
Depth	mm	605	605	605
Coolant requirements	m³/h	3800	3200	3800
Weight, approx.	kg	900	930	980
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		SW3	SW3	SW3
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	73	73	73
Standard converter dimensions
Width	mm	1806	1806	1806
Height	mm	2202	2202	2202
Depth	mm	605	605	605
Coolant requirements	l/h	2000	2000	2000
Min. coolant pressure	bar	2.5	2.5	2.5
Max. coolant pressure	bar	6	6	6
Coolant test pressure	bar	10	10	10
Coolant pressure loss	bar	1.9	1.9	1.9
Min. coolant temperature	°C	10	10	10
Max. coolant temperature	°C	35	35	30
Weight, approx.	kg	930	960	1010
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	250⁶⁾	250⁶⁾	250⁶⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁷⁾	NRTL⁷⁾	NRTL⁷⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾ EMC filter not required for IT system, in which case RI suppression category C4.

⁵⁾With IP21 protective top cover (110 mm).

⁶⁾ Option L10 included (strengthened dv/dt filter; strengthened filter is integrated in unit).

⁷⁾ On request.

500 V, 12‑pulse

Line voltage, supply system type		2 × 400, 415, 460, 500 V 3 AC IT
SINAMICS G180 cabinet units – air-cooled		6SE0180‑2BD33‑7❑A7	6SE0180‑2BD34‑6❑A7	6SE0180‑2BD36‑3❑A7	6SE0180‑2BD37‑3❑A7	6SE0180‑2BD38‑2❑A7
Converter type (air-cooled)		2T3F‑87501‑250	2T3F‑87501‑315	2T3F‑87501‑400	2T3F‑87501‑500	2T3F‑87501‑560
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑2BD33‑7❑A7	6SE0170‑2BD34‑6❑A7	6SE0170‑2BD36‑3❑A7	6SE0170‑2BD37‑3❑A7	6SE0170‑2BD38‑2❑A7
Converter type (liquid-cooled)		2T6F‑77501‑250	2T6F‑77501‑315	2T6F‑77501‑400	2T6F‑77501‑500	2T6F‑77501‑560
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 500 V	kW	250	315	400	500	560
at 60 Hz 460 V	hp	309	389	494	617	691
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	370	460	640	730	820
Short-time current (60 s every 10 minutes) max.	A	450	560	700	900	980
Overload capability (60 s every 10 minutes) max.	%	22	22	9	23	20
Output power	kVA	320	398	554	632	710
Output frequency, max.	Hz	250	250	250	120	120
Rated clock cycle	kHz	3	3	2.4	2.4	2.4
adjustable from	kHz	2 ... 5	2 ... 5	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	6.15	7.39	9.37	12.8	13.7
Rated efficiency	%	97.7	97.8	97.8	97.6	97.7
Electrical data at line end
Connected load	kVA	303	378	516	606	677
Rated input voltage	V	2 × 500	2 × 500	2 × 500	2 × 500	2 × 500
Input current
Continuous line current	A	2 × 175	2 × 218	2 × 298	2 × 350	2 × 391
Short-time line current (60 s) max.	A	2 × 213	2 × 265	2 × 326	2 × 432	2 × 467
Line fuse (provided by customer)	gL (A)	200	250	400	400	500
λ_line		0.994	0.994	0.994	0.996	0.996
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3		C4	C4	C4	C4	C4
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL5	SL5	SL5	SL5	SL6
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	70	73	73	75	75
Standard converter dimensions
Width	mm	1406	1406	1406	1406	1806
Height⁴⁾	mm	2112	2112	2112	2112	2112
Depth	mm	605	605	605	605	605
Coolant requirements	m³/h	1900	1900	1900	2250	3200
Weight, approx.	kg	690	710	730	810	920
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		SW5	SW5	SW5	SW5	SW6
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	68	71	71	73	73
Standard converter dimensions
Width	mm	1406	1406	1406	1406	2006
Height	mm	2202	2202	2202	2202	2202
Depth	mm	605	605	605	605	605
Coolant requirements	l/h	1200	1200	1200	1200	2000
Min. coolant pressure	bar	2.5	2.5	2.5	2.5	2.5
Max. coolant pressure	bar	6	6	6	6	6
Coolant test pressure	bar	10	10	10	10	10
Coolant pressure loss	bar	1.9	1.9	1.9	1.9	1.9
Min. coolant temperature	°C	10	10	10	10	10
Max. coolant temperature	°C	35	35	35	30	35
Weight, approx.	kg	690	710	730	810	950
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	250⁵⁾	250⁵⁾	250⁵⁾	250⁵⁾	250⁵⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁶⁾	NRTL⁶⁾	NRTL⁶⁾	NRTL⁶⁾	NRTL⁶⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾With IP21 protective top cover (110 mm).

⁵⁾ Option L10 included (strengthened dv/dt filter; strengthened filter is integrated in unit).

⁶⁾ On request.

Line voltage, supply system type		2 × 400, 415, 460, 500 V 3 AC IT
SINAMICS G180 cabinet units – air-cooled		6SE0180‑2BD38‑8❑A7	6SE0180‑2BD41‑0❑A7	6SE0180‑2BD41‑1❑A7
Converter type (air-cooled)		2T3F‑87501‑630	2T3F‑87501‑710	2T3F‑87501‑800
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑2BD38‑8❑A7	6SE0170‑2BD41‑0❑A7	6SE0170‑2BD41‑1❑A7
Converter type (liquid-cooled)		2T6F‑77501‑630	2T6F‑77501‑710	2T6F‑77501‑800
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 500 V	kW	630	710	800
at 60 Hz 460 V	hp	777	876	987
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	920	1030	1150
Short-time current (60 s every 10 minutes) max.	A	1100	1230	1380
Overload capability (60 s every 10 minutes) max.	%	20	19	20
Output power	kVA	797	892	996
Output frequency, max.	Hz	120	120	120
Rated clock cycle	kHz	2.4	2.4	2.4
adjustable from	kHz	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	15.4	18.1	20.3
Rated efficiency	%	97.7	97.6	97.6
Electrical data at line end
Connected load	kVA	767	849	944
Rated input voltage	V	2 × 500	2 × 500	2 × 500
Input current
Continuous line current	A	2 × 443	2 × 490	2 × 545
Short-time line current (60 s) max.	A	2 × 530	2 × 585	2 × 654
Line fuse (provided by customer)	gL (A)	500	630	630
λ_line		0.996	0.996	0.997
Cos φ_line		1	1	1
Radio interference suppression acc. to EN 61800‑3		C4	C4	C4
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL6	SL6	SL6
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	75	75	75
Standard converter dimensions
Width	mm	1806	1806	1806
Height⁴⁾	mm	2112	2112	2112
Depth	mm	605	605	605
Coolant requirements	m³/h	3800	3200	3800
Weight, approx.	kg	930	960	1010
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		SW6	SW6	SW6
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	73	73	73
Standard converter dimensions
Width	mm	2006	2006	2006
Height	mm	2202	2202	2202
Depth	mm	605	605	605
Coolant requirements	l/h	2000	2000	2000
Min. coolant pressure	bar	2.5	2.5	2.5
Max. coolant pressure	bar	6	6	6
Coolant test pressure	bar	10	10	10
Coolant pressure loss	bar	1.9	1.9	1.9
Min. coolant temperature	°C	10	10	10
Max. coolant temperature	°C	35	35	30
Weight, approx.	kg	960	990	1040
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	250⁵⁾	250⁵⁾	250⁵⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁶⁾	NRTL⁶⁾	NRTL⁶⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾ With IP21 protective top cover (110 mm).

⁵⁾ Option L10 included (strengthened dv/dt filter; strengthened filter is integrated in unit).

⁶⁾ On request

690 V, 6‑pulse

Line voltage, supply system type		400, 415, 460, 500, 575, 690 V 3 AC TT/TN or IT
SINAMICS G180 cabinet units – air-cooled		6SE0180‑1B❑33‑2❑A7	6SE0180‑1B❑33‑6❑A7	6SE0180‑1B❑34‑2❑A7	6SE0180‑1B❑35‑2❑A7	6SE0180‑1B❑35‑7❑A7
Converter type (air-cooled)		2T3A‑87601‑250	2T3A‑87601‑315	2T3A‑87601‑400	2T3A‑87601‑500	2T3A‑87601‑560
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑1B❑33‑2❑A7	6SE0170‑1B❑33‑6❑A7	6SE0170‑1B❑34‑2❑A7	6SE0170‑1B❑35‑2❑A7	6SE0170‑1B❑35‑7❑A7
Converter type (liquid-cooled)		2T6A‑77601‑250	2T6A‑77601‑315	2T6A‑77601‑400	2T6A‑77601‑500	2T6A‑77601‑560
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 690 V	kW	250	315	400	500	560
at 60 Hz 575 V	hp	279	352	447	559	626
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	270	340	440	530	590
Short-time current (60 s every 10 minutes) max.	A	320	410	510	640	710
Overload capability (60 s every 10 minutes) max.	%	19	21	16	21	20
Output power	kVA	323	406	526	633	705
Output frequency, max.	Hz	250	250	250	120	120
Rated clock cycle	kHz	3	3	2.4	2.4	2.4
adjustable from	kHz	2 ... 5	2 ... 5	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	6.15	7.73	9.37	12.2	13.7
Rated efficiency	%	97.7	97.7	97.8	97.7	97.7
Electrical data at line end
Connected load	kVA	312	391	502	608	676
Rated input voltage	V	690	690	690	690	690
Input current
Continuous line current	A	261	327	420	509	566
Short-time line current (60 s) max.	A	309	394	487	615	681
Line fuse (provided by customer)	gL (A)	315	400	500	630	630
λ_line		0.901	0.905	0.91	0.939	0.94
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3⁴⁾		C3 (class A filter)	C3 (class A filter)	C3 (class A filter)	C3 (class A filter)	C3 (class A filter)
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL2	SL2	SL2	SL21	SL3
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	70	70	70	75	75
Standard converter dimensions
Width	mm	806	806	806	1206	1606
Height⁵⁾	mm	2112	2112	2112	2112	2112
Depth	mm	605	605	605	605	605
Coolant requirements	m³/h	1900	1900	1900	2650	3200
Weight, approx.	kg	490	510	530	780	890
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		SW2	SW2	SW2	SW21	SW3
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	68	68	68	73	73
Standard converter dimensions
Width	mm	806	806	806	1206	1806
Height	mm	2202	2202	2202	2202	2202
Depth	mm	605	605	605	605	605
Coolant requirements	l/h	1200	1200	1200	1200	2000
Min. coolant pressure	bar	2.5	2.5	2.5	2.5	2.5
Max. coolant pressure	bar	6	6	6	6	6
Coolant test pressure	bar	10	10	10	10	10
Coolant pressure loss	bar	1.9	1.9	1.9	1.9	1.9
Min. coolant temperature	°C	10	10	10	10	10
Max. coolant temperature	°C	35	35	35	30	35
Weight, approx.	kg	490	510	530	850	920
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	100/250⁶⁾	100/250⁶⁾	100/250⁶⁾	100/250⁶⁾	100/250⁷⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁸⁾	NRTL⁸⁾	NRTL⁸⁾	NRTL⁸⁾	NRTL⁸⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾ EMC filter not required for IT system, in which case RI suppression category C4.

⁵⁾ With IP21 protective top cover (110 mm).

⁶⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in additional 400 mm cabinet).

⁷⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in unit).

⁸⁾ On request; the voltage range for NRTL units ends at max. 600 V.

Line voltage, supply system type		400, 415, 460, 500, 575, 690 V 3 AC TT/TN or IT
SINAMICS G180 cabinet units – air-cooled		6SE0180‑1B❑36‑4❑A7	6SE0180‑1B❑37‑1❑A7	6SE0180‑1B❑37‑7❑A7	6SE0180‑1B❑41‑0❑A7	6SE0180‑1B❑41‑1❑A7
Converter type (air-cooled)		2T3A‑87601‑630	2T3A‑87601‑710	2T3A‑87601‑800	2T3A‑87601‑909	2T3A‑87601‑910
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑1B❑36‑4❑A7	6SE0170‑1B❑37‑1❑A7	6SE0170‑1B❑37‑7❑A7	6SE0170‑1B❑41‑0❑A7	6SE0170‑1B❑41‑1❑A7
Converter type (liquid-cooled)		2T6A‑77601‑630	2T6A‑77601‑710	2T6A‑77601‑800	2T6A‑77601‑909	2T6A‑77601‑910
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 690 V	kW	630	710	800	900	1000
at 60 Hz 575 V	hp	704	794	894	1006	1118
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	660	750	840	950	1040
Short-time current (60 s every 10 minutes) max.	A	800	890	980	1060	1130
Overload capability (60 s every 10 minutes) max.	%	21	19	17	12	9
Output power	kVA	789	896	1004	1135	1243
Output frequency, max.	Hz	120	120	120	120	120
Rated clock cycle	kHz	2.4	2.4	2.4	2.4	2.4
adjustable from	kHz	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	15.4	16.6	18.7	21	23.3
Rated efficiency	%	97.7	97.8	97.8	97.8	97.8
Electrical data at line end
Connected load	kVA	764	854	956	1078	1165
Rated input voltage	V	690	690	690	690	690
Input current
Continuous line current	A	639	715	800	902	975
Short-time line current (60 s) max.	A	774	848	933	1006	1059
Line fuse (provided by customer)	gL (A)	800	800	900	1000	1000
λ_line		0.942	0.944	0.945	0.947	0.949
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3⁴⁾		C3 (class A filter)	C3 (class A filter)	C3 (class A filter)	C3 (class A filter)	C3 (class A filter)
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL3	SL3	SL3	SL3	SL3
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	75	75	75	75	75
Standard converter dimensions
Width	mm	1606	1606	1606	1606	1606
Height⁵⁾	mm	2112	2112	2112	2112	2112
Depth	mm	605	605	605	605	605
Coolant requirements	m³/h	3200	3800	3200	3800	3800
Weight, approx.	kg	890	900	930	980	1030
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		SW3	SW3	SW3	SW3	SW3
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	73	73	73	73	73
Standard converter dimensions
Width	mm	1806	1806	1806	1806	1806
Height	mm	2202	2202	2202	2202	2202
Depth	mm	605	605	605	605	605
Coolant requirements	l/h	2000	2000	2000	2000	2000
Min. coolant pressure	bar	2.5	2.5	2.5	2.5	2.5
Max. coolant pressure	bar	6	6	6	6	6
Coolant test pressure	bar	10	10	10	10	10
Coolant pressure loss	bar	1.9	1.9	1.9	1.9	1.9
Min. coolant temperature	°C	10	10	10	10	10
Max. coolant temperature	°C	35	35	35	30	28
Weight, approx.	kg	920	930	960	1010	1060
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	100/250⁶⁾	100/250⁶⁾	100/250⁷⁾	100/250⁷⁾	100/250⁷⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁸⁾	NRTL⁸⁾	NRTL⁸⁾	NRTL⁸⁾	NRTL⁸⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾ EMC filter not required for IT system, in which case RI suppression category C4.

⁵⁾ With IP21 protective top cover (110 mm).

⁶⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in unit).

⁷⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in additional 600 mm cabinet).

⁸⁾ On request; the voltage range for NRTL units ends at max. 600 V.

Line voltage, supply system type		400, 415, 460, 500, 575, 690 V 3 AC TT/TN or IT
SINAMICS G180 cabinet units – air-cooled		6SE0180‑1C❑41‑2❑A7	6SE0180‑1C❑41‑3❑A7	6SE0180‑1C❑41‑5❑A7	6SE0180‑1C❑41‑7❑A7	6SE0180‑1C❑42‑0❑A7
Converter type (air-cooled)		2T3A‑87602‑912	2T3A‑87602‑913	2T3A‑87602‑915	2T3A‑87602‑917	2T3A‑87602‑919
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑1C❑41‑2❑A7	6SE0170‑1C❑41‑3❑A7	6SE0170‑1C❑41‑5❑A7	6SE0170‑1C❑41‑7❑A7	6SE0170‑1C❑42‑0❑A7
Converter type (liquid-cooled)		2T6A‑77602‑912	2T6A‑77602‑913	2T6A‑77602‑915	2T6A‑77602‑917	2T6A‑77602‑919
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 690 V	kW	1200	1300	1500	1700	1900
at 60 Hz 575 V	hp	1341	1453	1676	1900	2123
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	1260	1430	1600	1810	1980
Short-time current (60 s every 10 minutes) max.	A	1520	1700	1870	2020	2150
Overload capability (60 s every 10 minutes) max.	%	21	19	17	12	9
Output power	kVA	1506	1709	1912	2163	2366
Output frequency, max.	Hz	120	120	120	120	120
Rated clock cycle	kHz	2.4	2.4	2.4	2.4	2.4
adjustable from	kHz	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	28.2	33.6	37.5	42.6	46.5
Rated efficiency	%	97.8	97.7	97.7	97.7	97.7
Electrical data at line end
Connected load	kVA	1410	1603	1795	2030	2220
Rated input voltage	V	690	690	690	690	690
Input current
Continuous line current	A	1180	1341	1502	1699	1858
Short-time line current (60 s) max.	A	1424	1594	1756	1896	2018
Line fuse (provided by customer)	gL (A)	1250	1500	1600	1800	2000
λ_line		0.952	0.954	0.956	0.958	0.96
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3⁴⁾		C3 (class A filter)	C3 (class A filter)	C3 (class A filter)	C3 (class A filter)	C3 (class A filter)
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL4	SL4	SL4	SL4	SL4
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	77	77	77	77	77
Standard converter dimensions
Width	mm	3206	3206	3206	3206	3206
Height⁵⁾	mm	2112	2112	2112	2112	2112
Depth	mm	605	605	605	605	605
Coolant requirements	m³/h	6400	7600	6400	7600	7600
Weight, approx.	kg	1780	1800	1860	1960	2060
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		SW4	SW4	SW4	SW4	SW4
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	75	75	75	75	75
Standard converter dimensions
Width	mm	3606	3606	3606	3606	3606
Height	mm	2202	2202	2202	2202	2202
Depth	mm	605	605	605	605	605
Coolant requirements	l/h	4000	4000	4000	4000	4000
Min. coolant pressure	bar	2.5	2.5	2.5	2.5	2.5
Max. coolant pressure	bar	6	6	6	6	6
Coolant test pressure	bar	10	10	10	10	10
Coolant pressure loss	bar	1.9	1.9	1.9	1.9	1.9
Min. coolant temperature	°C	10	10	10	10	10
Max. coolant temperature	°C	35	35	35	30	28
Weight, approx.	kg	1840	1860	1920	2020	2120
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	100/250⁶⁾	100/250⁶⁾	100/250⁷⁾	100/250⁷⁾	100/250⁷⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁸⁾	NRTL⁸⁾	NRTL⁸⁾	NRTL⁸⁾	NRTL⁸⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾ EMC filter not required for IT system, in which case RI suppression category C4.

⁵⁾ With IP21 protective top cover (110 mm).

⁶⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in unit).

⁷⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in additional 2 x 600 mm cabinet).

⁸⁾ On request; the voltage range for NRTL units ends at max. 600 V.

690 V, 12‑pulse

Line voltage, supply system type		2 × 400, 415, 460, 500, 575, 690 V 3 AC IT
SINAMICS G180 cabinet units – air-cooled		6SE0180‑2BH33‑2❑A7	6SE0180‑2BH33‑6❑A7	6SE0180‑2BH34‑2❑A7	6SE0180‑2BH35‑2❑A7	6SE0180‑2BH35‑7❑A7
Converter type (air-cooled)		2T3F‑87601‑250	2T3F‑87601‑315	2T3F‑87601‑400	2T3F‑87601‑500	2T3F‑87601‑560
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑2BH33‑2❑A7	6SE0170‑2BH33‑6❑A7	6SE0170‑2BH34‑2❑A7	6SE0170‑2BH35‑2❑A7	6SE0170‑2BH35‑7❑A7
Converter type (liquid-cooled)		2T6F‑77601‑250	2T6F‑77601‑315	2T6F‑77601‑400	2T6F‑77601‑500	2T6F‑77601‑560
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 690 V	kW	250	315	400	500	560
at 60 Hz 575 V	hp	279	352	447	559	626
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	270	340	440	530	590
Short-time current (60 s every 10 minutes) max.	A	320	410	510	640	710
Overload capability (60 s every 10 minutes) max.	%	19	21	16	21	20
Output power	kVA	323	406	526	633	705
Output frequency, max.	Hz	250	250	250	120	120
Rated clock cycle	kHz	3	3	2.4	2.4	2.4
adjustable from	kHz	2 ... 5	2 ... 5	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	6.15	7.73	9.37	12.2	13.7
Rated efficiency	%	97.7	97.7	97.8	97.7	97.7
Electrical data at line end
Connected load	kVA	311	392	502	600	667
Rated input voltage	V	2 × 690	2 × 690	2 × 690	2 × 690	2 × 690
Input current
Continuous line current	A	2 × 130	2 × 164	2 × 210	2 × 251	2 × 279
Short-time line current (60 s) max.	A	2 × 154	2 × 198	2 × 243	2 × 303	2 × 336
Line fuse (provided by customer)	gL (A)	160	200	250	315	315
λ_line		0.995	0.995	0.995	0.997	0.997
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3		C4	C4	C4	C4	C4
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL5	SL5	SL5	SL5	SL6
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	70	70	70	75	75
Standard converter dimensions
Width	mm	1406	1406	1406	1406	1806
Height⁴⁾	mm	2112	2112	2112	2112	2112
Depth	mm	605	605	605	605	605
Coolant requirements	m³/h	1900	1900	1900	2650	3200
Weight, approx.	kg	690	710	730	810	920
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		SW5	SW5	SW5	SW5	SW6
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	68	68	68	73	73
Standard converter dimensions
Width	mm	1406	1406	1406	1406	2006
Height	mm	2202	2202	2202	2202	2202
Depth	mm	605	605	605	605	605
Coolant requirements	l/h	1200	1200	1200	1200	2000
Min. coolant pressure	bar	2.5	2.5	2.5	2.5	2.5
Max. coolant pressure	bar	6	6	6	6	6
Coolant test pressure	bar	10	10	10	10	10
Coolant pressure loss	bar	1.9	1.9	1.9	1.9	1.9
Min. coolant temperature	°C	10	10	10	10	10
Max. coolant temperature	°C	35	35	35	30	35
Weight, approx.	kg	690	710	730	810	950
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	100/250⁵⁾	100/250⁵⁾	100/250⁵⁾	100/250⁵⁾	100/250⁶⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁷⁾	NRTL⁷⁾	NRTL⁷⁾	NRTL⁷⁾	NRTL⁷⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾ With IP21 protective top cover (110 mm).

⁵⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in additional 400 mm cabinet).

⁶⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in unit).

⁷⁾ On request; the voltage range for NRTL units ends at max. 600 V.

Line voltage, supply system type		2 × 400, 415, 460, 500, 575, 690 V 3 AC IT
SINAMICS G180 cabinet units – air-cooled		6SE0180‑2BH36‑4❑A7	6SE0180‑2BH37‑1❑A7	6SE0180‑2BH37‑7❑A7	6SE0180‑2BH41‑0❑A7	6SE0180‑2BH41‑1❑A7
Converter type (air-cooled)		2T3F‑87601‑630	2T3F‑87601‑710	2T3F‑87601‑800	2T3F‑87601‑909	2T3F‑87601‑910
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑2BH36‑4❑A7	6SE0170‑2BH37‑1❑A7	6SE0170‑2BH37‑7❑A7	6SE0170‑2BH41‑0❑A7	6SE0170‑2BH41‑1❑A7
Converter type (liquid-cooled)		2T6F‑77601‑630	2T6F‑77601‑710	2T6F‑77601‑800	2T6F‑77601‑909	2T6F‑77601‑910
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 690 V	kW	630	710	800	900	1000
at 60 Hz 575 V	hp	704	794	894	1006	1118
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	660	750	840	950	1040
Short-time current (60 s every 10 minutes) max.	A	800	890	980	1060	1130
Overload capability (60 s every 10 minutes) max.	%	21	19	17	12	9
Output power	kVA	789	896	1004	1135	1243
Output frequency, max.	Hz	120	120	120	120	120
Rated clock cycle	kHz	2.4	2.4	2.4	2.4	2.4
adjustable from	kHz	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	15.4	16.6	18.7	21	23.3
Rated efficiency	%	97.7	97.8	97.8	97.8	97.8
Electrical data at line end
Connected load	kVA	755	848	949	1071	1159
Rated input voltage	V	2 × 690	2 × 690	2 × 690	2 × 690	2 × 690
Input current
Continuous line current	A	2 × 316	2 × 355	2 × 397	2 × 448	2 × 485
Short-time line current (60 s) max.	A	2 × 383	2 × 421	2 × 463	2 × 500	2 × 527
Line fuse (provided by customer)	gL (A)	400	400	500	500	630
λ_line		0.997	0.997	0.997	0.997	0.997
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3		C4	C4	C4	C4	C4
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL6	SL6	SL6	SL6	SL6
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	75	75	75	75	75
Standard converter dimensions
Width	mm	1806	1806	1806	1806	1806
Height⁴⁾	mm	2112	2112	2112	2112	2112
Depth	mm	605	605	605	605	605
Coolant requirements	m³/h	3200	3800	3200	3800	3800
Weight, approx.	kg	920	930	960	1010	1060
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		SW6	SW6	SW6	SW6	SW6
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	73	73	73	73	73
Standard converter dimensions
Width	mm	2006	2006	2006	2006	2006
Height	mm	2202	2202	2202	2202	2202
Depth	mm	605	605	605	605	605
Coolant requirements	l/h	2000	2000	2000	2000	2000
Min. coolant pressure	bar	2.5	2.5	2.5	2.5	2.5
Max. coolant pressure	bar	6	6	6	6	6
Coolant test pressure	bar	10	10	10	10	10
Coolant pressure loss	bar	1.9	1.9	1.9	1.9	1.9
Min. coolant temperature	°C	10	10	10	10	10
Max. coolant temperature	°C	35	35	35	30	28
Weight, approx.	kg	950	960	990	1040	1090
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	100/250⁵⁾	100/250⁵⁾	100/250⁶⁾	100/250⁶⁾	100/250⁶⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁷⁾	NRTL⁷⁾	NRTL⁷⁾	NRTL⁷⁾	NRTL⁷⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾ With IP21 protective top cover (110 mm).

⁵⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in unit).

⁶⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in additional 600 mm cabinet).

⁷⁾ On request; the voltage range for NRTL units ends at max. 600 V.

Line voltage, supply system type		2 × 400, 415, 460, 500, 575, 690 V 3 AC IT
SINAMICS G180 cabinet units – air-cooled		6SE0180‑2CH41‑2❑A7	6SE0180‑2CH41‑3❑A7	6SE0180‑2CH41‑5❑A7	6SE0180‑2CH41‑7❑A7	6SE0180‑2CH42‑0❑A7
Converter type (air-cooled)		2T3F‑87602‑912	2T3F‑87602‑913	2T3F‑87602‑915	2T3F‑87602‑917	2T3F‑87602‑919
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑2CH41‑2❑A7	6SE0170‑2CH41‑3❑A7	6SE0170‑2CH41‑5❑A7	6SE0170‑2CH41‑7❑A7	6SE0170‑2CH42‑0❑A7
Converter type (liquid-cooled)		2T6F‑77602‑912	2T6F‑77602‑913	2T6F‑77602‑915	2T6F‑77602‑917	2T6F‑77602‑919
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 690 V	kW	1200	1300	1500	1700	1900
at 60 Hz 575 V	hp	1341	1453	1676	1900	2123
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	1260	1430	1600	1810	1980
Short-time current (60 s every 10 minutes) max.	A	1520	1700	1870	2020	2150
Overload capability (60 s every 10 minutes) max.	%	21	19	17	12	9
Output power	kVA	1506	1709	1912	2163	2366
Output frequency, max.	Hz	120	120	120	120	120
Rated clock cycle	kHz	2.4	2.4	2.4	2.4	2.4
adjustable from	kHz	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	28.2	33.6	37.5	42.6	46.5
Rated efficiency	%	97.8	97.7	97.7	97.7	97.7
Electrical data at line end
Connected load	kVA	1405	1597	1781	2010	2194
Rated input voltage	V	2 × 690	2 × 690	2 × 690	2 × 690	2 × 690
Input current
Continuous line current	A	2 × 588	2 × 668	2 × 745	2 × 841	2 × 918
Short-time line current (60 s) max.	A	2 × 709	2 × 794	2 × 871	2 × 939	2 × 997
Line fuse (provided by customer)	gL (A)	800	800	900	1000	1250
λ_line		0.997	0.997	0.997	0.997	0.997
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3		C4	C4	C4	C4	C4
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL4	SL4	SL4	SL4	SL4
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	77	77	77	77	77
Standard converter dimensions
Width	mm	3206	3206	3206	3206	3206
Height⁴⁾	mm	2112	2112	2112	2112	2112
Depth	mm	605	605	605	605	605
Coolant requirements	m³/h	6400	7600	6400	7600	7600
Weight, approx.	kg	1780	1800	1860	1960	2060
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		SW4	SW4	SW4	SW4	SW4
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	75	75	75	75	75
Standard converter dimensions
Width	mm	3606	3606	3606	3606	3606
Height	mm	2202	2202	2202	2202	2202
Depth	mm	605	605	605	605	605
Coolant requirements	l/h	4000	4000	4000	4000	4000
Min. coolant pressure	bar	2.5	2.5	2.5	2.5	2.5
Max. coolant pressure	bar	6	6	6	6	6
Coolant test pressure	bar	10	10	10	10	10
Coolant pressure loss	bar	1.9	1.9	1.9	1.9	1.9
Min. coolant temperature	°C	10	10	10	10	10
Max. coolant temperature	°C	35	35	35	30	28
Weight, approx.	kg	1840	1860	1920	2020	2120
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	100/250⁵⁾	100/250⁵⁾	100/250⁶⁾	100/250⁶⁾	100/250⁶⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁷⁾	NRTL⁷⁾	NRTL⁷⁾	NRTL⁷⁾	NRTL⁷⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾ With IP21 protective top cover (110 mm).

⁵⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in unit).

⁶⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in additional 2 x 600 mm cabinet).

⁷⁾ On request; the voltage range for NRTL units ends at max. 600 V.

Line voltage, supply system type		2 × 400, 415, 460, 500, 575, 690 V 3 AC IT
SINAMICS G180 cabinet units – air-cooled		6SE0180‑2DH42‑2❑A7	6SE0180‑2DH42‑4❑A7	6SE0180‑2DH42‑7❑A7	6SE0180‑2DH43‑0❑A7	6SE0180‑2EH43‑2❑A7
Converter type (air-cooled)		2T3F‑87603‑920	2T3F‑87603‑923	2T3F‑87603‑926	2T3F‑87603‑929	2T3F‑87604‑931
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑2DH42‑2❑A7	6SE0170‑2DH42‑4❑A7	6SE0170‑2DH42‑7❑A7	6SE0170‑2DH43‑0❑A7	6SE0170‑2EH43‑2❑A7
Converter type (liquid-cooled)		2T6F‑77603‑920	2T6F‑77603‑923	2T6F‑77603‑926	2T6F‑77603‑929	2T6F‑77604‑931
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 690 V	kW	2000	2300	2600	2900	3100
at 60 Hz 575 V	hp	2235	2570	2906	3241	3465
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	2140	2400	2710	2970	3200
Short-time current (60 s every 10 minutes) max.	A	2540	2800	3030	3230	3730
Overload capability (60 s every 10 minutes) max.	%	19	17	12	9	17
Output power	kVA	2558	2868	3239	3549	3824
Output frequency, max.	Hz	120	120	120	120	120
Rated clock cycle	kHz	2.4	2.4	2.4	2.4	2.4
adjustable from	kHz	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	50.9	57.2	64.5	73.9	77.3
Rated efficiency	%	97.7	97.7	97.7	97.6	97.7
Electrical data at line end
Connected load	kVA	2369	2648	2983	3272	3516
Rated input voltage	V	2 × 690	2 × 690	2 × 690	2 × 690	2 × 690
Input current
Continuous line current	A	2 × 991	2 × 1108	2 × 1248	2 × 1369	2 × 1471
Short-time line current (60 s) max.	A	2 × 1176	2 × 1293	2 × 1395	2 × 1489	2 × 1715
Line fuse (provided by customer)	gL (A)	1250	1250	1500	1600	1800
λ_line		0.997	0.997	0.997	0.997	0.997
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3		C4	C4	C4	C4	C4
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL7	SL7	SL7	SL7	SL8
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	78	78	78	78	79
Standard converter dimensions
Width	mm	4806	4806	4806	4806	6406
Height⁴⁾	mm	2112	2112	2112	2112	2112
Depth	mm	605	605	605	605	605
Coolant requirements	m³/h	11400	9600	11400	11400	12800
Weight, approx.	kg	2700	2790	2940	3090	3720
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		SW7	SW7	SW7	SW7	SW8
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	76	76	76	76	77
Standard converter dimensions
Width	mm	5206	5206	5206	5206	7006
Height	mm	2202	2202	2202	2202	2202
Depth	mm	605	605	605	605	605
Coolant requirements	l/h	6000	6000	6000	6000	8000
Min. coolant pressure	bar	2.5	2.5	2.5	2.5	2.5
Max. coolant pressure	bar	6	6	6	6	6
Coolant test pressure	bar	10	10	10	10	10
Coolant pressure loss	bar	1.9	1.9	1.9	1.9	1.9
Min. coolant temperature	°C	10	10	10	10	10
Max. coolant temperature	°C	35	35	30	28	35
Weight, approx.	kg	2750	2850	2850	3100	3850
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	100/250⁵⁾	100/250⁶⁾	100/250⁶⁾	100/250⁶⁾	100/250⁷⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁸⁾	NRTL⁸⁾	NRTL⁸⁾	NRTL⁸⁾	NRTL⁸⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾ With IP21 protective top cover (110 mm).

⁵⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in unit).

⁶⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in additional 3 x 600 mm cabinet).

⁷⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in additional 4 x 600 mm cabinet).

⁸⁾ On request; the voltage range for NRTL units ends at max. 600 V.

Line voltage, supply system type		2 × 400, 415, 460, 500, 575, 690 V 3 AC IT
SINAMICS G180 cabinet units – air-cooled		6SE0180‑2EH43‑6❑A7	6SE0180‑2EH44‑0❑A7
Converter type (air-cooled)		2T3F‑87604‑935	2T3F‑87604‑939
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑2EH43‑6❑A7	6SE0170‑2EH44‑0❑A7
Converter type (liquid-cooled)		2T6F‑77604‑935	2T6F‑77604‑939
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 690 V	kW	3500	3900
at 60 Hz 575 V	hp	3912	4359
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	3610	3960
Short-time current (60 s every 10 minutes) max.	A	4030	4300
Overload capability (60 s every 10 minutes) max.	%	12	9
Output power	kVA	4314	4732
Output frequency, max.	Hz	120	120
Rated clock cycle	kHz	2.4	2.4
adjustable from	kHz	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	87.3	99.7
Rated efficiency	%	97.7	97.6
Electrical data at line end
Connected load	kVA	3956	4336
Rated input voltage	V	2 × 690	2 × 690
Input current
Continuous line current	A	2 × 1655	2 × 1814
Short-time line current (60 s) max.	A	2 × 1848	2 × 1970
Line fuse (provided by customer)	gL (A)	2000	2000
λ_line		0.997	0.997
Cos φ_line		1	1
Radio interference suppression acc. to EN 61800‑3		C4	C4
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL8	SL8
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	79	79
Standard converter dimensions
Width	mm	6406	6406
Height⁴⁾	mm	2112	2112
Depth	mm	605	605
Coolant requirements	m³/h	15200	15200
Weight, approx.	kg	3920	4120
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		SW8	SW8
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	77	77
Standard converter dimensions
Width	mm	7006	7006
Height	mm	2202	2202
Depth	mm	605	605
Coolant requirements	l/h	8000	8000
Min. coolant pressure	bar	2.5	2.5
Max. coolant pressure	bar	6	6
Coolant test pressure	bar	10	10
Coolant pressure loss	bar	1.9	1.9
Min. coolant temperature	°C	10	10
Max. coolant temperature	°C	30	28
Weight, approx.	kg	4050	4250
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	100/250⁵⁾	100/250⁵⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁶⁾	NRTL⁶⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾ With IP21 protective top cover (110 mm).

⁵⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in additional 4 x 600 mm cabinet).

⁶⁾ On request; the voltage range for NRTL units ends at max. 600 V.

690 V, 18‑pulse

Line voltage, supply system type		3 × 400, 415, 460, 500, 575, 690 V 3 AC IT
SINAMICS G180 cabinet units – air-cooled		6SE0180‑3DH42‑2❑A7	6SE0180‑3DH42‑4❑A7	6SE0180‑3DH42‑7❑A7	6SE0180‑3DH43‑0❑A7	6SE0180‑3HH44‑3❑A7
Converter type (air-cooled)		2T3K‑87603‑920	2T3K‑87603‑923	2T3K‑87603‑926	2T3K‑87603‑929	2T3K‑87606‑941
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑3DH42‑2❑A7	6SE0170‑3DH42‑4❑A7	6SE0170‑3DH42‑7❑A7	6SE0170‑3DH43‑0❑A7	6SE0170‑3HH44‑3❑A7
Converter type (liquid-cooled)		2T6K‑77603‑920	2T6K‑77603‑923	2T6K‑77603‑926	2T6K‑77603‑929	2T6K‑77606‑941
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 690 V	kW	2000	2300	2600	2900	4100
at 60 Hz 575 V	hp	2235	2570	2906	3241	4582
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	2140	2400	2710	2970	4290
Short-time current (60 s every 10 minutes) max.	A	2540	2800	3030	3230	5100
Overload capability (60 s every 10 minutes) max.	%	19	17	12	9	19
Output power	kVA	2558	2868	3239	3549	5127
Output frequency, max.	Hz	120	120	120	120	120
Rated clock cycle	kHz	2.4	2.4	2.4	2.4	2.4
adjustable from	kHz	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	50.9	57.2	64.5	73.9	102
Rated efficiency	%	97.7	97.7	97.7	97.6	97.7
Electrical data at line end
Connected load	kVA	2369	2648	2983	3272	4692
Rated input voltage	V	3 × 690	3 × 690	3 × 690	3 × 690	3 × 690
Input current
Continuous line current	A	3 × 661	3 × 739	3 × 832	3 × 912	3 × 1308
Short-time line current (60 s) max.	A	3 × 785	3 × 862	3 × 930	3 × 992	3 × 1555
Line fuse (provided by customer)	gL (A)	800	900	1000	1250	1500
λ_line		1	1	1	1	1
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3		C4	C4	C4	C4	C4
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL7	SL7	SL7	SL7	SL11
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	78	78	78	78	79
Standard converter dimensions
Width	mm	4806	4806	4806	4806	10206
Height⁴⁾	mm	2112	2112	2112	2112	2112
Depth	mm	605	605	605	605	605
Coolant requirements	m³/h	11400	9600	11400	11400	23150
Weight, approx.	kg	2750	2840	2990	3140	5750
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		SW7	SW7	SW7	SW7	–⁵⁾
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	76	76	76	76	77
Standard converter dimensions
Width	mm	5206	5206	5206	5206	–⁵⁾
Height	mm	2202	2202	2202	2202	–⁵⁾
Depth	mm	605	605	605	605	–⁵⁾
Coolant requirements	l/h	6000	6000	6000	6000	12000
Min. coolant pressure	bar	2.5	2.5	2.5	2.5	2.5
Max. coolant pressure	bar	6	6	6	6	6
Coolant test pressure	bar	10	10	10	10	10
Coolant pressure loss	bar	1.9	1.9	1.9	1.9	1.9
Min. coolant temperature	°C	10	10	10	10	10
Max. coolant temperature	°C	35	35	30	28	35
Weight, approx.	kg	2830	2920	3070	3220	5910
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	100/250⁶⁾	100/250⁷⁾	100/250⁷⁾	100/250⁷⁾	100/250⁶⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁸⁾	NRTL⁸⁾	NRTL⁸⁾	NRTL⁸⁾	NRTL⁸⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾ With IP21 protective top cover (110 mm).

⁵⁾ Dimensions on request.

⁶⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in unit).

⁷⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in additional 3 x 600 mm cabinet).

⁸⁾ On request; the voltage range for NRTL units ends at max. 600 V.

Line voltage, supply system type		3 × 400, 415, 460, 500, 575, 690 V 3 AC IT
SINAMICS G180 cabinet units – air-cooled		6SE0180‑3HH44‑8❑A7	6SE0180‑3HH45‑4❑A7	6SE0180‑3HH46‑0❑A7
Converter type (air-cooled)		2T3K‑87606‑947	2T3K‑87606‑953	2T3K‑87606‑958
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑3HH44‑8❑A7	6SE0170‑3HH45‑4❑A7	6SE0170‑3HH46‑0❑A7
Converter type (liquid-cooled)		2T6K‑77606‑947	2T6K‑77606‑953	2T6K‑77606‑958
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 690 V	kW	4700	5300	5800
at 60 Hz 575 V	hp	5253	5923	6482
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	4800	5420	5940
Short-time current (60 s every 10 minutes) max.	A	5610	6040	6450
Overload capability (60 s every 10 minutes) max.	%	17	11	9
Output power	kVA	5736	6477	7099
Output frequency, max.	Hz	120	120	120
Rated clock cycle	kHz	2.4	2.4	2.4
adjustable from	kHz	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	110	118	129
Rated efficiency	%	97.8	97.9	97.9
Electrical data at line end
Connected load	kVA	5244	5916	6482
Rated input voltage	V	3 × 690	3 × 690	3 × 690
Input current
Continuous line current	A	3 × 1462	3 × 1651	3 × 1809
Short-time line current (60 s) max.	A	3 × 1709	3 × 1840	3 × 1964
Line fuse (provided by customer)	gL (A)	1800	2000	2000 ... 2500
λ_line		1	1	1
Cos φ_line		1	1	1
Radio interference suppression acc. to EN 61800‑3		C4	C4	C4
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL11	SL11	SL11
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	79	79	79
Standard converter dimensions
Width	mm	10206	10206	10206
Height⁴⁾	mm	2112	2112	2112
Depth	mm	605	605	605
Coolant requirements	m³/h	19550	23150	23150
Weight, approx.	kg	5930	6230	6530
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		–⁵⁾	–⁵⁾	–⁵⁾
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	77	77	77
Standard converter dimensions
Width	mm	–⁵⁾	–⁵⁾	–⁵⁾
Height	mm	–⁵⁾	–⁵⁾	–⁵⁾
Depth	mm	–⁵⁾	–⁵⁾	–⁵⁾
Coolant requirements	l/h	12000	12000	12000
Min. coolant pressure	bar	2.5	2.5	2.5
Max. coolant pressure	bar	6	6	6
Coolant test pressure	bar	10	10	10
Coolant pressure loss	bar	1.9	1.9	1.9
Min. coolant temperature	°C	10	10	10
Max. coolant temperature	°C	38	30	28
Weight, approx.	kg	6090	6390	6690
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	100/250⁶⁾	100/250⁶⁾	100/250⁶⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁷⁾	NRTL⁷⁾	NRTL⁷⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾ With IP21 protective top cover (110 mm).

⁵⁾ Dimensions on request.

⁶⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in additional 6 x 600 mm cabinet).

⁷⁾ On request; the voltage range for NRTL units ends at max. 600 V.

690 V, 24‑pulse

Line voltage, supply system type		4 × 400, 415, 460, 500, 575, 690 V 3 AC IT
SINAMICS G180 cabinet units – air-cooled		6SE0180‑4CH41‑2❑A7	6SE0180‑4CH41‑3❑A7	6SE0180‑4CH41‑5❑A7	6SE0180‑4CH41‑7❑A7	6SE0180‑4CH42‑0❑A7
Converter type (air-cooled)		2T3L‑87602‑912	2T3L‑87602‑913	2T3L‑87602‑915	2T3L‑87602‑917	2T3L‑87602‑919
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑4CH41‑2❑A7	6SE0170‑4CH41‑3❑A7	6SE0170‑4CH41‑5❑A7	6SE0170‑4CH41‑7❑A7	6SE0170‑4CH42‑0❑A7
Converter type (liquid-cooled)		2T6L‑77602‑912	2T6L‑77602‑913	2T6L‑77602‑915	2T6L‑77602‑917	2T6L‑77602‑919
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 690 V	kW	1200	1300	1500	1700	1900
at 60 Hz 575 V	hp	1341	1453	1676	1900	2123
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	1260	1430	1600	1810	1980
Short-time current (60 s every 10 minutes) max.	A	1520	1700	1870	2020	2150
Overload capability (60 s every 10 minutes) max.	%	21	19	17	12	9
Output power	kVA	1506	1709	1912	2163	2366
Output frequency, max.	Hz	120	120	120	120	120
Rated clock cycle	kHz	2.4	2.4	2.4	2.4	2.4
adjustable from	kHz	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	28.2	33.6	37.5	42.6	46.5
Rated efficiency	%	97.8	97.7	97.7	97.7	97.7
Electrical data at line end
Connected load	kVA	1405	1597	1781	2010	2194
Rated input voltage	V	4 × 690	4 × 690	4 × 690	4 × 690	4 × 690
Input current
Continuous line current	A	4 × 294	4 × 333	4 × 372	4 × 421	4 × 459
Short-time line current (60 s) max.	A	4 × 355	4 × 396	4 × 435	4 × 470	4 × 498
Line fuse (provided by customer)	gL (A)	400	400	500	500	630
λ_line		1	1	1	1	1
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3		C4	C4	C4	C4	C4
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL9	SL9	SL9	SL9	SL9
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	77	77	77	77	77
Standard converter dimensions
Width	mm	3606	3606	3606	3606	3606
Height⁴⁾	mm	2112	2112	2112	2112	2112
Depth	mm	605	605	605	605	605
Coolant requirements	m³/h	6400	7600	6400	7600	7600
Weight, approx.	kg	1830	1850	1910	2010	2110
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		SW9	SW9	SW9	SW9	SW9
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	75	75	75	75	75
Standard converter dimensions
Width	mm	4406	4406	4406	4406	4406
Height	mm	2202	2202	2202	2202	2202
Depth	mm	605	605	605	605	605
Coolant requirements	l/h	4000	4000	4000	4000	4000
Min. coolant pressure	bar	2.5	2.5	2.5	2.5	2.5
Max. coolant pressure	bar	6	6	6	6	6
Coolant test pressure	bar	10	10	10	10	10
Coolant pressure loss	bar	1.9	1.9	1.9	1.9	1.9
Min. coolant temperature	°C	10	10	10	10	10
Max. coolant temperature	°C	35	35	35	30	28
Weight, approx.	kg	1930	1950	2010	2100	2160
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	100/250⁵⁾	100/250⁵⁾	100/250⁶⁾	100/250⁶⁾	100/250⁶⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁷⁾	NRTL⁷⁾	NRTL⁷⁾	NRTL⁷⁾	NRTL⁷⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾ With IP21 protective top cover (110 mm).

⁵⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in unit).

⁶⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in additional 600 mm cabinet).

⁷⁾ On request; the voltage range for NRTL units ends at max. 600 V.

Line voltage, supply system type		4 × 400, 415, 460, 500, 575, 690 V 3 AC IT
SINAMICS G180 cabinet units – air-cooled		6SE0180‑4EH43‑2❑A7	6SE0180‑4EH43‑6❑A7	6SE0180‑4EH44‑0❑A7	6SE0180‑4HH44‑3❑A7	6SE0180‑4HH44‑8❑A7
Converter type (air-cooled)		2T3L‑87604‑931	2T3L‑87604‑935	2T3L‑87604‑939	2T3L‑87606‑941	2T3L‑87606‑947
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑4EH43‑2❑A7	6SE0170‑4EH43‑6❑A7	6SE0170‑4EH44‑0❑A7	6SE0170‑4HH44‑3❑A7	6SE0170‑4HH44‑8❑A7
Converter type (liquid-cooled)		2T6L‑77604‑931	2T6L‑77604‑935	2T6L‑77604‑939	2T6L‑77606‑941	2T6L‑77606‑947
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 690 V	kW	3100	3500	3900	4100	4700
at 60 Hz 575 V	hp	3465	3912	4359	4582	5253
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	3200	3610	3960	4290	4800
Short-time current (60 s every 10 minutes) max.	A	3730	4030	4300	5100	5610
Overload capability (60 s every 10 minutes) max.	%	17	12	9	19	17
Output power	kVA	3824	4314	4732	5127	5736
Output frequency, max.	Hz	120	120	120	120	120
Rated clock cycle	kHz	2.4	2.4	2.4	2.4	2.4
adjustable from	kHz	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	77.3	87.3	99.7	102	110
Rated efficiency	%	97.7	97.7	97.6	97.7	97.8
Electrical data at line end
Connected load	kVA	3516	3956	4336	4692	5244
Rated input voltage	V	4 × 690	4 × 690	4 × 690	4 × 690	4 × 690
Input current
Continuous line current	A	4 × 735	4 × 828	4 × 906	4 × 982	4 × 1098
Short-time line current (60 s) max.	A	4 × 857	4 × 924	4 × 984	4 × 1167	4 × 1283
Line fuse (provided by customer)	gL (A)	900	1000	1000 ... 1250	1250	1250 ... 1500
λ_line		1	1	1	1	1
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3		C4	C4	C4	C4	C4
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL10	SL10	SL10	SL12	SL12
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	79	79	79	79	79
Standard converter dimensions
Width	mm	7206	7206	7206	11406	11406
Height⁴⁾	mm	2112	2112	2112	2112	2112
Depth	mm	605	605	605	605	605
Coolant requirements	m³/h	12800	15200	15200	23150	19550
Weight, approx.	kg	3760	3970	4170	5750	5930
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		SW10	SW10	SW10	–⁵⁾	–⁵⁾
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	77	77	77	77	77
Standard converter dimensions
Width	mm	7806	7806	7806	–⁵⁾	–⁵⁾
Height	mm	2202	2202	2202	–⁵⁾	–⁵⁾
Depth	mm	605	605	605	–⁵⁾	–⁵⁾
Coolant requirements	l/h	8000	8000	8000	12000	12000
Min. coolant pressure	bar	2.5	2.5	2.5	2.5	2.5
Max. coolant pressure	bar	6	6	6	6	6
Coolant test pressure	bar	10	10	10	10	10
Coolant pressure loss	bar	1.9	1.9	1.9	1.9	1.9
Min. coolant temperature	°C	10	10	10	10	10
Max. coolant temperature	°C	35	30	28	35	38
Weight, approx.	kg	3860	4070	4270	5910	6090
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	100/250⁶⁾	100/250⁶⁾	100/250⁶⁾	100/250⁷⁾	100/250⁸⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁹⁾	NRTL⁹⁾	NRTL⁹⁾	NRTL⁹⁾	NRTL⁹⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾ With IP21 protective top cover (110 mm).

⁵⁾ Dimensions on request.

⁶⁾ With option L10 (strengthened dv/dt filter) the filter is integrated in additional 4 × 600 mm cabinet.

⁷⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in unit).

⁸⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in additional 6 x 600 mm cabinet).

⁹⁾ On request; the voltage range for NRTL units ends at max. 600 V.

Line voltage, supply system type		4 × 400, 415, 460, 500, 575, 690 V 3 AC IT
SINAMICS G180 cabinet units – air-cooled		6SE0180‑4HH45‑4❑A7	6SE0180‑4HH46‑0nA7
Converter type (air-cooled)		2T3L‑87606‑953	2T3L‑87606‑958
SINAMICS G180 cabinet units – liquid-cooled		6SE0170‑4HH45‑4❑A7	6SE0170‑4HH46‑0❑A7
Converter type (liquid-cooled)		2T6L‑77606‑953	2T6L‑77606‑958
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 690 V	kW	5300	5800
at 60 Hz 575 V	hp	5923	6482
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	5420	5940
Short-time current (60 s every 10 minutes) max.	A	6040	6450
Overload capability (60 s every 10 minutes) max.	%	11	9
Output power	kVA	6477	7099
Output frequency, max.	Hz	120	120
Rated clock cycle	kHz	2.4	2.4
adjustable from	kHz	1.5 ... 3.7	1.5 ... 3.7
Power loss ³⁾	kW	118	129
Rated efficiency	%	97.9	97.9
Electrical data at line end
Connected load	kVA	5916	6482
Rated input voltage	V	4 × 690	4 × 690
Input current
Continuous line current	A	4 × 1237	4 × 1357
Short-time line current (60 s) max.	A	4 × 1378	4 × 1474
Line fuse (provided by customer)	gL (A)	1500	1500 ... 1800
λ_line		1	1
Cos φ_line		1	1
Radio interference suppression acc. to EN 61800‑3		C4	C4
Mechanical data for air-cooled cabinet units
Frame size (dimensional drawing classification)		SL12	SL12
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	79	79
Standard converter dimensions
Width	mm	11406	11406
Height⁴⁾	mm	2112	2112
Depth	mm	605	605
Coolant requirements	m³/h	23150	23150
Weight, approx.	kg	6230	6530
Mechanical data for liquid-cooled cabinet units
Frame size (dimensional drawing classification)		–⁵⁾	–⁵⁾
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	77	77
Standard converter dimensions
Width	mm	–⁵⁾	–⁵⁾
Height	mm	–⁵⁾	–⁵⁾
Depth	mm	–⁵⁾	–⁵⁾
Coolant requirements	l/h	12000	12000
Min. coolant pressure	bar	2.5	2.5
Max. coolant pressure	bar	6	6
Coolant test pressure	bar	10	10
Coolant pressure loss	bar	1.9	1.9
Min. coolant temperature	°C	10	10
Max. coolant temperature	°C	30	28
Weight, approx.	kg	6390	6690
General mechanical data
Max. cable length between converter and motor with standard insulation
(shielded)	m	100/250⁶⁾	100/250⁶⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Approvals, according to		NRTL⁷⁾	NRTL⁷⁾

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous motor current.

⁴⁾ With IP21 protective top cover (110 mm).

⁵⁾ Dimensions on request.

⁶⁾ Value is applicable with option L10 (strengthened dv/dt filter; filter is integrated in additional 6 x 600 mm cabinet).

⁷⁾ On request; the voltage range for NRTL units ends at max. 600 V.

SINAMICS G180 cabinet units - air-cooled and liquid-cooled

Информационные материалы

Air-cooled converter cabinet units

Liquid-cooled converter cabinet units

Опции

Технические данные

Standards for cabinet units

General technical data

Permissible substance values for the coolant

Cooling water additives for the closed converter cooling system with cooling unit

400 V, 6‑pulse

400 V, 12‑pulse

500 V, 6‑pulse

500 V, 12‑pulse

690 V, 6‑pulse

690 V, 12‑pulse

690 V, 18‑pulse

690 V, 24‑pulse
