SINAMICS G180 compact units

Заказные данные
(63)

The compact version of the SINAMICS G180 is a converter that can be combined very flexibly with the associated system components and integrated into customer-specific control cabinets or directly into machines.

Global use

SINAMICS G180 converter compact units are manufactured in compliance with relevant international standards and regulations, and are therefore suitable for global use (see technical data).

SINAMICS G180 compact unit

SINAMICS G180 converter compact units are available for the following voltages and power ratings:

Overview of voltages and power ratings for SINAMICS G180 compact units

Rated line voltage	Power
400 V 3 AC	2.2 ... 160 kW
500 V 3 AC	2.2 ... 200 kW
690 V 3 AC	7.5 ... 200 kW

Дизайн

Rugged, compact aluminum enclosure
IP20 degree of protection, optionally with IP21 protective top cover
Convenient terminal compartment for EMC-compliant cable connections to NAMUR NE 37 in the device
Complete touch protection in accordance with Employers' Liability Association regulations (BGV A3)
DC reactor fitted as standard to reduce harmonics, THD I 5th < 40 %
dv/dt filter fitted as standard to reduce voltage peaks in the motor

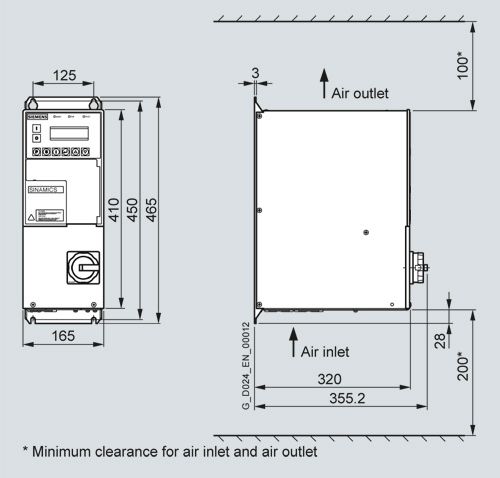

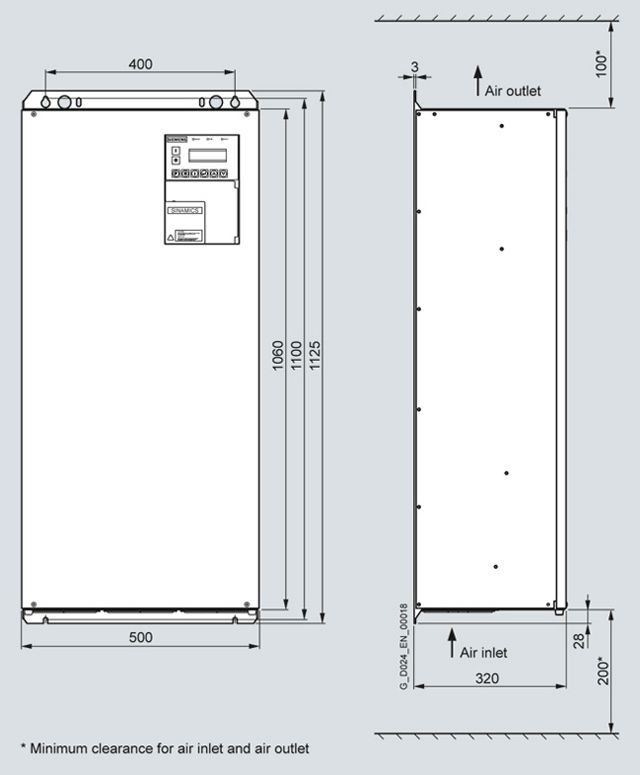

Чертеж

Frame size K1

Main switch is integrated in the compact unit only with option S41.

SINAMICS G180 compact units	Converter type
6SE0100-1AC15-5A7	2T2A-07400-002
6SE0100-1AC17-0A7	2T2A-07400-003
6SE0100-1AC21-0A7	2T2A-07400-004
6SE0100-1AC21-3A7	2T2A-07400-005
6SE0100-1AD14-5A7	2T2A-07500-002
6SE0100-1AD15-5A7	2T2A-07500-003
6SE0100-1AD17-0A7	2T2A-07500-004
6SE0100-1AD21-0A7	2T2A-07500-005
6SE0100-1AD21-3A7	2T2A-07500-007

Frame size K2

Main switch is integrated in the compact unit only with option S41.

SINAMICS G180 compact units	Converter type
6SE0100-1AC21-8A7	2T2A-07400-007
6SE0100-1AC22-5A7	2T2A-07400-011
6SE0100-1AD21-8A7	2T2A-07500-011
6SE0100-1AD22-5A7	2T2A-07500-015

Frame size K3

Main switch is integrated in the compact unit only with option S41.

SINAMICS G180 compact units	Converter type
6SE0100-1AC23-7A7	2T2A-07400-015
6SE0100-1AC24-8A7	2T2A-07400-022
6SE0100-1AC25-8A7	2T2A-07400-030
6SE0100-1AD23-7A7	2T2A-07500-022
6SE0100-1AD24-8A7	2T2A-07500-030
6SE0100-1AD25-8A7	2T2A-07500-037
6SE0100-1A21-0A7	2T2A-07600-007
6SE0100-1A21-3A7	2T2A-07600-011
6SE0100-1A21-8A7	2T2A-07600-015
6SE0100-1A22-5A7	2T2A-07600-022

Frame size K4

Main switch is integrated in the compact unit only with option S41.

SINAMICS G180 compact units	Converter type
6SE0100-1AC27-8A7	2T2A-07400-037
6SE0100-1AC28-8A7	2T2A-07400-045
6SE0100-1AC31-1A7	2T2A-07400-055
6SE0100-1AD27-8A7	2T2A-07500-045
6SE0100-1AD28-8A7	2T2A-07500-055
6SE0100-1AD31-1A7	2T2A-07500-075
6SE0100-1A23-4A7	2T2A-07600-030
6SE0100-1A28-0A7	2T2A-07600-075

Frame size K5

SINAMICS G180 compact units	Converter type
6SE0100-1AC31-5A7	2T2A-07400-075
6SE0100-1AC31-8A7	2T2A-07400-090
6SE0100-1AC32-1A7	2T2A-07400-110
6SE0100-1AD31-5A7	2T2A-07500-090
6SE0100-1AD31-8A7	2T2A-07500-110
6SE0100-1AD32-1A7	2T2A-07500-132
6SE0100-1A31-0A7	2T2A-07600-090
6SE0100-1A31-2A7	2T2A-07600-110
6SE0100-1A31-4A7	2T2A-07600-132

Frame size K51

Main switch is integrated as standard in compact units of frame size K51

SINAMICS G180 compact units	Converter type
6SE0100-1AC31-5A7 +S41	2T2A-07400-075
6SE0100-1AC31-8A7 +S41	2T2A-07400-090
6SE0100-1AC32-1A7 +S41	2T2A-07400-110
6SE0100-1AD31-5A7 +S41	2T2A-07500-090
6SE0100-1AD31-8A7 +S41	2T2A-07500-110
6SE0100-1AD32-1A7 +S41	2T2A-07500-132
6SE0100-1A31-0A7 +S41	2T2A-07600-090
6SE0100-1A31-2A7 +S41	2T2A-07600-110
6SE0100-1A31-4A7 +S41	2T2A-07600-132

Frame size K6

SINAMICS G180 compact units	Converter type
6SE0100-1AC32-5A7	2T2A-07400-132
6SE0100-1AC33-0A7	2T2A-07400-160
6SE0100-1AD32-5A7	2T2A-07500-160
6SE0100-1AD33-0A7	2T2A-07500-200
6SE0100-1A31-7A7	2T2A-07600-160
6SE0100-1A32-1A7	2T2A-07600-200

Опции

The following tables provide an overview of the options and their availability for SINAMICS G180 compact units with a supply voltage of 400 V, 500 V or 690 V. (For details, see catalog chapter 4 "Option descriptions".)

		SINAMICS G180 compact units
		400 V TN/TT system				500 V IT system				690 V TN/TT system				690 V IT system
		Version – see selection and ordering data
Option text	Additional ordering data -Z with order code and, if necessary, with plain text specification	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P
External control voltage supply
Connection for 230 V 1 AC 50 Hz control voltage provided by customer, without UPS backup	C56	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Connection for 230 V 1 AC 50 Hz control voltage provided by customer, with UPS backup	C57	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
RFI suppression filter
RFI suppression filter, category C2 or C3 (class A)	L00	❑	❑	❑	❑	–	–	–	–	❑	❑	❑	❑	–	–	–	–
RFI suppression filter, category C1 (class B)	L02	✓	✓	✓	✓	–	–	–	–	–	–	–	–	–	–	–	–
Line Harmonics Filter
Line Harmonics Filter for 50 Hz line frequency (supplied separately packed)	L03	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Line Harmonics Filter for 60 Hz line frequency up to 480 V (supplied separately packed)	L04	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Output filter
Strengthened dv/dt output filter for max. 250/300 m (type-dependent). Design for longer motor cables available on request	L10	✓	✓	✓	✓	❑	❑	❑	❑	❑	❑	✓¹⁾	✓¹⁾	❑	❑	✓¹⁾	✓¹⁾
Sine-wave filter IP00 for compact unit, suitable for motor frequencies of ≤ 75 Hz, voltage drop of approximately 5 % of line voltage (supplied separately packed)	L16	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Standard accessories packages
Main switch integrated into compact unit (might alter dimensions of unit)	S41	✓	✓	✓²⁾	–	✓	✓	✓²⁾	–	✓	✓	✓²⁾	–	✓	✓	✓²⁾	–
Braking chopper
Braking chopper integrated into converter (braking resistor is not included and must be ordered separately)	L72	❑	✓	✓	✓	❑	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Degrees of protection
Increased degree of protection IP21 for compact units	M21	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Other options
Board for mains supply backup	E85	X	X	X	X	X	X	X	X	❑	✓	✓	✓	❑	✓	✓	✓
External 4-line operator panel, supplied separately packed	K14	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Peripheral boards
Peripheral board 1	G02	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Peripheral board 2	G03	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Peripheral board 3	G04	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Peripheral board 4	G05	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Additional boards for bus connection
Board for PROFIBUS DPV1	G01	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Board for CANopen	G20	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Board for Modbus RTU	G22	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Board for Modbus TCP	G27	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Accessories for IMS
USB PROFIBUS interface (supplied separately packed)	G13	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Ethernet-PROFIBUS gateway	G14	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Ethernet-to-RS232/485/422 converter (supplied separately packed)	G15	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
USB cable A/B (supplied separately packed)	G16	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Extension of the liability for defects
Extension of the liability for defects by 12 months as of commissioning date or by 24 months as of delivery date	Q80	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Extension of the liability for defects by 18 months as of commissioning date or by 30 months as of delivery date	Q81	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Extension of the liability for defects by 24 months as of commissioning date or by 36 months as of delivery date	Q82	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Extension of the liability for defects by 30 months as of commissioning date or by 42 months as of delivery date	Q83	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Extension of the liability for defects by 36 months as of commissioning date or by 48 months as of delivery date	Q84	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Extension of the liability for defects by 48 months as of commissioning date or by 60 months as of delivery date	Q85	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Label for plant identification
Cabinet designation TAG/ITEM number according to ordering data	T01	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Customized labels	Y33	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Ambient temperature for air-cooled converters
45 °C ambient temperature (with corresponding derating)	V61	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
50 °C ambient temperature (with corresponding derating)	V62	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
55 °C ambient temperature (for compact units with corresponding derating only)	V63	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Installation altitude
Installation altitude max. 1500 m above sea level (with corresponding derating)	V86	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Installation altitude max. 2000 m above sea level (with corresponding derating)	V87	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Installation altitude max. 2500 m above sea level (with corresponding derating)	V88	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Installation altitude max. 3000 m above sea level (with corresponding derating)	V89	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Acceptance tests for converters
Routine test under no-load conditions with customer present	F71	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Routine test with 1PS or 1MD motor (ordered with converter in package), under no-load conditions (without customer present)	F72	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Routine test with 1PS or 1MD motor (ordered with converter in package), under no-load conditions with customer present	F73	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Visual inspection and function test under rated load using test bay motor (without customer present)	F80	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Visual inspection and function test under rated load using test bay motor with customer present	F81	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Visual inspection and function test under rated load with 1PS or 1MD motor (ordered with converter in package) (without customer present)	F82	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Visual inspection and function test under rated load with 1PS or 1MD motor (ordered with converter in package) with customer present	F83	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Advanced visual inspection and function test under rated load with 1PS or 1MD motor (ordered with converter in package) (without customer present)	F84	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Advanced visual inspection and function test under rated load with 1PS or 1MD motor (ordered with converter in package) with customer present	F85	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Supplementary documentation
Test sequence schedule	B48	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Spare parts price list	B38	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Converter display language
Display language Norwegian/English	T23	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Display language Swedish/English	T24	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Display language Czech/English	T25	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Display language Hungarian/English	T26	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Display language French/English	T58	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Display language Spanish/English	T60	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Display language German/English	T74	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Display language English/German	T76	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Display language Portuguese/English	T82	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Display language Russian/English	T85	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Display language Polish/English	T86	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Language of assembly and operating instructions
Different language for assembly and operating instructions	Y13 • and identification code	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Certifications
Gost R certificate	U04	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Engineering (for description refer to section Option descriptions under Engineer To Order – ETO)
Extended overvoltage range		✓	✓	✓	✓	–³⁾	–³⁾	–³⁾	–³⁾	✓	✓	✓	✓	✓	✓	✓	✓

✓ Available

❑ Standard version

– Not possible

X Not required

• This order code only determines the price of the version – additional plain text is required.

¹⁾ More powerful dv/dt output filter is supplied separately packed with the compact unit.

²⁾ Frame size K51

³⁾ 690 V compact units + the next-higher rating must be selected for the "Extended overvoltage range" function.

Технические данные

The most important directives and standards are listed below. These are used as basis for the SINAMICS G180 compact units and they must be carefully observed to achieve an EMC-compliant configuration that is safe both functionally and in operation.

Standards for compact units

European directives
2006/95/EC	Low-voltage directive: Legal guidelines of the EU member states concerning electrical equipment for use within specified voltage limits
2004/108/EC	EMC Directive: Legal guidelines of the EU member states for electromagnetic compatibility
International and European standards
EN 954-1	Safety of machinery – Safety-related parts of control systems; Part 1: General design principles
EN ISO 13849‑1	Safety of machinery – Safety-related parts of control systems; Part 1: General design principles (EN ISO 13849-1:2006 (replaced EN 954-1)
EN 60146‑1‑1	Semiconductor converters – General requirements and line-commutated converters Part 1-1: Specification of basic requirements
EN 60204‑1	Electrical equipment of machines Part 1: General definitions
EN 60529	Degrees of protection provided by enclosures (IP code)
EN 61140	Protection against electric shock - Common aspects for installation and equipment
EN 61508‑1	Functional safety of electrical/electronic/programmable electronic safety-related systems, Part 1: General requirements
EN 61800‑2	Adjustable speed electrical power drive systems, Part 2: General requirements – Rating specifications for low-voltage adjustable frequency AC power drive systems
EN 61800‑3	Adjustable speed electrical power drive systems, Part 3: EMC requirements and specific test methods
EN 61800-5-1	Adjustable speed electrical power drive systems, Part 5-1: Safety requirements - Electrical, thermal and energy requirements
EN 61800‑5‑2	Adjustable speed electrical power drive systems, Part 5-2: Safety requirements - Functional safety (IEC 61800-5-2:2007)
North American standards
UL508C¹⁾	Power conversion equipment
Approvals
TÜV NRTL US¹⁾	Nationally Recognized Testing Laboratory

¹⁾ On request

General technical data

Electrical data
	Line voltages	Type of supply system	Power ranges
	230 ... 400 ... 500 V 3 AC, -15/+10 %	TN/TT system	2.2 ... 160 kW (at 400 V)
	230 ... 500 V 3 AC, -15/+10 %	IT system	2.2 ... 200 kW (at 500 V)
	230 ... 690 V 3 AC, -15/+10 %	TN/TT or IT system	7.5 ... 200 kW (at 690 V)
Line frequency	47 ... 63 Hz
Output frequency	0 ... 250 Hz
Voltage rise in motor	Typ. 500 ... 1000 V/μs, but < 1500 V/μs
Typical line harmonics (I) in % of fundamental mode for the 5/7/11/13/17/19/23/25 harmonics max.	38/18/8/7/5/4/3/2
Typical line harmonics (I) in % of fundamental mode for the 5/7/11/13/17/19/23/25 harmonics max. with LHF filter	1.4/3.6/2.4/1.7/1.0/0.6/0.8/0.4
Pulse number	6
Overvoltage category	III to EN 61800‑5‑1
Short Circuit Current Rating (SCCR) according to UL508C (up to 600 V), in conjunction with the specified fuses or circuit breakers	60 kA
Control method	For motors: Field-oriented control (FOC) with sensor and approval for explosion-proof motors as well as vector control (SVC) with/without sensor (speed, process speed (n), torque, hoist¹⁾, line synchronization¹⁾) Motor-independent control of current or voltage (current, process current (I), voltage, process voltage (U))
Fixed speeds	3 fixed speeds + 1 minimum speed, parameterizable
Skipped speed ranges	2, parameterizable
Setpoint resolution	13 bits digital with n/f setpoint, 12 bits digital with U/I torque setpoint, 9 bits + sign analog
Braking operation	The oversaturation control system makes it possible to generate a braking torque of up to 50 % at low to mid-range speeds, and of up to 10 % at high speeds. If a higher braking torque is required, an optionally available braking module with appropriate braking resistor must be installed.
Mechanical data
Degree of protection	IP20, optionally IP21 provided by protective top cover (aluminum, unpainted)
Protection class	I acc. to EN 61800‑5‑1
Touch protection	EN 50274 / BGV A3
Type of cooling	Forced air cooling AF to EN 60146
Paint finish	RAL 9023 (R-Pearl Dark Grey)
Cable entry	From below
Ambient conditions²⁾	Storage ³⁾	Transport ³⁾	Operation
Ambient temperature	-25 ... +70 °C Class 1K4 acc. to EN 60721-3-1	-25 ... +70 °C down to -40 °C for 24h Class 2K3 acc. to EN 60721‑3‑2	Air: 0 ... 40 °C/ –
Relative humidity (condensation not permissible)	5 ... 95 % Class 1K3 acc. to EN 60721‑3‑1	5 ... 95 % Class 2K3 acc. to EN 60721‑3‑2	5 ... 95 % Class 3K3 acc. to EN 60721‑3‑3
Environmental class/harmful chemical substances	Class 1C2 acc. to EN 60721‑3‑1	Class 2C2 acc. to EN 60721‑3‑2	Class 3C2 acc. to EN 60721‑3‑3
Organic/biological influences	Class 1B1 acc. to EN 60721‑3‑1	Class 2B1 acc. to EN 60721‑3‑2	Class 3B1 acc. to EN 60721‑3‑3
Pollution degree	2 acc. to EN 61800‑5‑1
Installation altitude	Up to 1000 m above sea level without derating, > 1000 m see derating table (in chapter Configuring instructions)
Mechanical stability²⁾	Storage ³⁾	Transport ³⁾	Operation
Vibratory load Deflection Acceleration	1.5 mm at 5 ... 9 Hz 5 m/s² at > 9 ... 200 Hz Class 1M2 acc. to EN 60721‑3‑1	3.1 mm at 5 ... 9 Hz 10 m/s² at > 9 ... 200 Hz Class 2M2 acc. to EN 60721‑3‑2	0.075 mm at 10 … 58 Hz 10 m/s² at > 58 … 200 Hz -
Shock load Acceleration	40 m/s² at 22 ms Class 1M2 acc. to EN 60721‑3‑1	100 m/s² at 11 ms Class 2M2 acc. to EN 60721‑3‑2	100 m/s² at 11 ms Class 3M4 acc. to EN 60721‑3‑3
Compliance with standards
CE Label	Acc. to EMC Directive No. 2004/108/EC and Low-Voltage Directive No. 2006/95/EC
Radio interference suppression	Complies with EMC guidelines defined in EN 61800‑3 thanks to line filter which is integrated as standard (with grounded supply system): Category C2 for compact units in TN/TT system of the first environment (residential area), category C1 available as an option Category C4 for compact units in IT system of the second environment (industrial area)
Approvals	TÜV NRTL US²⁾

¹⁾ On request

²⁾ Higher standards on request

³⁾ In transport packaging

Deviations from the specified classes are underlined.

400 V, 6‑pulse

Line voltage, supply system type		230 ... 500 V 3 AC, TT/TN
SINAMICS G180 compact units		6SE0100‑1AC15‑5❑A7	6SE0100‑1AC17‑0❑A7	6SE0100‑1AC21‑0❑A7	6SE0100‑1AC21‑3❑A7	6SE0100‑1AC21‑8❑A7
Converter type		2T2A‑07400‑002	2T2A‑07400‑003	2T2A‑07400‑004	2T2A‑07400‑005	2T2A‑07400‑007
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 400 V	kW	2.2	3	4	5.5	7.5
at 60 Hz 460 V	hp	3	5	6	9	12
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	5.5	7	9.5	13	18
Short-time current (60 s every 10 minutes) max.	A	6.5	8	11	15	20
Overload capability (60 s every 10 minutes) max.	%	18	14	16	15	11
Output power	kVA	3.8	4.8	6.6	9	12.5
Output frequency, max.	Hz	250	250	250	250	250
Rated clock cycle	kHz	4.5	4.5	4.5	4.5	4.5
adjustable from	kHz	3 ... 7.5	3 ... 7.5	3 ... 7.5	3 ... 7.5	3 ... 7.5
Power loss ³⁾	kW	0.13	0.16	0.2	0.26	0.33
Rated efficiency	%	95.2	95.8	95.9	96	96.2
Electrical data at line end
Connected load	kVA	3.7	4.5	6.2	8.5	12
Rated input voltage	V	400	400	400	400	400
Input current
Continuous line current	A	5.3	6.5	8.9	12.2	17.3
Short-time line current (60 s) max.	A	6.3	7.4	10	14	19
Line fuse (provided by customer)	gL (A)	6 … 16	10 ... 16	10 ... 16	16	20 ... 32
λ_line		0.927	0.94	0.918	0.937	0.918
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3		C2 (class A filter)	C2 (class A filter)	C2 (class A filter)	C2 (class A filter)	C2 (class A filter)
Mechanical data
Coolant requirements	m³/h	45	45	90	90	90
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	60	60	60	60	60
Max. cable length between converter and motor with standard insulation
on systems ≤ 400 V (shielded)	m	200/350⁴⁾	200/350⁴⁾	200/350⁴⁾	200/350⁴⁾	200/350⁴⁾
on systems > 400 V (shielded)	m	150/300⁴⁾	150/300⁴⁾	150/300⁴⁾	150/300⁴⁾	150/300⁴⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"

Dimensions
Width	mm	165	165	165	165	165
Height (without mounting brackets)	mm	410	410	410	410	510
Depth	mm	320	320	320	320	320
Weight, approx.	kg	11.5	11.5	11.5	11.5	16.5
Approvals, according to		NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾
Frame size		K1	K1	K1	K1	K2

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous current.

⁴⁾ Value is applicable with option L10 (strengthened dv/dt filter; strengthened filter is integrated in unit).

⁵⁾ On request

Line voltage, supply system type		230 ... 500 V 3 AC, TT/TN
SINAMICS G180 compact units		6SE0100‑1AC22‑5❑A7	6SE0100‑1AC23‑7❑A7	6SE0100‑1AC24‑8❑A7	6SE0100‑1AC25‑8❑A7	6SE0100‑1AC27‑8❑A7
Converter type		2T2A‑07400‑011	2T2A‑07400‑015	2T2A‑07400‑022	2T2A‑07400‑030	2T2A‑07400‑037
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 400 V	kW	11	15	22	30	37
at 60 Hz 460 V	hp	17	23	34	46	57
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	24.5	37	48	58	78
Short-time current (60 s every 10 minutes) max.	A	27	44	54	63	88
Overload capability (60 s every 10 minutes) max.	%	10	19	13	9	13
Output power	kVA	17	25.6	33.3	40.2	54
Output frequency, max.	Hz	250	250	250	250	250
Rated clock cycle	kHz	4.5	4.5	4.5	4.5	3
adjustable from	kHz	3 ... 7.5	3 ... 7.5	3 ... 7.5	3 ... 7.5	2 ... 5
Power loss ³⁾	kW	0.47	0.6	0.84	1.1	1.35
Rated efficiency	%	96.3	96.5	96.6	96.7	96.7
Electrical data at line end
Connected load	kVA	15.7	24.3	31.8	39.1	52.2
Rated input voltage	V	400	400	400	400	400
Input current
Continuous line current	A	22.7	35.1	45.9	56.5	75.3
Short-time line current (60 s) max.	A	25	42	52	61	85
Line fuse (provided by customer)	gL (A)	25 ... 32	40 ... 80	50 ... 80	63 … 80	80 ... 100
λ_line		0.932	0.932	0.932	0.924	0.932
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3		C2 (class A filter)	C2 (class A filter)	C2 (class A filter)	C2 (class A filter)	C2 (class A filter)
Mechanical data
Coolant requirements	m³/h	130	280	280	280	750
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	60	60	60	60	62
Max. cable length between converter and motor with standard insulation
on systems ≤ 400 V (shielded)	m	200/350⁴⁾	200/350⁴⁾	200/350⁴⁾	200/350⁴⁾	200/350⁴⁾
on systems > 400 V (shielded)	m	150/300⁴⁾	150/300⁴⁾	150/300⁴⁾	150/300⁴⁾	150/300⁴⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Dimensions
Width	mm	165	225	225	225	350
Height (without mounting brackets)	mm	510	610	610	610	710
Depth	mm	320	320	320	320	320
Weight, approx.	kg	16.5	30	31	31	51
Approvals, according to		NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾
Frame size		K2	K3	K3	K3	K4

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous current.

⁴⁾ Value is applicable with option L10 (strengthened dv/dt filter; strengthened filter is integrated in unit).

⁵⁾ On request

Line voltage, supply system type		230 ... 500 V 3 AC, TT/TN
SINAMICS G180 compact units		6SE0100‑1AC28‑8❑A7	6SE0100‑1AC31‑1❑A7	6SE0100‑1AC31‑5❑A7	6SE0100‑1AC31‑8❑A7	6SE0100‑1AC32‑1❑A7
Converter type		2T2A‑07400‑045	2T2A‑07400‑055	2T2A‑07400‑075	2T2A‑07400‑090	2T2A‑07400‑110
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 400 V	kW	45	55	75	90	110
at 60 Hz 460 V	hp	69	85	116	139	170
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	88	110	145	175	205
Short-time current (60 s every 10 minutes) max.	A	110	126	165	204	240
Overload capability (60 s every 10 minutes) max.	%	25	15	14	17	17
Output power	kVA	61	76.2	100	121	142
Output frequency, max.	Hz	250	250	250	250	250
Rated clock cycle	kHz	3	3	3	3	3
adjustable from	kHz	2 ... 5	2 ... 5	2 ... 5	2 ... 5	2 ... 5
Power loss ³⁾	kW	1.59	1.86	2.37	2.83	3.33
Rated efficiency	%	96.8	96.9	97.1	97.1	97.2
Electrical data at line end
Connected load	kVA	57.3	74.8	97.7	119	134
Rated input voltage	V	400	400	400	400	400
Input current
Continuous line current	A	82.7	108	141	172	194
Short-time line current (60 s) max.	A	103	124	160	200	227
Line fuse (provided by customer)	gL (A)	100	125	160	200	200 ... 250
λ_line		0.924	0.929	0.929	0.924	0.924
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3		C2 (class A filter)	C2 (class A filter)	C2 (class A filter)	C2 (class A filter)	C2 (class A filter)
Mechanical data
Coolant requirements	m³/h	750	750	1050	1050	1050
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	62	62	64	64	64
Max. cable length between converter and motor with standard insulation
on systems ≤ 400 V (shielded)	m	200/350⁴⁾	200/350⁴⁾	200/350⁴⁾	200/350⁴⁾	200/350⁴⁾
on systems > 400 V (shielded)	m	150/300⁴⁾	150/300⁴⁾	150/300⁴⁾	150/300⁴⁾	150/300⁴⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Dimensions
Width	mm	350	350	350	350	350
Height (without mounting brackets)	mm	710	710	1060	1060	1060
Depth	mm	320	320	320	320	320
Weight, approx.	kg	53	55	90	94	96
Approvals, according to		NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾
Frame size		K4	K4	K5	K5	K5

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous current.

⁴⁾ Value is applicable with option L10 (strengthened dv/dt filter; strengthened filter is integrated in unit).

⁵⁾ On request

Line voltage, supply system type		230 ... 500 V 3 AC, TT/TN
SINAMICS G180 compact units		6SE0100‑1AC32‑5❑A7	6SE0100‑1AC33‑0❑A7
Converter type		2T2A‑07400‑132	2T2A‑07400‑160
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 400 V	kW	132	160
at 60 Hz 460 V	hp	204	247
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	245	295
Short-time current (60 s every 10 minutes) max.	A	300	360
Overload capability (60 s every 10 minutes) max.	%	22	22
Output power	kVA	170	204
Output frequency, max.	Hz	250	250
Rated clock cycle	kHz	3	3
adjustable from	kHz	2 ... 5	2 ... 5
Power loss ³⁾	kW	3.84	4.65
Rated efficiency	%	97.3	97.3
Electrical data at line end
Connected load	kVA	161	197
Rated input voltage	V	400	400
Input current
Continuous line current	A	232	284
Short-time line current (60 s) max.	A	284	347
Line fuse (provided by customer)	gL (A)	250 ... 315	315 ... 400
λ_line		0.924	0.924
Cos φ_line		1	1
Radio interference suppression acc. to EN 61800‑3		C2 (class A filter)	C2 (class A filter)
Mechanical data
Coolant requirements	m³/h	1600	1600
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	66	66
Max. cable length between converter and motor with standard insulation
on systems ≤ 400 V (shielded)	m	200/350⁴⁾	200/350⁴⁾
on systems > 400 V (shielded)	m	150/300⁴⁾	150/300⁴⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Dimensions
Width	mm	500	500
Height (without mounting brackets)	mm	1060	1060
Depth	mm	320	320
Weight, approx.	kg	160	170
Approvals, according to		NRTL⁵⁾	NRTL⁵⁾
Frame size		K6	K6

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous current.

⁴⁾ Value is applicable with option L10 (strengthened dv/dt filter; strengthened filter is integrated in unit).

⁵⁾ On request

500 V, 6‑pulse

Line voltage, supply system type		230 ... 500 V 3 AC, IT
SINAMICS G180 compact units		6SE0100‑1AD14‑5❑A7	6SE0100‑1AD15‑5❑A7	6SE0100‑1AD17‑0❑A7	6SE0100‑1AD21‑0❑A7	6SE0100‑1AD21‑3❑A7
Converter type		2T2A‑07500‑002	2T2A‑07500‑003	2T2A‑07500‑004	2T2A‑07500‑005	2T2A‑07500‑007
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 500 V	kW	2.2	3	4	5.5	7.5
at 60 Hz 460 V	hp	3	4	5	7	9
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	4.5	5.5	7	9.5	13
Short-time current (60 s every 10 minutes) max.	A	5	6.5	8	11	15
Overload capability (60 s every 10 minutes) max.	%	11	18	14	16	15
Output power	kVA	3.9	4.8	6.1	8.2	11.3
Output frequency, max.	Hz	250	250	250	250	250
Rated clock cycle	kHz	4.5	4.5	4.5	4.5	4.5
adjustable from	kHz	3 ... 7.5	3 ... 7.5	3 ... 7.5	3 ... 7.5	3 ... 7.5
Power loss ³⁾	kW	0.12	0.16	0.2	0.26	0.34
Rated efficiency	%	95.6	95.7	95.9	96.0	96.1
Electrical data at line end
Connected load	kVA	3.7	4.6	6.4	8.6	12.1
Rated input voltage	V	500	500	500	500	500
Input current
Continuous line current	A	4.4	5.2	6.5	9.3	12.5
Short-time line current (60 s) max.	A	4.9	6.1	7.4	11	14
Line fuse (provided by customer)	gL (A)	4 ... 16	6 ... 16	10 ... 16	10 ... 16	16
λ_line		0.902	0.912	0.932	0.908	0.927
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3		C4	C4	C4	C4	C4
Mechanical data
Coolant requirements	m³/h	45	45	45	90	90
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	60	60	60	60	60
Max. cable length between converter and motor with standard insulation
(shielded)	m	300⁴⁾	300⁴⁾	300⁴⁾	300⁴⁾	300⁴⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Dimensions
Width	mm	165	165	165	165	165
Height (without mounting brackets)	mm	410	410	410	410	410
Depth	mm	320	320	320	320	320
Weight, approx.	kg	11.5	11.5	11.5	11.5	11.5
Approvals, according to		NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾
Frame size		K1	K1	K1	K1	K1

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous current.

⁴⁾ Option L10 included (strengthened dv/dt filter; strengthened filter is integrated in unit).

⁵⁾ On request

Line voltage, supply system type		230 ... 500 V 3 AC, IT
SINAMICS G180 compact units		6SE0100‑1AD21‑8❑A7	6SE0100‑1AD22‑5❑A7	6SE0100‑1AD23‑7❑A7	6SE0100‑1AD24‑8❑A7	6SE0100‑1AD25‑8❑A7
Converter type		2T2A‑07500‑011	2T2A‑07500‑015	2T2A‑07500‑022	2T2A‑07500‑030	2T2A‑07500‑037
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 500 V	kW	11	15	22	30	37
at 60 Hz 460 V	hp	17	23	34	46	57
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	18	24.5	37	48	58
Short-time current (60 s every 10 minutes) max.	A	20	27	44	54	63
Overload capability (60 s every 10 minutes) max.	%	11	10	19	13	9
Output power	kVA	15.6	21.2	32	41.6	50.2
Output frequency, max.	Hz	250	250	250	250	250
Rated clock cycle	kHz	4.5	4.5	4.5	4.5	4.5
adjustable from	kHz	3 ... 7.5	3 ... 7.5	3 ... 7.5	3 ... 7.5	3 ... 7.5
Power loss ³⁾	kW	0.48	0.63	0.89	1.17	1.35
Rated efficiency	%	96.2	96.3	96.4	96.5	96.7
Electrical data at line end
Connected load	kVA	16	24.4	32	39.2	52.3
Rated input voltage	V	500	500	500	500	500
Input current
Continuous line current	A	17.4	23.4	35.8	46.8	57.1
Short-time line current (60 s) max.	A	19	26	43	53	62
Line fuse (provided by customer)	gL (A)	20 ... 32	25 ... 32	40 ... 80	50 ... 80	63 ... 80
λ_line		0.902	0.924	0.918	0.924	0.912
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3		C4	C4	C4	C4	C4
Mechanical data
Coolant requirements	m³/h	90	130	280	280	280
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	60	60	60	60	62
Max. cable length between converter and motor with standard insulation
(shielded)	m	300⁴⁾	300⁴⁾	300⁴⁾	300⁴⁾	300⁴⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Dimensions
Width	mm	165	165	225	225	225
Height (without mounting brackets)	mm	510	510	610	610	610
Depth	mm	320	320	320	320	320
Weight, approx.	kg	16.5	17.5	30	32	32
Approvals, according to		NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾
Frame size		K2	K2	K3	K3	K3

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous current.

⁴⁾ Option L10 included (strengthened dv/dt filter; strengthened filter is integrated in unit).

⁵⁾ On request

Line voltage, supply system type		230 ... 500 V 3 AC, IT
SINAMICS G180 compact units		6SE0100‑1AD27‑8❑A7	6SE0100‑1AD28‑8❑A7	6SE0100‑1AD31‑1❑A7	6SE0100‑1AD31‑5❑A7	6SE0100‑1AD31‑8❑A7
Converter type		2T2A‑07500‑045	2T2A‑07500‑055	2T2A‑07500‑075	2T2A‑07500‑090	2T2A‑07500‑110
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 500 V	kW	45	55	75	90	110
at 60 Hz 460 V	hp	56	68	93	111	136
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	78	88	110	145	175
Short-time current (60 s every 10 minutes) max.	A	88	110	126	165	204
Overload capability (60 s every 10 minutes) max.	%	13	25	15	14	17
Output power	kVA	67.5	76.2	95.3	126	152
Output frequency, max.	Hz	250	250	250	250	250
Rated clock cycle	kHz	3	3	3	3	3
adjustable from	kHz	2 ... 5	2 ... 5	2 ... 5	20 ... 5	2 ... 5
Power loss ³⁾	kW	1.59	1.8	2.37	2.83	3.33
Rated efficiency	%	96.8	97.0	97.1	97.1	97.2
Electrical data at line end
Connected load	kVA	57.5	74.8	98.4	119	136
Rated input voltage	V	500	500	500	500	500
Input current
Continuous line current	A	73.7	87.6	109	143	170
Short-time line current (60 s) max.	A	83	110	125	163	198
Line fuse (provided by customer)	gL (A)	80 ... 100	100	125	160	200
λ_line		0.918	0.912	0.918	0.918	0.908
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3		C4	C4	C4	C4	C4
Mechanical data
Coolant requirements	m³/h	750	750	750	1050	1050
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	62	62	64	64	64
Max. cable length between converter and motor with standard insulation
(shielded)	m	300⁴⁾	300⁴⁾	300⁴⁾	300⁴⁾	300⁴⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Dimensions
Width	mm	350	350	350	350	350
Height (without mounting brackets)	mm	710	710	710	1060	1060
Depth	mm	320	320	320	320	320
Weight, approx.	kg	51	53	55	90	94
Approvals, according to		NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾
Frame size		K4	K4	K4	K5	K5

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous current.

⁴⁾ Option L10 included (strengthened dv/dt filter; strengthened filter is integrated in unit).

⁵⁾ On request

Line voltage, supply system type		230 ... 500 V 3 AC, IT
SINAMICS G180 compact units		6SE0100‑1AD32‑1❑A7	6SE0100‑1AD32‑5❑A7	6SE0100‑1AD33‑0❑A7
Converter type		2T2A‑07500‑132	2T2A‑07500‑160	2T2A‑07500‑200
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 500 V	kW	132	160	200
at 60 Hz 460 V	hp	163	197	247
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	205	245	295
Short-time current (60 s every 10 minutes) max.	A	240	300	360
Overload capability (60 s every 10 minutes) max.	%	17	22	22
Output power	kVA	178	212	256
Output frequency, max.	Hz	250	250	250
Rated clock cycle	kHz	3	3	3
adjustable from	kHz	2 ... 5	2 ... 5	2 ... 5
Power loss ³⁾	kW	3.84	4.48	5.6
Rated efficiency	%	97.3	97.4	97.4
Electrical data at line end
Connected load	kVA	161	197	3.8
Rated input voltage	V	500	500	500
Input current
Continuous line current	A	196	237	286
Short-time line current (60 s) max.	A	230	290	349
Line fuse (provided by customer)	gL (A)	200 ... 250	250 ... 315	315 ... 400
λ_line		0.912	0.912	0.912
Cos φ_line		1	1	1
Radio interference suppression acc. to EN 61800‑3		C4	C4	C4
Mechanical data
Coolant requirements	m³/h	1050	1600	1600
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	66	66	60
Max. cable length between converter and motor with standard insulation
(shielded)	m	300⁴⁾	300⁴⁾	300⁴⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Dimensions
Width	mm	350	500	500
Height (without mounting brackets)	mm	1060	1060	1060
Depth	mm	320	320	320
Weight, approx.	kg	96	170	180
Approvals, according to		NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾
Frame size		K5	K6	K6

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous current.

⁴⁾ Option L10 included (strengthened dv/dt filter; strengthened filter is integrated in unit).

⁵⁾ On request

690 V, 6‑pulse

Line voltage, supply system type		230 ... 690 V 3 AC, TT/TN or IT
SINAMICS G180 compact units		6SE0100‑1A❑21‑0❑A7	6SE0100‑1A❑21‑3❑A7	6SE0100‑1A❑21‑8❑A7	6SE0100‑1A❑22‑5❑A7	6SE0100‑1A❑23‑4❑A7
Converter type		2T2A‑07600‑007	2T2A‑07600‑011	2T2A‑07600‑015	2T2A‑07600‑022	2T2A‑07600‑030
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 690 V	kW	7.5	11	15	22	30
at 60 Hz 575 V	hp	8	12	17	25	34
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	9.5	13	18	27	36
Short-time current (60 s every 10 minutes) max.	A	11	16	21	33	45
Overload capability (60 s every 10 minutes) max.	%	16	23	17	22	25
Output power	kVA	11.4	15.5	21.5	32.3	43
Output frequency, max.	Hz	250	250	250	250	250
Rated clock cycle	kHz	3	3	3	3	3
adjustable from	kHz	2 ... 5	2 ... 5	2 ... 5	2 ... 5	2 ... 5
Power loss ³⁾	kW	0.29	0.4	0.55	0.74	1
Rated efficiency	%	96.7	96.8	96.8	97.0	97.0
Electrical data at line end
Connected load	kVA	3.7	4.6	6.4	8.6	12.1
Rated input voltage	V	690	690	690	690	690
Input current
Continuous line current	A	8.8	11.8	16.8	25.3	37.3
Short-time line current (60 s) max.	A	10	14	20	31	47
Line fuse (provided by customer)	gL (A)	10 ... 32	16 ... 32	20 ... 32	32	40 ... 63
λ_line		0.94	0.948	0.94	0.948	0.867
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3⁴⁾		C2 (class A filter)	C2 (class A filter)	C2 (class A filter)	C2 (class A filter)	C2 (class A filter)
Mechanical data
Coolant requirements	m³/h	90	90	130	130	750
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	60	60	60	60	60
Max. cable length between converter and motor with standard insulation
(shielded)	m	300⁵⁾	300⁵⁾	300⁵⁾	300⁵⁾	300⁵⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Dimensions
Width	mm	225	225	225	225	350
Height (without mounting brackets)	mm	610	610	610	610	710
Depth	mm	320	320	320	320	320
Weight, approx.	kg	26	26	28	28	55
Approvals, according to		NRTL⁶⁾	NRTL⁶⁾	NRTL⁶⁾	NRTL⁶⁾	NRTL⁶⁾
Frame size		K3	K3	K3	K3	K4

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous current.

⁴⁾ EMC filter not required for IT system, in which case RI suppression category C4.

⁵⁾ Value is applicable with option L10 (strengthened dv/dt filter; strengthened filter is integrated in unit).

⁶⁾ On request; the voltage range for NRTL units ends at max. 600 V.

Line voltage, supply system type		230 ... 690 V 3 AC, TT/TN or IT
SINAMICS G180 compact units		6SE0100‑1A❑24‑2❑A7	6SE0100‑1A❑25‑0❑A7	6SE0100‑1A❑25‑8❑A7	6SE0100‑1A❑28‑0❑A7	6SE0100‑1A❑31‑0❑A7
Converter type		2T2A‑07600‑037	2T2A‑07600‑045	2T2A‑07600‑055	2T2A‑07600‑075	2T2A‑07600‑090
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 690 V	kW	37	45	55	75	90
at 60 Hz 575 V	hp	41	50	62	84	101
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	43	50	60	80	95
Short-time current (60 s every 10 minutes) max.	A	55	65	75	90	120
Overload capability (60 s every 10 minutes) max.	%	28	30	25	13	26
Output power	kVA	51.4	59.8	71.7	95.6	114
Output frequency, max.	Hz	250	250	250	250	250
Rated clock cycle	kHz	3	3	3	3	3
adjustable from	kHz	2 ... 5	2 ... 5	2 ... 5	2 ... 5	2 ... 5
Power loss ³⁾	kW	1.19	1.44	1.68	2.28	2.63
Rated efficiency	%	97.1	97.1	97.2	97.2	97.3
Electrical data at line end
Connected load	kVA	16	24.4	32	39.2	52.3
Rated input voltage	V	690	690	690	690	690
Input current
Continuous line current	A	42.9	50.1	60.7	80.9	102
Short-time line current (60 s) max.	A	55	65	76	91	129
Line fuse (provided by customer)	gL (A)	50 ... 63	63	63 ... 80	100	125
λ_line		0.898	0.863	0.894	0.896	0.845
Cos φ_line		1	1	1	1	1
Radio interference suppression acc. to EN 61800‑3⁴⁾		C2 (class A filter)	C2 (class A filter)	C2 (class A filter)	C2 (class A filter)	C2 (class A filter)
Mechanical data
Coolant requirements	m³/h	750	750	750	750	1050
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	60	60	60	60	62
Max. cable length between converter and motor with standard insulation
(shielded)	m	300⁵⁾	300⁵⁾	300⁵⁾	300⁵⁾	150 (300)⁶⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Dimensions
Width	mm	350	350	350	350	350
Height (without mounting brackets)	mm	710	710	710	710	1060
Depth	mm	320	320	320	320	320
Weight, approx.	kg	55	59	59	59	90
Approvals, according to		NRTL⁷⁾	NRTL⁷⁾	NRTL⁷⁾	NRTL⁷⁾	NRTL⁷⁾
Frame size		K4	K4	K4	K4	K5

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous current.

⁴⁾ EMC filter not required for IT system, in which case RI suppression category C4.

⁵⁾ Value is applicable with option L10 (strengthened dv/dt filter; strengthened filter is integrated in unit).

⁶⁾ Value is applicable with option L10 (strengthened dv/dt filter; strengthened filter is supplied separately with unit).

⁷⁾ On request; the voltage range for NRTL units ends at max. 600 V.

Line voltage, supply system type		230 ... 690 V 3 AC, TT/TN or IT
SINAMICS G180 compact units		6SE0100‑1A❑31‑2❑A7	6SE0100‑1A❑31‑4❑A7	6SE0100‑1A❑31‑7❑A7	6SE0100‑1A❑32‑1❑A7
Converter type		2T2A‑07600‑110	2T2A‑07600‑132	2T2A‑07600‑160	2T2A‑07600‑200
Electrical data at motor end
Type rating ¹⁾
at 50 Hz 690 V	kW	110	132	160	200
at 60 Hz 575 V	hp	122	148	179	224
Output voltage²⁾	V	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line	0 ... 0.98 × V_line
Output current
Continuous current	A	120	150	175	210
Short-time current (60 s every 10 minutes) max.	A	140	175	210	255
Overload capability (60 s every 10 minutes) max.	%	17	17	20	21
Output power	kVA	143	179	209	251
Output frequency, max.	Hz	250	250	250	250
Rated clock cycle	kHz	3	3	3	3
adjustable from	kHz	2 ... 5	2 ... 5	2 ... 5	2 ... 5
Power loss ³⁾	kW	3.21	3.7	4.48	5.38
Rated efficiency	%	97.3	97.4	97.4	97.5
Electrical data at line end
Connected load	kVA	57.5	74.8	98.4	119
Rated input voltage	V	690	690	690	690
Input current
Continuous line current	A	119	153	180	222
Short-time line current (60 s) max.	A	139	178	216	270
Line fuse (provided by customer)	gL (A)	125 ... 160	160 ... 200	200 ... 250	250 ... 315
λ_line		0.883	0.857	0.862	0.838
Cos φ_line		1	1	1	1
Radio interference suppression acc. to EN 61800‑3		C2 (class A filter)	C2 (class A filter)	C2 (class A filter)	C2 (class A filter)
Mechanical data
Coolant requirements	m³/h	1050	1050	1600	1600
Sound pressure level L_pA
(1 m) at 50/60 Hz	dB	62	62	64	64
Max. cable length between converter and motor with standard insulation
(shielded)	m	150/300⁴⁾	150/300⁴⁾	150/300⁴⁾	150/300⁴⁾
Line/load connection
L1, L2, L3/U2, V2, W2
For connection cross-sections, see "Cable cross-sections and connections" in section "Configuring instructions"
Dimensions
Width	mm	350	350	500	500
Height (without mounting brackets)	mm	1060	1060	1060	1060
Depth	mm	320	320	320	320
Weight, approx.	kg	94	96	170	180
Approvals, according to		NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾	NRTL⁵⁾
Frame size		K5	K5	K6	K6

¹⁾ Rated power of a typical 2- to 6-pole standard motor.

²⁾ Typical output voltage dependent on filter and unit type.

³⁾ Maximum power loss with continuous current.

⁴⁾ Value is applicable with option L10 (strengthened dv/dt filter; strengthened filter is supplied separately with unit).

⁵⁾ On request; the voltage range for NRTL units ends at max. 600 V.

SINAMICS G180 compact units

Информационные материалы

Global use

Дизайн

Чертеж

Frame size K1

Frame size K2

Frame size K3

Frame size K4

Frame size K5

Frame size K51

Frame size K6

Опции

Технические данные

Standards for compact units

General technical data

400 V, 6‑pulse

500 V, 6‑pulse

690 V, 6‑pulse
