  PROSIN^PLUS tool breakage and tool wear monitoring

  The low-cost PROSIN^PLUS software permits direct access to the current values of the digital drives of the machine tool. If a tool breaks, the current of the associated drive changes; this value is increased in the case of a blunt tool. With PROSIN^PLUS, additional sensors and even complete monitoring units can be omitted.

  A particular highlight of PROSIN^PLUS is the reliable detection of wear on rough-machining tools. This assumes mass production in which the batch size is significantly larger than the number of working tools.

  PROSIN^PLUS is patented according to EP 1 276 027 and its derivations.

  Функции

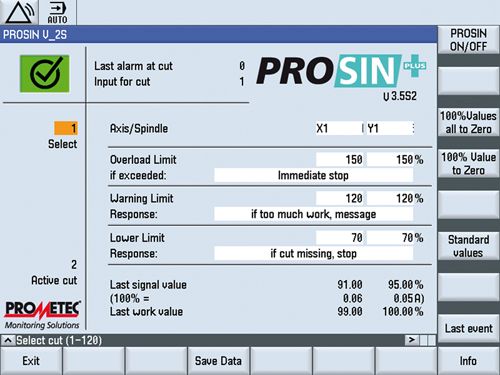

  • Operator control using SINUMERIK operator panels
  • No additional hardware required
  • Only one operator side and extremely easy to operate
  • Very easy to retrofit
  • Up to 120 different cuts of a CNC program can be monitored with 3 thresholds for missing tool, tool in contact with workpiece, tool wear, and tool overload

  Интеграция

  PROSIN^PLUS can be used for the following CNCs:

  • SINUMERIK 828D
  • SINUMERIK 840D sl
    with SINUMERIK TCU and SINUMERIK Operate

  Особенности

  • Break detection for drills, from approx. 2 mm (0.08 in) (depending on rated spindle power)
  • Protects machine, tool holder and tool from overload
  • Reduces secondary damage resulting from tool breakage, tool wear, incorrect CNC parameter entries, incorrect clamping of the workpieces, etc.
  • Suitable for mass production as well as small batch sizes

  Дальнейшая информация

  PROMETEC GmbH

  Jülicher Straße 338
  52070 AACHEN
  GERMANY

  Tel.: +49 241 16609-0
  E-mail: prometec-de@prometec.com

  Internet: http://www.prometec.com
