  Laser Tool Setter – Automatic non-contact tool setting, part probing, machine and tool monitoring on machine tools

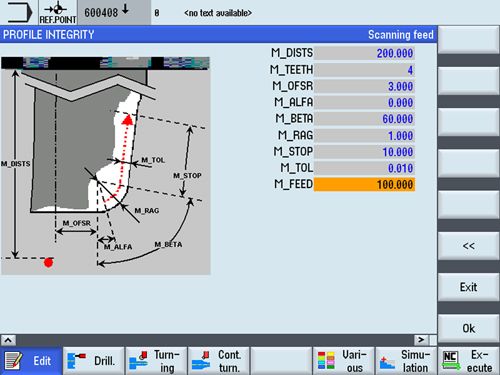

  Marposs provides measuring cycles for part probing and tool setting which work in synergy with Marposs Probing Systems. The specific user interface makes programming easy.

  All the necessary measurements can be performed on the part and on the tool for rapid setup of the machine. High-speed monitoring of the part, before and after the machining cycle as well as continuous monitoring of the machining conditions, can be performed by Marposs Probing and Monitoring Systems.

  Функции

  Tool measurements with Mida laser:

  • Length and diameter of the tool
  • Axial breakage
  • Cutters integrity
  • Cutters radius
  • Compensation of the thermal drift of the machine axes

  Part measurements with Mida spindle probes:

  • Part positioning
  • Measuring of drilled holes, pins, pockets and shoulders
  • Single surface measurement
  • Measuring the internal and external cross-arm

  Machine and tool monitoring with MMS:

  • Performance (tool breakage and wear)
  • Force (cutting force optimization)
  • Vibrations (machine condition and  tool unbalancing)
  • Temperature (overheating of bearings)
  • Displacement (spindle growth)

  Интеграция

  Laser Tool Setter and probing systems can be used for the following CNCs:

  • SINUMERIK 828D
  • SINUMERIK 840D sl

  Особенности

  • Fast, automatic and precise workpiece setup
  • Tool presetting in machine condition to compensate axes thermal drift
  • Tool and process verification to keep high production quality
  • Part inspection on machine to avoid repositioning

  Дальнейшая информация

  MARPOSS S.p.A.

  Via Saliceto 13
  40010 BENTIVOGLIO (BO)
  ITALY

  Tel.: +39 051 899534

  E-mail: marposs4partner@marposs.com

  Internet: http://www.marposs.com
