D-EMS 2000 CS

The D-EMS 2000 CS environmental and process data management system is an affordable compact system for small to medium plants.

Область применения

The D-EMS 2000 CS compact system is designed for small to medium sized industrial plants whose emission data, immission data or process data must be recorded in line with public authority regulations for measured data logging.

Approvals

Suitability-tested by TÜV in accordance with German TA-Luft 1., 2., 13., 17., 27., 30. and 31. BImSchV
Itemized in the list of suitable systems for evaluation of continuous emission measuring
Certified according to DIN EN 15267-2
MCERTS certified

Дизайн

Three available device types:

Compact system in 19", 3HM rack
Desktop version with monitor / keyboard / mouse
19", 1HM slide-in unit with extendable keyboard and hinged monitor

Особенности

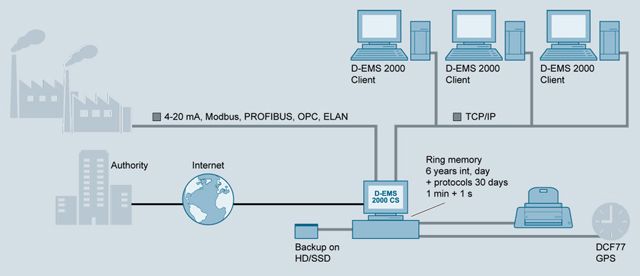

Independently operating module for the acquisition, long-term storage, calculation and visualization of environmental and process data
Instrument for monitoring legally prescribed limit values with automatic recording
Continuous monitoring of 1 to 12 components, connected via bus communication or hard-wired
Compact system, no additional evaluation PC required
Windows-based and certified D-EMS 2000 software
All modules of the D-EMS 2000 system can be used
Visualization available in 19 languages

Технические данные

Device versions	Compact system in 19", 3HM rack Desktop version with monitor / keyboard / mouse 19" slide-in assembly
PC	Intel based dual-core PC with Windows 7 Pro & 8, 2 GB RAM and 120 GB SDD
Inputs / outputs	Max. 3 cards: Combination card 4 AI, 8 DI, 2 AO, 4 DO Input card 8 AI, 15 DI Output card 8 AO Output card 16 DO
Connection of bus systems	Modbus RTU/ TCP, PROFIBUS, Elan, OPC UA Analog / digital inputs: 12/24 Analog / digital outputs: 12/24
Interfaces	1 x VGA 2 x USB 1 x RJ 45 3 x serial (RS 232 or RS 485) BNC for DCF77 - radio clock
Ambient temperature	5 ... 40 °C
Degree of protection	IP20
Operating voltage	115/230 V AC, 50/60 Hz, 100 VA

Дальнейшая информация

Please consult your Siemens sales partner for information on how to correctly configure and order a D-EMS 2000 CS compact system for a Siemens CEMS project.
