  Line reactor

  A line reactor is needed for high short-circuit power levels, partly to protect the actual inverter against excessive harmonic currents, and thus against overload, and partly to limit line harmonics to the permitted values. The harmonic currents are limited by the total inductance comprising the line reactor and mains supply cable inductance. Line reactors can be omitted if the mains supply cable inductance is increased sufficiently, i.e., the value of R_SC must be sufficiently small.

  R_SC = Relative Short-Circuit power: Ratio of short-circuit power S_{k Line} at the supply connection point to the fundamental apparent power S_inv of the connected inverters (to IEC 60146‑1‑1).



  PM330 Power Module requirements:

  Power	Line reactor can be omitted	Line reactor required
  kW (hp)	for RSC	for RSC
  < 200 (268)	≤ 43	> 43
  200 (268) ... 500 (671)	≤ 33	> 33
  > 500 (671)	≤ 20	> 20





  It is recommended that a line reactor is always connected on the line side of the inverter, as in practice, it is often not known on which supply configuration individual inverters are to be operated, i.e. which supply short-circuit power is present at the inverter connection point.

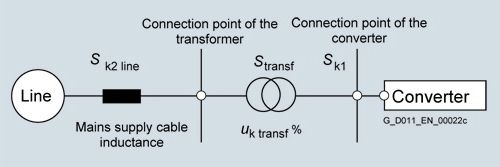

  A line reactor can only be dispensed with when the value for R_SC is less than that in the above table. This is the case, when the inverter, as shown in the following figure, is connected to the line through a transformer with the appropriate rating.

  Notice:

  A line reactor is always needed if a line filter is used.



  In this case, the line short-circuit power S_k1 at the connection point of the inverter is approximately:

  S_k1 = S_transf/(u_{k transf} + S_transf / S_{k2 line})

  S_transf = Transformer rated power

  S_{K2 line} = Short-circuit power of the higher-level voltage level

  u_{k transf} = Relative short-circuit voltage

  Технические данные

  Line voltage 380 ... 480 V 3 AC		Line reactor
  		6SL3000-0CE33-3AA0	6SL3000-0CE35-1AA0	6SL3000-0CE36-3AA0	6SL3000-0CE37-7AA0
  Ith max	A	331	508	628	773
  Nominal inductance Lrated	μH	52	42	27	22
  Power loss	kW	0.267	0.365	0.368	0.351
  Line supply connection 1U1, 1V1, 1W1		1 × hole for M10, provided for busbar connection	1 × hole for M12, provided for busbar connection	1 × hole for M12, provided for busbar connection	1 × hole for M12, provided for busbar connection
  Load connection 1U2, 1V2, 1W2		1 × hole for M10, provided for busbar connection	1 × hole for M12, provided for busbar connection	1 × hole for M12, provided for busbar connection	1 × hole for M12, provided for busbar connection
  PE connection		M6 screw	M6 screw	M6 screw	M6 screw
  Degree of protection		IP00	IP00	IP00	IP00
  Dimensions
  Width	mm (in)	270 (10.6)	300 (11.8)	300 (11.8)	300 (11.8)
  Height	mm (in)	248 (9.76)	269 (10.6)	269 (10.6)	269 (10.6)
  Depth	mm (in)	200 (7.87)	212 (8.35)	212 (8.35)	212 (8.35)
  Weight, approx.	kg (lb)	27.8 (61.3)	38 (83.8)	41.4 (91.3)	51.3 (113)
  Suitable for PM330 Power Module	Type	6SL3310-1PE33-0AA0	6SL3310-1PE33-7AA0 6SL3310-1PE34-6AA0	6SL3310-1PE35-8AA0	6SL3310-1PE36-6AA0 6SL3310-1PE37-4AA0
  Rated power of the Power Module	kW (hp)	160 (215)	200 (268), 250 (335)	315 (422)	355 (476), 400 (536)
  Frame size		GX	GX	HX	HX







  Line voltage 380 ... 480 V 3 AC		Line reactor
  		6SL3000-0CE38-7AA0	6SL3000-0CE41-0AA0
  Ith max	A	871	1022
  Nominal inductance Lrated	μH	19	16
  Power loss	kW	0.458	0.498
  Line supply connection 1U1, 1V1, 1W1		1 × hole for M12, provided for busbar connection	1 × hole for M12, provided for busbar connection
  Load connection 1U2, 1V2, 1W2		1 × hole for M12, provided for busbar connection	1 × hole for M12, provided for busbar connection
  PE connection		M6 screw	M6 screw
  Degree of protection		IP00	IP00
  Dimensions
  Width	mm (in)	350 (13.8)	350 (13.8)
  Height	mm (in)	321 (12.6)	321 (12.6)
  Depth	mm (in)	211.5 (8.33)	211.5 (8.33)
  Weight, approx.	kg (lb)	63.2 (139)	69.6 (153)
  Suitable for PM330 Power Module	Type	6SL3310-1PE38-4AA0	6SL3310-1PE38-8AA0 6SL3310-1PE41-0AA0
  Rated power of the Power Module	kW (hp)	450 (603)	500 (671), 560 (751)
  Frame size		JX	JX







  Line voltage 500 ... 690 V 3 AC		Line reactor
  		6SL3000-0CH36-0AA0	6SL3000-0CH38-4AA0
  Ith max	A	597	840
  Nominal inductance Lrated	μH	46	40
  Power loss	kW	0.458	0.618
  Line supply connection 1U1, 1V1, 1W1		1 × hole for M12, provided for busbar connection	1 × hole for M12, provided for busbar connection
  Load connection 1U2, 1V2, 1W2		1 × hole for M12, provided for busbar connection	1 × hole for M12, provided for busbar connection
  PE connection		M6 screw	M6 screw
  Degree of protection		IP00	IP00
  Dimensions
  Width	mm (in)	350 (13.8)	410 (16.1)
  Height	mm (in)	321 (12.6)	385 (15.2)
  Depth	mm (in)	232.5 (9.15)	224 (8.82)
  Weight, approx.	kg (lb)	63.8 (141)	98 (216)
  Suitable for PM330 Power Module	Type	6SL3310-1PG35-8AA0	6SL3310-1PG36-5AA0 6SL3310-1PG37-2AA0
  Rated power of the Power Module	kW	500	560, 630
  Frame size		JX	JX
