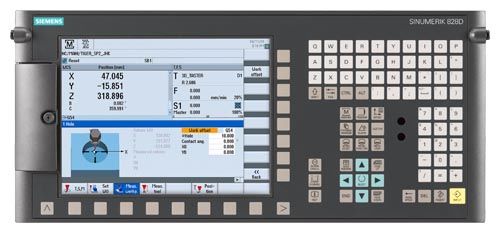

SINUMERIK 828D PPU 281.3, horizontal

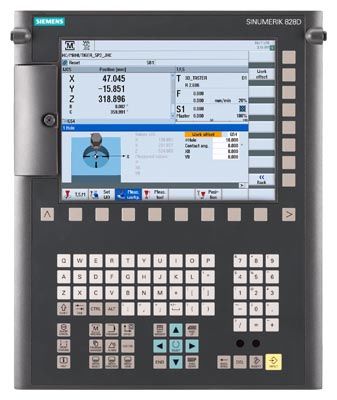

SINUMERIK 828D PPU 280.3, vertical

The SINUMERIK 828D is an operator-panel CNC which combines all the components of a CNC in one unit:

CNC, PLC, HMI
10.4" TFT color display
Full CNC keyboard
Closed-loop control for 6 drives

The motors can easily be connected to the digital drive system via DRIVE-CLiQ. In combination with the modular structure of the SINAMICS S120 drive system, this design is conceived to ensure very simple and rugged installation with minimum wiring overhead.

The performance range of the CNC has been precisely selected to meet the requirements of standard turning, milling and grinding machines - from one-off production runs to industrial scale manufacture. Thanks to the technology-specific variants for turning, milling and grinding, the system parameters are optimized for the machine, making the commissioning process much quicker and easier.

The operator-panel CNC is mounted from the rear using special clamps included in the scope of supply.

Интеграция

The following components can be connected to the SINUMERIK 828D PPU 28x.3:

2 electronic handwheels¹⁾
Mini handheld unit with handwheel
3 to 5 PP 72/48D PN or PP 72/48D 2/2A PN I/O modules
SINUMERIK MCP 310 USB or MCP 483 USB machine control panels
SINUMERIK MCP Interface PN
GSM/GPRS modem
SENTRON PAC power monitoring devices
SINAMICS S120 drive system via DRIVE-CLiQ
SINAMICS Numeric Control Extension NX10.3 (not with SW 26x for turning and G-Tech)
SINAMICS Numeric Control Extension NX15.3 (only with SW 28x for turning advanced and G-Tech advanced)
Expansion of the SINUMERIK 828D system by additional auxiliary axes for loading axes, parts catchers or other auxiliary modules

¹⁾ Third handwheel can be connected via MCP Interface PN. Use: Manual machine.

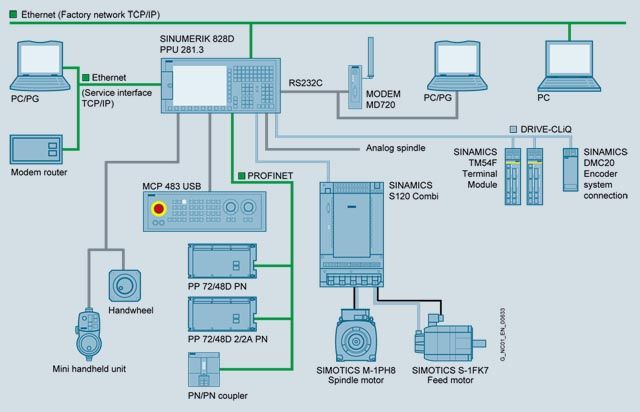

SINUMERIK 828D PPU 281.3 configuration example with SINAMICS S120 Combi

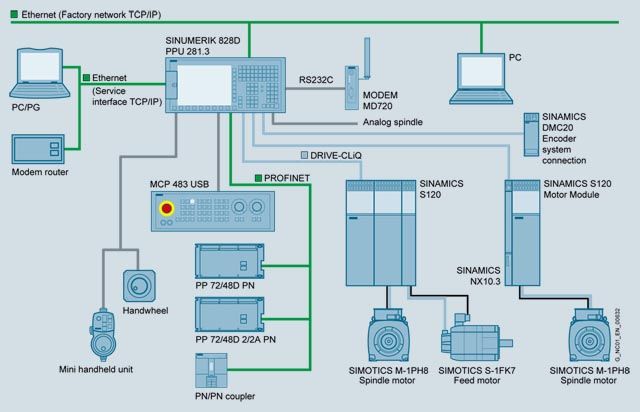

SINUMERIK 828D PPU 281.3 configuration example SINAMICS S120

Конфигурация

Connection overview for SINUMERIK 828D PPU 281.3/PPU 280.3/PPU 290.3

Технические данные

Order number		6FC5370-7AA30-0AA1	6FC5370-8AA30-0AA1
Product brand name		SINUMERIK	SINUMERIK
Product type designation		828D	828D
Product designation		PPU 281.3	PPU 280.3
Design of operator panel		Horizontal	Vertical
Mounting position of operating panel		Vertical	Vertical
Supply voltage at DC	V	24	24
● Relative negative tolerance at 24 V	%	15	15
● Relative positive tolerance at 24 V	%	20	20
Consumed active power maximum	W	60	60
Buffering time in the event of power failure	ms	3	3
● Note		20 ms mit SITOP smart power supply	20 ms mit SITOP smart power supply
Environmental category acc. to IEC 60721-3-3		Condensation and icing excluded. Low air temperature 0 °C (32 °F).	Condensation and icing excluded. Low air temperature 0 °C (32 °F).
Degree of protection
● front		IP65	IP65
— Note		With the front flap closed	With the front flap closed
● rear		IP20	IP20
Relative humidity at 25 °C (77 °F), during
● storage	%	10 ... 100	10 ... 100
● transport	%	5 ... 95	5 ... 95
● operation	%	5 ... 90	5 ... 90
Ambient temperature, during
● storage	°C (°F)	-25 ... +55 (-13 ... +131)	-25 ... +55 (-13 ... +131)
● transport	°C (°F)	-20 ... +60 (-4 ... +140)	-20 ... +60 (-4 ... +140)
● operation
— front	°C (°F)	0 ... 45 (32 ... 113)	0 ... 45 (32 ... 113)
— rear	°C (°F)	0 ... 55 (32 ... 131)	0 ... 55 (32 ... 131)
Width	mm (in)	483 (19.01575)	310 (12.20472)
Height	mm (in)	220 (8.66142)	380 (14.96063)
Depth	mm (in)	105 (4.13386)	105 (4.13386)
Net weight	kg (lb)	4.5 (9.9208)	4.5 (9.9208)
Certificate of suitability		CE, cULus, EAC	CE, cULus, EAC

Дальнейшая информация

The following hardware components are only available in a package and cannot be ordered individually:

SINUMERIK 828D PPU 281.3/ PPU 280.3

When the package is delivered, the CompactFlash card containing the system software is already installed in the SINUMERIK.

For more information, please contact your Siemens branch.
