DEMMEL - Full CNC keyboards

• Информационные материалы

  Информационные материалы

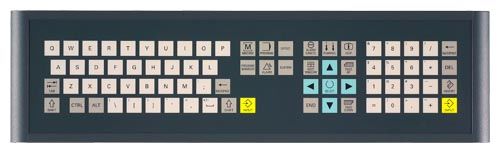

  The full CNC QWERTY 483 membrane keyboard supplied by DEMMEL AG in Siemens design permits a user-friendly input of programs and text.

  The full CNC keyboard is mounted from the rear using special clamps supplied with the keyboard.

  Дизайн

  Operator controls:

  • Standard/US QWERTY layout
  • Membrane keyboard with 78 keys
  • Alpha block with special characters
  • Numeric block with special characters
  • Cursor block
  • CNC function keys with hotkeys for fast selection of the control area

  Interface:

  • USB 1.1

  Интеграция

  The full QWERTY 483 keyboard from DEMMEL AG can be used for:

  • SINUMERIK 840D sl

  Технические данные

  Product designation	DEMMEL AG Full CNC QWERTY 483 membrane keyboards
  DC supply voltage	5.25 V
  Active power input, maximum	0.4 W
  Degree of protection
  front	IP65
  rear	IP00
  Environmental category according to IEC 60721-3-3	Moisture condensation and ice formation excluded. Low air temperature 0 °C (32 °F)
  Ambient temperature, during
  Storage	-25 ... +55 °C (-13 ... +131 °F)
  Transport	-40 ... +70 °C (-40 ... +158 °F)
  Operation
  Front	0 ... 45 °C (32 ... 113 °F)
  Rear	0 ... 55 °C (32 ... 131 °F)
  Width	483 mm (19.02 in)
  Height	133 mm (5.24 in)
  Depth	31 mm (1.22 in)
  Mounting surface
  Cutout width	451 mm (17.76 in)
  Cutout height	115.1 mm (4.53 in)
  Net weight	1.3 kg (2.87 lb)
  Certificate of suitability	CE





  Дальнейшая информация

  DEMMEL AG is famous for developing innovative, customized operating systems. We are experts in solving human-machine communication problems. Are you looking for solutions? We can help!

  DEMMEL AG

  Grüntenweg 14
  88175 SCHEIDEGG
  GERMANY

  Tel.: +49 8381 919-00
  Fax: +49 8381 919-191
  E-mail: info@demmel.de
  Internet: http://www.demmel.de
