SINUMERIK KB 310C

• Заказные данные
  (1)
• Информационные материалы

  Информационные материалы

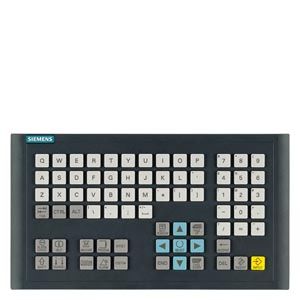

  The SINUMERIK KB 310C full CNC keyboard permits user-friendly input of programs and text with short-stroke keys.

  The keyboard is mounted from the rear using special clamps supplied with the keyboard.

  Дизайн

  Operator controls (fixed layout):

  • Standard/US QWERTY layout
  • 75 mechanical short-stroke keys
  • Alpha block with special characters
  • Numeric block with special characters
  • Cursor key group
  • CNC function keys with hot keys for fast selection of the control area

  Interface:

  • 1 × USB 1.1 type B connection to a USB hub with own power supply (5 V/500 mA)

  Интеграция

  The SINUMERIK KB 310C full CNC keyboard can be used for:

  • SINUMERIK 840D sl

  Технические данные

  Order number		6FC5203-0AF21-0AA1
  Product brand name		SINUMERIK
  Product type designation		KB 310C
  Product designation		Full CNC keyboard
  Supply voltage at DC		5.25 V
  Active power consumption typical		0.4 W
  Transmission link to the NCU/PCU maximum		3 m (9.84252 ft)
  Degree of protection
  ● front		IP54
  ● rear		IP00
  Environmental category acc. to IEC 60721-3-3		Condensation and icing excluded. Low air temperature 0 °C (32 °F).
  Relative humidity at 25 °C (77 °F), during
  ● storage		5 ... 95 %
  ● transport		5 ... 95 %
  ● operation		5 ... 95 %
  Ambient temperature, during
  ● storage		-25 ... +55 °C (-13 ... +131 °F)
  ● transport		-40 ... +70 °C (-40 ... +158 °F)
  ● operation
  — front		0 ... 45 °C (32 ... 113 °F)
  — rear		0 ... 55 °C (32 ... 131 °F)
  Width		310 mm (12.20472 in)
  Height		175 mm (6.88976 in)
  Depth		31 mm (1.22047 in)
  Mounting surface
  ● section width		285 mm (11.22047 in)
  ● section height		155 mm (6.10236 in)
  Net weight		0.9 kg (1.98416 lb)
  Certificate of suitability		CE
