SITRANS P300 with PMC connection

• Заказные данные
  (1)
• Информационные материалы

  Чертеж

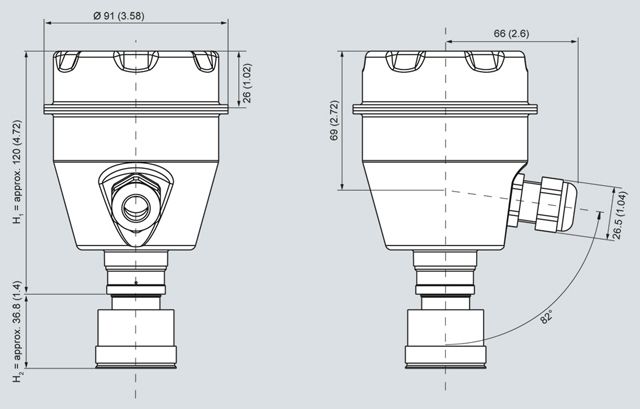

  SITRANS P300 pressure transmitters for gage pressure, with PMC connection, dimensions in mm (inch)

  The diagram shows a SITRANS P300 with an example of a flange. In this drawing the height is subdivided into H₁ and H₂.

  H₁ = Height of the SITRANS P300 up to a defined cross-section

  H₂ = Height of the flange up to this defined cross-section

  Only the height H2 is indicated in the dimensions of the flanges.





  PMC Style Standard (left) and PMC Style Minibolt (right) weldable sockets, dimensions in mm (inch)

  Material: Stainless steel, mat. no. 1.4404/316L

  PMC Style standard
  	DN	PN	∅D	H2
  			40.4 mm (1.6")	approx. 36.8 mm (1.4")





  PMC Style minibolt
  	DN	PN	∅D	H2
  			26.3 mm (1.0")	approx. 33.1 mm (1.3")





  Технические данные

  SITRANS P300 for gauge pressure with PMC connection for the paper industry
  Input
  Measured variable	Gauge pressure (flush-mounted)
  	HART	PROFIBUS PA/ FOUNDATION Fieldbus
  Span (fully adjustable) or nominal measuring range and max. permissible test pressure	Span	Nominal measuring range	Max. perm. operating pressure MAWP (PS)	Max. permissible test pressure
  	0.01 ... 1 bar 1 ... 100 kPa 0.15 ... 14.5 psi	1 bar 100 kPa 14.5 psi	4 bar 400 kPa 58 psi	6 bar 600 kPa 87 psi
  	0.04 ... 4 bar 4 ... 400 kPa 0.58 ... 58 psi	4 bar 400 kPa 58 psi	7 bar 0.71 MPa 102 psi	10 bar 1 MPa 145 psi
  	0.16 ... 16 bar 16 ... 1600 kPa 2.3 ... 232 psi	16 bar 1600 kPa 232 psi	21 bar 2.1 MPa 305 psi	32 bar 3.2 MPa 464 psi
  Lower measuring limit (for PMC Style Minibolt no span < 500 mbar adjustable)	100 mbar a/10 kPa a/1.45 psia
  Upper measuring limit	100 % of max. span
  Output	HART		PROFIBUS PA/ FOUNDATION Fieldbus
  Output signal	4 ... 20 mA		Digital PROFIBUS PA signal
  Lower limit (fully adjustable)	3.55 mA, factory preset to 3.84 mA		-
  Upper limit (fully adjustable)	23 mA, factory preset to 20.5 mA or optionally set to 22.0 mA		-
  Load
  Without HART	RB ≤ (UH - 10.5 V)/0.023 A in Ω, UH: Power supply in V		-
  With HART	RB = 230 ... 500 Ω (SIMATIC PDM) or RB = 230 ... 1100 Ω (HART Communicator)		-
  Physical bus	-		IEC 61158-2
  Protection against polarity reversal	Protected against short-circuit and polarity reversal. Each connection against the other with max. supply voltage.
  Electrical damping (step width 0.1 s)	Set to 2 s (0 ... 100 s)
  Measuring accuracy	According to IEC 60770-1
  Reference conditions	Rising characteristic curve Start of scale 0 bar Seal diaphragm stainless steel Silicone oil filling Room temperature (25 °C (77 °F))
  Measuring span ratio r (spread, Turn-Down)	r = maximum measuring span/set measuring span or nominal measuring range
  Error in measurement at limit setting including hysteresis and reproducibility
  Linear characteristic
  r ≤ 5	≤ 0.075 %
  5 < r ≤ 100	≤ (0.005 · r + 0.05) %
  Effect of ambient temperature	≤ (0.08 · r + 0.16) %
  Long-term stability (temperature change ±30 °C (±54 °F))	≤ (0.25 · r) % in 5 years
  Influence of mounting position	≤ 0.1 mbar/0.01 kPa/0.00145 psi per 10° incline (zero point correction is possible with position error compensation)
  Effect of auxiliary power (in percent per voltage change)	0.005 % per 1 V
  Measured-value resolution for PROFIBUS PA and FOUNDATION Fieldbus	3 · 10-5 of nominal measuring range
  Rated conditions
  Installation conditions
  Ambient temperature	Observe the temperature class in areas subject to explosion hazard.
  Measuring cell with silicone oil	-40 ... +85 °C (-40 ... +185 °F)
  Display readable	-30 ... +85 °C (-22 ... +185 °F)
  Storage temperature	-50 ... +85 °C (-58 ... +185 °F)
  Climatic class
  Condensation	Relative humidity 0 ... 100 % Condensation permissible, suitable for use in the tropics
  Degree of protection acc. to EN 60529	IP65, IP68, NEMA 4X, enclosure cleaning, resistant to lyes, steam to 150 °C (302 °F)
  Electromagnetic compatibility
  Emitted interference and interference immunity	Acc. to EN 61326 and NAMUR NE 21
  Process conditions
  Temperature of medium
  Measuring cell with silicone oil	-40 ... +100 °C (-40 ... +212 °F)
  Design
  Weight (without options)	Approx. 1 kg (2.2 lb)
  Enclosure material	Stainless steel, mat. no. 1.4301/304
  Material of parts in contact with the medium
  Seal diaphragm	Hastelloy C276, mat. no. 2.4819
  Measuring cell filling	Silicone oil
  Surface quality touched-by-media	Ra-values ≤ 0.8 µm (32 µ-inch)/welds Ra ≤ 1.6 µm (64 µ-inch)
  Power supply UH	HART		PROFIBUS PA/ FOUNDATION Fieldbus
  Terminal voltage on transmitter	10.5 ... 42 V DC for intrinsically safe operation: 10.5 ... 30 V DC		-
  Auxiliary power	-		Bus-powered
  Separate supply voltage	-		Not necessary
  Bus voltage
  Without EEx	-		9 ... 32 V
  With intrinsically-safe operation	-		9 ... 24 V
  Current consumption
  Max. basic current	-		12.5 mA
  Start-up current ≤ basic current	-		Yes
  Max. fault current in the event of a fault	-		15.5 mA
  Fault disconnection electronics (FDE) available	-		Yes
  Certificates and approvals	HART		PROFIBUS PA/ FOUNDATION Fieldbus
  Classification according to pressure equipment directive (PED 2014/68/EU)	For gases of fluid group 1 and liquids of fluid group 1; complies with requirements of Article 4, Paragraph 3 (sound engineering practice)
  Explosion protection
  Intrinsic safety "i"	PTB 05 ATEX 2048
  Marking	Ex II 1/2 G EEx ia/ib IIB/IIC T4, T5, T6
  Permissible ambient temperature
  Temperature class T4	-40 ... +85 °C (-40 ... +185 °F)
  Temperature class T5	-40 ... +70 °C (-40 ... +158 °F)
  Temperature class T6	-40 ... +60 °C (-40 ... +140 °F)
  Wiring	To certified intrinsically-safe circuits with peak values: Ui = 30 V, Ii = 100 mA, Pi = 750 mW, Ri = 300 Ω		To certified intrinsically-safe circuits with peak values: FISCO supply unit: Ui = 17.5 V, Ii = 380 mA, Pi = 5.32 W Linear barrier: Ui = 24 V, Ii = 250 mA, Pi = 1.2 W
  Effective internal capacitance	Ci = 6 nF		Ci = 1.1 nF
  Effective internal inductance	Li = 0.4 mH		Li ≤ 7 μH
  Explosion protection to FM for USA and Canada (cFMUS)
  Identification (DIP) or (IS); (NI)	Certificate of Compliance 3025099 CL I, DIV 1, GP ABCD T4 ... T6; CL II, DIV 1, GP EFG; CL III; CL I, ZN 0/1 AEx ia IIC T4 ... T6; CL I, DIV 2, GP ABCD T4 ... T6; CL II, DIV 2, GP FG; CL III
  Identification (DIP) or (IS)	Certificate of Compliance 3025099C CL I, DIV 1, GP ABCD T4 ... T6; CL II, DIV 1, GP EFG; CL III; Ex ia IIC T4 ... T6; CL I, DIV 2, GP ABCD T4 ... T6; CL II, DIV 2, GP FG; CL III





  HART communication
  HART	230 ... 1100 Ω
  Protocol	HART Version 5.x
  Software for computer	SIMATIC PDM





  PROFIBUS PA communication
  Simultaneous communication with master class 2 (max.)	4
  The address can be set using	Configuration tool Local operation (standard setting Address 126)
  Cyclic data usage
  Output byte	One measured value: 5 byte Two measured values: 10 byte
  Input byte	Register operating mode: 1 byte Reset function due to metering: 1 byte
  Device profile	PROFIBUS PA Profile for Process Control Devices Version 3.0, Class B
  Function blocks	2
  Analog input
  Adaptation to user-specific process variable	Linearly rising or falling characteristic
  Electrical damping	0 ... 100 s adjustable
  Simulation function	Input /Output
  Limit monitoring	One upper and lower warning limit and one alarm limit respectively
  Register (totalizer)	Can be reset and preset Optional direction of counting Simulation function of the register output
  Limit monitoring	One upper and lower warning limit and one alarm limit respectively
  Physical block	1
  Transducer blocks	2
  Pressure transducer block
  Monitoring of sensor limits	Yes
  Specification of a container characteristic with	Max. 31 nodes
  Characteristic curve	Linear
  Simulation function	Available
  Transducer block "Electronic temperature"
  Simulation function	Available





  FOUNDATION Fieldbus communication
  Function blocks	3 function blocks analog input, 1 function block PID
  Analog input
  Adaptation to user-specific process variable	Yes, linearly rising or falling characteristic
  Electrical damping adjustable	0 … 100 s
  Simulation function	Output/input (can be locked within the device with a bridge)
  Failure mode	parameterizable (last good value, substitute value, incorrect value)
  Limit monitoring	Yes, one upper and lower warning limit and one alarm limit respectively
  Square-rooted characteristic for flow measurement	Yes
  PID	Standard FOUNDATION Fieldbus function block
  Physical block	1 resource block
  Transducer blocks	1 transducer block Pressure with calibration, 1 transducer block LCD
  Pressure transducer block
  Can be calibrated by applying two pressures	Yes
  Monitoring of sensor limits	Yes
  Simulation function: Measured pressure value, sensor temperature and electronics temperature	Constant value or by means of parameterizable ramp function
