Конвертирующие модули для SCALANCE X-300

Заказные данные
(19)
Аксессуары
(25)

Информационные материалы

Конвертирующие модули с двумя встроенными коммуникационными портами каждый для модульных коммутаторов серии SCALANCE X-300 (например, SCALANCE X308-2M, SCALANCE XR324-12M).
Электрические конвертирующие модули с портами RJ45, а также оптические конвертирующие модули с BFOC, SC и LC портами для подключения мультимодовых или одномодовых оптических кабелей.
Конвертирующие модули SFP (Small Form-Factor Pluggable - компактные съемные модули) оснащены только одним коммуникационным портом. Они устанавливаются на конвертирующий модуль MM992-2SFP, оснащенный двумя слотами для установки модулей SFP.

Область применения

Конвертирующие модули используются в модульных коммутаторах серии SCALANCE X-300 и обеспечивают поддержку:

Простого расширения сети путем установки необходимых конвертирующих модулей в свободные слоты коммутатора.
Простого изменения технологии подключения сетевых кабелей (например, замена электрических портов на оптические, замена мультимодовых оптических портов на одномодовые и т.д.).

Дизайн

Установка 2-портового конвертирующего модуля в слот коммутатора

Установка конвертирующих модулей SFP в слоты 2-портового конвертирующего модуля

Версии конвертирующих модулей MM99x

Электрический конвертирующий модуль с 2 портами RJ45, 10/100/1000 Мбит/с

MM992-2CUC с фиксирующими фланцами.
MM992-2CU без фиксирующих фланцев.

Оптический конвертирующий модуль с 2 портами BFOC, 100 Мбит/с

MM991-2
стеклянный мультимодовый оптический кабель длиной до 3 км.
MM991-2LD
стеклянный одномодовый оптический кабель длиной до 26 км.

Оптический конвертирующий модуль с 2 портами SC, 100 Мбит/с

MM991-2
стеклянный мультимодовый оптический кабель длиной до 3 км.
MM991-2LD
стеклянный одномодовый оптический кабель длиной до 26 км.
MM991-2LH+
стеклянный одномодовый оптический кабель длиной до 70 км.

Оптический конвертирующий модуль с 2 портами SC, 1000 Мбит/с

MM992-2
стеклянный мультимодовый оптический кабель длиной до 750 м.
MM992-2LD
стеклянный одномодовый оптический кабель длиной до 10 км.
MM992-2LH
стеклянный одномодовый оптический кабель длиной до 40 км.
MM992-2LH+
стеклянный одномодовый оптический кабель длиной до 70 км.
MM992-2ELH
стеклянный одномодовый оптический кабель длиной до 120 км.

Оптический конвертирующий модуль с 2 слотами 100/1000 Мбит/с для установки конвертирующих модулей SFP

MM992-2SFP
для установки двух конвертирующих модулей SFP 1 x 100 или 1 x 1000 Мбит/с и подключения одно- или мультимодового стеклянного оптического кабеля.

Версии конвертирующих модулей SFP99x

Конвертирующие модули SFP (Small Form-factor Pluggable - компактный съемный модуль) могут устанавливаться только на конвертирующий модуль MM992-2SFP.

Optical SFP modules with 1 x 100 Mbit/s LC ports

SFP991-1
стеклянный мультимодовый оптический кабель длиной до 3 км.
SFP991-1LD
стеклянный одномодовый оптический кабель длиной до 26 км.
SFP991-1LH+
стеклянный одномодовый оптический кабель длиной до 70 км.

Optical SFP modules with 1 x 1000 Mbit/s LC ports

SFP992-1
стеклянный мультимодовый оптический кабель длиной до 750 м.
SFP992-1LD
стеклянный одномодовый оптический кабель длиной до 10 км.
SFP992-1LH
стеклянный одномодовый оптический кабель длиной до 40 км.
SFP992-1LH+
стеклянный одномодовый оптический кабель длиной до 70 км.
SFP992-1ELH
стеклянный одномодовый оптический кабель длиной до 120 км.

Интеграция

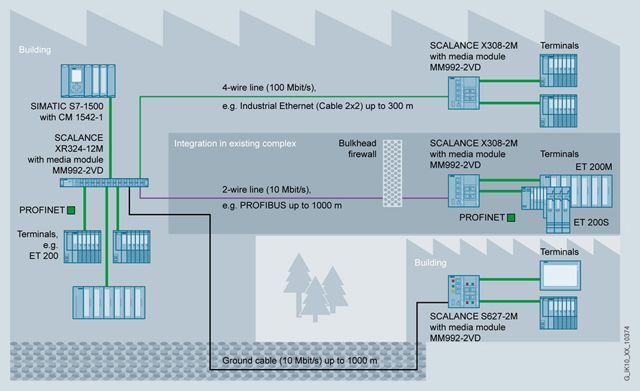

Обмен данными через Ethernet с использованием конвертирующих модулей MM992-2VD

Особенности

Неограниченная гибкость в расширении сети (например, при увеличении количества терминалов) и сопряжении электрических и оптических каналов связи различных типов за счет установки соответствующего набора конвертирующих модулей.
Снижение затрат на обслуживание и хранение запасных частей за счет фокусировки на нескольких типах базовых приборов.

Технические данные

Order number	6GK5992-2GA00-8AA0	6GK5992-2GA00-8FA0	6GK5992-2SA00-8AA0
Product type designation	MM992-2CUC	MM992-2CUC	MM992-2CU
Interfaces
Number of electrical/optical connections for network components or terminal equipment maximum	2	2	2
Number of electrical connections
● for network components or terminal equipment maximum	2	2	2
Number of 10/100/1000 Mbit/s RJ45 ports	2	2	2
Type of electrical connection
● for network components or terminal equipment	RJ45	RJ45	RJ45
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● during transport	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
Relative humidity at 25 °C without condensation during operation maximum	95 %	95 %	95 %
Ambient condition for operation		Conformal coating, yes
Protection class IP	IP20	IP20	IP20
Design, dimensions and weight
Design	Media module with retaining collar	Media module with retaining collar	Media module
Width	60 mm	60 mm	60 mm
Height	22 mm	22 mm	22 mm
Depth	100 mm	100 mm	100 mm
Net weight	0.08 kg	0.08 kg	0.08 kg
Mounting type	latched	latched	latched
● Installation in media module slot	Yes	Yes	Yes
Standards, specifications, approvals
Standard
● for FM	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4
● for hazardous zone	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X
● for safety from CSA and UL	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1
● for hazardous zone from CSA and UL	UL 1604 and UL 2279-15 (Hazardous Location), CSA C22.2 No. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4	UL 1604 and UL 2279-15 (Hazardous Location), CSA C22.2 No. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4	UL 1604 and UL 2279-15 (Hazardous Location), CSA C22.2 No. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4
● for emitted interference	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)
● for interference immunity	EN 61000-6-2:2005	EN 61000-6-2:2005	EN 61000-6-2:2005
Certificate of suitability	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007
● CE marking	Yes	Yes	Yes
● C-Tick	Yes	Yes	Yes
● KC approval	Yes	Yes	Yes
● Railway application in accordance with EN 50155		Yes
● Railway application in accordance with EN 50121-4		Yes
● Fire protection in accordance with EN 45545-2		Yes
MTBF at 40 °C	250 y	250 y	250 y

Order number	6GK5992-2HA00-0AA0	6GK5992-2VA00-8AA0
Product type designation	MM992-2 M12 GIGA	MM992-2VD (RJ45)
Suitability for use		Ethernet communication via two wire cable
Suitability for operation		SCALANCE X308-2M, XR324-12M, S627-2M
Interfaces
Number of electrical/optical connections for network components or terminal equipment maximum	2	2
Number of electrical connections
● for network components or terminal equipment maximum	2	2
Number of 10/100/1000 Mbit/s M12 ports	2
Number of 10/100/1000 Mbit/s RJ45 ports		2
Type of electrical connection
● for network components or terminal equipment	M12	RJ45
Number of 1000 Mbit/s SC ports (SX)	2
Operating mode
● Standard Ethernet		Yes
● VD		Yes
Wire length
● for Standard Ethernet mode maximum		100 m
● of IE FC Standard Cable GP 4x2, AWG24, Cat6 for VD mode
— at 100 Mbit/s maximum		500 m
● of IE FC Standard Cable GP 2x2, AWG22, Cat5e for VD mode
— at 10 Mbit/s maximum		500 m
— at 100 Mbit/s maximum		300 m
● of PB FC Standard Cable GP for VD mode
— at 10 Mbit/s maximum		1 000 m
— at 100 Mbit/s maximum		100 m
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +70 °C	-40 ... +70 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C
● during transport	-40 ... +85 °C	-40 ... +85 °C
Relative humidity at 25 °C without condensation during operation maximum	95 %	95 %
Ambient condition for operation	Conformal coating, yes
Protection class IP	IP20	IP20
Design, dimensions and weight
Design	Media module	Media module with retaining collar
Width	60 mm	60 mm
Height	22 mm	22 mm
Depth	100 mm	100 mm
Net weight	0.08 kg	0.08 kg
Mounting type	latched	latched
● Installation in media module slot	Yes	Yes
Standards, specifications, approvals
Standard
● for FM		FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4
● for hazardous zone		EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X
● for safety from CSA and UL		UL 60950-1, CSA C22.2 No. 60950-1
● for hazardous zone from CSA and UL		UL 1604 and UL 2279-15 (Hazardous Location), CSA C22.2 No. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4
● for emitted interference		EN 61000-6-4:2007 (Class A)
● for interference immunity		EN 61000-6-2:2005
Certificate of suitability	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007
● CE marking	Yes	Yes
● C-Tick	Yes	Yes
● KC approval	Yes	Yes
● Railway application in accordance with EN 50155	Yes
● Railway application in accordance with EN 50121-4	Yes
● Fire protection in accordance with EN 45545-2	Yes
MTBF at 40 °C	250 y	250 y

Order number	6GK5991-2AB00-8AA0	6GK5991-2AC00-8AA0	6GK5991-2AB01-8AA0
Product type designation	MM991-2 (BFOC)	MM991-2LD (BFOC)	MM991-2FM
Interfaces
Number of electrical/optical connections for network components or terminal equipment maximum	2	2	2
Number of optical interfaces for network components or terminal equipment maximum	2	2	2
Number of 100 Mbit/s ST(BFOC) ports for multimode Integrated	2	2	2
Design of the optical interface for network components or terminal equipment	ST/BFOC	ST/BFOC	ST/BFOC
Wavelength of the optical interface	1 310 nm; Multi-mode	1 310 nm; Single-mode	1 310 nm; Multi-mode
Connectable optical power relative to 1 mW
● of the transmitter output minimum	-19 dB	-15 dB	-19 dB
● of the transmitter output maximum	-14 dB	-8 dB	-14 dB
● of the receiver input maximum	-3 dB	-3 dB	-3 dB
Optical sensitivity relating to 1 mW of the receiver input minimum	-32 dB	-34 dB	-32 dB
Damping ratio of the FOC transmission link minimum necessary	0 dB	0 dB	0 dB
Range at the optical interface depending on the optical fiber used	0 ... 5 km	0 ... 26 km	0 ... 5 km
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● during transport	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
Relative humidity at 25 °C without condensation during operation maximum	95 %	95 %	95 %
Protection class IP	IP20	IP20	IP20
Design, dimensions and weight
Design	Media module	Media module	Media module
Width	60 mm	60 mm	60 mm
Height	22 mm	22 mm	22 mm
Depth	100 mm	100 mm	100 mm
Net weight	0.08 kg	0.08 kg	0.08 kg
Mounting type	latched	latched	latched
● Installation in media module slot	Yes	Yes	Yes
Standards, specifications, approvals
Standard
● for FM	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4
● for hazardous zone	EN 60079-0: 2006, EN60079-15: 2005, II 3(2) G Ex nA [op is] IIC T4 DEKRA 11 ATEX 0060 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3(2) G Ex nA [op is] IIC T4 DEKRA 11 ATEX 0060 X
● for safety from CSA and UL	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1
● for hazardous zone from CSA and UL	UL 1604 and UL 2279-15 (Hazardous Location), CSA C22.2 No. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4	UL 1604 and UL 2279-15 (Hazardous Location), CSA C22.2 No. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4	UL 1604 and UL 2279-15 (Hazardous Location), CSA C22.2 No. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4
● for emitted interference	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)
● for interference immunity	EN 61000-6-2:2005	EN 61000-6-2:2005	EN 61000-6-2:2005
Certificate of suitability	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007
● CE marking	Yes	Yes	Yes
● C-Tick	Yes	Yes	Yes
● KC approval	Yes	Yes	Yes
MTBF at 40 °C	140 y	115 y	135 y

Order number	6GK5991-2AD00-8AA0	6GK5991-2AF00-8AA0	6GK5991-2AE00-8AA0	6GK5991-2AH00-8AA0
Product type designation	MM991-2 (SC)	MM991-2LD (SC)	MM991-2LH+	MM991-2P (SC RJ)
Interfaces
Number of electrical/optical connections for network components or terminal equipment maximum	2	2	2	2
Number of optical interfaces for network components or terminal equipment maximum	2	2	2	2
Number of 100 Mbit/s SC ports for multimode Integrated	2	2	2	0
number of 100 Mbit/s SC-RJ-ports				2
Design of the optical interface for network components or terminal equipment	SC	SC	SC	SC RJ
Wavelength of the optical interface	1 310 nm; Multi-mode	1 310 nm; Single-mode	1 550 nm; Single-mode	650 nm; POF/PCF
Connectable optical power relative to 1 mW
● of the transmitter output minimum	-19 dB	-15 dB	-5 dB	-8 dB
● of the transmitter output maximum	-14 dB	-8 dB	0 dB	-2 dB
● of the receiver input maximum	-3 dB	-3 dB	-3 dB	1 dB
Optical sensitivity relating to 1 mW of the receiver input minimum	-34 dB	-32 dB	-34 dB	23 dB
Damping ratio of the FOC transmission link minimum necessary	0 dB	0 dB	3 dB	0 dB
Range at the optical interface depending on the optical fiber used	0 ... 5 km	0 ... 26 km	12 ... 70 km	0.001 ... 0.1 km
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +70 °C	-40 ... +70 °C	-40 ... +60 °C	-25 ... +40 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● during transport	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
Relative humidity at 25 °C without condensation during operation maximum	95 %	95 %	95 %	95 %
Protection class IP	IP20	IP20	IP20	IP20
Design, dimensions and weight
Design	Media module	Media module	Media module	Media module
Width	60 mm	60 mm	60 mm	60 mm
Height	22 mm	22 mm	22 mm	22 mm
Depth	100 mm	100 mm	100 mm	100 mm
Net weight	0.08 kg	0.08 kg	0.08 kg	0.08 kg
Mounting type	latched	latched	latched	latched
● Installation in media module slot	Yes	Yes	Yes	Yes
Standards, specifications, approvals
Standard
● for FM	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4
● for hazardous zone	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X
● for safety from CSA and UL	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1
● for hazardous zone from CSA and UL	UL 1604 and UL 2279-15 (Hazardous Location), CSA C22.2 No. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4	UL 1604 and UL 2279-15 (Hazardous Location), CSA C22.2 No. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4	UL 1604 and UL 2279-15 (Hazardous Location), CSA C22.2 No. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4	UL 1604 and UL 2279-15 (Hazardous Location), CSA C22.2 No. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4
● for emitted interference	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)
● for interference immunity	EN 61000-6-2:2005	EN 61000-6-2:2005	EN 61000-6-2:2005	EN 61000-6-2:2005
Certificate of suitability	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007
● CE marking	Yes	Yes	Yes	Yes
● C-Tick	Yes	Yes	Yes	Yes
● KC approval	Yes	Yes	Yes	Yes
MTBF at 40 °C	140 y	115 y	105 y	230 y

Order number	6GK5992-2AL00-8AA0	6GK5992-2AL00-8FA0	6GK5992-2AM00-8AA0	6GK5992-2AN00-8AA0
Product type designation	MM992-2	MM992-2	MM992-2LD	MM992-2LH
Interfaces
Number of electrical/optical connections for network components or terminal equipment maximum	2	2	2	2
Number of optical interfaces for network components or terminal equipment maximum	2	2	2	2
Number of 1000 Mbit/s SC ports (LX)			2	2
Number of 1000 Mbit/s SC ports (SX)	2	2
Design of the optical interface for network components or terminal equipment	SC	SC	SC	SC
Wavelength of the optical interface	850 nm; Multi-mode	850 nm; Multi-mode	1 310 nm; Single-mode	1 550 nm; Single-mode
Connectable optical power relative to 1 mW
● of the transmitter output minimum	-9.5 dB	-9.5 dB	-9.5 dB	-6 dB
● of the transmitter output maximum	-4 dB	-4 dB	-3 dB	0 dB
● of the receiver input maximum	-3 dB	-3 dB	-3 dB	-3 dB
Optical sensitivity relating to 1 mW of the receiver input minimum	-17 dB	-17 dB	-21 dB	-23 dB
Damping ratio of the FOC transmission link minimum necessary	0 dB	0 dB	0 dB	3 dB
Range at the optical interface depending on the optical fiber used	0 ... 0.75 km	0 ... 0.75 km	0 ... 10 km	8 ... 40 km
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C	-40 ... +60 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● during transport	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
Relative humidity at 25 °C without condensation during operation maximum	95 %	95 %	95 %	95 %
Ambient condition for operation		Conformal coating, yes
Protection class IP	IP20	IP20	IP20	IP20
Design, dimensions and weight
Design	Media module	Media module	Media module	Media module
Width	60 mm	60 mm	60 mm	60 mm
Height	22 mm	22 mm	22 mm	22 mm
Depth	100 mm	100 mm	100 mm	100 mm
Net weight	0.08 kg	0.08 kg	0.08 kg	0.08 kg
Mounting type	latched	latched	latched	latched
● Installation in media module slot	Yes	Yes	Yes	Yes
Standards, specifications, approvals
Standard
● for FM	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4
● for hazardous zone	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X
● for safety from CSA and UL	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1
● for hazardous zone from CSA and UL	UL 1604 and UL 2279-15 (Hazardous Location), CSA C22.2 No. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4	UL 1604 and UL 2279-15 (Hazardous Location), CSA C22.2 No. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4	UL 1604 and UL 2279-15 (Hazardous Location), CSA C22.2 No. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4	UL 1604 and UL 2279-15 (Hazardous Location), CSA C22.2 No. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4
● for emitted interference	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)
● for interference immunity	EN 61000-6-2:2005	EN 61000-6-2:2005	EN 61000-6-2:2005	EN 61000-6-2:2005
Certificate of suitability	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007
● CE marking	Yes	Yes	Yes	Yes
● C-Tick	Yes	Yes	Yes	Yes
● KC approval	Yes	Yes	Yes	Yes
● Railway application in accordance with EN 50155		Yes
● Railway application in accordance with EN 50121-4		Yes
● Fire protection in accordance with EN 45545-2		Yes
MTBF at 40 °C	55 y	55 y	55 y	55 y

Order number	6GK5992-2AP00-8AA0	6GK5992-2AQ00-8AA0	6GK5992-2AS00-8AA0
Product type designation	MM992-2LH+	MM992-2ELH	MM992-2SFP
Interfaces
Number of electrical/optical connections for network components or terminal equipment maximum	2	2	2
Number of electrical connections
● for SFP plug-in			2
Number of optical interfaces for network components or terminal equipment maximum	2	2
Number of 1000 Mbit/s SC ports (LX)	2	2
Design of the optical interface for network components or terminal equipment	SC	SC
Wavelength of the optical interface	1 550 nm; Single-mode	1 550 nm; Single-mode
Connectable optical power relative to 1 mW
● of the transmitter output minimum	0 dB	0 dB
● of the transmitter output maximum	5 dB	5 dB
● of the receiver input maximum	-3 dB	-3 dB
Optical sensitivity relating to 1 mW of the receiver input minimum	-23 dB	-30 dB
Damping ratio of the FOC transmission link minimum necessary	8 dB	8 dB
Range at the optical interface depending on the optical fiber used	30 ... 70 km	37 ... 120 km
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +60 °C	-40 ... +60 °C	-40 ... +70 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● during transport	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
Relative humidity at 25 °C without condensation during operation maximum	95 %	95 %	95 %
Protection class IP	IP20	IP20	IP20
Design, dimensions and weight
Design	Media module	Media module	Media module
Width	60 mm	60 mm	60 mm
Height	22 mm	22 mm	22 mm
Depth	100 mm	100 mm	100 mm
Net weight	0.08 kg	0.08 kg	0.08 kg
Mounting type	latched	latched	latched
● Installation in media module slot	Yes	Yes	Yes
Standards, specifications, approvals
Standard
● for FM	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4
● for hazardous zone	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X
● for safety from CSA and UL	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1
● for hazardous zone from CSA and UL	UL 1604 and UL 2279-15 (Hazardous Location), CSA C22.2 No. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4	UL 1604 and UL 2279-15 (Hazardous Location), CSA C22.2 No. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4	UL 1604 and UL 2279-15 (Hazardous Location), CSA C22.2 No. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4
● for emitted interference	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)
● for interference immunity	EN 61000-6-2:2005	EN 61000-6-2:2005	EN 61000-6-2:2005
Certificate of suitability	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007
● CE marking	Yes	Yes	Yes
● C-Tick	Yes	Yes	Yes
● KC approval	Yes	Yes	Yes
MTBF at 40 °C	55 y	55 y	250 y

Дальнейшая информация

Для выбора коммутаторов Industrial Ethernet и конфигурирования их модульных вариантов можно воспользоваться инструментальными средствами Switch Selection Tool:

http://support.automation.siemens.com/WW/view/en/39134641
