Motor Modules Booksize format

Заказные данные
(9)

Motor Modules Booksize format are also available as Booksize Cabinet Kits in voltage class 380 V to 480 V (DC link voltage 510 V to 720 V).

Motor Modules are also available as Single Motor Modules for power ratings of 4.8 kW to 71 kW for connection of a motor.

Дизайн

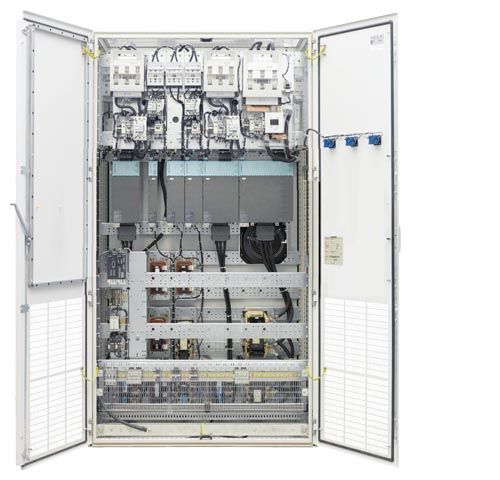

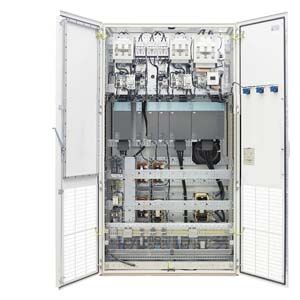

Motor Modules Booksize format are installed in the factory as Booksize Cabinet Kits in Booksize Base Cabinets. This complete unit contains all of the components necessary for operation.

Several Booksize Cabinet Kits can be installed in one Booksize Base Cabinet, depending on the installation width requirements, which in turn depend on the power rating. The number of Booksize Cabinet Kits that can be installed in a Booksize Base Cabinet is determined solely on the basis of the available cabinet width. By changing the way in which the cabinet width is used (i.e. the equipment that is installed), it can be adapted to suit system requirements.

Each Motor Module is connected separately to the DC busbar of the SINAMICS S120 Cabinet Module via a separate fuse switch disconnector with integrated fuses. The DC connecting busbar integrated in the units is not used.

The basic version of the Booksize Cabinet Kit comprises the following components:

Motor Module in booksize format
Fuse switch disconnector for each Motor Module installed
Customer interface -X55.1 located in the connection area of the Booksize Base Cabinet
Shield connection plate
Complete electrical connection to the Booksize Base Cabinet interfaces

The Booksize Base Cabinets can be operated up to and including IP54 degree of protection without additional temperature derating. However, some values need to be taken into account that differ from those of the chassis format. For derating data, see System overview > Characteristic curves.

Интеграция

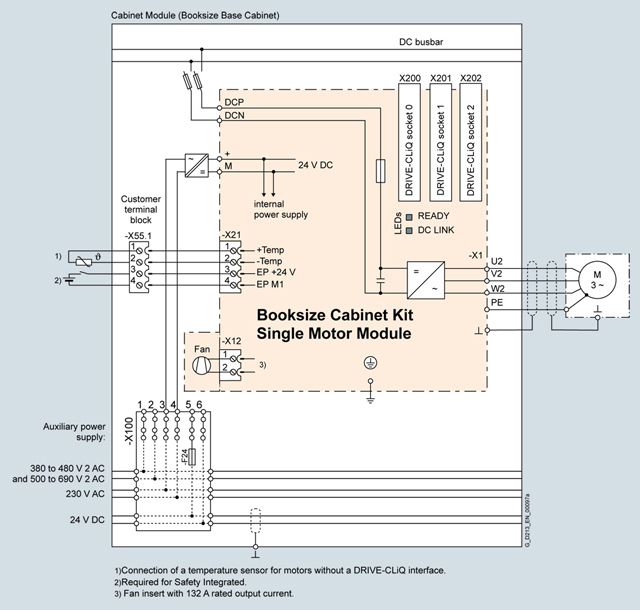

Connection example of a Booksize Cabinet Kit (Single Motor Module in booksize format) in Booksize Base Cabinet

Технические данные

Line voltage 380 ... 480 V 3 AC DC link voltage 510 ... 720 V DC		Single Motor Modules Booksize Cabinet Kit
		6SL3720-1TE21-0AB3	6SL3720-1TE21-8AB3	6SL3720-1TE23-0AB3	6SL3720-1TE24-5AB3
Type rating
At I_L (50 Hz 400 V) ¹⁾	kW	4.8	9.7	16	24
At I_H (50 Hz 400 V) ¹⁾	kW	4.1	8.2	13.7	21
At I_L (60 Hz 460 V) ²⁾	hp	5	10	20	30
At I_H (60 Hz 460 V) ²⁾	hp	5	10	15	25
Output current
Rated current I_rated O	A	9	18	30	45
Base-load current I_H³⁾	A	7.7	15.3	25.5	38
Maximum current I_max O	A	18	36	56	85
DC link current I_d⁴⁾	A	11	22	36	54
Current demand
24 V DC, max.	A	0.85	0.85	0.9	1.2
DC link capacitance	μF	110	220	710	1175
Pulse frequency ⁵⁾
Rated frequency	kHz	4	4	4	4
Pulse frequency, max.
With current derating	kHz	16	16	16	16
Power loss, max. ⁶⁾
At 50 Hz 400 V	kW	0.08	0.165	0.29	0.43
At 60 Hz 460 V	kW	0.08	0.165	0.29	0.43
Cooling air requirement	m³/s	0.008	0.008	0.016	0.031
Sound pressure level L_pA (1 m) at 50/60 Hz	dB	<60	<60	<60	<65
Motor connection U2, V2, W2		Terminal	Terminal	Terminal	Terminal
Conductor cross section, max. (IEC)	mm²	6	6	6	16
Cable length, max. ⁷⁾
Shielded	m	50	70	100	100
Unshielded	m	75	100	150	150
PE/GND connection		PE bar	PE bar	PE bar	PE bar
Busbar cross-section	mm²	600	600	600	600
Conductor cross section, max. (IEC)	mm²	240	240	240	240
Degree of protection		IP20	IP20	IP20	IP20
Weight, approx.	kg	20	20	21.9	27
Width	mm	100	100	100	200
Short-circuit current rating according to IEC	kA	65	65	65	65

¹⁾ Rated output of a typical 6-pole standard induction motor based on I_L or I_H for 400 V 3 AC 50 Hz.

²⁾ Rated output of a typical 6-pole standard induction motor based on I_L or I_H for 460 V 3 AC 60 Hz.

³⁾ The base-load current I_L is based on a load cycle of 110 % for 60 s or 150 % for 10 s with a load cycle duration of 300 s.

⁴⁾ For a DC link voltage of 600 V DC.

⁵⁾Information regarding the correlation between the pulse frequency and max. output current/output frequency is provided in the SINAMICS Low Voltage Engineering Manual.

⁶⁾ The specified power loss represents the maximum value at 100% utilization. The value is lower under normal operating conditions.

⁷⁾ Total of all motor cables. Longer cable lengths for specific configurations are available on request.

Line voltage 380 ... 480 V 3 AC DC link voltage 510 ... 720 V DC		Single Motor Modules Booksize Cabinet Kit
		6SL3720-1TE26-0AB3	6SL3720-1TE28-5AB3	6SL3720-1TE31-3AB3
Type rating
At I_L (50 Hz 400 V) ¹⁾	kW	32	46	71
At I_H (50 Hz 400 V) ¹⁾	kW	28	37	57
At I_L (60 Hz 460 V) ²⁾	hp	40	60	100
At I_H (60 Hz 460 V) ²⁾	hp	40	50	75
Output current
Rated current I_rated O	A	60	85	132
Base-load current I_H³⁾	A	52	68	105
Maximum current I_max O	A	113	141	210
DC link current I_d⁴⁾	A	72	102	158
Current demand
24 V DC, max.	A	1.2	1.5	1.5
DC link capacitance	μF	1410	1880	2820
Pulse frequency ⁵⁾
Rated frequency	kHz	4	4	4
Pulse frequency, max.
With current derating	kHz	16	16	16
Power loss, max. ⁶⁾
At 50 Hz 400 V	kW	0.59	0.75	1.25
At 60 Hz 460 V	kW	0.59	0.75	1.25
Cooling air requirement	m³/s	0.031	0.044	0.144
Sound pressure level L_pA (1 m) at 50/60 Hz	dB	<65	<60	<73
Motor connection U2, V2, W2		Terminal	Terminal	Terminal
Conductor cross section, max. (IEC)	mm²	16	35	70
Cable length, max. ⁷⁾
Shielded	m	100	100	100
Unshielded	m	150	150	150
PE/GND connection		PE bar	PE bar	PE bar
Busbar cross-section	mm²	600	600	600
Conductor cross section, max. (IEC)	mm²	240	240	240
Degree of protection		IP20	IP20	IP20
Weight, approx.	kg	27	33	41
Width	mm	200	200	300
Short-circuit current rating according to IEC	kA	65	65	65
