    Чертеж

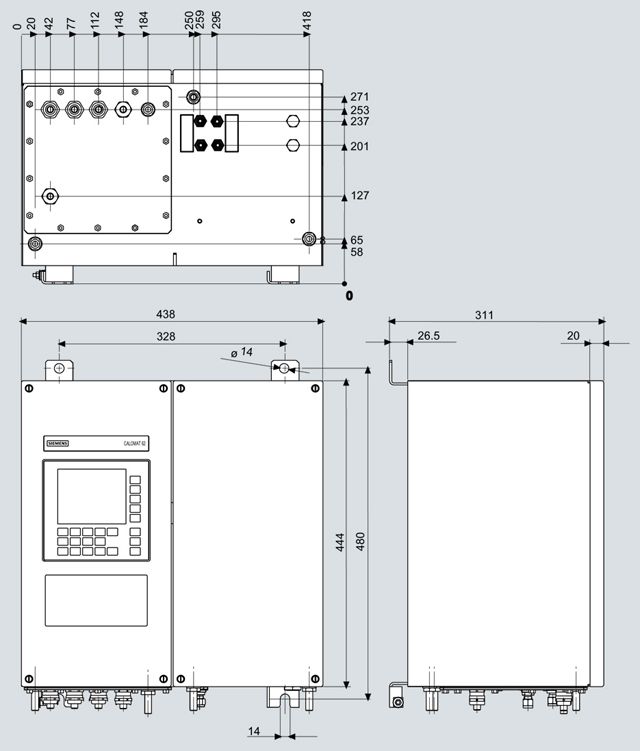

    CALOMAT 62, field device, dimensions in mm

    Схема подключения

    Pin assignment (electrical and gas connections)

    CALOMAT 62, field device, pin and terminal assignment

    CALOMAT 62, field device, pin and terminal assignment of the AUTOCAL board and PROFIBUS connectors

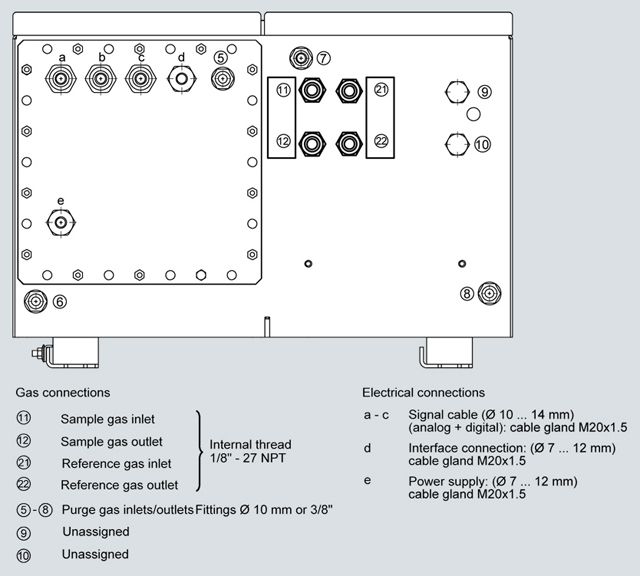

    CALOMAT 62, field device, gas connections and electrical connections

    Технические данные

    General information

    Based on DIN EN 61207/IEC 1207. All data based on digital gas mixture H2 in N2

    Measuring ranges

    4, internally and externally switchable; automatic measuring range switchover also possible

    Span

    Application-dependent (see ordering data)

    Measuring ranges with suppressed zero point

    Application-dependent (see ordering data)

    Operating position

    Front wall, vertical

    Conformity

    CE marking in accordance with EN 50081-1/EN 50081-2 and RoHS

    Design, enclosure

    Degree of protection

    IP65 according to EN 60529

    Weight

    Approx. 25 kg

    Electrical characteristics

    EMC interference immunity (electromagnetic compatibility)

    In accordance with standard requirements of NAMUR NE21 (08/98) and EN 61326

    Electrical safety

    In accordance with EN 61010-1; overvoltage category II

    Auxiliary power (see nameplate)

    100 V-10 % ... 120 V +10 % AC, 48 ... 63 Hz

    or

    200 V-10 % ... 240 V +10 % AC, 48 ... 63 Hz

    Power consumption

    • Approx. 25 VA (gas connection block unheated)
    • Approx. 330 VA (gas connection block heated)

    Fuse values (gas connection unheated)

    100 ... 120 V

    F3 1T/250

    F4 1T/250

    200 ... 240 V

    F3 0.63T/250

    F4 0.63T/250

    Fuse values (gas connection heated)

    100 ... 120 V

    F1 1T/250

    F2 4T/250

    F3 4T/250

    F4 4T/250

    200 ... 240 V

    F1 0.63T/250

    F2 2.5T/250

    F3 2.5T/250

    F4 2.5T/250

    Gas inlet conditions



    Sample gas pressure

    800 ... 1 100 hPa (absolute)

    Sample gas flow

    30 ... 90 l/h

    Sample gas temperature

    Min. 0 to max. 50 °C, but above the dew point

    Temperature


    • of the measuring cell (sensor)

    70 ºC

    • of the measurement cell block (base)

    80 ºC (heated)

    Sample gas humidity

    < 90% relative humidity

    Purging gas pressure


    • Permanent

    165 hPa above ambient pressure

    • For short periods

    Max. 250 hPa above ambient pressure

    Time response

    The dynamic and measuring response refers to the measurement of H2 in N2 (based on the sample gas pressure 1 000 hPa absolute, sample gas flow 0.5 l/min, and ambient temperature 25 °C

    Warm-up period

    < 30 min at room temperature (the technical specification will be met after 2 hours)

    Delayed display (T90)

    Approx. 35 s (including dead time)

    Electrical damping

    0 ... 100 s, configurable

    Dead time (the diffusion to the probes is the determining variable)

    Approx. 34 s

    Dead time (special application)

    10 ... 15 s

    Measuring response

    The dynamic and measuring response refers to the measurement of H2 in N2 (based on the sample gas pressure 1 000 hPa absolute, sample gas flow 0.5 l/min, and ambient temperature 25 °C

    Output signal fluctuation (3σ value)

    < ± 1 % of the smallest possible span according to rating plate with electronic damping constant of 1 s

    Zero point drift

    < ± 1 % of the current span/week

    Measured-value drift

    < ± 1 % of the smallest possible span (according to rating plate)/week

    Repeatability

    < ± 1 % of the current span

    Detection limit

    1% of the smallest possible span according to rating plate

    Linearity error

    < ± 1 % of the current span

    Influencing variables

    Based on sample gas pressure 1 000 hPa absolute, 0.5 l/min sample gas flow and 25 °C ambient temperature

    Ambient temperature

    < 2 %/10 K referred to smallest possible span according to rating plate

    Accompanying gases

    Deviation from zero point (for influence of interfering gas, see section "Cross-interference")

    Sample gas flow

    0.2% of the current measuring span with a change in flow of 0.1 l/min within the permissible flow range

    Sample gas pressure

    < 1 % of the span with a change in pressure of 100 hPa

    Auxiliary power

    < 0.1 % of the output signal span with rated voltage ± 10 %

    Electrical inputs and outputs



    Analog output

    0/2/4 ... 20 mA, floating; load max. 750 Ω

    Relay outputs

    6, with changeover contacts, freely configurable, e.g. for measuring range identification; load: 24 V AC/DC/1 A, floating

    Analog inputs

    2, dimensioned for 0/2/4 … 20 mA for external pressure sensor and correction of cross-interference

    Digital inputs

    6, designed for 24 V, floating, freely configurable, e.g. for measuring range switchover

    Serial interface

    RS 485

    Options

    AUTOCAL function with 8 additional digital inputs and 8 additional relay outputs, also with PROFIBUS PA (on request) or PROFIBUS DP (on request)

    Climatic conditions



    Permissible ambient temperature

    -40 ... +70 °C during storage and transportation, 5 ... 45 °C in operation

    Permissible humidity (dew point must not be fallen below)

    < 90% relative humidity as annual average, during storage and transportation
