LDS 6
›
19 central unit

19 central unit

  • Заказные данные
    (1)
  • Аксессуары
    (23)
  • Информационные материалы

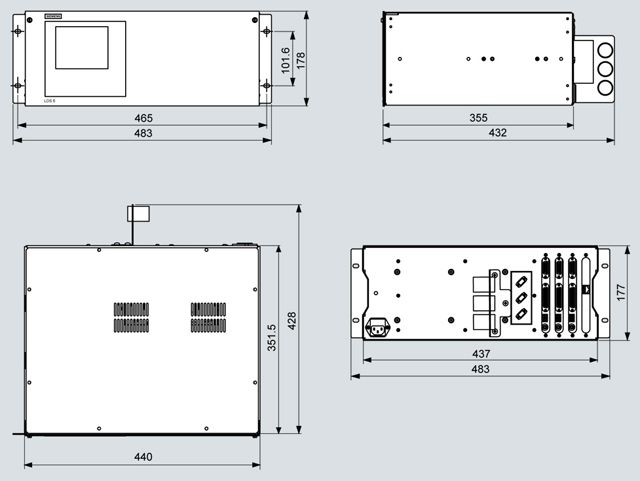

    Чертеж

    LDS 6, 19" central unit, dimensions in mm

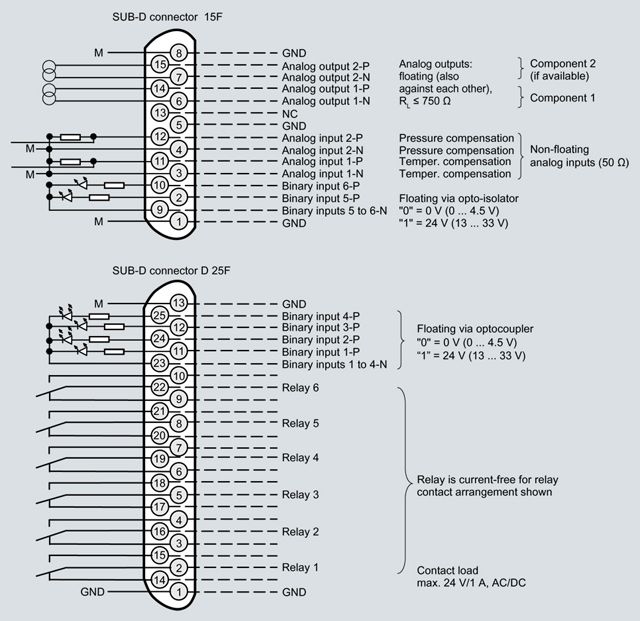

    Схема подключения

    Pin assignments

    LDS 6, 19" central unit, pin assignments

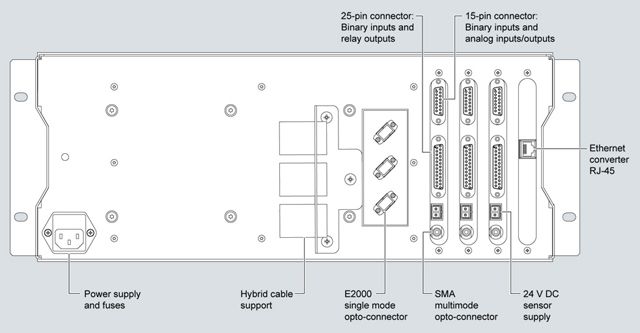

    Optical and electrical connections

    LDS 6, three-channel 19" central unit, optical and electrical connections

    Технические данные

    Analytical performance

    Measuring range

    Depending on sample gas component: See table for standard applications.

    Detection limit (DL):

    Calculated in accordance with VDI 2449, measured on every supplied analyzer during the temperature test (between 5 ... 45 °C) in accordance with VDI 4203.

    Depending on sample gas component: see table for standard applications.

    For application letter ET and FT: in accordance with the requirements of 17th and 27th BImSchV

    Smallest recommended measuring range (with 1 m path length)

    Depending on sample gas component: see table for standard applications.

    The maximum applicable measuring ranges can be found in the table of standard combinations. These can only be applied if the individual process conditions allow it. Please contact the Technical Support from Siemens for checking the applicability.



    Accuracy1)

    2% / 5%, depending on sample gas component and application letter. At best: detection limit. See table for standard applications.

    For application letter ET and FT: in accordance with the requirements of 17th and 27th BImSchV

    Linearity

    Better than 1%

    Repeatability

    2% of the measured value or same amount as the detection limit (whichever is larger)

    For application letter ET and FT: in accordance with the requirements of 17th and 27th BImSchV

    Calibration interval

    No recalibration required thanks to internal reference cell

    General information



    Concentration units

    ppmv, Vol%, mg/Nm3

    Display

    Digital concentration display (5 digits with floating decimal point)

    Laser protection class

    Class 1, safe to the eye

    Certificates

    CE marking, TÜV, MCERTS

    Design, enclosure



    Degree of protection

    IP20 according to EN 60529

    Dimensions

    177 x 440 x 380 mm

    Weight

    Approx. 13 kg

    Mounting

    Horizontal

    Electrical characteristics



    Power supply

    100 ... 240 V AC 50 ... 60 Hz, automatically adapted by the system; with a 3-channel central unit, an additional external power supply +24 V DC, 50 VA is included in the scope of delivery

    Power consumption

    50 W

    EMC

    According to EN 61326 and standard classification of NAMUR NE21

    Electrical safety

    According to EN 61010-1, overvoltage classification II

    Fuse specifications

    100 ... 240 V: T2.5L250V

    Time response



    Warm-up time at 20 °C ambient temperature

    Approx. 15 min

    Response time

    Min. of 1 s, depending on application

    Integration time

    1 … 100 s, adjustable

    Influencing variables



    Ambient temperature

    < 0.5%/10 K of the measured value

    Atmospheric pressure

    Negligible

    Process gas pressure compensation

    Recommended

    Process gas temperature compensation

    Recommended

    Process gas pressure range

    See table for standard applications

    Power supply changes

    < 1%/30 V

    Electrical inputs and outputs



    Number of measurement channels

    1 … 3, optional

    Analog output

    2 per channel, 4 ... 20 mA, floating, ohmic resistance max. 750 Ω

    Analog inputs

    2 per channel, designed for 4 ... 20 mA, 50 Ω

    Binary outputs

    6 per channel, with changeover contacts, configurable, 24 V AC/DC/1 A, floating

    Binary inputs

    6 per channel, designed for 24 V, floating, configurable

    Communication interface

    Ethernet 10BaseT (RJ-45)

    Climatic conditions



    Temperature range

    5 … 45 °C during operation, -40 … +70 °C during storage and transportation

    Atmospheric pressure

    800 … 1 200 hPa

    Humidity

    < 85% relative humidity, above dew point (in operation and storage)



    1) The accuracy corresponds to intrinsic uncertainty according to IEC 61207 for 7MB6121-xKD00-0xxx

    Дальнейшая информация

    The following table lists the measuring conditions for standard applications. The listed values for the measuring range and detection limit (DL) are only approximate values. The exact values at the respective measuring point depend on the totality of all influencing variables and can be determined by Siemens for the specific case. Please note that the values for the detection limit and the maximum measuring range refer to a path length of 1 m. Longer path lengths will improve the detection limit, but not linearly. This is due to limiting effects such as dust load. The maximum applicable measuring ranges can only be used if permitted by the process conditions such as dust load.

    Standard application

    Effective optical path length: 0.3 … 12 m

    Dust load2): < 50 g/Nm3

    Process gas temperature

    Tmin  … Tmax

    Process gas pressure pmin  … pmax

    Min. measuring range

    (with 1 m eff. opt. path length)

    Max. measuring range

    (also dependent on eff. opt. path length: see following column)

    (Max. measuring range x path length)

    (DL x path length)

    Accuracy3)



    under standard conditions1) without cross-interferences of other gases

    At 1 013 hPa with cross-interference of gas 2



    Gas 1

    Gas 2

    Gas code

    Appl. code



    Gas 1

    Gas 1

    Gas 1

    Gas 1

    Gas 1

    Gas 1

    O2



    A

    B6)

    600 … 1 200 °C

    950 …1 050 hPa

    0 … 15 vol%

    0 … 100 vol%

    240 vol%*m

    0.3 vol%*m
    at 600 °C



    5%

    C

    0 … 600 °C

    950 …1 050 hPa

    0 … 5 vol%

    0 … 100 vol%

    75 vol%*m

    0.1 vol%*m



    2%4)

    P

    0 … 200 °C

    950 … 5 000 hPa

    0 … 5 vol%

    0 … 100 vol%

    75 vol%*m

    0.1 vol%*m



    2%

    NH3



    C

    A

    0 … 150 °C

    950 … 1 050 hPa

    0 … 25 ppmv

    0 … 500 ppmv

    2 500 ppmv*m

    0.5 ppmv*m

    0.9 ppmv*m

    At 15 vol% H2O, 55 °C

    2%

    T

    0 … 150 °C

    950 … 1 050 hPa

    0 … 25 ppmv

    0 … 500 ppmv

    2 500 ppmv*m

    0.5 ppmv*m

    0.9 ppmv*m

    At 15 vol% H2O, 55 °C

    2%

    E

    250 … 350 °C

    950 … 1 050 hPa

    0 … 45 ppmv

    0 … 500 ppmv

    2 500 ppmv*m

    0.9 ppmv*m

    At 250 °C

    1.4 ppmv*m

    At 15 vol% H2O, 250 °C

    2%

    F

    300 … 400 °C

    950 … 1 050 hPa

    0 … 50 ppmv

    0 … 500 ppmv

    2 500 ppmv*m

    1 ppmv*m

    At 300 °C

    1.5 ppmv*m

    At 15 vol% H2O, 300 °C

    2%

    L7)

    0 … 400 °C8)

    920 … 1 120 hPa

    0 … 15 ppmv

    0 … 500 ppmv

    2 500 ppmv*m

    0.5 ppmv*m

    1.4 ppmv*m

    At 15 vol% H2O, 250 °C

    2%

    NH3

    H2O

    D

    A

    0 … 150 °C

    950 … 1 050 hPa

    0 … 25 ppmv

    0 … 100 ppmv

    1 200 ppmv*m

    0.5 ppmv*m

    0.9 ppmv*m

    At 15 vol% H2O, 55 °C

    2%

    T

    0 … 150 °C

    950 … 1 050 hPa

    0 … 25 ppmv

    0 … 100 ppmv

    1 200 ppmv*m

    0.5 ppmv*m

    0.9 ppmv*m

    At 15 vol% H2O, 55 °C

    2%

    E

    250 … 350 °C

    950 … 1 050 hPa

    0 … 45 ppmv

    0 … 100 ppmv

    1 200 ppmv*m

    0.9 ppmv*m

    At 250 °C

    1.4 ppmv*m

    At 15 vol% H2O, 250 °C

    2%

    F

    300 … 400 °C

    950 … 1 050 hPa

    0 … 50 ppmv

    0 … 100 ppmv

    1 200 ppmv*m

    1 ppmv*m

    At 300 °C

    1.5 ppmv*m

    At 15 vol% H2O, 300 °C

    2%

    L7)

    0 … 400 °C8)

    920 … 1 120 hPa

    0 … 15 ppmv

    0 … 100 ppmv

    1 200 ppmv*m

    0.5 ppmv*m

    1.4 ppmv*m

    At 15 vol% H2O, 250 °C

    2%

    HCl



    E

    A

    0 … 150 °C

    950 … 1 050 hPa

    0 … 30 ppmv

    0 … 6 000  ppmv

    1 200 ppmv*m

    0.6 ppmv*m

    2.2 ppmv*m

    At 15% H2O, 55 °C

    5%

    T

    120 … 210 °C

    950 … 1 050 hPa

    0 … 10 ppmv

    0 … 60 ppmv

    720 ppmv*m



    H

    150 … 250 °C

    950 … 1 050 hPa

    0 … 50 ppmv

    0 … 6 000 ppmv

    1 200 ppmv*m

    1.0 ppmv*m

    At 150 °C

    3.1 ppmv*m

    At 15 vol% H2O, 150 °C

    5%

    HCl

    H2O

    F

    A

    0 … 150 °C

    950 … 1 050 hPa

    0 … 30 ppmv

    0 … 100 ppmv

    1 200 ppmv*m

    0.6 ppmv*m

    2.2 ppmv*m

    At 15% H2O, 55 °C

    5%

    T

    120 … 210 °C

    950 … 1 050 hPa

    0 … 10 ppmv

    0 … 60 ppmv

    720 ppmv*m



    H

    150 … 250 °C

    950 … 1 050 hPa

    0 … 50 ppmv

    0 … 100 ppmv

    1 200 ppmv*m

    1.0 ppmv*m

    At 150 °C

    3.1 ppmv*m

    At 15 vol% H2O, 150 °C

    5%

    HF



    G

    A

    0 … 150 °C

    950 … 1 050 hPa

    0 … 5 ppmv

    0 … 1 500 ppmv

    200 ppmv*m

    0.1 ppmv*m

    0.6 ppmv*m

    At 15 vol% H2O, 55 °C

    5%

    H

    150 … 250 °C

    950 … 1 050 hPa

    0 … 5 ppmv

    0 … 1 500 ppmv

    200 ppmv*m

    0.11 ppmv*m

    At 150 °C

    0.6 ppmv*m

    At 15 vol% H2O, 150 °C

    5%

    HF

    H2O

    H

    A

    0 … 150 °C

    950 … 1 050 hPa

    0 … 5 ppmv

    0 … 200 ppmv

    200 ppmv*m

    0.1 ppmv*m

    0.6 ppmv*m

    At 15 vol% H2O, 55 °C

    5%

    H

    150 … 250 °C

    950 … 1 050 hPa

    0 … 5 ppmv

    0 … 200 ppmv

    200 ppmv*m

    0.11 ppmv*m

    At 150 °C

    0.6 ppmv*m

    At 15 vol% H2O, 150 °C

    5%

    CO



    J

    C

    0 … 600 °C

    950 … 1 050 hPa

    0 … 1.5 vol%

    0 … 100 vol%

    40 vol%*m

    300 ppmv*m

    1 000 ppmv*m

    at 50 vol% CO2, 20°C

    2%

    CO

    CO2

    K

    D

    0 … 400 °C

    800 …1 400 hPa

    0 … 5 vol%

    0 … 100 vol%

    0 ... 200 vol%*m

    0.1 vol%*m

    0.5 Vol%

    at 50 vol% CO2, 20°C

    2%5)

    CO2



    L

    A

    0 … 150 °C

    950 … 1 050 hPa

    0 … 7.5 vol%

    0 … 100 vol%

    40 vol%*m

    300 ppmv*m



    2%

    H2O



    M

    A

    0 … 150 °C

    950 … 1 050 hPa

    0 … 5 vol%

    0 … 30 vol%

    240 vol%*m

    0.1 vol%*m



    5%

    T

    0 … 150 °C

    950 … 1 050 hPa

    0 … 5 vol%

    0 … 30 vol%

    240 vol%*m

    0.1 vol%*m

    5%



    1) All technical specifications apply to an optical path distance of 1 m in a nitrogen atmosphere under standard conditions 25 °C (or Tmin) and 1013 hPa. The effective detection limit, the measuring range and the accuracy can be influenced by process parameters such as pressure, temperature and gas composition. Not all combinations of maximum pressure and temperature can be realized with the minimum measuring ranges. If the process conditions deviate from the specifications of the standard applications, special applications are also possible on request. Complete the application questionnaire which can be found on the Internet at www.siemens.de/insitufragebogen.

    2) At 0.3 m effective optical path length, average diameter of the dust particles: 15 µm, specific weight of the dust particles: 650 kg/m3

    3) At least: Detection limit

    4) Up to 200 °C, 5% above this

    5) The accuracy corresponds to intrinsic uncertainty according to IEC 61207: 2 % of MV (0 ... 200°C); 2.5 % of MV (0 ... 400°C); at best 0.25 vol%*m.

    6) At high process temperatures, the use of an IR filter A5E00534668 is recommended for the CD 6 sensor (see page 2/xx).

    7) Suitable for use to measure NH3 according to the requirements of Directive 295/2009/EC "Implementing regulations on type-approval of motor vehicles and engines with respect to emissions from heavy duty vehicles (EURO VI)" from 18 June 2009 and its regulation for implementation of number 582/2011/EC from 25 May 2011 of the Commission of the European Union.

    8) The device is also able to operate above 400 °C to 1 000 °C. Due to the decomposition of NH3 at higher temperatures, no specification can be given in these ranges.

    Standard application

    Effective optical path length: 0.3 … 12 m

    Dust load3): < 50 g/Nm3

    Min. measuring range

    (with 1 m eff. opt. path length)

    Max. measuring range

    (usually also dependent on eff. opt. path length: see following column)

    (Max. measuring range x path length)

    (DL x path length)

    Accuracy4)

    Purging gas mode

    Purging gas medium



    under standard conditions1) 2)

    At 1 013 hPa with cross-interference of gas 1



    Gas 1

    Gas 2

    Gas code

    Appl. code

    Gas 2

    Gas 2

    Gas 2

    Gas 2

    Gas 2

    Gas 2

    Standard

    Optional



    O2



    A

    B6)



    E, F

    G, H

    Steam + air, N2

    C



    D

    B

    N2

    P



    D

    B

    N2

    NH3



    C

    A




    C

    G

    Air

    T




    C

    G

    Air

    E




    E

    G

    Air

    F




    E

    G

    Air

    L



    C

    D

    Air

    NH3

    H2O

    D

    A


    0 … 5 vol%

    0 … 30 vol%

    240 vol%*m

    0.1 vol%*m

    0.1 vol%*m

    5%

    C

    G

    Air

    T


    0 … 5 vol%

    0 … 30 vol%

    240 vol%*m

    0.1 vol%*m

    0.1 vol%*m

    5%

    C

    G

    Air

    E


    0 … 5 vol%

    0 … 30 vol%

    240 vol%*m

    0.1 vol%*m

    At 250 °C

    0.1 vol%*m

    At 250 °C

    5%

    E

    G

    Air

    F


    0 … 5 vol%

    0 … 30 vol%

    240 vol%*m

    0.1 vol%*m

    At 300 °C

    0.1 vol%*m

    At 300 °C

    5%

    E

    G

    Air

    L

    0 … 5 vol%

    0 … 30 vol%

    250 vol%*m

    0.1 vol%*m

    At 250 °C

    0.1 vol%*m

    At 250 °C

    5%

    C

    D

    Air

    HCl



    E

    A




    C

    G

    Air

    T




    C

    G

    Air

    H




    E

    G

    Air

    HCl

    H2O

    F

    A


    0 … 5 vol%

    0 … 30 vol%

    360 vol%*m

    0.1 vol%*m

    0.1 vol%*m

    5%

    C

    G

    Air

    T


    0 … 5 vol%

    0 … 30 vol%

    360 vol%*m



    C

    G

    Air

    H


    0 … 5 vol%

    0 … 30 vol%

    360 vol%*m

    0.1 vol%*m

    At 150 °C

    0.1 vol%*m

    At 150 °C

    5%

    E

    G

    Air

    HF



    G

    A




    C

    G

    Air

    H




    E

    G

    Air

    HF

    H2O

    H

    A


    0 … 5 vol%

    0 … 30 vol%

    360 vol%*m

    0.1 vol%*m

    0.1 vol%*m

    5%

    C

    G

    Air

    H


    0 … 5 vol%

    0 … 30 vol%

    360 vol%*m

    300 ppmv*m

    At 200 °C

    300 ppmv*m

    At 200 °C

    5%

    E

    G

    Air

    CO



    J

    C




    E

    G

    Air, N2

    CO

    CO2

    K

    D

    0 … 10 vol%

    0 … 100 vol%

    0 ... 200 vol%*m

    0.2 vol%*m

    1 vol% at 50 vol% CO, 20°C

    5%5)

    C

    G

    Air

    CO2



    L

    A



    C

    G

    Air

    H2O



    M

    A



    C

    G

    Air

    T



    C

    G

    Air



    1) At 20 °C, 1 013 hPa

    2) If the smallest permissible process gas temperature of the application is Tmin > 20 °C, the detection limit refers to Tmin and standard pressure (1 013 hPa)

    3) At 0.3 m optical path length, average diameter of the dust particles: 15 µm, specific weight of the dust particles: 650 kg/m3

    4) At least: Detection limit

    5) The accuracy corresponds to intrinsic uncertainty according to IEC 61207: 5% of MV; at best 0.5 vol%*m.

    6) At high process temperatures, the use of an IR filter A5E00534668 is recommended for the CD 6 sensor (see page 2/xx).

    Special applications



    If the process conditions deviate from the specifications of the standard applications, special applications are also possible on request. Please complete the application questionnaire which can be found on the Internet at http://www.siemens.de/insitufragebogen.
