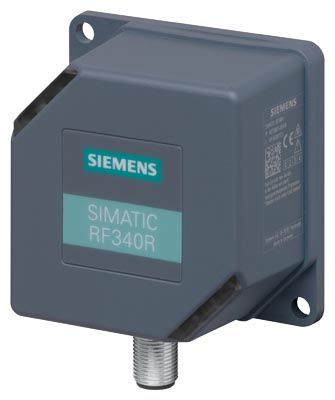

SIMATIC RF340R reader

The SIMATIC RF340R (New Generation) is a reader with integrated antenna for the medium performance range and can be used to great advantage in assembly lines thanks to its compact design. This reader is also particularly suitable for dynamic applications in which the transponder does not stop during the read/write process.

This reader has an RS422 interface with transmission procedure 3964R for connection to RFID communication modules (see "Communication modules").

Due to the high degree of protection and use of high-quality materials, the SIMATIC RF340R facilitates problem-free operation even under the harshest industrial conditions. The reader is connected via an 8-pole M12 plug-in connector.

Additional performance features compared with first generation RF340R:

Additional transponder protocol (air interface) for MOBY E transponders (MIFARE classic, ISO 14443 A)
Automatic detection of different transponder types (RF300, ISO 15693, MOBY E). Mixed operation also possible
Emulation of MOBY I read/write devices (SLG4x) to the interface module for easy migration of old systems (but no emulation of air interface to MOBY I transponders)
User-friendly parameter assignment and configuration using technology objects (as from TIA Portal V14 SP1)
Setup help integrated in reader for simple optimization of reader-transponder positioning during installation/commissioning without the need for additional tools or equipment
Improved 2-LED display for normal operation, transponder presence, integrated setup help and error status
Fast Command for 2 and 8 KB ISO data storage media (MDS D4xx, D5xx) for enhanced speed reading

Дизайн

Field data

Minimum distance from reader to reader
SIMATIC RF340R	≥ 350 mm

Чертеж

SIMATIC RF340R reader, New Generation

Технические данные

Order number		6GT2801-2BA10
Product type designation		RF340R reader
Wireless frequencies
Operating frequency Rated value		13.56 MHz
Electrical data
Range maximum		140 mm; Range is dependent on transponder type: observe http://support.automation.siemens.com/WW/view/en/67384964
Transfer rate with radio transmission maximum		106 kbit/s
Product feature multitag-capable		No
Transfer rate at the point-to-point connection serial maximum		115.2 kbit/s
Transmission time for user data
● for write access per byte typical		0.13 ms
● for read access per byte typical		0.13 ms
Interfaces
Standard for interfaces for communication		RS422
Type of electrical connection		M12, 8-pin
Mechanical data
Material		PA 12
Tightening torque of the screw for securing the equipment maximum		1.5 N·m
Mounting distance relating to metal surfaces recommended minimum		0 mm
Supply voltage, current consumption, power loss
Supply voltage
● at DC Rated value		24 V
● at DC		20.4 ... 28.8 V
Consumed current at DC at 24 V
● typical		0.06 A
Permitted ambient conditions
Ambient temperature
● during operation		-25 ... +70 °C
● during storage		-40 ... +85 °C
● during transport		-40 ... +85 °C
Protection class IP		IP67
Shock resistance		EN 60721-3-7, Class 7 M2
Shock acceleration		500 m/s²
Vibrational acceleration		200 m/s²
Design, dimensions and weight
Width		75 mm
Height		41 mm
Depth		75 mm
Net weight		0.25 kg
Mounting type		2 x M5 screws
Wire length
● for RS 422 interface maximum		1 000 m
Product properties, functions, components general
Product feature silicon-free		Yes
Standards, specifications, approvals
Certificate of suitability		Wireless according to R&TTE guidelines EN 300 330, EN 301489, CE, FCC, UL/CSA
MTBF		260 y

Дальнейшая информация

All current wireless approvals can be found on the Internet at:

http://www.siemens.com/wireless-approvals
