Line reactors for blocksize format

• Заказные данные
  (4)
• Информационные материалы

  Информационные материалы

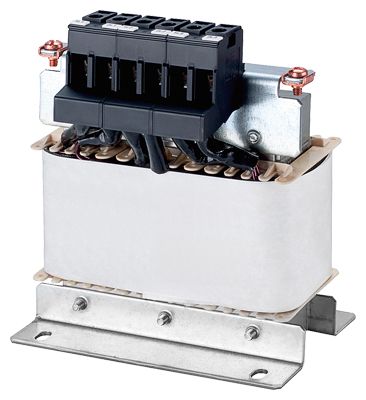

  Line reactor for PM240-2 Power Modules, frame size FSA

  Line reactors smooth the current drawn by the inverter and thus reduce harmonic components in the line current. Through the reduction of the current harmonics, the thermal load on the power components in the rectifier and in the DC-link capacitors is reduced as well as the harmonic effects on the supply. The use of a line reactor increases the service life of the inverter.

  Интеграция

  A DC link reactor is integrated in the PM240‑2 Power Modules FSD to FSF and therefore no line reactor is required.

  Line reactors that are optionally available depending on the Power Module used

  	Frame size
  	FSA	FSB	FSC	FSD	FSE	FSF
  PM240-2 Power Module with integrated braking chopper
  Available frame sizes
  200 V versions	✓	✓	✓	✓	✓	✓
  400 V versions	✓	✓	✓	✓	✓	✓
  690 V versions	–	–	–	✓	✓	✓
  Line-side power components
  Line reactors (only for 3 AC versions)	S	S	S	I	I	I





  S = Lateral mounting

  I = Integrated

  – = Not possible

  Технические данные

  Line voltage 200 ... 240 V 3 AC or 380 ... 480 V 3 AC		Line reactor
  		6SL3203-0CE13-2AA0	6SL3203-0CE21-0AA0	6SL3203-0CE21-8AA0	6SL3203-0CE23-8AA0
  Rated current	A	4	11.3	22.3	47
  Power loss at 50/60 Hz	W	23/26	36/40	53/59	88/97
  Line supply/load connection 1L1, 1L2, 1L3 2L1, 2L2, 2L3		Screw terminals	Screw terminals	Screw terminals	Screw terminals
  Conductor cross-section	mm2	4	4	10	16
  PE connection		M4 × 8; U washer; spring lock washer	M4 × 8; U washer; spring lock washer	M5 × 10; U washer; spring lock washer	M5 × 10; U washer; spring lock washer
  Degree of protection		IP20	IP20	IP20	IP20
  Dimensions
  Width	mm (in)	125 (4.92)	125 (4.92)	125 (4.92)	190 (7.48)
  Height	mm (in)	120 (4.72)	140 (5.51)	145 (5.71)	220 (8.66)
  Depth	mm (in)	71 (2.8)	71 (2.8)	91 (3.58)	91 (3.58)
  Weight, approx.	kg (lb)	1.1 (2.43)	2.1 (4.63)	2.95 (6.5)	7.8 (17.2)
  Suitable for PM240-2 Power Module standard variant 200 ... 240 V 3 AC	Type	6SL3210-1PB13-0 . L0 6SL3210-1PB13-8 . L0	6SL3210-1PB15-5 . L0 6SL3210-1PB17-4 . L0 6SL3210-1PB21-0 . L0	6SL3210-1PB21-4 . L0 6SL3210-1PB21-8 . L0	6SL3210-1PC22-2 . L0 6SL3210-1PC22-8 . L0
  Frame size		FSA	FSB	FSC	FSC
  Suitable for PM240-2 Power Module standard variant 380 ... 480 V 3 AC	Type	6SL3210-1PE11-8 . L1 6SL3210-1PE12-3 . L1 6SL3210-1PE13-2 . L1	6SL3210-1PE14-3 . L1 6SL3210-1PE16-1 . L1 6SL3210-1PE18-0 . L1	6SL3210-1PE21-1 . L0 6SL3210-1PE21-4 . L0 6SL3210-1PE21-8 . L0	6SL3210-1PE22-7 . L0 6SL3210-1PE23-3 . L0
  Frame size		FSA	FSA	FSB	FSC
  Suitable for PM240-2 Power Module push-through variant 200 ... 240 V 3 AC	Type	6SL3211-1PB13-8 . L0	6SL3211-1PB21-0 . L0	6SL3211-1PB21-8 . L0	–
  Frame size		FSA	FSB	FSC	–
  Suitable for PM240-2 Power Module push-through variant 380 ... 480 V 3 AC	Type	–	6SL3211-1PE18-0 . L1	6SL3211-1PE21-8 . L0	6SL3211-1PE23-3 . L0
  Frame size		–	FSA	FSB	FSC
