SCALANCE XC-200 managed

Заказные данные
(6)
Аксессуары
(42)

The managed Industrial Ethernet switches of the SCALANCE XC-200 product line are optimized for setting up Industrial Ethernet networks with data transfer rates of 10/100 Mbps in a line, star or ring topology. Furthermore, high-performance optical structures with up to 1 000 Mbps can be set up with the SCALANCE XC206-2SFP.

Rugged enclosure in SIMATIC S7-1500 format, for mounting on standard DIN rails and SIMATIC S7-300 and SIMATIC S7-1500 mounting rails, or for direct wall mounting
Electrical or optical connection to stations or networks according to port characteristics of the devices
Version with SFP plug-in transceivers for transmission rates up to 1 000 Mbps
Rugged station connections with industry-standard RJ45 connectors that offer additional strain and bending strain relief thanks to latching on the enclosure
Redundant power supply
Console port for direct access to device
Display of comprehensive operating mode and status information via LEDs and selection pushbuttons
Signaling contact for connecting to an error signaling system
Slot for optional C-PLUG removable data storage medium for easy device replacement without additional equipment such as a field PG
Grounding screw for external ground connection
Flexible use in the automation environment due to switchover between the two industry protocols PROFINET and EtherNet/IP in the device
Extensive diagnostics options: Full integration in PROFINET and EtherNet/IP diagnostics, SNMP access, integrated web server and automatic e-mail transmission function for remote diagnostics and signaling via the network
Virtual LANs (VLAN) for easy structuring of large networks into smaller, logical subnetworks. Reasons for the subdivision into logical subnetworks are, for example, separation of the Ethernet networks to reduce the broadcast load, separation of sensitive areas from the main network, and subdivision of the network into logical working groups
By learning the multicast sources and destinations (Internet Group Management Protocol (IGMP) Snooping), SCALANCE XC-200 switches can also filter multicast data traffic and thus limit the load on the network
Integrated security functions offer protection against unauthorized network access and configuration (e.g. authentication via IEEE 802.1X)

Product versions

Switches with electrical ports:
- SCALANCE XC208;
  with 8x RJ45 ports 10/100 Mbps for mounting in the control cabinet
- SCALANCE XC216;
  with 16x RJ45 ports 10/100 Mbps for mounting in the control cabinet
- SCALANCE XC224;
  with 24x RJ45 ports 10/100 Mbps for mounting in the control cabinet
Switches with electrical and optical ports
- SCALANCE XC206-2;
  with 6x RJ45 ports 10/100 Mbps and 2x ST/BFOC ports 100 Mbps
- SCALANCE XC206-2;
  with 6x RJ45 ports 10/100 Mbps and 2x SC ports 100 Mbps
- SCALANCE XC206-2SFP;
  with 6x RJ45 ports 10/100 Mbps and 2x SFP plug-in transceivers with 100 or 1 000 Mbps

Область применения

SCALANCE XC-200 Industrial Ethernet switches enable cost-effective configuration of Industrial Ethernet line, star or ring topologies with switching functionality for networks in which high availability or remote diagnostic capabilities are required. The devices with degree of protection IP20 are designed for operation in the control cabinet.

Features:

Integrated industrial network for data, voice, video, and Industrial Ethernet
Integrated system diagnostics with PROFINET or EtherNet/IP, SINEMA Server, Syslog, and SNMP
Use in the SIMATIC environment
Integrated security functions offer protection against unauthorized network access and configuration, see technical specifications

Дизайн

SCALANCE XC-200 Industrial Ethernet switches with a rugged enclosure are optimized for mounting on standard DIN rails and SIMATIC S7-1500 mounting rails Direct wall mounting in various positions and mounting on a SIMATIC S7-300 mounting rail are also possible. Due to the SIMATIC S7-1500 housing dimensions, the devices are optimally suited for integration into an automation solution with SIMATIC S7-1500 components.

The network access points with IP20 degree of protection feature:

A 4-pin terminal block (push-in) for connecting the redundant supply voltage (2 x 24 DC)
The following status information is displayed by LEDs on site:
- Port status
- Port mode (10/100/1 000 Mbps, full/half-duplex)
- Status of the two power supplies
- Signaling contact status
- Signal mask (setpoint status)
- Redundancy manager mode (RM mode)
- Standby mode
A 2-pin terminal block (push-in) for connecting the floating signaling contact
A SELECT/SET key for on-site configuration of the signaling contact

SCALANCE XC-200 switches are available with the following port types:

10/100BaseTX, RJ45 connection;
automatic detection of the data rate (10 or 100 Mbps), with autosensing and autocrossover function for connecting IE FC cables via IE FC RJ45 plugs over distances up to 100 m.
100BaseFX, ST/BFOC connection technology (SCALANCE XC-206-2);
ST/BFOC for direct connection to Industrial Ethernet fiber-optic cables up to 5 km (multimode FOC)
100BaseFX, SC connection technology (SCALANCE XC-206-2);
SC ports for direct connection to Industrial Ethernet fiber-optic cables up to 5 km (multimode FOC)
100/1000BaseFX, SFP slots
LC connections with different ranges can be implemented via SFP modules (multimode/singlemode up to 200 km)

Функции

Setup of electrical and optical Industrial Ethernet line, star and ring topologies
- Use in ring topologies together with SCALANCE X-200, SCALANCE X-300, SCALANCE XM-400 and XR-500
Fast redundancy in the ring with:
- High Speed Redundancy Protocol (HRP), max. 0.3 second reconfiguration time with 50 switches in the ring
- PROFINET MRP (Media Redundancy Protocol), max. 0.2 second reconfiguration time of the ring with 50 switches in the ring
The functioning of the ring is continuously monitored by the integrated redundancy manager. It recognizes failure of a transmission path in the ring or failure of a SCALANCE XC-200 and activates the substitute path within 0.3 seconds or 0.2 seconds with MRP
Uncrossed connecting cables can be used due to Autocrossover function integrated in the ports
Easy diagnostics using signaling contact, SNMP and web browser
Easy copper cable diagnostics via web browser for localizing cable breaks
Fiber monitoring: Easy fiber-optic cable port diagnostics by means of web browser and SNMP for early detection of changes on the fiber-optic cable line or at the fiber-optic cable ports
Integration into the diagnostics of a PROFINET controller with expanded diagnostics functions for a consistent diagnostics concept, including network infrastructure
Diagnosis of data traffic by means of a parameterizable mirror port with a standard commercial network analyzer
Optimized support of PROFINET real-time communication (RT) through prioritizing
Fast device replacement in the event of a fault by using the optional C-PLUG removable data storage medium (not included in scope of supply)
Redundant interfacing to company networks
The XC-200 switches support the standardized redundancy procedures Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP). This enables a subnetwork to be connected redundantly to a higher level corporate network with reduced requirements for the reconfiguration time (in the order of seconds)
Support of virtual LANs (VLANs)
For structuring Industrial Ethernet networks with a fast growing number of users, a physically existing network can be divided into several logical networks
Load limiting with use of multicast protocols (e.g. querier, video)
By learning the multicast sources and targets (IGMP snooping), XC-200 switches can also filter multicast data traffic and therefore limit the load in the network. Multicast and broadcast traffic can be limited.

Network topology and network configuration

The SCALANCE XC-200 Industrial Ethernet switches with IP20 degree of protection are usually installed in a control cabinet together with the stations to be connected. Electrical and optical versions can be installed together in star, line and ring topologies.

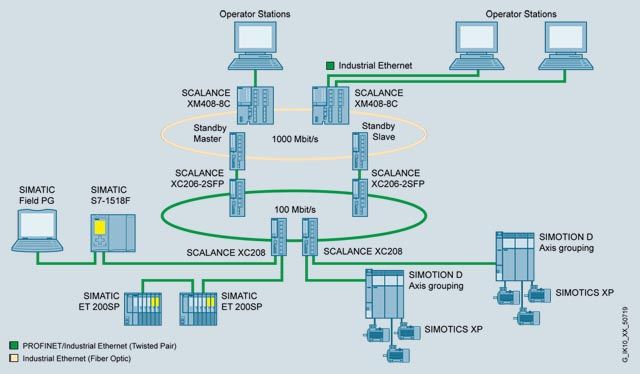

The following network structures and combinations of structures can be implemented:

Fast Ethernet and Gigabit rings with fast media redundancy
In addition, the SCALANCE XC-200 switches support redundant connection of the ring structure to the corporate network with a rapid spanning tree
Star topology with XC-200 switches
Each SCALANCE XC-200 switch represents a star point which can interconnect as many as 8/16/24 nodes or subnetworks.

When configuring the network, the following boundary conditions must be observed:

Maximum cable length for twisted pair:
- Max. 100 m with Industrial Ethernet FC cable and Industrial Ethernet FC plugs
- Max. 10 m using patches with TP cord
Length of the optical cables:
- Maximum line length between two modules for multimode fiber-optic conductors:
  – 5 000 m at 100 Mbps
  – 750 m at 1 Gbps
- Maximum line length between two modules for single-mode FOCs:
  – 200 km at 100 Mbps
  – 120 km at 1 Gbps
IP address:
The IP address can be assigned by means of the DHCP (Dynamic Host Configuration Protocol). If there is no corresponding server in the network, the IP address can be assigned using the supplied software tool PST (Primary Setup Tool) or STEP 7.

Redundancy in ring structure in the MRP ring with reconfiguration time < 200 ms

Coupling between HRP rings through standby redundancy

Set-up of distributed access points along track segments with SCALANCE XC206-2SFP

Commissioning and diagnostics

PROFINET diagnostic alarms from SCALANCE XC-200 switches can be displayed with the appropriate SIMATIC engineering tools and processed in the controller with the enhanced diagnostic function. The engineering effort for the PLC and HMI have been drastically reduced due to the complete integration in the SIMATIC concept for system error messages.

SCALANCE XC-200 Industrial Ethernet switches can also be integrated in a network management system such as SINEMA server using the standardized Simple Network Management Protocol (SNMP). If faults occur on the device, error messages (SNMP traps) can be sent to a network management system or as an e-mail to a specified network administrator.

The integrated web server enables configuration and diagnostics settings using a standard browser (e.g. port configuration). Statistical information can also be read out via the web server (e.g. port utilization).

The following information is displayed on site by LEDs:

Power
Port status
Data traffic
Signaling contact
Redundancy manager function (RM)

The Industrial Ethernet switches of the SCALANCE XC-200 line can also be monitored using the floating signaling contact.

Особенности

Operational reliability in industrial environments, e.g. due to rugged enclosure, redundancy, temperature range from -40 °C to +70 °C
Increased plant availability thanks to:
- Redundant power supply
- Redundant network structures based on fast media redundancy HRP and MRP
- Standby redundancy between HRP rings
- Prevention of loops by standard STP, RSTP and MSTP mechanisms, and loop detection
- SFP plug-in transceivers can be replaced or expanded during operation
- Easy device replacement by means of plug-in C-PLUG removable data storage medium
- Link aggregation (IEEE 802.3ad) for parallel use of ports to increase transmission rate failure safety
Easy monitoring and diagnostics due to separate diagnostics station with integrated LEDs, signaling contact, web browser, traps and e-mail transmission
Fast mobile diagnostics by smartphone or tablet in existing WLAN using NFC (near field communication)
Reduced engineering expenditure for PLC/HMI due to integration into the SIMATIC system fault message concept
Configuration and diagnostics integrated into STEP 7 provide significant benefits during engineering, commissioning, and the operating phase of a plant
Configuration in the TIA Portal as well as in Web Based Management (WBM)
Easy integration in process and system diagnostics with PROFINET or EtherNet/IP
Integration of SCALANCE XC-200 switches into existing network management infrastructure (e.g. SINEMA Server) through SNMP access
Reliable plug-in connection thanks to rugged, industry-standard device connection in conjunction with industry-standard FastConnect connectors

Технические данные

Order number	6GK5206-2BB00-2AC2	6GK5206-2BD00-2AC2	6GK5206-2BS00-2AC2

Product type designation	SCALANCE XC206-2	SCALANCE XC206-2	SCALANCE XC206-2SFP
Transmission rate
Transfer rate	10 Mbit/s, 100 Mbit/s	10 Mbit/s, 100 Mbit/s	10 Mbit/s, 100 Mbit/s, 1 000 Mbit/s
Interfaces for communication integrated
Number of electrical connections
● for network components or terminal equipment	6; RJ45	6; RJ45	6; RJ45
Number of 10/100 Mbit/s RJ45 ports Integrated
● with securing collar	6	6	6
Number of 100 Mbit/s ST(BFOC) ports
● for multimode	2
Number of 100 Mbit/s SC ports
● for multimode		2
Number of electrical connections
● for SFP			2
Interfaces for communication pluggable maximum
Number of electrical connections
● for SFP			2; 100 Mbit/s or 1000 Mbit/s SFP plug-in transceiver
Interfaces others
Number of electrical connections
● for operator console	1	1	1
● for signaling contact	1	1	1
● for power supply	1	1	1
● for redundant voltage supply	1	1	1
Type of electrical connection
● for operator console	RJ11 port	RJ11 port	RJ11 port
● for signaling contact	2-pole terminal block	2-pole terminal block	2-pole terminal block
● for power supply	4-pole terminal block	4-pole terminal block	4-pole terminal block
design of the removable storage
● C-PLUG	Yes	Yes	Yes
Signal-Inputs/outputs
Operating voltage of the signaling contacts
● at DC Rated value	24 V	24 V	24 V
Operating current of the signaling contacts
● at DC maximum	0.1 A	0.1 A	0.1 A
Supply voltage, current consumption, power loss
Type of voltage of the supply voltage	DC	DC	DC
Supply voltage
● external	24 V	24 V	24 V
● external	9.6 ... 31.2 V	9.6 ... 31.2 V	9.6 ... 31.2 V
Supply voltage 4 Rated value
● Consumed current 4 at rated supply voltage maximum	0.25 A	0.25 A	0.25 A
Product component fusing at power supply input	Yes	Yes	Yes
Fuse protection type at input for supply voltage	2.5 A / 125 V	2.5 A / 125 V	2.5 A / 125 V
Consumed current maximum	0.5 A	0.5 A	0.5 A
Power loss [W]
● at DC at 24 V	6 W	6 W	6 W
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● during transport	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
Relative humidity
● at 25 °C without condensation during operation maximum	95 %	95 %	95 %
Protection class IP	IP20	IP20	IP20
Design, dimensions and weight
Design	compact	compact	compact
Width	60 mm	60 mm	60 mm
Height	147 mm	147 mm	147 mm
Depth	125 mm	125 mm	125 mm
Net weight	0.54 kg	0.54 kg	0.52 kg
Material of the enclosure	Polycarbonate (PC-GF10) / pressure die cast aluminum	Polycarbonate (PC-GF10) / pressure die cast aluminum	Polycarbonate (PC-GF10) / pressure die cast aluminum
Mounting type
● 35 mm DIN rail mounting	Yes	Yes	Yes
● wall mounting	Yes	Yes	Yes
● S7-300 rail mounting	Yes	Yes	Yes
● S7-1500 rail mounting	Yes	Yes	Yes
Product properties, functions, components general
Cascading in the case of a redundant ring at reconfiguration time of <\~0.3\~s	50	50	50
Cascading in cases of star topology	any (depending only on signal propagation time)	any (depending only on signal propagation time)	any (depending only on signal propagation time)
Product functions management, configuration
Product function
● CLI	Yes	Yes	Yes
● web-based management	Yes	Yes	Yes
● MIB support	Yes	Yes	Yes
● TRAPs via email	Yes	Yes	Yes
● Configuration with STEP 7	Yes	Yes	Yes
● RMON	Yes	Yes	Yes
● SMTP server	No	No	No
● Port mirroring	Yes	Yes	Yes
● multiport mirroring	Yes	Yes	Yes
● CoS	Yes	Yes	Yes
● PROFINET IO diagnosis	Yes	Yes	Yes
● switch-managed	Yes	Yes	Yes
Telegram length for Ethernet maximum	1 632 byte	1 632 byte	1 632 byte
Protocol is supported
● Telnet	Yes	Yes	Yes
● HTTP	Yes	Yes	Yes
● HTTPS	Yes	Yes	Yes
● TFTP	Yes	Yes	Yes
● BOOTP	No	No	No
● GMRP	Yes	Yes	Yes
● DCP	Yes	Yes	Yes
● LLDP	Yes	Yes	Yes
● EtherNet/IP	Yes	Yes	Yes
● IGMP (snooping/querier)	Yes	Yes	Yes
Identification & maintenance function
● I&M0 - device-specific information	Yes	Yes	Yes
● I&M1 – higher-level designation/location designation	Yes	Yes	Yes
Protocol is supported
● SNMP v1	Yes	Yes	Yes
● SNMP v2	Yes	Yes	Yes
● SNMP v3	Yes	Yes	Yes
Product functions Diagnosis
Product function
● Port diagnostics	Yes	Yes	Yes
● Statistics Packet Size	Yes	Yes	Yes
● Statistics packet type	Yes	Yes	Yes
● Error statistics	Yes	Yes	Yes
● SysLog	Yes	Yes	Yes
Product functions VLAN
Product function
● VLAN - port based	Yes	Yes	Yes
● VLAN - protocol-based	No	No	No
● VLAN - IP-based	No	No	No
● VLAN dynamic	Yes	Yes	Yes
Number of VLANs maximum	257	257	257
Number of VLANs - dynamic maximum	257	257	257
Protocol is supported GVRP	Yes	Yes	Yes
Product functions DHCP
Product function
● DHCP client	Yes	Yes	Yes
● DHCP Option 82	Yes	Yes	Yes
● DHCP Option 66	Yes	Yes	Yes
● DHCP Option 67	Yes	Yes	Yes
Product functions Redundancy
Product function
● Ring redundancy	Yes	Yes	Yes
● High Speed Redundancy Protocol (HRP)	Yes	Yes	Yes
● high speed redundancy protocol (HRP) with redundancy manager	Yes	Yes	Yes
● high speed redundancy protocol (HRP) with standby redundancy	Yes	Yes	Yes
Protocol is supported Media Redundancy Protocol (MRP)	Yes	Yes	Yes
Product function
● media redundancy protocol (MRP) with redundancy manager	Yes	Yes	Yes
● redundancy procedure STP	Yes	Yes	Yes
● redundancy procedure RSTP	Yes	Yes	Yes
● redundancy procedure MSTP	Yes	Yes	Yes
● Parallel Redundancy Protocol (PRP)/operation in the PRP-network	No	No	No
● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)	No	No	No
● Passive listening	Yes	Yes	Yes
Protocol is supported
● LACP	Yes	Yes	Yes
Product functions Security
Product function
● IEEE 802.1x (radius)	Yes	Yes	Yes
● Broadcast/Multicast/Unicast Limiter	Yes	Yes	Yes
● broadcast blocking	Yes	Yes	Yes
Protocol is supported
● SSH	Yes	Yes	Yes
● SSL	Yes	Yes	Yes
Product functions Time
Product function
● SICLOCK support	Yes	Yes	Yes
● NTP-client	Yes	Yes	Yes
● SNTP client	Yes	Yes	Yes
Protocol is supported
● NTP	Yes	Yes	Yes
● SNTP	Yes	Yes	Yes
Standards, specifications, approvals
Certificate of suitability CE marking	Yes	Yes	Yes
product conformity according to EMC-guideline	2014/30/EU	2014/30/EU	2014/30/EU
Standard
● for EMC interference emission	EN 61000-6-4, EN 50121-4	EN 61000-6-4, EN 50121-4	EN 61000-6-4, EN 50121-4
● for immunity to EMI	EN 61000-6-2, EN 50121-4	EN 61000-6-2, EN 50121-4	EN 61000-6-2, EN 50121-4
Certificate of suitability RoHS conformity	Yes; 2011/65/EU	Yes; 2011/65/EU	Yes; 2011/65/EU
Certificate of suitability
● ATEX	Yes	Yes	Yes
● IECEx	Yes	Yes	Yes
Certificate of suitability
● Railway application in accordance with EN 50121-4	Yes	Yes	Yes
● Regulatory Compliance Mark (RCM)	Yes	Yes	Yes
● EAC approval	Yes		Yes
MTBF at 40 °C	46.43 y	46.43 y	47.06 y
Accessories
Product extension optional C-PLUG	Yes	Yes	Yes

Order number	6GK5208-0BA00-2AC2	6GK5216-0BA00-2AC2	6GK5224-0BA00-2AC2

Product type designation	SCALANCE XC208	SCALANCE XC216	SCALANCE XC224
Transmission rate
Transfer rate	10 Mbit/s, 100 Mbit/s	10 Mbit/s, 100 Mbit/s	10 Mbit/s, 100 Mbit/s
Interfaces for communication integrated
Number of electrical connections
● for network components or terminal equipment	8; RJ45	16; RJ45	24; RJ45
Number of 10/100 Mbit/s RJ45 ports Integrated
● with securing collar	8	16	24
Interfaces others
Number of electrical connections
● for operator console	1	1	1
● for signaling contact	1	1	1
● for power supply	1	1	1
● for redundant voltage supply	1	1	1
Type of electrical connection
● for operator console	RJ11 port	RJ11 port	RJ11 port
● for signaling contact	2-pole terminal block	2-pole terminal block	2-pole terminal block
● for power supply	4-pole terminal block	4-pole terminal block	4-pole terminal block
design of the removable storage
● C-PLUG	Yes	Yes	Yes
Signal-Inputs/outputs
Operating voltage of the signaling contacts
● at DC Rated value	24 V	24 V	24 V
Operating current of the signaling contacts
● at DC maximum	0.1 A	0.1 A	0.1 A
Supply voltage, current consumption, power loss
Type of voltage of the supply voltage	DC	DC	DC
Supply voltage
● external	24 V	24 V	24 V
● external	9.6 ... 31.2 V	9.6 ... 31.2 V	9.6 ... 31.2 V
Supply voltage 4 Rated value
● Consumed current 4 at rated supply voltage maximum	0.175 A	0.275 A	0.375 A
Product component fusing at power supply input	Yes	Yes	Yes
Fuse protection type at input for supply voltage	2.5 A / 125 V	2.5 A / 125 V	2.5 A / 125 V
Consumed current maximum	0.35 A	0.55 A	0.75 A
Power loss [W]
● at DC at 24 V	4.2 W	6.6 W	9 W
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● during transport	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
Relative humidity
● at 25 °C without condensation during operation maximum	95 %	95 %	95 %
Protection class IP	IP20	IP20	IP20
Design, dimensions and weight
Design	compact	compact	compact
Width	60 mm	120 mm	120 mm
Height	147 mm	147 mm	147 mm
Depth	125 mm	125 mm	125 mm
Net weight	0.52 kg	0.8 kg	0.88 kg
Material of the enclosure	Polycarbonate (PC-GF10) / pressure die cast aluminum	Polycarbonate (PC-GF10) / pressure die cast aluminum	Polycarbonate (PC-GF10) / pressure die cast aluminum
Mounting type
● 35 mm DIN rail mounting	Yes	Yes	Yes
● wall mounting	Yes	Yes	Yes
● S7-300 rail mounting	Yes	Yes	Yes
● S7-1500 rail mounting	Yes	Yes	Yes
Product properties, functions, components general
Cascading in the case of a redundant ring at reconfiguration time of <\~0.3\~s	50	50	50
Cascading in cases of star topology	any (depending only on signal propagation time)	any (depending only on signal propagation time)	any (depending only on signal propagation time)
Product functions management, configuration
Product function
● CLI	Yes	Yes	Yes
● web-based management	Yes	Yes	Yes
● MIB support	Yes	Yes	Yes
● TRAPs via email	Yes	Yes	Yes
● Configuration with STEP 7	Yes	Yes	Yes
● RMON	Yes	Yes	Yes
● SMTP server	No	No	No
● Port mirroring	Yes	Yes	Yes
● multiport mirroring	Yes	Yes	Yes
● CoS	Yes	Yes	Yes
● PROFINET IO diagnosis	Yes	Yes	Yes
● switch-managed	Yes	Yes	Yes
Telegram length for Ethernet maximum	1 632 byte	1 632 byte	1 632 byte
Protocol is supported
● Telnet	Yes	Yes	Yes
● HTTP	Yes	Yes	Yes
● HTTPS	Yes	Yes	Yes
● TFTP	Yes	Yes	Yes
● BOOTP	No	No	No
● GMRP	Yes	Yes	Yes
● DCP	Yes	Yes	Yes
● LLDP	Yes	Yes	Yes
● EtherNet/IP	Yes	Yes	Yes
● IGMP (snooping/querier)	Yes	Yes	Yes
Identification & maintenance function
● I&M0 - device-specific information	Yes	Yes	Yes
● I&M1 – higher-level designation/location designation	Yes	Yes	Yes
Protocol is supported
● SNMP v1	Yes	Yes	Yes
● SNMP v2	Yes	Yes	Yes
● SNMP v3	Yes	Yes	Yes
Product functions Diagnosis
Product function
● Port diagnostics	Yes	Yes	Yes
● Statistics Packet Size	Yes	Yes	Yes
● Statistics packet type	Yes	Yes	Yes
● Error statistics	Yes	Yes	Yes
● SysLog	Yes	Yes	Yes
Product functions VLAN
Product function
● VLAN - port based	Yes	Yes	Yes
● VLAN - protocol-based	No	No	No
● VLAN - IP-based	No	No	No
● VLAN dynamic	Yes	Yes	Yes
Number of VLANs maximum	257	257	257
Number of VLANs - dynamic maximum	257	257	257
Protocol is supported GVRP	Yes	Yes	Yes
Product functions DHCP
Product function
● DHCP client	Yes	Yes	Yes
● DHCP Option 82	Yes	Yes	Yes
● DHCP Option 66	Yes	Yes	Yes
● DHCP Option 67	Yes	Yes	Yes
Product functions Redundancy
Product function
● Ring redundancy	Yes	Yes	Yes
● High Speed Redundancy Protocol (HRP)	Yes	Yes	Yes
● high speed redundancy protocol (HRP) with redundancy manager	Yes	Yes	Yes
● high speed redundancy protocol (HRP) with standby redundancy	Yes	Yes	Yes
Protocol is supported Media Redundancy Protocol (MRP)	Yes	Yes	Yes
Product function
● media redundancy protocol (MRP) with redundancy manager	Yes	Yes	Yes
● redundancy procedure STP	Yes	Yes	Yes
● redundancy procedure RSTP	Yes	Yes	Yes
● redundancy procedure MSTP	Yes	Yes	Yes
● Parallel Redundancy Protocol (PRP)/operation in the PRP-network	No	No	No
● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)	No	No	No
● Passive listening	Yes	Yes	Yes
Protocol is supported
● LACP	Yes	Yes	Yes
Product functions Security
Product function
● IEEE 802.1x (radius)	Yes	Yes	Yes
● Broadcast/Multicast/Unicast Limiter	Yes	Yes	Yes
● broadcast blocking	Yes	Yes	Yes
Protocol is supported
● SSH	Yes	Yes	Yes
● SSL	Yes	Yes	Yes
Product functions Time
Product function
● SICLOCK support	Yes	Yes	Yes
● NTP-client	Yes	Yes	Yes
● SNTP client	Yes	Yes	Yes
Protocol is supported
● NTP	Yes	Yes	Yes
● SNTP	Yes	Yes	Yes
Standards, specifications, approvals
Certificate of suitability CE marking	Yes	Yes	Yes
product conformity according to EMC-guideline	2014/30/EU	2014/30/EU	2014/30/EU
Standard
● for EMC interference emission	EN 61000-6-4, EN 50121-4	EN 61000-6-4, EN 50121-4	EN 61000-6-4, EN 50121-4
● for immunity to EMI	EN 61000-6-2, EN 50121-4	EN 61000-6-2, EN 50121-4	EN 61000-6-2, EN 50121-4
Certificate of suitability RoHS conformity	Yes; 2011/65/EU	Yes; 2011/65/EU	Yes; 2011/65/EU
Certificate of suitability
● ATEX	Yes	Yes	Yes
● IECEx	Yes	Yes	Yes
Certificate of suitability
● Railway application in accordance with EN 50121-4	Yes	Yes	Yes
● Regulatory Compliance Mark (RCM)	Yes	Yes	Yes
● EAC approval	Yes	Yes	Yes
MTBF at 40 °C	57.15 y	48.09 y	41.36 y
Accessories
Product extension optional C-PLUG	Yes	Yes	Yes

Дальнейшая информация

Selection tool:

To assist in selecting the right Industrial Ethernet switches as well as configuration of modular variants, the SIMATIC NET Selection Tool and the TIA Selection Tool are available at:

TIA Selection Tool:

http://www.siemens.com/tia-selection-tool
