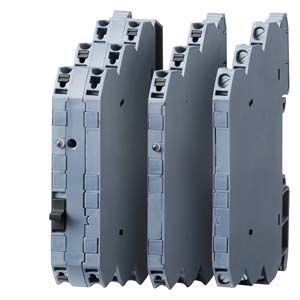

SIRIUS 3RS70 signal converters

Заказные данные
(36)
Аксессуары
(7)

More information
Home page, see http://www.siemens.com/relays	For the conversion tool, e.g. from 3RS17 to 3RS70, see http://www.siemens.com/sirius/conversion-tool
Industry Mall, see http://www.siemens.com/product?3RS70

Signal converters perform the coupling function for analog signals on both the input side and the output side. They are indispensable when processing analog values with electronic controls. Under harsh industrial conditions in particular, it is often necessary to transmit analog signals over long distances. Electrical separation is then needed as a result of the different power supplies. The resistance of the wiring causes potential differences and losses which must be prevented.

Electromagnetic disturbance and overvoltages can affect the signals on the input side in particular or even destroy the analog modules. All terminals of the 3RS70 signal converters are safe up to a voltage of 30 V DC and protected against reverse polarity. Short-circuit protection is an important function for the outputs above all.

The devices are EMC-tested according to

IEC 61000-6-4 (generic standard for emitted interference)
IEC 61000-6-2 (generic standard for interference immunity)

The analog signals comply with

IEC 60381-1/2.

Article No. scheme

Product versions		Article number
Signal converters		3RS70	❒	❒	–	❒	❒	❒	0	0
Product function/type of input signal	Single-range converters, active		0	0							3-way separation, input 0 ... 10 V
			0	2							3-way separation, input 0 ... 20 mA,
			0	3							3-way separation, input 4 ... 20 mA,
	Switchable multi-range converters, active		0	5							3-way separation, 3 standard signals can be switched 0 ... 10 V, 0/4 ... 20 mA
	Switchable universal converters, active		0	6							3-way separation, 16 signals can be switched
	Single-range converters, passive		2	0							2-way separation, 4 ... 20 mA
	Switchable multi-range converters, active		2	5							3-way separation, with manual/automatic switch and setting potentiometer
Connection type	Screw terminal					1
Connection type	Spring-type terminals (push-in)					2
Type of output signal	0 ... 10 V						A
	0 ... 20 mA						C
	4 ... 20 mA						D
	Loop power isolator 4 – 20 mA						E
	3 standard signals can be switched						F
	4 frequencies can be switched						K
Supply voltage	24 V AC/DC							E
	None							T
	24 ... 240 V AC/DC							W
Example		3RS70	0	0	-	1	A	E	0	0

Note:

The Article No. scheme shows an overview of product versions for better understanding of the logic behind the article numbers. For your orders please use the article numbers quoted in the selection and ordering data.

Область применения

Signal converters are used in analog signal processing for

Electrical separation
Conversion of normalized and non-normalized signals
Amplification and impedance adaptation
Conversion to a frequency for processing by a digital input
Overvoltage and EMC protection
Short-circuit protection of the outputs

3RS7025 manual / automatic transformer

For special applications in which analog signals have to be simulated, or during plant commissioning when the actual process value is not yet available, the 3RS7025 devices feature an adjustable potentiometer for manual setpoint selection and a manual/automatic switch.

The potentiometer for the 3RS7025 devices is used to simulate analog output signals when the changeover switch is set to "Manual" and the control supply voltage is applied, without the need for an analog input signal, and the scale ranges from 0 % to 100 %.

Example: When it is set for an output of 4 mA to 20 mA, the 0 % scale value on the potentiometer represents an output current of 4 mA and the 100 % scale value represents an output current of 20 mA. In the "Auto" switch position, the output signal follows the input signal proportionally regardless of the potentiometer setting.

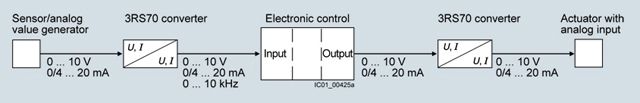

Application example: Analog signal processing

Особенности

Narrow design
Easy-to-set universal converters
Converters with frequency output
All ranges are fully calibrated
Universal family of devices – the perfect solution for every application
Integrated manual-automatic switch with a setpoint generator
Outputs are short-circuit-proof
Up to 30 V – protected against damage caused by wiring errors

Технические данные

Order number		3RS7000-1AE00 3RS7000-2AE00	3RS7002-1AE00 3RS7003-1AE00 3RS7002-2AE00 3RS7003-2AE00	3RS7000-1CE00 3RS7000-1DE00 3RS7000-2CE00 3RS7000-2DE00	3RS7002-1CE00 3RS7002-1DE00 3RS7003-1CE00 3RS7003-1DE00 3RS7002-2CE00 3RS7002-2DE00 3RS7003-2CE00 3RS7003-2DE00	3RS7020-1ET00 3RS7020-2ET00
Design of the product		Wert fehlt
General data
Width x Height x Depth	mm	6.2 × 93 × 72.5				6.2 × 93 × 71
Ambient temperature
● during operation	°C	-25 ... +60
● during storage	°C	-40 ... +80
Relative humidity during operation	%	10 ... 95
Insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value	V	50
Consumed active power	W	0.29				--
Protection class IP		IP20
Input
Input voltage maximum	V	30
Input impedance
● of current input maximum	Ω	--	100	--	100
● of voltage input minimum	kΩ	330	--	330	--
Output
Load
● at the current output maximum	Ω	--		500		1 000
● at voltage output maximum	kΩ	2		--
Relative metering precision	%	0.1
Overvoltage strength at the current output maximum		--
Short-circuit proof		Yes				No

Order number		3RS7005-.FE00	3RS7005-.KE00	3RS7005-.FW00	3RS7005-.KW00	3RS7025-.FE00	3RS7025-.FW00
Design of the product		Wert fehlt
General data
Width x Height x Depth	mm	6.2 × 93 × 72.5		17.5 × 93 × 72.5		17.5 × 93 × 75
Ambient temperature
● during operation	°C	-25 ... +60
● during storage	°C	-40 ... +80
Relative humidity during operation	%	10 ... 95
Insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value	V	50		300		50	300
Consumed active power	W	0.29		0.5	0.34	0.5
Protection class IP		IP20
Input
Input voltage maximum	V	30
Input impedance
● of current input maximum	Ω	100
● of voltage input minimum	kΩ	330
Output
Load
● at the current output maximum	Ω	500	--	500	--	500
● at voltage output maximum	kΩ	2	--	2	--	2
Relative metering precision	%	0.1
Overvoltage strength at the current output maximum		--
Short-circuit proof		Yes

Order number		3RS7006-.FE00	3RS7006-.FW00
Design of the product		Wert fehlt!
General data
Width x Height x Depth	mm	17.5 × 93 × 72.5
Ambient temperature
● during operation	°C	-25 ... +60
● during storage	°C	-40 ... +80
Relative humidity during operation	%	10 ... 95
Insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value	V	50	300
Consumed active power	W	0.5
Protection class IP		IP20
Input
Input voltage maximum	V	30
Input impedance
● of current input maximum	Ω	100
● of voltage input minimum	kΩ	330
Output
Load
● at the current output maximum	Ω	500
● at voltage output maximum	kΩ	2
Relative metering precision	%	0.1
Short-circuit proof		Yes

Order number	3RS70..-1..00	3RS70..-2..00
Type of electrical connection	screw-type terminals	spring-loaded terminals
Type of connectable conductor cross-sections
● solid	1x (0.25 ... 2.5 mm²)
● finely stranded without core end processing	--	1x (0.25 ... 2.5 mm²)
● finely stranded with core end processing	1x (0.25 ... 1.5 mm²)
● at AWG conductors solid	1 x (20 ... 14)
