  SINUMERIK 808D V60 training kit

  The SINUMERIK 808D V60 training kit is used for the realistic practice of operating, programming, commissioning and service tasks in conjunction with SINUMERIK 808D training kits.

  Дизайн

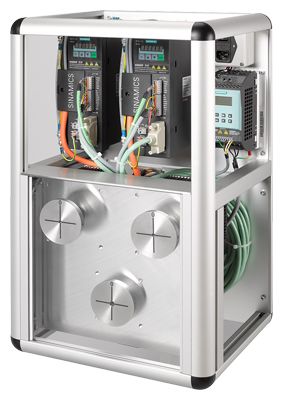

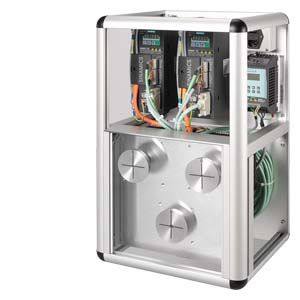

  The SINUMERIK 808D V60 training kit includes:

  • 2× SINAMICS V60 CPM60.1 modules
  • SINAMICS G120 Power Module with CU240B-2 Control Unit and Basic Operator Panel
  • 2 × SIMOTICS 1FL5 feed motors
  • SIMOTICS 1LE1 standard motor
  • Rugged shock-proof transport case made of aluminum

  The SINUMERIK 808D V60 training kit is designed as a standing device and can only be operated in conjunction with SINUMERIK 808D training kits.

  Технические данные

  Product name	SINUMERIK 808D V60 training kit
  	6AG1067-1AA28-0AA0
  Supply voltage	380 ... 480 V 3 AC
  Degree of protection to DIN VDE 0470 Part 1/ EN 60529/IEC 60529	IP00
  Ambient temperature
  Storage	-20 … +60 °C (-4 ... +140 °F)
  Transport	-20 … +60 °C (-4 ... +140 °F)
  Operation	5 ... 40 °C (41 ... 104 °F)
  Dimensions (W × H × D)	615 mm × 1150 mm × 615 mm (24.21 in × 45.28 in × 24.21 in)
  Weight, approx.	34 kg (74.9 lb)
