IE FC RJ45 Plug 4 x 2, Cat6A

Заказные данные
(3)
Аксессуары
(5)

Implementation of direct device connections of up to 100 m with Industrial Ethernet FC installation cable 4 x 2 without using patch technology
Easy connection (insulation displacement contacts) for 8-core twisted pair installation cables (10/100/1000/10000 Mbit/s) without the need for special tools
Error-minimizing connection technique thanks to visible connection area as well as color-coded insulation displacement contacts
Industry-compatible design (rugged metal housing, no easily lost small parts)
Excellent EMC shielding and deflection (metal housing)
Integrated strain-relief for installation cables
Compatible with the EN 50173 (RJ45) / ISO IEC 11801 standard
Additional strain and bending relief of plug connector possible through latching of plug on device housing, e.g. with SCALANCE X, SCALANCE S, SCALANCE M.

Область применения

The compact, rugged design of the Cat6_A connector makes the FC RJ45 plug suitable for use in both industrial environments and on office equipment.

The Industrial Ethernet FastConnect RJ45 plug 4 x 2 permits quick and easy installation of the Industrial Ethernet FastConnect installation cables 4 x 2 (8-core twisted pair AWG24 cables) in the field.

The Industrial Ethernet FastConnect Stripping Tool for preparing the end of a cable (stripping the jacket and shield in one step) allows simple handling and fast, reliable fitting of the cable connector to the cable. As all the cable connector parts are captive, it can also be fitted in difficult conditions.

The new plug-in connector enables point-to-point links to be implemented (10/100/1000 Mbit/s) for Industrial Ethernet between two data terminals/network components up to 100 m apart without the need for patches.

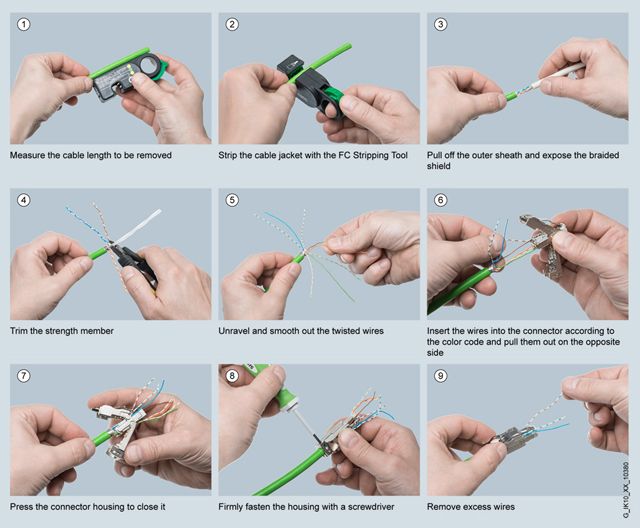

Work steps for fitting the IE FC RJ45 Plug 4 x 2 Cat6_A

Дизайн

The Industrial Ethernet FC RJ45 Plug 4 x 2 is available with a 180° (straight) cable outlet.

It is the ideal method of connecting an Industrial Ethernet FastConnect cable to data terminals and network components. The plug has a rugged, industry-compatible metal housing that provides optimum protection against faults in data communication.

The eight integrated insulation displacement contacts make contacting of the FC cable variants 4 x 2 and 2 x 2 easy and error-free. After the stripped cable ends have been inserted in the connector and the excess length of core has emerged on the other side of the housing, the housing is closed to make the contact and cut off the excess length.

Owing to their compact size, the plug connectors can be used both on devices with individual jacks and on devices with multiple jacks (blocks).

Data terminals with a suitable bracket on the housing provide additional tension and bending relief for the plug-in cable.

Функции

The IE FC RJ45 plug 4 x 2 is used to install uncrossed 10/100/1000/10000 Mbit/s Ethernet connections up to 100 m without the use of patches. Crossed cables can also be installed by swapping the transmit and receive pair in a plug.

With the casing open, colored markers on the contact element make it simple to connect the cores to the insulation displacement contacts. This enables faulty contacts to be detected and prevented at an early stage.

Особенности

Ideal solution for installation of RJ45 plugs in the field
Time-saving, error-free installation due to FastConnect system
Noise-resistant RJ45 plug connector due to rugged metal housing
Reliable shield attachment and strain relief are integrated
Color coding in contact area prevents errors
Coordinated system comprising Industrial Ethernet FastConnect plug-in connectors and an extensive range of FastConnect cables with corresponding UL approvals

Технические данные

Order number		6GK1901-1BB12-2AA0
Product type designation		IE FC RJ45 Plug 180 (4x2)
Product description		RJ45 data connector
Suitability for use		For connection to IE FC TP cables 4x2, suitable for fast assembly with the FastConnect system
Transmission rate
Transfer rate for Industrial Ethernet		10 Mbit/s, 100 Mbit/s, 1 000 Mbit/s, 10 000 Mbit/s
Interfaces
Number of electrical connections
● for Industrial Ethernet FC TP cables		8
● for network components or terminal equipment		1
Type of electrical connection
● for Industrial Ethernet FC TP cables		integrated cut-and-clamp contacts for 8-wire TP FC installation cable
● for network components or terminal equipment		RJ45 connector
Type of electrical connection FastConnect		Yes
Mechanical data
Material of the enclosure		metal
Number of reuses		10
Locking mechanism design		other
Design, dimensions and weight
Type of cable outlet		180° cable outlet
Width		13.7 mm
Height		16 mm
Depth		55 mm
Net weight		35 g
Connectable cable cross-section		8 ... 8 mm
Permitted ambient conditions
Ambient temperature
● during operation		-40 ... +85 °C
● during storage		-40 ... +85 °C
● during transport		-40 ... +85 °C
Relative humidity at 25 °C without condensation during operation maximum		95 %
Protection class IP		IP20
Product properties, functions, components general
Product feature
● PoE capability		Yes
● PoE+capability		Yes
● silicon-free		Yes
Product component
● strain relief		Yes
Standards, specifications, approvals
Certificate of suitability
● RoHS conformity		Yes
● UL approval		Yes
● cULus approval		Yes
● Railway application in accordance with EN 50155		No
Standard for structured cabling		Cat6A
