1PH8 for SINAMICS S120 for machine tools

• Заказные данные
  (90)
• Информационные материалы

  Информационные материалы

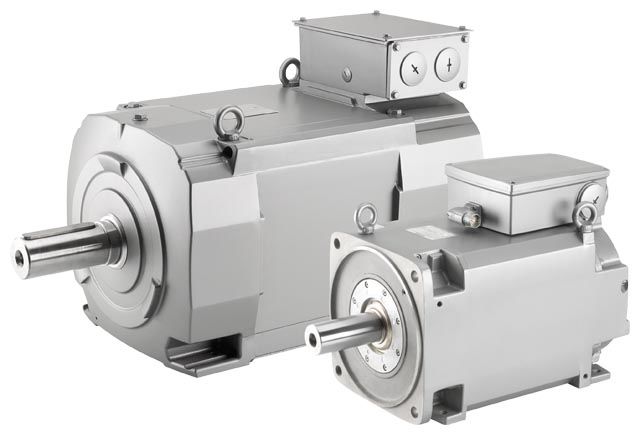

  SIMOTICS M-1PH8 motors are compact permanent-magnet synchronous motors with IP55/IP65 degree of protection. The motors are available in different cooling types:

  • Forced ventilation for SH 132 to SH 225
  • Water cooling for SH 132 to SH 225

  The motors have been designed specifically for use in conjunction with the SINAMICS S120 drive system. Depending on the control requirements, appropriate encoder systems are available for the motors for sensing the motor speed and indirect position.

  Область применения

  • As feed motors in machine tools
  • Machines with high requirements in terms of dynamic performance and precision, e.g.:
    • Packaging machines
    • Servo presses
    • Printing machines
    • Cross cutters

  Характеристика

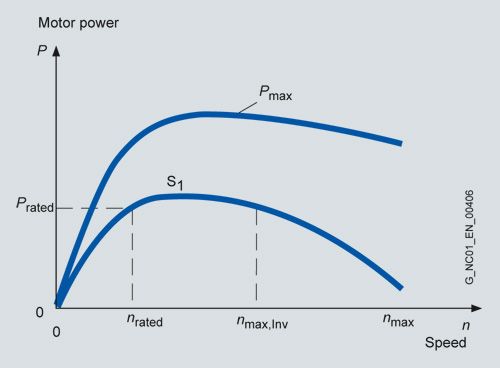

  Typical speed/power graph for SIMOTICS M-1PH8 synchronous motors

  The graph shows the typical relationship between motor speed and drive power for SIMOTICS M-1PH8 motors for duty type S1 (continuous duty) in accordance with IEC 60034-1.

  Data for short-time duty S2 and continuous duty S6 is listed in the 1PH8 Motors Configuration Manual.

  Конфигурация

  Ordering example

  Selection criteria	Design	Structure of the Article No.
  1PH8 motor	Shaft height 132 Version status 1	1PH8131-. . . . . - . . .1
  	Synchronous version without brake	1PH8131-2 . . . . - . . .1
  Encoder system	Incremental encoder sin/cos 1 Vpp 2048 S/R with C and D tracks (encoder IC2048S/R)	1PH8131-2M . . .- . . .1
  Rated speed	1750 rpm	1PH8131-2MF . . - . . .1
  Rated power	20.4 kW
  Cooling	Water cooling	1PH8131-2MF2 . - . . .1
  Type of construction	IM B3 (IM V5, IM V6)	1PH8131-2MF20- . . .1
  Shaft extension DE	Plain shaft	1PH8131-2MF20-0 . .1
  Bearing version	Standard Vibration severity R/A Shaft and flange accuracy R	1PH8131-2MF20-0B .1
  Connection	Power connection at top of terminal box Cable entry on right Signal connection at DE	1PH8131-2MF20-0BA1
  Options		1PH8131-2MF20-0BA1-Z
  	Additional PTC thermistor chain for alarm and tripping	1PH8131-2MF20-0BA1-Z A12
  	Special paint finish, worldwide: Primer and other paint finish sky blue RAL 5015	1PH8131-2MF20-0BA1-Z A12 K23 X05





  Чертеж

  ENG_137918.PDF

  Особенности

  • Wide range of power ratings
  • Different bearing designs
  • Different encoder types for speed control and high-precision positioning
  • Excellent performance features
    • Excellent rotational accuracy
    • Excellent vibration severity
    • High dynamic response (short ramp-up times)

  • Low noise emission
  • Simple, flexible connection system
  • Commissioning with electronic rating plate and DRIVE-CLiQ interface

  Технические данные

  Product name	SIMOTICS M-1PH8
  Cooling	Forced ventilation	Water cooling
  Cooling water pressure at inlet, max.	–	6 bar
  		Cooling water flow rate	Connection thread at NDE1)
  1PH813	–	12 l/min (3.17 US gallons/min.)	G 3/8“
  1PH816	–	15 l/min (3.96 US gallons/min.)	G 1/2“
  1PH818	–	15 l/min (3.96 US gallons/min.)	G 3/8“
  1PH822	–	25 l/min (6.61 US gallons/min.)	G 3/8“
  Ambient temperature, permissible	-15 ... +40 °C (5 ... 104 °F)2)
  Coolant inlet temperature	–	< 30 °C (86 °F)
  Temperature monitoring	Temperature sensor in stator winding
  1PH818/1PH822	Additional temperature sensor as reserve
  Stator winding insulation in accordance with EN 60034-1 (IEC 60034-1)	For an ambient temperature of up to 40 °C (104 °F) Temperature class 180 (H)3)
  Fan supply voltage
  1PH813/1PH816	400 V 3 AC ± 10 %, 50/60 Hz 480 V 3 AC ± 10 %, 60 Hz	–
  1PH818/1PH822	200 V 1 AC ... 277 V 50/60 Hz (EC fan) 400 V 3 AC 50/60 Hz, 480 V 3 AC 60 Hz (option L75)	–
  Encoder system, built-in	Without DRIVE-CLiQ interface or with DRIVE-CLiQ interface
  Sound pressure level LpA (1 m) in accordance with EN ISO  1680 Tolerance +3 dB
  1PH813	70 dB4)	68 dB4)
  1PH816	73 dB4)	69 dB4)
  1PH818/1PH822	73 dB5)	70 dB5)
  Connection
  1PH813	Power connector or terminal box
  1PH816 to 1PH822	Terminal box	Terminal box
  Fan for 1PH813	Power connector or terminal box	–
  Fan for 1PH816 to 1PH822	Terminal box	–
  Encoder system	Connector for signals (without mating connector) or DRIVE-CLiQ
  Vibration severity	In accordance with Siemens/EN 60034-14 (IEC 60034-14)
  Shaft and flange accuracy in accordance with DIN 42955 (IEC 60072-1)6)	Tolerance R
  Degree of protection in accordance with EN 60034-5 (IEC 60034-5)
  1PH813/1PH816	IP55	IP65
  1PH818/1PH822	IP55	IP55
  Fans	IP55, option IP74: IP657)	–
  Rating plate	1 unit attached to motor 1 unit supplied loose in terminal box
  Paint finish	Anthracite RAL 7016
  Certificate of suitability	cURus





  ¹⁾ DE is the drive end with shaft. NDE is the non-drive end^.

  ²⁾ With water cooling - due to the formation of condensation - the ambient temperature may be a maximum of 5 K above that of the coolant inlet temperature.

  ³⁾ The following motors are designed to conform to temperature class 155 (F):
  1PH8138-2.F2/1PH8138-2.G2
  1PH8164/1PH8166/1PH8168

  ⁴⁾ Rated pulse frequency 4 kHz and speed range up to 5000 rpm.

  ⁵⁾ Rated pulse frequency 4 kHz or 2 kHz and speed range up to 3800 rpm (1PH818) or 3500 rpm (1PH822).

  ⁶⁾ Shaft extension run-out, concentricity of centering ring and shaft, and perpendicularity of flange to shaft.

  ⁷⁾ L74 for 1PH813 and 1PH816; L75 for 1PH818 and 1PH822.

  Дальнейшая информация

  For further configuration information, see the 1PH8 Motors Configuration Manual.

  If you are using a Smart Line Module, proceed in accordance with the 1PH8 Motors Configuration Manual.
