Rittal command panel systems

• Информационные материалы

  Информационные материалы

  Rittal command panel systems are manufactured with exact dimensions for any combination of SINUMERIK operator components and are ready for installation. Optimum installation of the operator components is assured thanks to the customized dimensions. Select from a wide range of different housing systems, e.g.:

  Rittal VIP 6000 – Multi-talented in shape and function

  The increased surface size resulting from cooling fins and screw channels is the most reliable and cheapest type of heat dissipation.

  • Individual mounting depths of 155 to 438 mm (6.10 in to 17.24 in)
  • 3 frame versions (wide, narrow or combined), depending on application and design requirements
  • Optimum heat dissipation with 3 types of housing
  • Versatile housing connectors
  • Continuous edge profile, 3 versions in 5 colors
  • Keyboard housing, mounting depths: 27 mm/44 mm/105 mm (1.06 in/1.73 in/4.13 in), tray for keyboards
  • Continuous screw channels for flexible internal design
  • Rear panel screwed or hinged



  Rittal Optipanel – The slimline alternative design

  • Individual mounting depths: 50 mm/100 mm/150 mm (1.97 in/3.94 in/5.91 in)
  • Standard housing matched to SINUMERIK operator panels 19" x 7 HU,
    mounting depth 100 mm (3.94 in), available ex stock
  • Continuous edge profile
  • Keyboard housing, mounting depths: 50 mm/100 mm (1.97 in/3.94 in), tray for keyboards, tilting angle can be set to any value between 80° and 155°
  • Continuous T slot for flexible internal design
  • Rear panel screwed or hinged

  Rittal Comfort Panel – Functional and safe

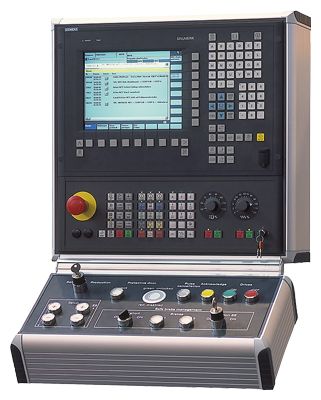

  The "third dimension" command panel in the HMI sector. With a new design and additional functions, the Rittal Comfort Panel is ideally matched to SINUMERIK operator components.

  • Individual mounting depths of 74 to 464 mm (2.91 in to 18.27 in)
  • Standard housing matched to SINUMERIK operator panels 19" x 7 HU,
    mounting depths: 74 mm/113 mm/152 mm/191 mm/308 mm (2.91 in/4.45 in/5.98 in/7.52 in/12.13 in), available ex stock
  • Keyboard housing, mounting depths: 35 mm/74 mm (1.38 in/2.91 in), tray for keyboards, tilting angle can be set to any value between 88° and 136°, with toothed wheel adjustable in increments of 8°; can be tilted upwards after use to save space where necessary
  • Rear panel screwed or hinged
  • Design profile for color coordination with the machine or equipment ID
  • All-round soft profile made of plastic reduces the risk of injury
  • Flat front frame for optimum access to lateral drives
  • Continuous mounting channels for individual dismounting of accessories, internally and externally

  Конфигурация

  Rittal Service

  Configure your Optipanel/Comfort Panel online now - quickly, easily and reliably at:

  http://www.rittal.de/konfigurator

  Sending of:

  • Visual presentation of the selected Optipanel/Comfort Panel
  • 3D data for integration in the machine and plant construction for virtual sample construction on the screen

  Дополнительно

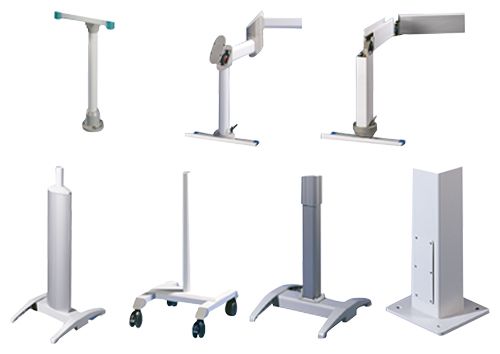

  Support arm systems

  • CP-S compact, for small and flat panel housings
  • CP-L open for simple cable inlet, closed for small to medium panel housings
  • CP-C for medium to high loads
  • CP-XL open for simple cable inlet, closed for high loads

  Stand systems

  • Stationary
  • Mobile
  • Adjustable height
  • Console as stable base for supporting arm systems

  Дальнейшая информация

  For full details, please refer to the Rittal Manual. Contact your Rittal representative or order the manual directly from Rittal.
