Industrial USB Hub 4

• Заказные данные
  (1)
• Информационные материалы

  Информационные материалы

  The Industrial USB Hub 4 is used to connect I/O devices to SINUMERIK PCU 50.5 Windows 7.
  USB peripherals can be connected to the operator component and operated via the Industrial USB Hub 4 without opening the cabinet door.

  Compared with conventional USB hubs, the Industrial USB Hub 4 is also suitable for use in harsh industrial environments on account of its degree of protection IP65.

  Область применения

  The Industrial USB Hub 4 enables up to 4 I/O devices, such as USB flash drive and USB floppy disk drive, USB card reader, etc., to be connected simultaneously to the operator components. The cabinet door no longer has to be opened in order to connect the I/O devices, which increases the availability of the system operated. Continuous operation of the operator component is therefore possible.

  Интеграция

  The Industrial USB Hub 4 is suitable for connection to:

  • SINUMERIK PCU 50.5 Windows 7

  Der Industrial USB Hub 4 is released for the Windows CE/2000/XP/Windows 7 operating systems. The appropriate drivers are supplied with the operating system software.

  Особенности

  • Inspection window for each interface
  • Vibration-proof latching of connected USB cables and USB flash drive
  • One LED per interface for checking the data traffic

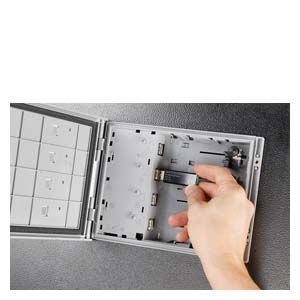

  • Sufficient interior space for easy insertion and removal of USB plugs and USB flash drives
  • Can be installed in a control cabinet or on a standard rail

  Технические данные

  Order number		6AV6671-3AH00-0AX0
  product brand name		SIMATIC HMI
  Product type designation		Industrial USB Hub 4
  Supply voltage
  ● at DC rated value		24 V
  ● at DC		20.4 ... 28.8 V
  Number of interfaces acc. to USB		4
  ● Note		Type USB 2.0, 500 mA each; e.g. connection of mouse, keyboard, printer, USB stick, USB IPC flash drive
  Mounting type rail mounting		Yes
  ● Note		Standard - DIN rail
  Protection class IP
  ● on the front		IP65
  ● Rear side		IP20
  Relative humidity during operation maximum		90 %
  Ambient temperature during storage and transport		-20 ... +60 °C (-4 ... +140 °F)
  Operating temperature in landscape format in vertical mounting position		0 ... 50 °C (32 ... 122 °F)
  Width of the enclosure front		212 mm (8.34646 in)
  Height of the enclosure front		156 mm (6.14173 in)
  Installation depth		50 mm (1.9685 in)
  Weight		460 g (16.22602 oz)
  Certificate of suitability
  ● CE marking		Yes
  ● cULus approval		UL for US, UL for Canada
  ● C-Tick		Yes; C-Tick
