SINUMERIK HT 8

• Заказные данные
  (2)
• Аксессуары
  (14)
• Информационные материалы

  Информационные материалы

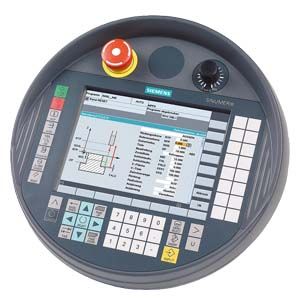

  The mobile SINUMERIK HT 8 handheld terminal combines the functions of an operator panel and a machine control panel in a single device, permitting complete operator control and monitoring of machines. It can be used as a supplementary main operator panel or as a secondary control panel.

  The supplied touch pen with a holding loop permits easy operation of the touch screen, even when operators are wearing gloves. The safety system is designed to allow personnel to work in the machine's hazard zone.

  Дизайн

  The emergency stop button and the 2 enabling buttons (3-step) each have two channels.

  Possible connections for SINUMERIK HT 8:

  • In the control cabinet via the Basic PN connection module
  • At any preferred mounting location in the plant via the Basic or PN Plus connection box

  Функции

  The SINUMERIK HT 8 operates according to the Thin Client principle. The operator software is already installed on a SINUMERIK NCU/PCU. Screen content from the NCU/PCU is transferred to the HT 8 and key information from the HT 8 to the NCU/PCU via Industrial Ethernet. The HT 8 display shows the same operator interface that is displayed on the standard operator panels of the SINUMERIK control system.

  The operator interface can be customized if required (see SINUMERIK Integrate).

  Интеграция

  The SINUMERIK HT 8 handheld terminal can be used for:

  • SINUMERIK 840D sl:
    NCU 710.3B PN/NCU 720.3B PN/NCU 730.3B PN
  • SINUMERIK PCU 50.5 Windows 7

  For information on the cables and length codes refer to MOTION-CONNECT connection systems.

  Конфигурация

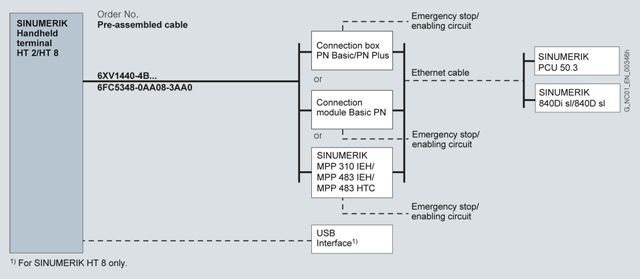

  Connection overview for SINUMERIK HT 2/HT 8

  Особенности

  • Mobility for operator control and monitoring
  • Pixel-graphics 7.5" TFT color display
  • Operation via touch screen, membrane keys and touch pen
  • Emergency stop button and 2 enabling buttons for left-handed and right-handed operators
  • Easy hot swapping during operation (hot plug and play), without triggering the emergency stop in combination with the PN Plus connection box and without an additional, manual actuating element/key switch.
    Insertion and removal during operation without triggering an emergency stop on basic versions requires a manual actuating element/key switch and terminating plug.
  • Rugged, compact and ergonomically designed
  • Signal cables easy to replace without special tools (accessories)

  Технические данные

  Order number			6FC5403-0AA20-0AA1	6FC5403-0AA20-1AA1
  Product brand name			SINUMERIK	SINUMERIK
  Product type designation			HT 8	HT 8
  Product designation			Handheld terminal	Handheld terminal
  Product feature			Without handwheel	With handwheel
  Screen diagonal		in	7.5	7.5
  Design of the display			TFT color VGA	TFT color VGA
  Screen resolution of the display		Pixel	640 × 480	640 × 480
  Supply voltage at DC		V	24	24
  Active power consumption maximum		W	13	13
  Degree of protection			IP65	IP65
  Environmental category acc. to IEC 60721-3-3			Condensation and icing excluded. Low air temperature 0 °C (32 °F).	Condensation and icing excluded. Low air temperature 0 °C (32 °F).
  Relative humidity at 25 °C (77 °F), during
  ● storage		%	5 ... 95	5 ... 95
  ● transport		%	5 ... 95	5 ... 95
  ● operation		%	5 ... 95	5 ... 95
  Ambient temperature, during
  ● storage		°C (°F)	-20 ... +55 (-4 ... +131)	-20 ... +55 (-4 ... +131)
  ● transport		°C (°F)	-20 ... +55 (-4 ... +131)	-20 ... +55 (-4 ... +131)
  ● operation		°C (°F)	0 ... 55 (32 ... 131)	0 ... 55 (32 ... 131)
  Outer diameter of the enclosure		mm (in)	290 (11.41732)	290 (11.41732)
  Height		mm (in)	65 (2.55906)	65 (2.55906)
  ● Note			Without control elements	Without control elements
  Net weight		kg (lb)	1.73 (3.814)	1.73 (3.814)
  Certificate of suitability			CE, cULus	CE, cULus
