  Versatile modular system for measuring and monitoring grinding machines – VM25 system

  The VM25 system includes the hardware and software components required to ensure productivity, economy and quality of the grinding process – using either manual or automatic operations.

  Функции

  The user interface VM25-HMI can be easily integrated by the user into a user application program, or activated as an independent task that can be used immediately.

  Thanks to a complete programming interface based on an Active X library, the program can interact with the devices and the operator for managing the following functions:

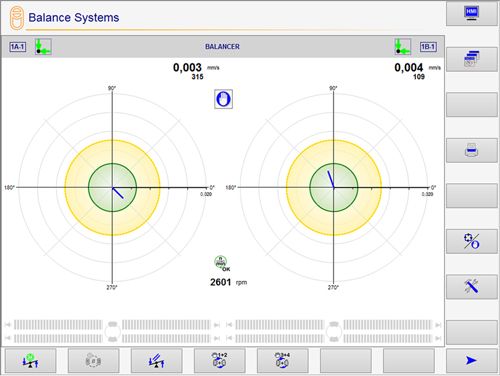

  • Balancing the grinding wheel in 1 or 2 planes, made possible by high-precision balancing heads without torque effect (patented), to achieve the best possible quality.
  • Using acoustic, hydrophone and power sensors:
    • Determining the grinding wheel contact to optimize the machining and finishing cycles
    • Recording of the normal cutting characteristic patterns to monitor and signal process irregularities
  • Absolute and comparative in-process measurement of the workpiece, with immediate correction feedback signal to the CNC/PLC for diameters, lengths and current positions, as well as for roundness deviations (patented), to avoid missing parts and to secure consistent production quality
  • FFT analysis to monitor machine vibration and diagnose faulty components
  • Data collection referred to measurements, internal and external events – with subsequent transfer of this data to other suitable media for process analysis
  • Network connection to a remote PC, in the master or slave mode, via teleservice

  Интеграция

  The VM25 system can be used for the following CNC:

  • SINUMERIK 840D sl
    with SINUMERIK PCU 50.5 Windows 7

  Особенности

  • Complete:
    Permits comprehensive customization of the user interface, data display, setup and commands, with graphic libraries
  • Flexible:
    Various application levels – from templates for immediate use to complex layouts tailored to the user’s requirements
  • Can be integrated:
    One Windows-based application integrates the control and process monitoring functions into the SINUMERIK HMI
  • Intelligent:
    Comprehensive process data collection for effective control of the process
  • Available:
    Open architecture for additional expansions

  Дальнейшая информация

  Balance Systems S.r.l.

  Via Ruffilli 8/10
  20060 PESSANO CON BORNAGO (MI)
  ITALY

  Tel.: +39 02 9504955
  E-mail: info@balancesystems.it

  Internet: http://www.balancesystems.com
