  Elastomer bearing for SIWAREX WL280 RN-S SA load cells, 60 ... 280 kg (132.28 … 617.29 lb)

  Elastomer bearing for SIWAREX WL280 RN-S SA load cells, 0.5 ... 13 t (0.49 … 12.80 lb)

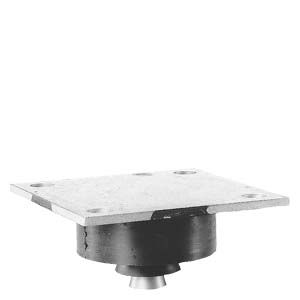

  Used in combination with the self-aligning bearing base part, the self-centering elastomer bearing for SIWAREX WL280 RN-S SA load cells is the ideal load introduction element for scales without guide elements. It is used in container, platform and roller table scales and dampens vibrations and shocks.

  Дизайн

  Elastomer bearings are rubber-metal composites made of neoprene and stainless steel. They ensure large spring excursions (i.e. a high degree of damping) despite small dimensions.

  If the load support is horizontally displaced by more than 4 mm (0.16") or 6 mm (0.24") for a rated load of 10 t (9.84 tn. l.) and 13 t (12.80 tn. l.), the design of the load support must include measures to restrict lateral play (e.g. limit stops). Lifting of the load support must be prevented by suitable measures provided in the construction of the load bearing implement.

  The load cell and the self-aligning bearing bottom part are not included in the scope of delivery of the elastomer bearing.

  Чертеж

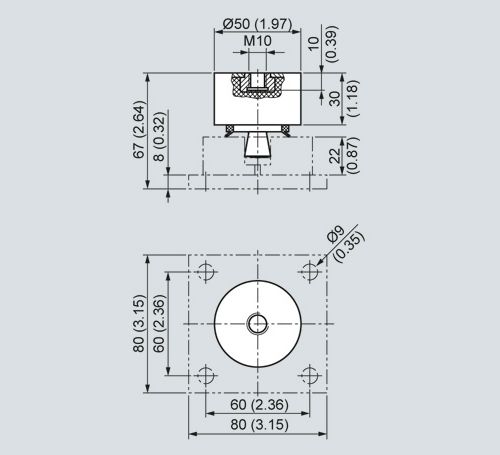

  Elastomer bearing for SIWAREX WL280 RN-S SA load cells, 60 … 280 kg (132.28 … 617.30 lb), dimensions in mm (inch)

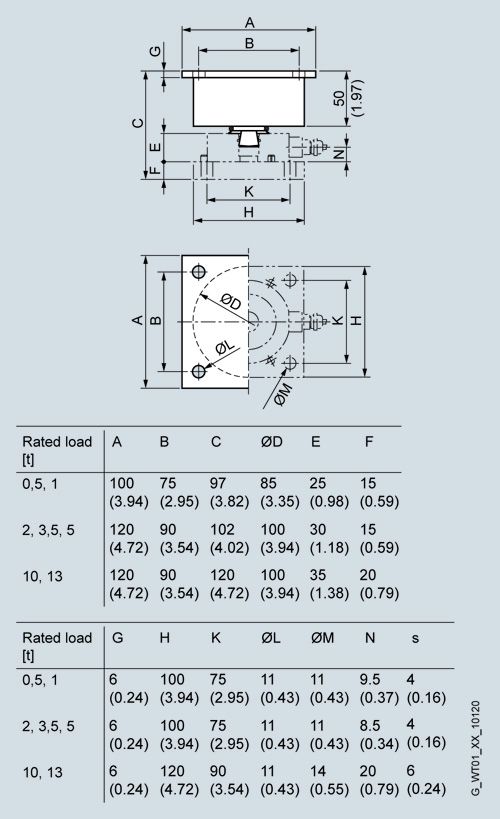

  Elastomer bearing for SIWAREX WL280 RN-S SA load cells, 0.5 … 13 t (0.49 … 12.80 tn. L.), dimensions in mm (inch)

  Технические данные

  Elastomeric bearings for load cells of the SIWAREX WL280 RN-S SA series
  Rated load t (tn. L.)	0.06 ... 5 (0.06 ... 4.92)	10 ... 13 (9.84 ... 12.80)
  Permissible lateral deflection in mm (inch):	± 4 (0.16)	± 6 (0.24)
